Megatron Electrostatic Headphone Amplifier


kevin gilmore
 Share

Recommended Posts

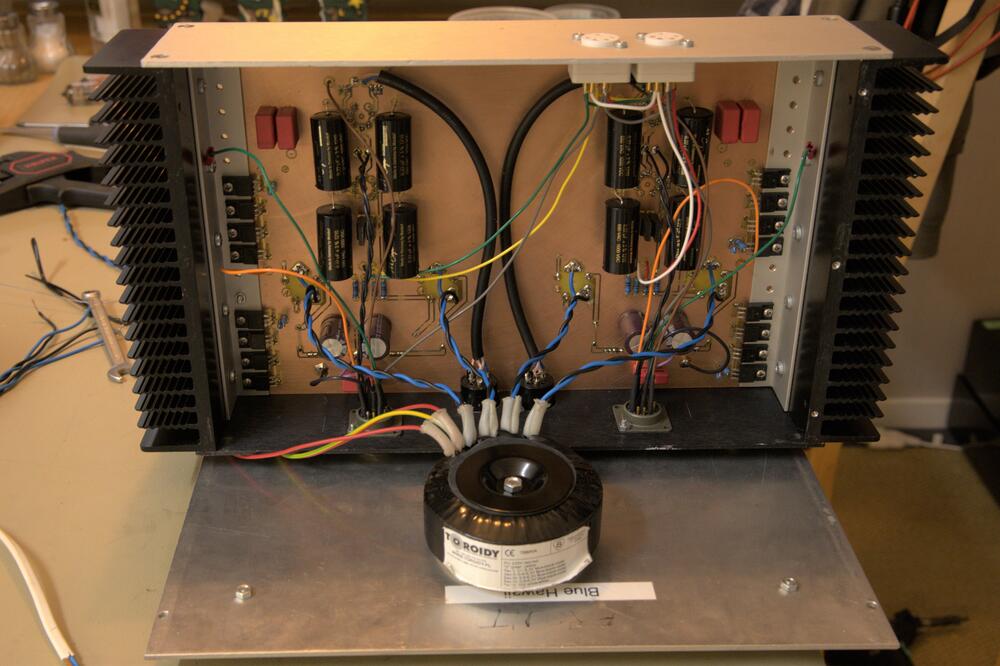

Here is my solution for filament transformer… 625549642_BZ8A0437(2).thumb.jpg.91dde704b7aa0babf65741a0738fa582.jpg

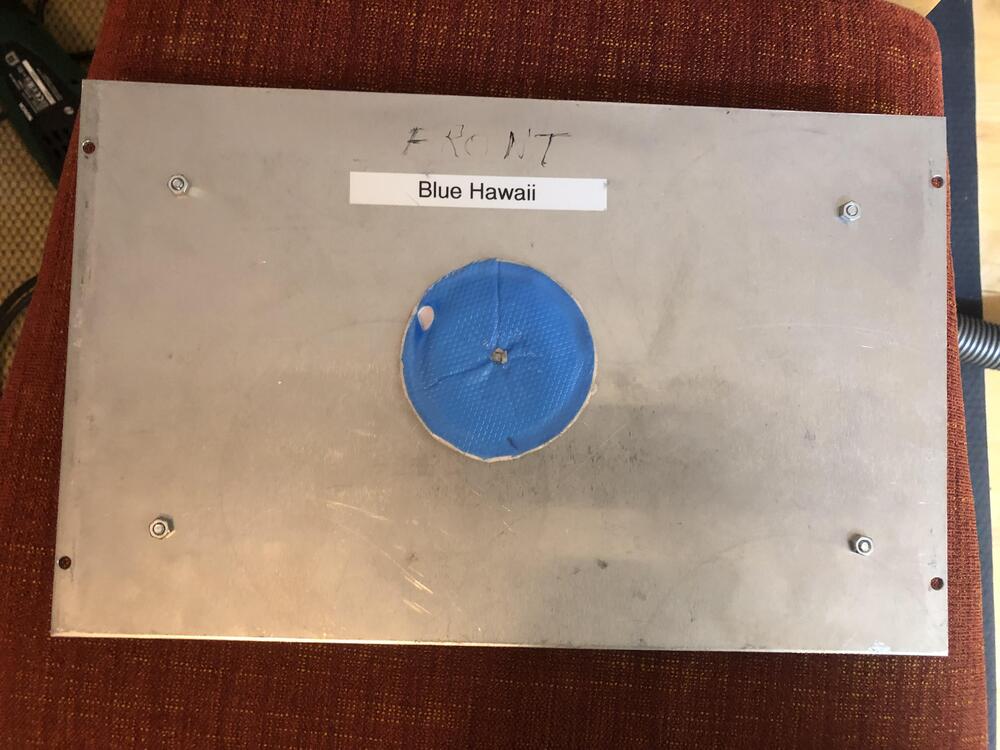

 …mounted on bottom case plate, belonged to a now retired Blue Hawaii. I also found a piece of Bergquist Gap Pad for the transformer to rest on.

It seems that cathode resistor voltage is much lower for Emission Labs tube than for EL34, so I decreased the negative high voltage from 460 V to 400 V.

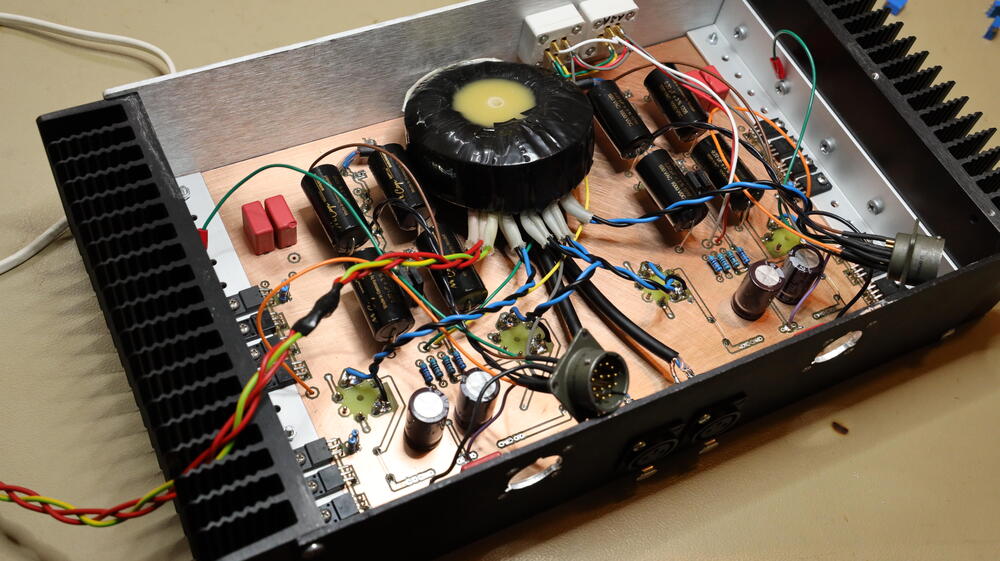

 The lowered voltage called for change of Cathode resistor and trimmer, now 402R resistor and 100R trimmer. A few things had to be removed before component changes.


  • Like 5
Link to comment
Share on other sites

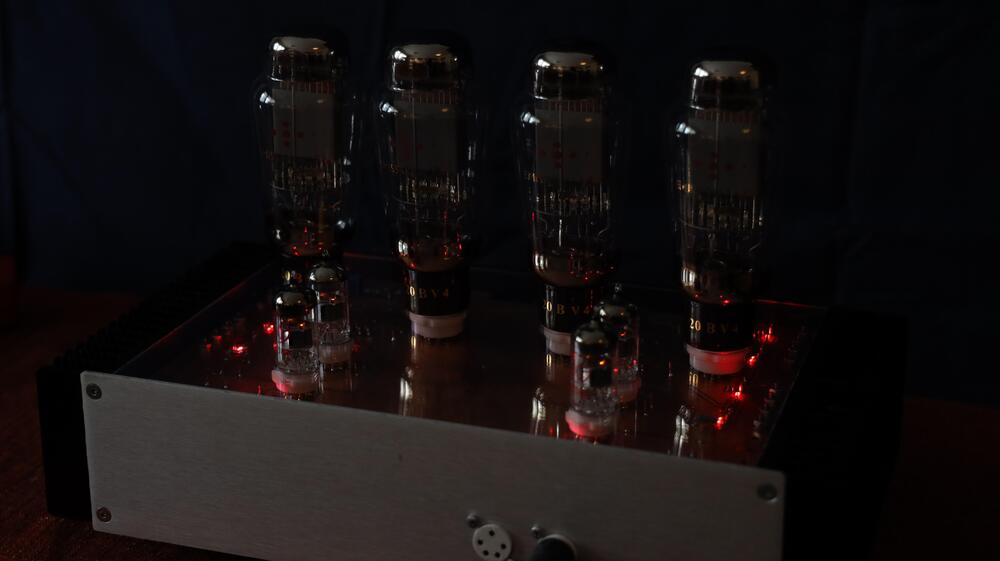

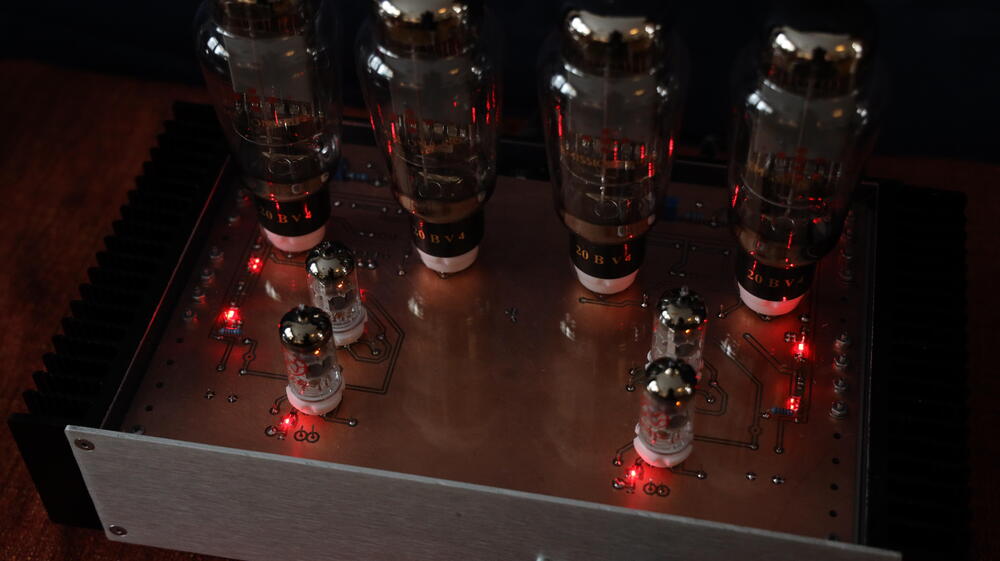

This Emission Labs amplifier wasn’t planned, it just happened along the way. Although it seems to work, I have no idea how to best use the direct heated triodes in an electrostatic headphone amplifier.

Here are maximum conditions stated in datasheet from Emission Labs with note 6.

Note6) Maximum conditions do not apply simultaniously. This is not a working point.

I think I’m within most of the maximum limits, but what how about Power Output in Class A: 8W and Grid resistor: max 470K?

Is there anything to consider in my case? Now I’m running at 400V/27mA roughly 11W and grid resistors are 680K as in the original Megatron. Any advice and comments are appreciated.

Edited by JoaMat
Link to comment
Share on other sites

  • 3 weeks later...
On 11/26/2021 at 5:29 PM, audiostar said:

JoaMat,

question on umbilicals (or better the connections though both) - are those absolutely identical for both channels?
Probably shouldn't, as Safety Earth (that must connect both Amp/PSU cases to Earth in the PSU case and to circuit/star ground as well) should be carried through one only, right, in order to avoid loops.

What about circuit ground, as lately in the Stax connector both left and right channel ground connect together, so if ground is carried through both Umbilicals, this would introduce a loop as well?



Sorry for a really slow response.

Yes, the umbilicals are identical.

Some background – my first electrostatic build was a KGSShv with a PSU with on board heat sinks in its own house. Second build was the DIY T2 and I liked the chassis design. Thereafter I have only built things (almost) with off board heat sinks. With T2 I built an original T2 PSU in a Modushop case. Later I built another T2 PSU with my own designed PCBs. That are the only PSUs I’ve built, along with the first KGSShc supply. But I’ve built a lot of Kevin designed amplifiers, and all have been power by those two T2 PSUs. I found the T2 PSU with its two identical umbilicals quite convenient. With the good quality Amphenol connectors it’s easy to connect/disconnect as wanted when I want to try/test one channel at the time.

What about ground loops? I’ve read/heard about it, but so far, I haven’t, or I don’t know I have had ground loops. For me it’s more important I always have a safety ground connected. Therefor I’ll continue to use two identical umbilicals …

P.S.
I’ve had some issues with mini T2 that was solved by removing one 580V bias wire, so I probably have had a loop. problem. But safety ground wires will stay!

  • Like 2
Link to comment
Share on other sites

On 1/7/2022 at 2:15 AM, JoaMat said:

Sorry for a really slow response.

Yes, the umbilicals are identical.

Some background – my first electrostatic build was a KGSShv with a PSU with on board heat sinks in its own house. Second build was the DIY T2 and I liked the chassis design. Thereafter I have only built things (almost) with off board heat sinks. With T2 I built an original T2 PSU in a Modushop case. Later I built another T2 PSU with my own designed PCBs. That are the only PSUs I’ve built, along with the first KGSShc supply. But I’ve built a lot of Kevin designed amplifiers, and all have been power by those two T2 PSUs. I found the T2 PSU with its two identical umbilicals quite convenient. With the good quality Amphenol connectors it’s easy to connect/disconnect as wanted when I want to try/test one channel at the time.

What about ground loops? I’ve read/heard about it, but so far, I haven’t, or I don’t know I have had ground loops. For me it’s more important I always have a safety ground connected. Therefor I’ll continue to use two identical umbilicals …

P.S.
I’ve had some issues with mini T2 that was solved by removing one 580V bias wire, so I probably have had a loop. problem. But safety ground wires will stay!

Thanks, JoeMat and a Happy New Year as well!

So, you carry circuit ground through both umbilicals which you connect separately to both channels in the amp's chassis).
Safety Earth, you carry through both umbilicals as well and connect both to a single point in the amp's chassis?
Bias line you split in the PSU chassis and carry through both umbilicals as well, but connect in the amp's chassis only one of them to the actual Bias output?

In the power supply chassis you tie ground of all PSUs together and connect through a circuit breaker (or not, or simple 10R, etc) to the chassis itself & Safety Earth coming off 1) the IEC mains connector and 2) both umbilicals off the amp's chassis.

Link to comment
Share on other sites

  • 3 weeks later...

Kevin, I remember your old post telling that the best design CCS is a high voltage tube with a cathode resistor, i.e. Megatron.  It should be better theoretically than any cascoded FET or T2 style BJT CCS, I read.   Is that still true?  I'm tempted to think Megatron as my next project because it doesn't require many rare semiconductors and the PCB is available from Aliexpress while I haven't seen other Gilmore design PCB on sell.   Finding reasonable Tubes shouldn't be problem and anyway I have some already.  The amount of heat from 8 EL34 makes me a bit nervous though.

  BTW following above statement about CCS comparison, putting Megatron's CCS into T2 seems to be the ultimate amplifier, but I haven't seen anybody do so.  just because it's too hot?

Link to comment
Share on other sites

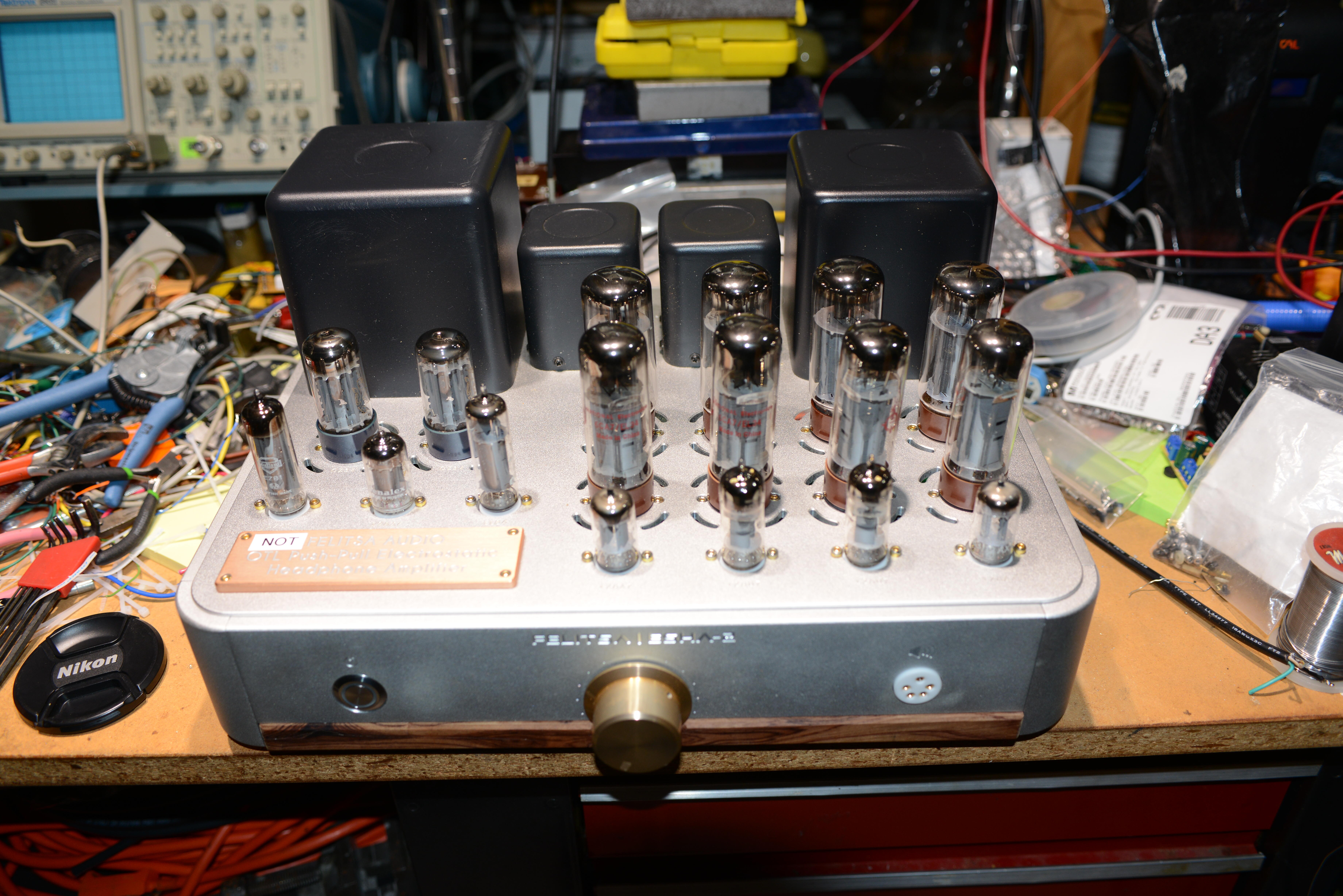

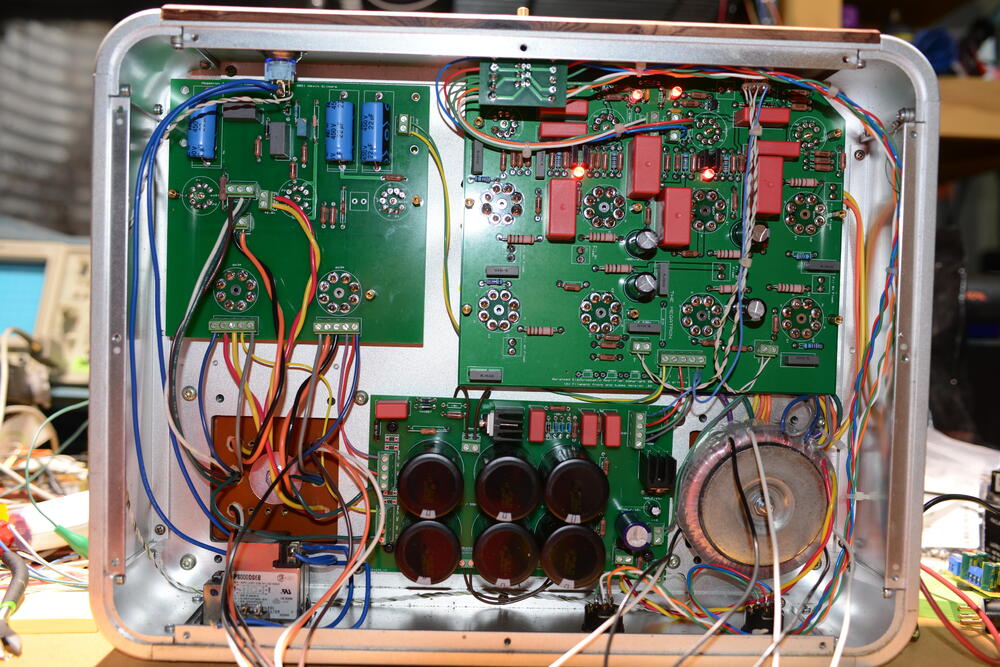

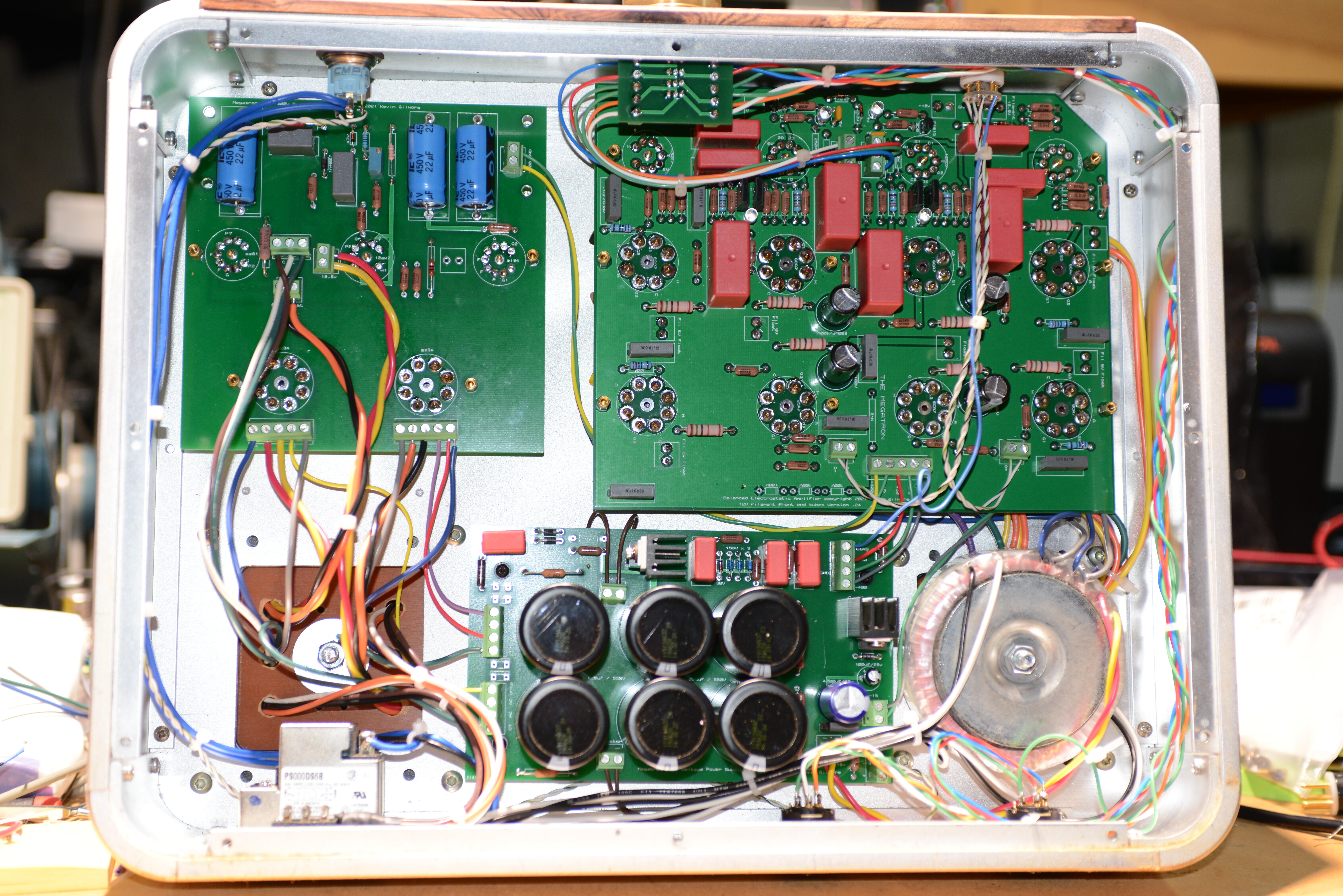

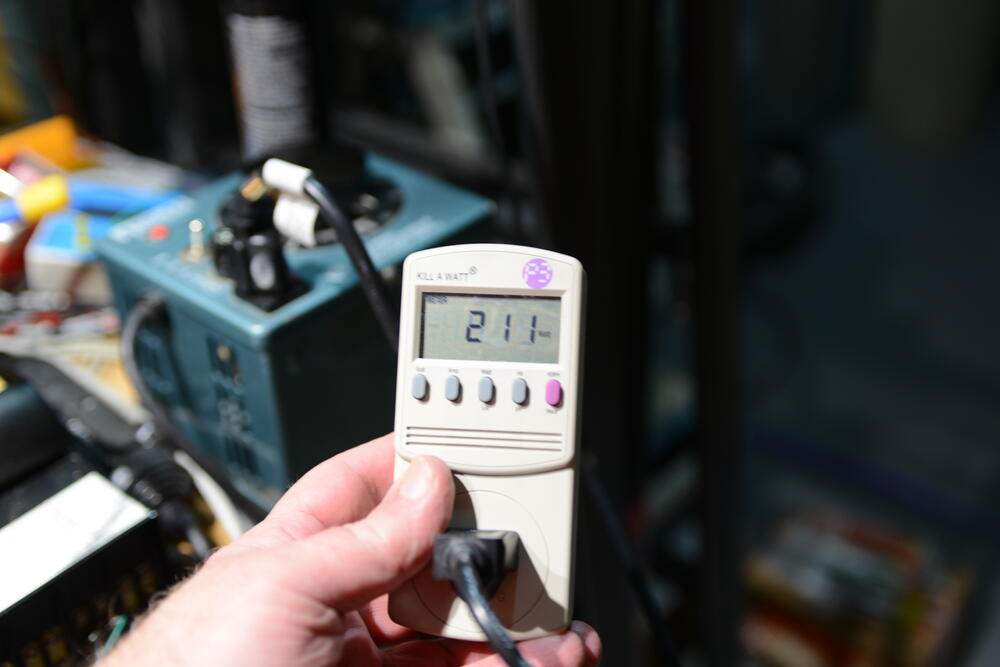

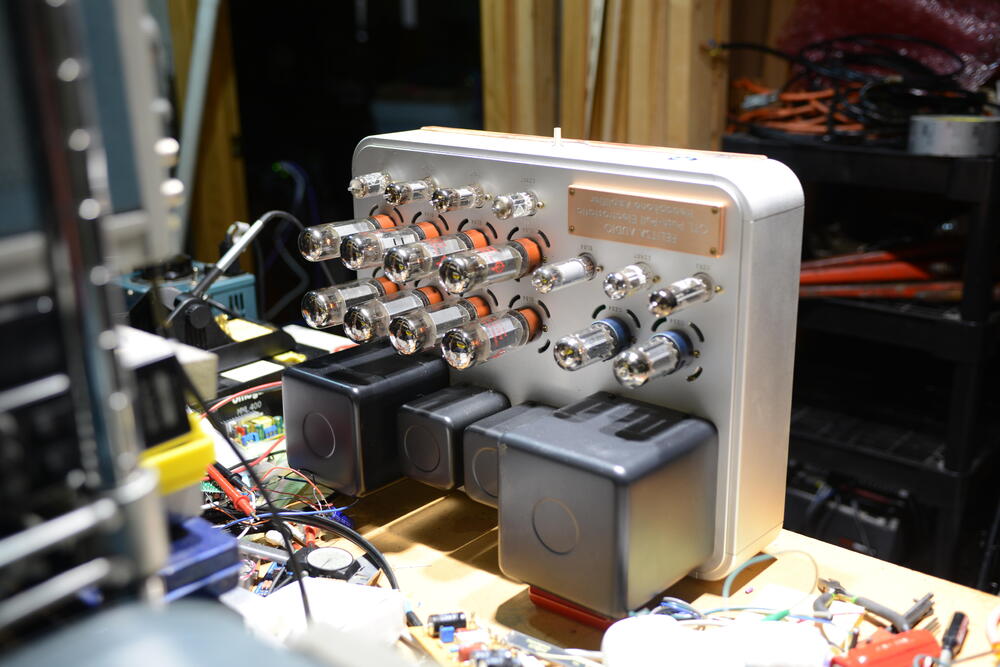

you are going to need a pile of floating filament transformers. although now that SumR has finally produced transformers that are the right voltage and run cool this is easy. this one has regulated 300v and RCLCC high voltage supplies each with tube diodes. that is 2 more transformers. This one is 211 watts.

A standard T2 is about 250 watts. replacing the current sources with tubes will add another 80 watts. and lots more physical space. and more filament transformers

This modified to fit amplifier board will not be published and would be useless to everyone. The standard amp board should be used. The 300v regulated tube board with the tube hv diodes would be publishable once i put all the tube sockets back on standard distances. The hv power supply board would be publishable if people are interested.

both of these would only be released to people who promise not to let them fall into the hands of FUCKING INCOMPETENT MORONS.

Edited by kevin gilmore
  • Like 3
  • Thanks 1
  • Haha 2
Link to comment
Share on other sites

Thank you Kevin, I haven't thought about transformers.   Tube diode wasn't in my focus.   For any design of eStat amp (KGSSHV, BH, MT, GG, etc..), I think most of people now select GRHV type PSU as it's known as the best performance.  Or is there special synergy when tube PSU is paired with full tube amplifier like Megatron?   From appearance point, yes...

Link to comment
Share on other sites

3 hours ago, kevin gilmore said:

A tube diode CRC power supply driving GRHV would have slightly lower noise.

Oh really?  Then ultimate amplifier would be combination of

Tube diode CRC driving GRHV + T2 + Megatron style CCS ?

full of tubes...

Link to comment
Share on other sites

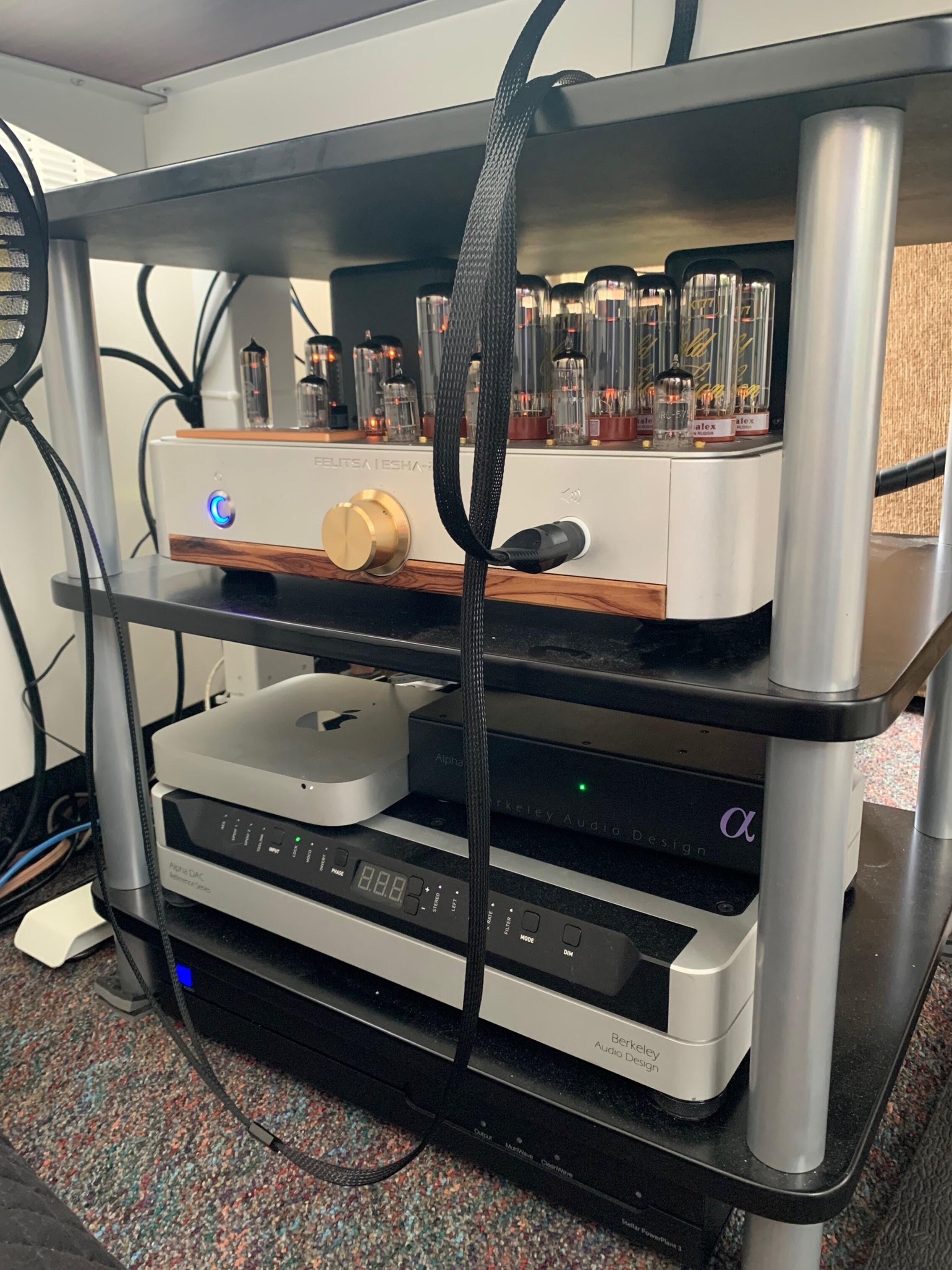

The sound: it’s spectacular!  Compared to a Stax SRM-007tii with 60’s Mazda Brimar 6CG7’s or 50’s RCA long black plates with D getters, the sound is far more relaxed, analog, detailed, expansive, dynamic and musically involving.  I can’t wait to get some NOS EL34’s in here.  The Berkeley Reference DAC shows off the Megatron’s speed and transparency; the DAC and Megatron are both detail monsters.  The Megatron is a far more capable amp when connected to the Berkeley Reference DAC than a current low-noise, low-distortion reference amp, such as the Topping A90, which I also have.

The balanced inputs: dead quiet - perfect with the Wireworld Platinum 8 series XLR interconnects.

The voltage gain: I can’t imagine needing any more gain than I’m getting with the 1958 Holland D foil getter E180CC’s (thanks to the community for the tip on these) and the 1948 RCA 5751 triple mica black plates.  I will say that this amp takes a solid hour to warm up, however.

Temperature: just touched 126F on the exterior of the right transformer case after a couple of hours - the internal temperature was typically within a couple of degrees when previously measured, likely due to the machined vents around the tubes.  SMALL UPDATE: Kevin suggested some whisper fans to deal with the heat buildup; this is an excellent idea.

Hum: there is none whatsoever, there is only dead silence, irrespective of where the pot is positioned - it’s absolutely impossible to tell whether the Megatron is on, when powered from a current-gen PS Audio regenerator set to 120V.

Definitely T2 level stuff!

I CANNOT THANK KEVIN ENOUGH

  • Like 8
Link to comment
Share on other sites

  • 2 months later...

@JoaMat: I see you have been using Mundorf Silver/Gold/Oil capacitors in the coupling positions of your Megatron. These caps are rated at 600vac/1000VDC and being an oil-impregnated caps they are susceptible to high temperature (factory rating is up to 85C/185F).

Also, the Megatron PCB shows the coupling caps between 12au7 and 12ax7 rated at 600v and 1000v for the caps between the 12ax7 and EL34.

Have you experienced any issues with using these Mundorf caps in Megatron over time?

Edited by mwl168
Link to comment
Share on other sites

No, I haven’t noticed any issues over time. But they haven’t been used that much so I have no idea how they change at higher temperature over a longer period of time.

  • Thanks 1
Link to comment
Share on other sites
