  1. Here is a solution for the ZF/SS problem worked out by Mirko. The SMDs on the back side are alternatives to the 47uF caps.

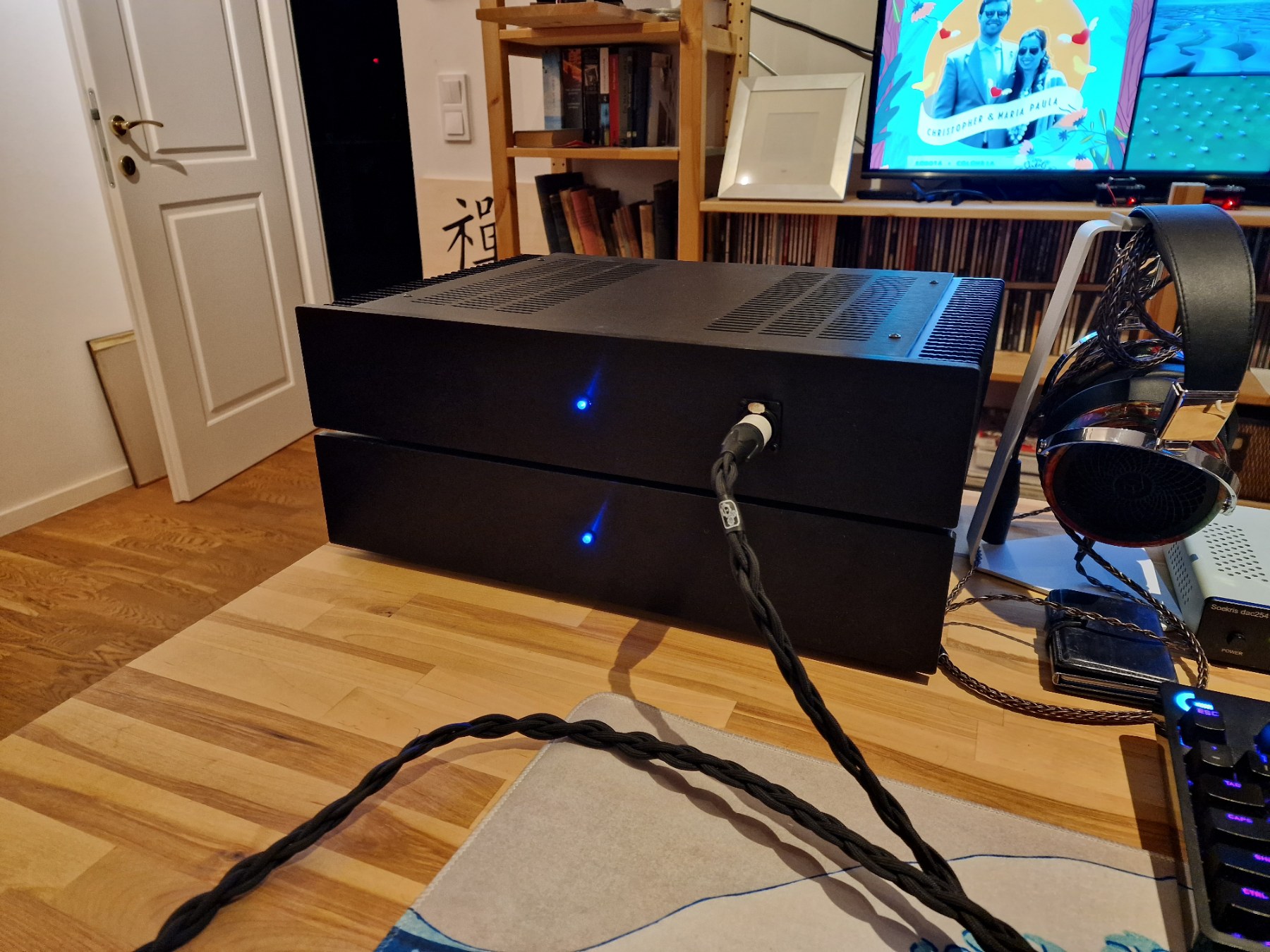

  2. Just finished a v1.21 board SuSy version. Volume controll is in the DAC, left that out, just a power HPamp. Running on 200mA, only balanced in- and output. THAT340 (could not find anything else in Europe), Nichicon Muse caps, SPC cables, dual v0.44 GRLV with 100VA/24V. Modushop 2U Dissipante 300 and 2U SlimLine 280. Thanks go to Mirko for the remote support and to Dr. Gilmore for the incredible design!!

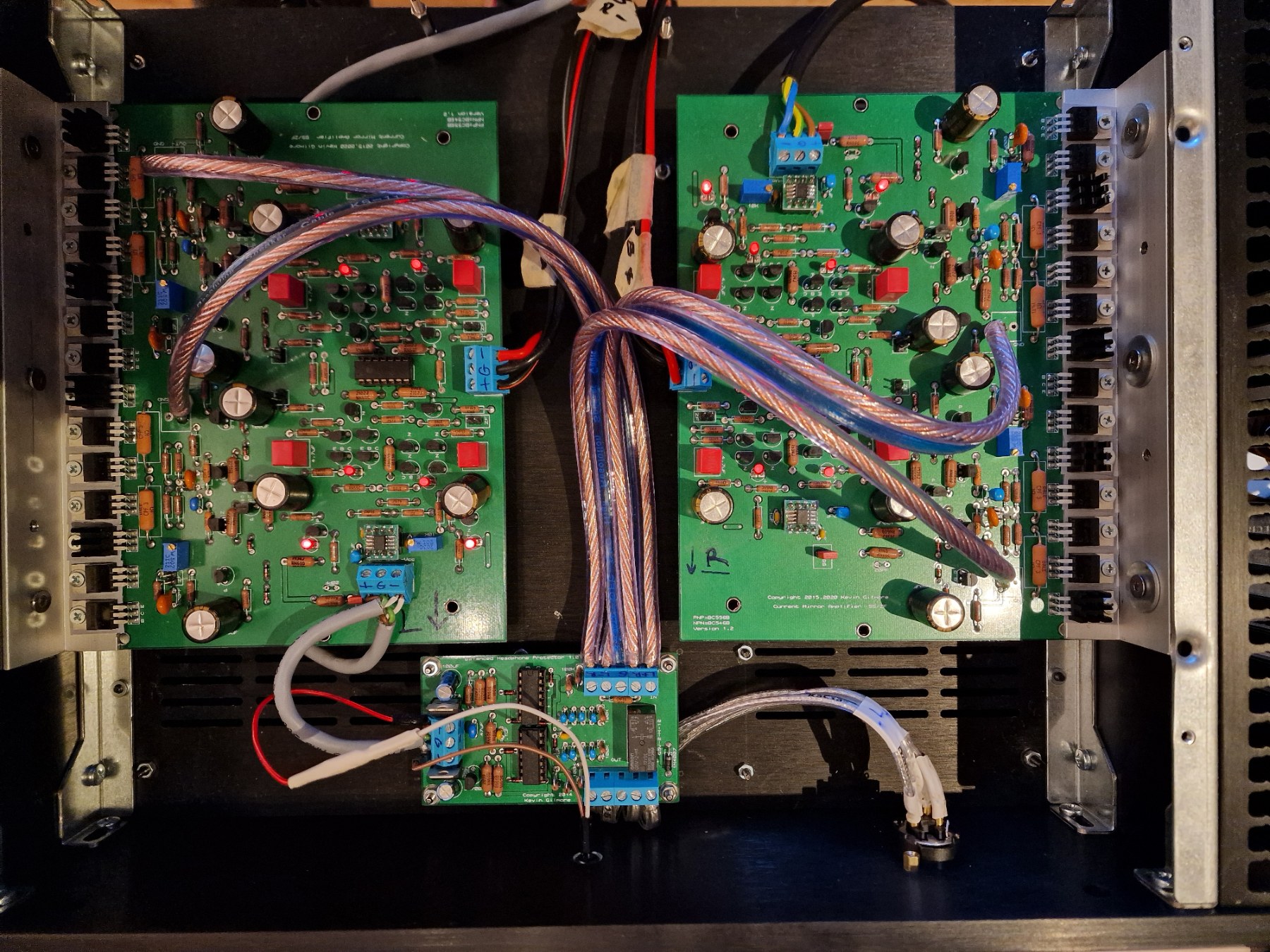

  3. Finished a set of v1.2 today. An excellent peace of gear! I'd like to thank Mirko and the contributors of the thread for their help (a very thourough source of information!!), dr. Gilmore and Spritzer for the design and instructions. Full XLR, R38&R39 pots set to 250, w GRLV working on 20.1V (wo the final pot stage). Case, cooling and volume controll still pending.
  4. kgdynalobalssproduction in the drive folder. The link to that is in the thread stax mafia circuit boards see updated links on page 5
  5. Do I assume it correctly, that the pre board is intended to be flipped along the Vcc axis in order to have the 3way posts aligned on the same side with the shortest possible connections?

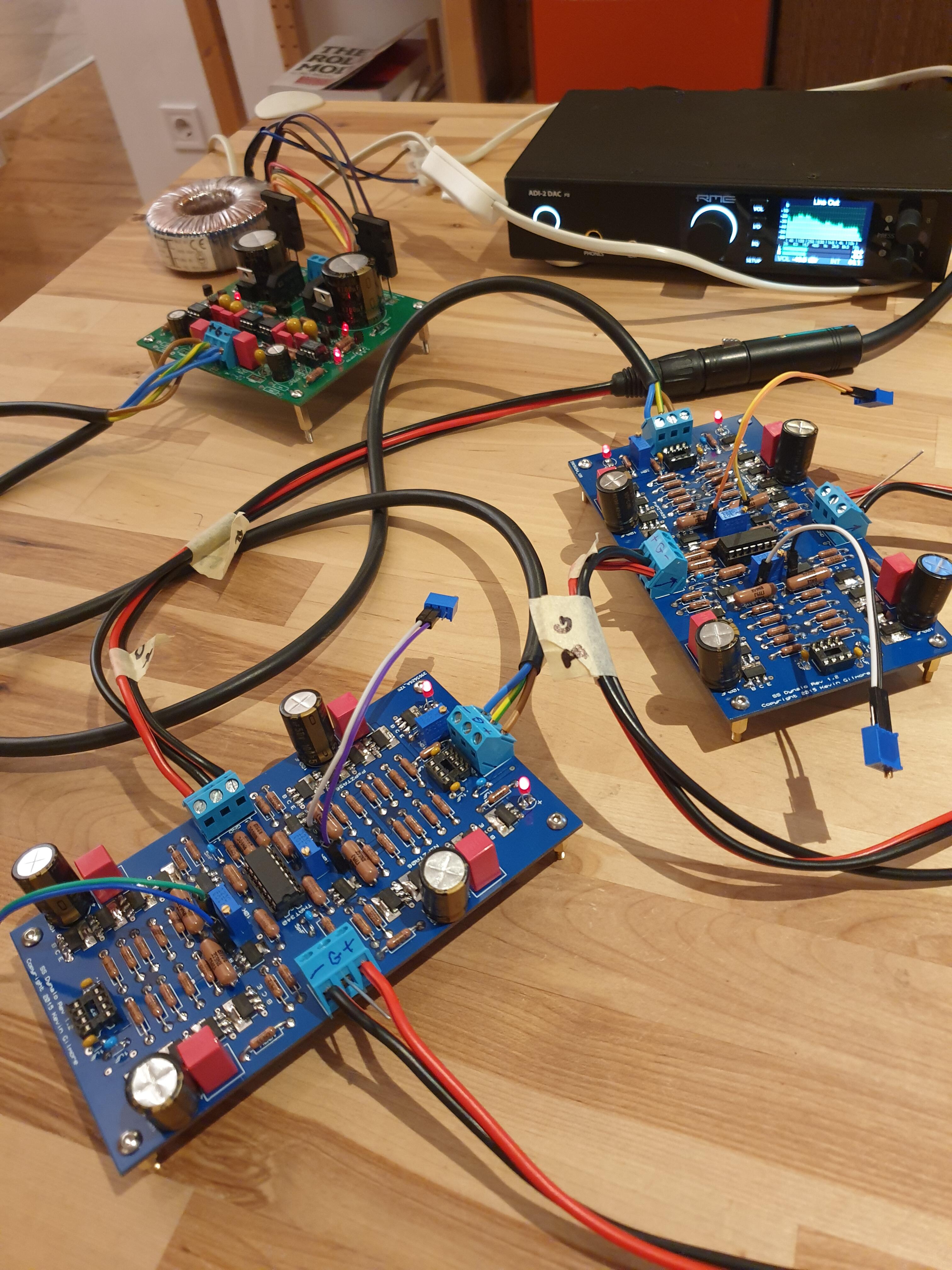

  6. Thank you! As the boards were only 30EUR and only few parts needed, I thought that it should be able to run ASAP and will upgrade/change elements later. I'm working on both the KGLV and a Walton-Didden Supperregulator to be able to compare them.
  7. If this question is still relevant, try TME, they have the OnSemi 546B on stock

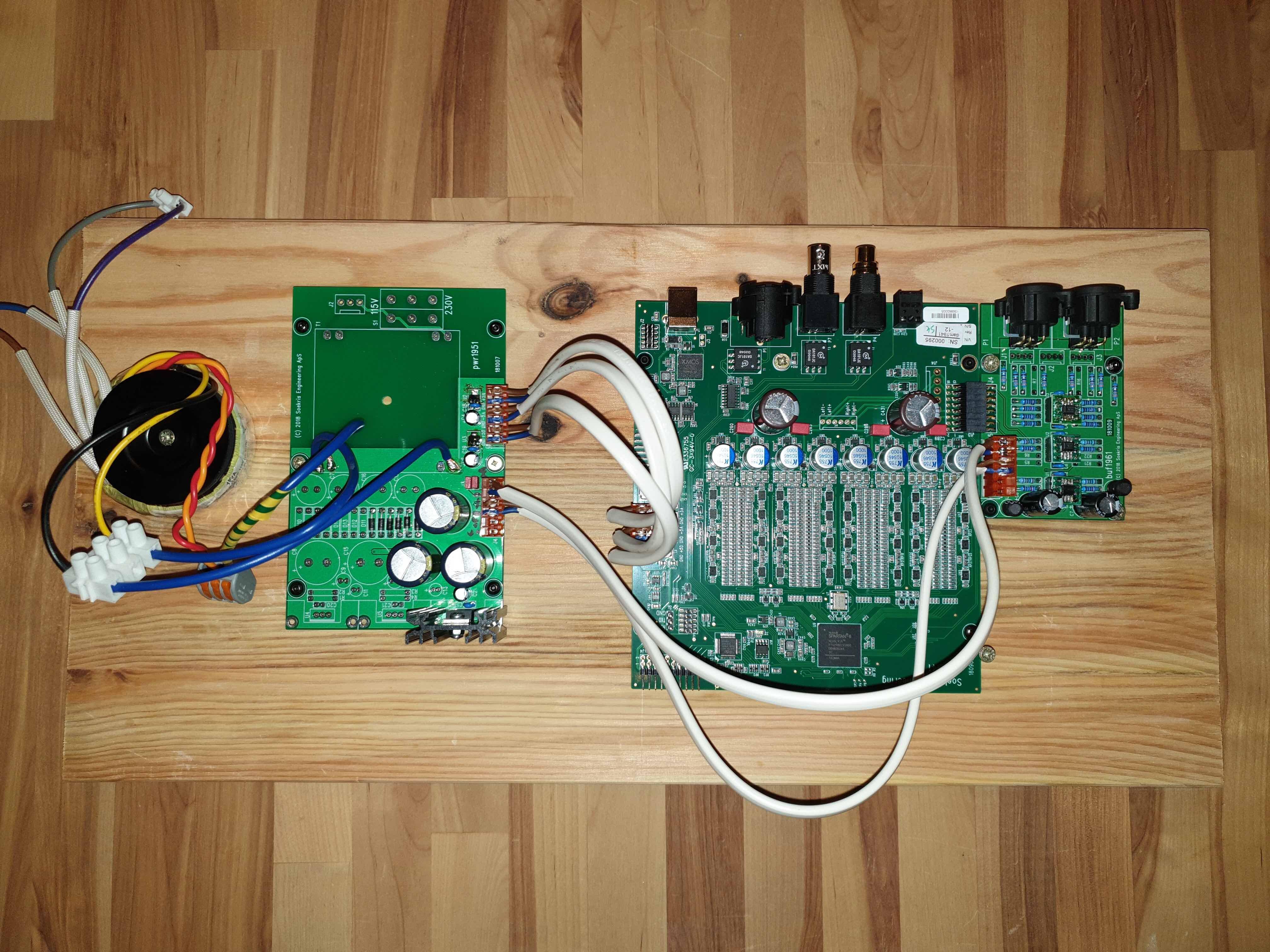

  8. Just finished today with the raw version, case and final cables are left for later. Soekris PSU and buffer boards. The designed Amgis transformer was not on stock, so I had to replace it with a 2x6V Toroid. 'm using OPA1602 now, but will switch to OPA1612 when they arrive. Have not yet finished the controll board, although I'm not sure I will. The sound is very similar to the dac2541, definitely better than the RME ADI2FS or other similar quality DS based DACs. More spacious and detailed. I think it even bests the Qutest, although it was a while I listened to it the last time. Can only recommend!
  9. @kevin gilmorewould you please upload to the boards folder the latest version of the dynalo smt version gerbers. As I see from older build photos it was .4 from 2016. Thank you in advance.
×
×
