  1. Ariamella

    and now for something completely different part 3

    Ah, am I blind or is there not actually a 10k on the silk?
  2. Ariamella

    and now for something completely different part 3

    Your BOM has 1k specified but I can't find that anywhere in the schematic. Is the 1k necessary? Edit: here's the mouser BoMs for the CFA2 and GRLV I created: CFA2 (one SE board, order twice for two boards) GRLV (30v) I think they're both correct but if there are any mistakes please let me know...
  3. Ariamella

    goldenreference low voltage power supply

    Alright, I'll think I'll use a 100VA traffo and keep it at 35V for 10uF and 25V for 47uF for the tants then. Thank you for the help!
  4. Ariamella

    goldenreference low voltage power supply

    Holy crap, it takes that much power?
  5. Ariamella

    goldenreference low voltage power supply

    Thanks my dude. Also, I'm aware that 28-30vac is a good range for the traffo for 30vdc but if I want to power a CFA2, what va is recommended?
  6. Ariamella

    goldenreference low voltage power supply

    Apart from the big caps (using 50v ones) and r8/r9 to 3kR, do I need to change any other parts assuming a 30v output? I assume the tants too, but would 50v for the 10uF and 35 for the 47uF ones be fine?
  7. Ariamella

    KG Balanced Dynahi build discussion thread

    Ok, thank you very much! Would wirewound trimpots be ok to use instead of the cermet ones specified? Happen to have some lying around.
  8. Ariamella

    KG Balanced Dynahi build discussion thread

    Do the other specs of the LED matter or is it only the forward voltage (1.7V) that is important?
  9. Ariamella

    Part Sourcing Assistance/Advice Thread

    I'm pretty certain they don't but I want to ask just in case!
  10. Ariamella

    Part Sourcing Assistance/Advice Thread

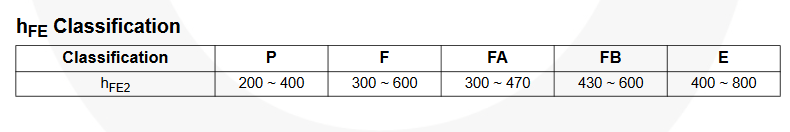

    This is the hFE chart on the datasheet of the KSA992 (and should be identical to the grading system on the KSC1845). @kevin gilmore, do the 2SA1145/2SC2705 on the ss dynahi boards I have need to be matched?
  11. Ariamella

    Part Sourcing Assistance/Advice Thread

    What grade are they? I'd love some if you can spare them!
  12. Ariamella

    Part Sourcing Assistance/Advice Thread

    They appear to be discontinued, sadly enough. Urg getting through-hole sand is incredibly difficult it seems...
  13. Ariamella

    Part Sourcing Assistance/Advice Thread

    Do you have any other suggestions for 2SA1145/2SC2705 replacements? EDIT: Just checked the pin outs for everything else and they're a match!
  14. Ariamella

    Part Sourcing Assistance/Advice Thread

    I was wondering about the transistors used on one of the older versions of the susy dynahi boards being obsolete, and after searching online I think I've found replacements for all of them that seem to be drop in. I'm just wondering if these are fine or if I need to find something else or try and source NOS or used parts. 2SA1358/2SC3421: KSA1220AYS/KSC2690AYS 2SA1145/2SC2705: MMBT5551/MMBT5401LT1G 2SA1349/2SC3381: matched pairs of KSA992/KSC1845 Matched pairs of 2SJ74/2SK170: matched pairs of LSJ689/LSK489 or LSK74/LSJ170 (both seem to be rare/expensive!!)
  15. Ariamella

    KG Balanced Dynahi build discussion thread

    Ok, thank you anyways! The older revisions are probably close enough that the case I plan to use can fit them all...
×
