Hello

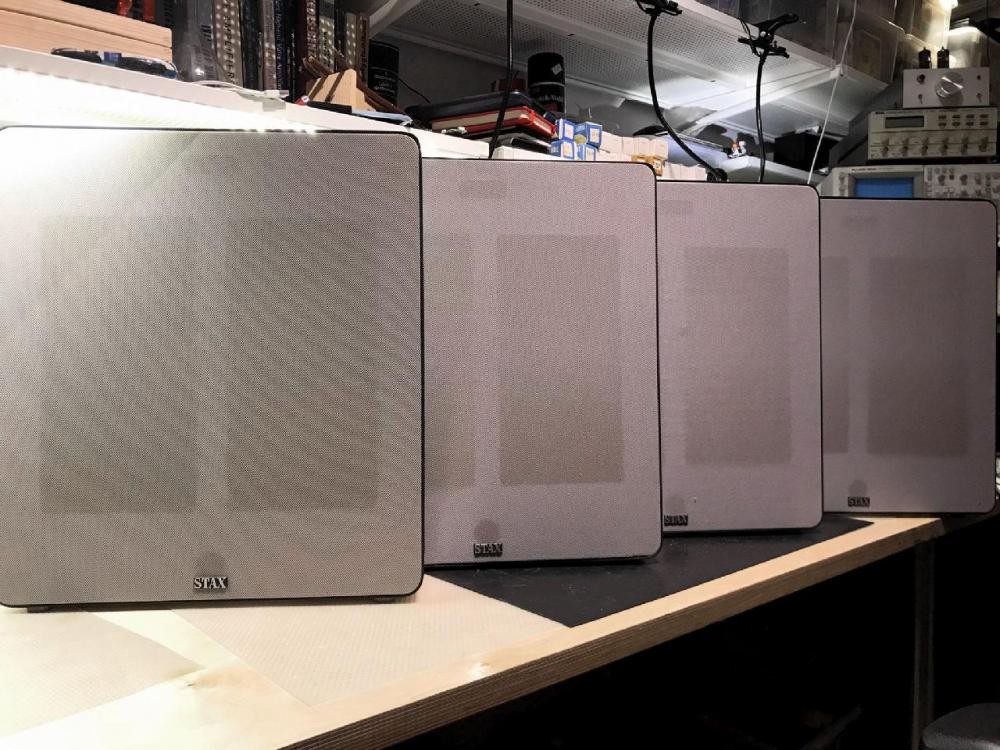

I had a chance to buy two pairs of Stax ESTA 4u speakers.

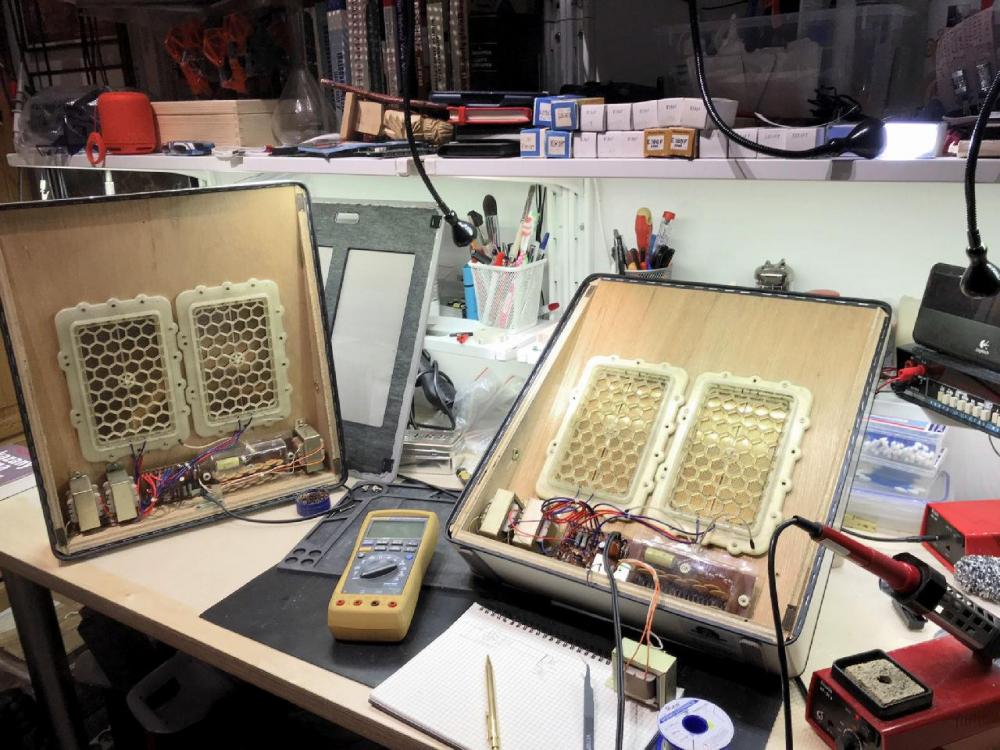

Both pairs look nice, but all four had imbalance issue and I decided to check what is inside and if I can repair them.

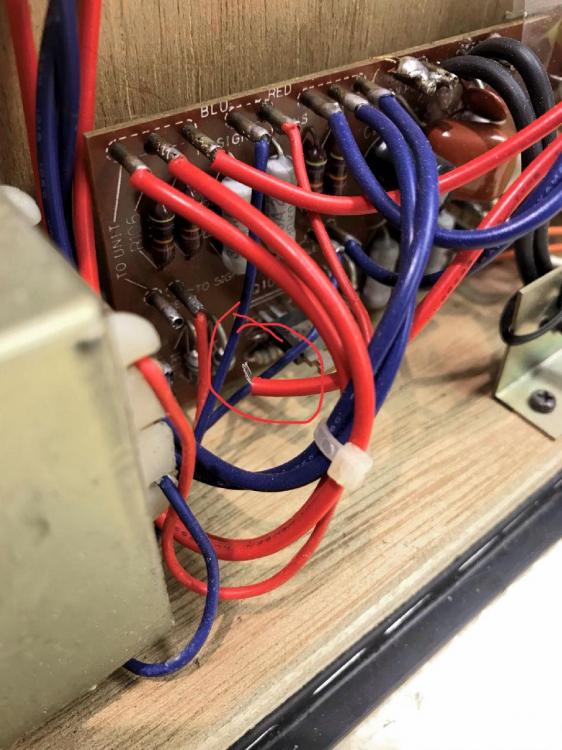

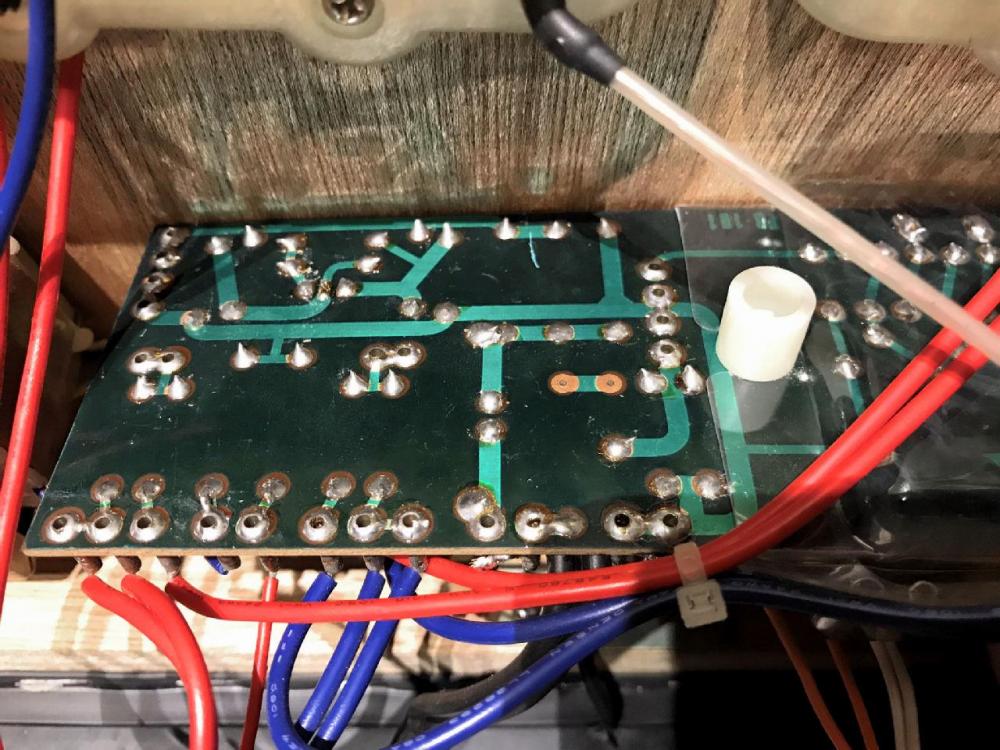

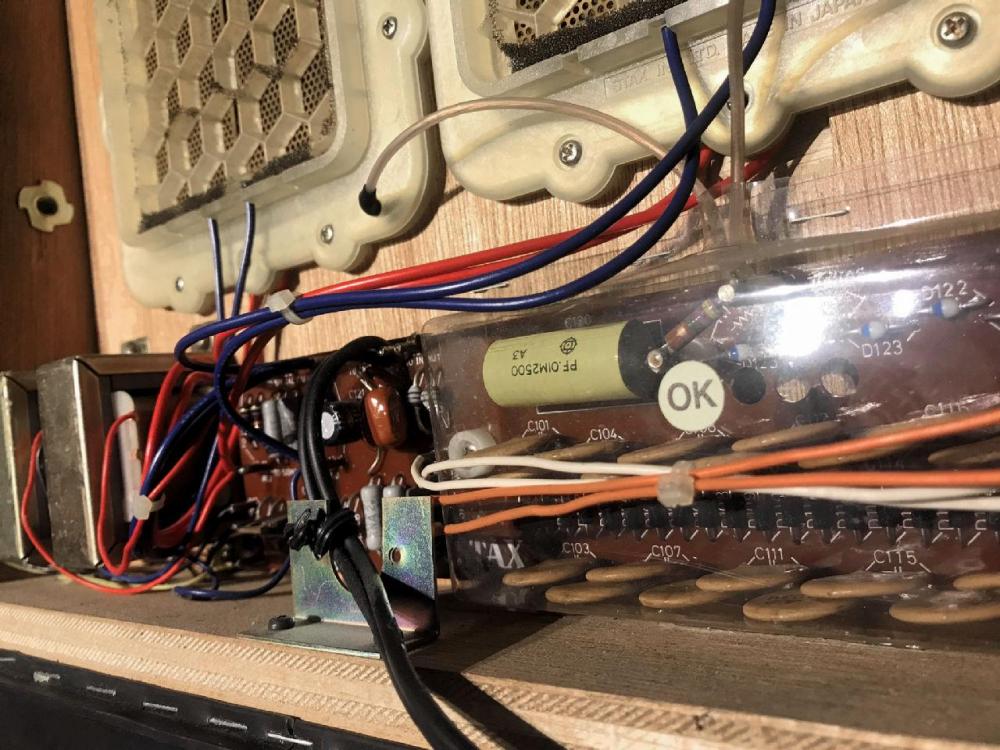

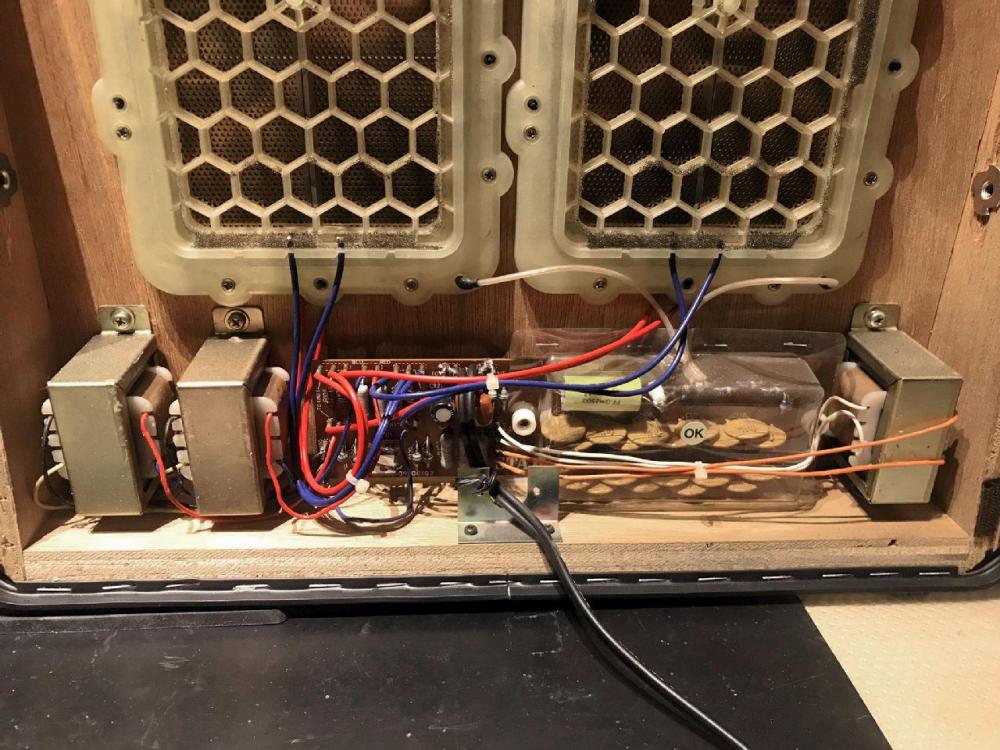

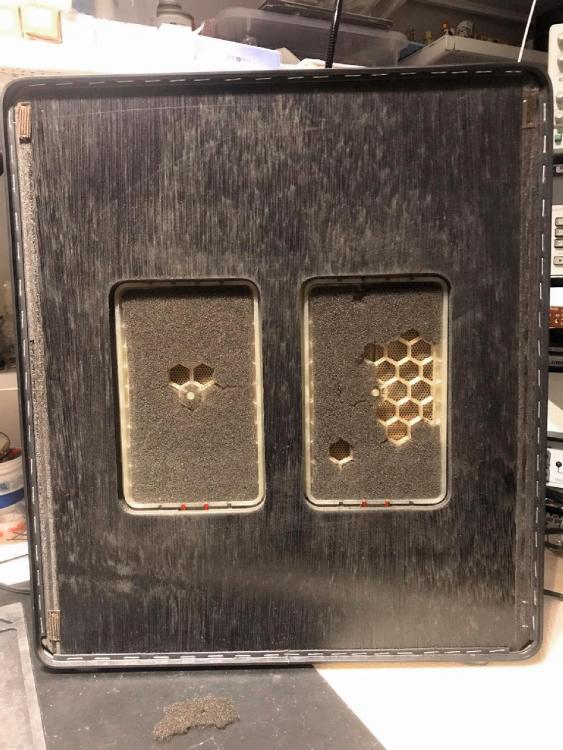

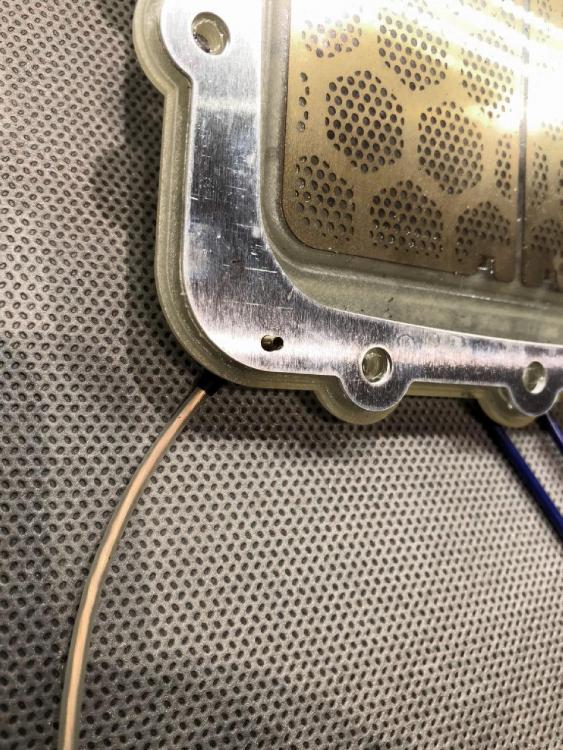

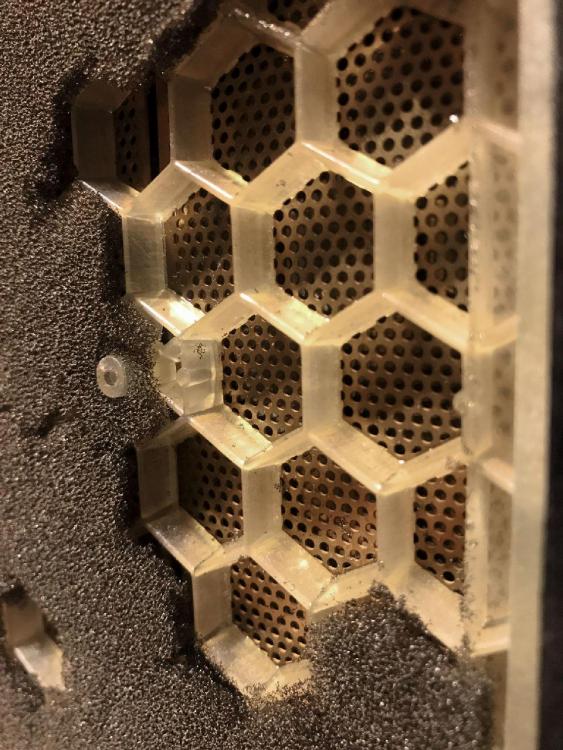

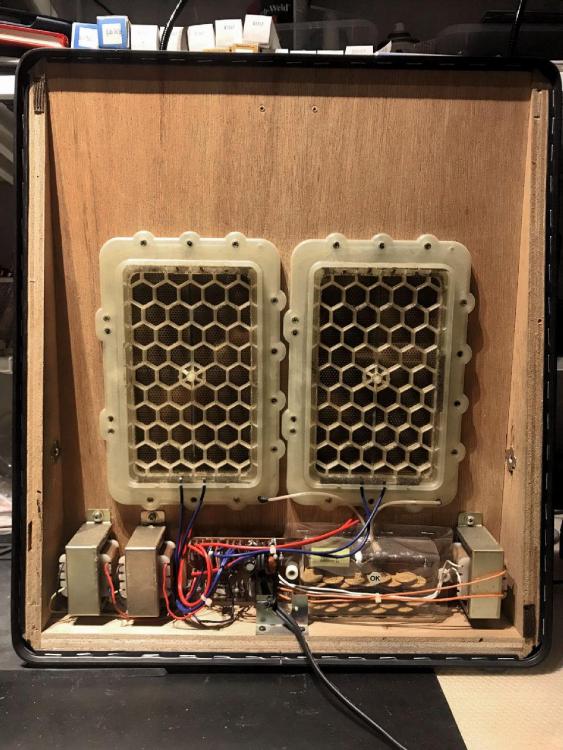

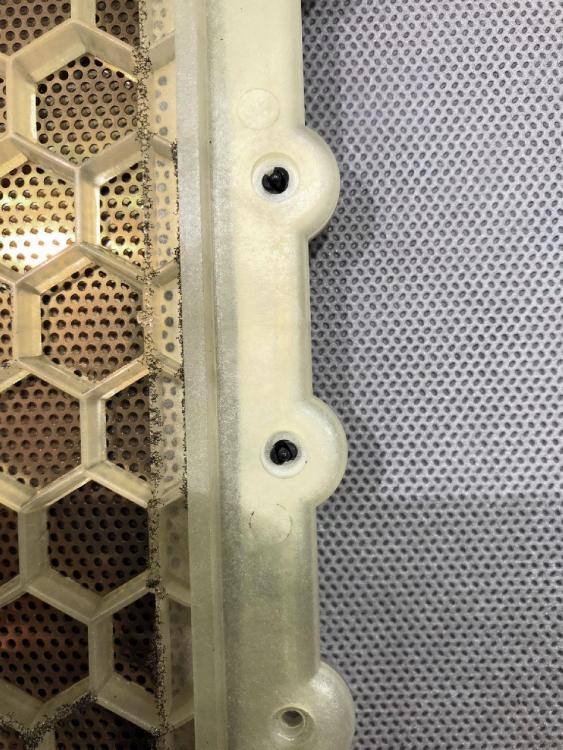

As you can see, drivers are easy to open. The disintegrated foam's particles got into drivers and stick to the diaphragm (foam was layered with some glue).

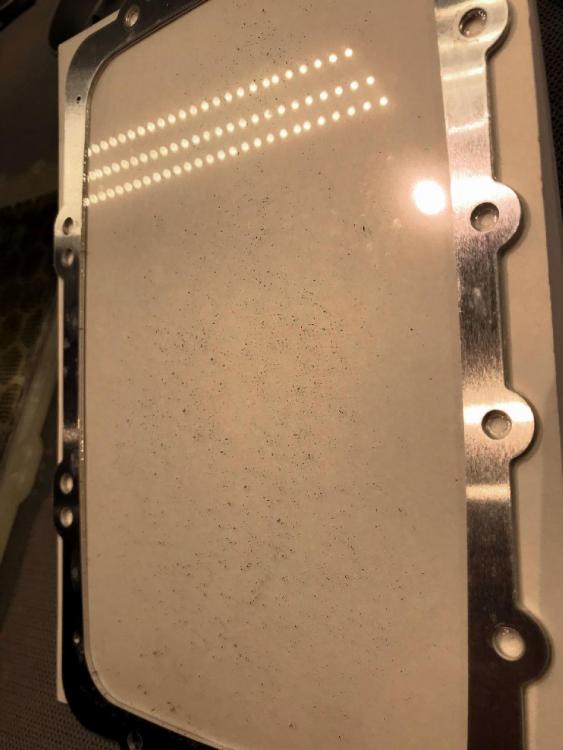

I had to clean it all from this and use Licron on diaphragms (I did that only with one pair atm).

Now the one pair works well, bas is not so strong, but it is enough to work with some active sub.

The stereo sweet spot is really thin, but when you seat in the right place the image is sharp and precise.

I'm thinking about rebuilding the second pair, but to use drivers to make custom speakers, rather tall, just to use it as computer speakers.

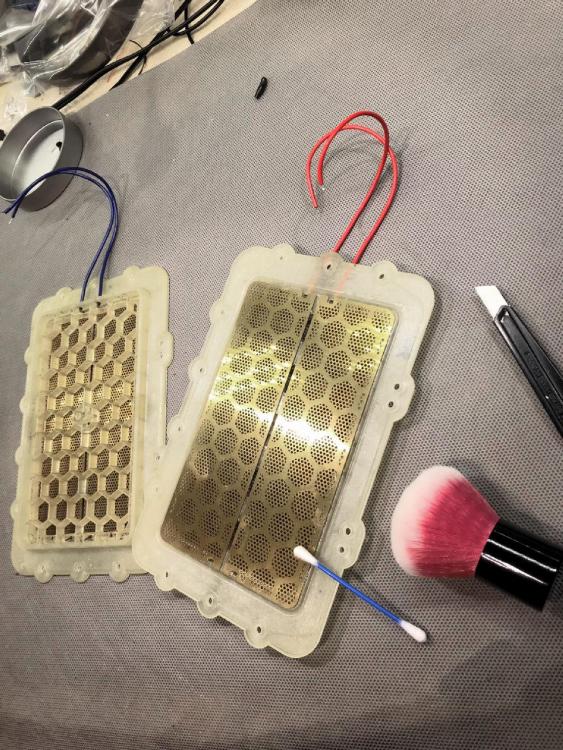

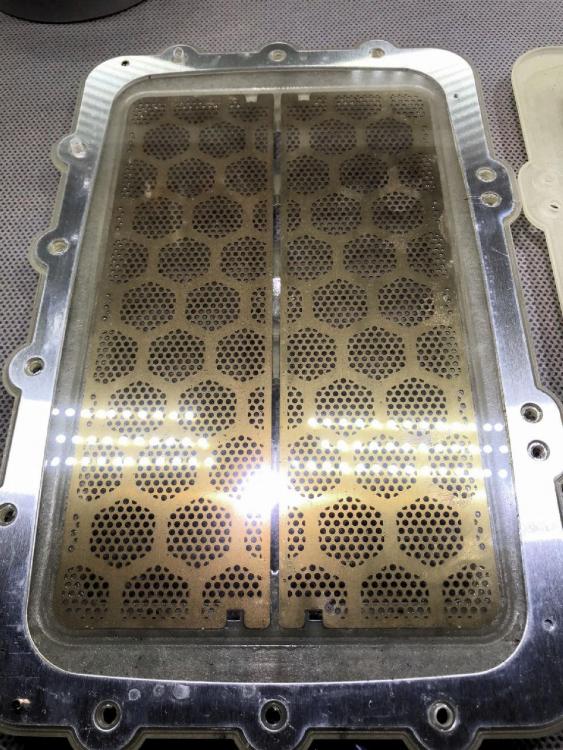

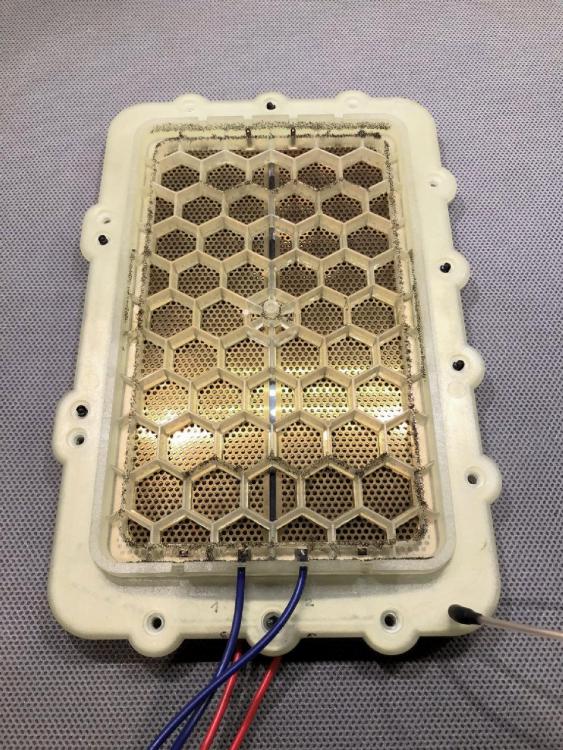

Naked driver.









  • Like 3
Link to comment
Share on other sites

I don't have any measurements  except Stax data on picture.

What is the biggest surprise? This is 3 way project !

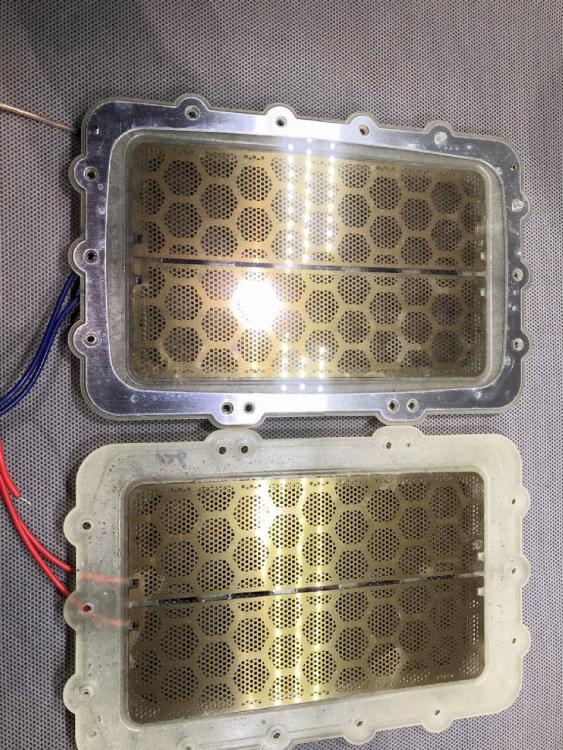

There are two diaphragms but 8 stators.

Looking from the back of the speaker:

the left driver is full playing bass and lower mids. The right driver is two way system. The very right part is playing bass and all mids. And the second part is driver with full signal from transformers.






Edited by Pirx
Link to comment
Share on other sites

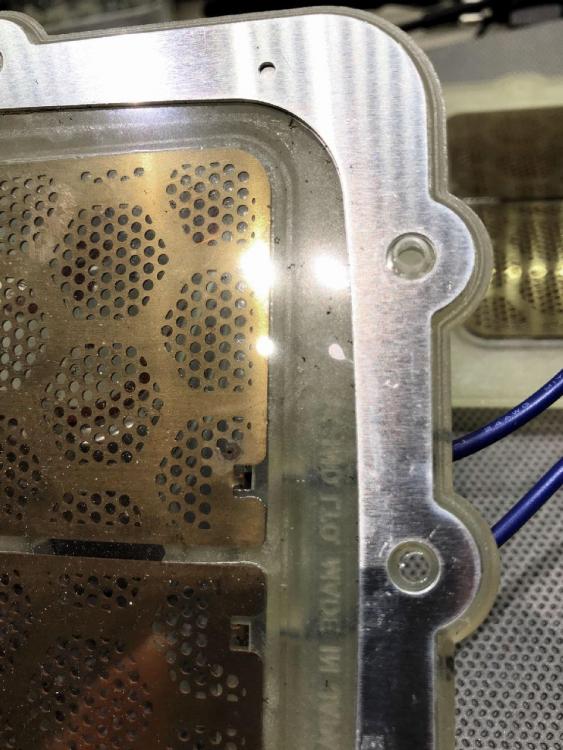

The open area (I mean the window where stators are open to outside) is 161x92 mm

The one stator is 104x171 mm (50x171 mm one part, mind the gap in the middle between stators in one driver).

Edited by Pirx
  • Like 1
Link to comment
Share on other sites

So those are exactly the same as the kit Stax offered way back, one kit per speaker.  I need to dig that out but the plan was always to have an open baffle with a super quick woofer and a small enclosure in the bottom to house the electronics.  I need to do that at some point...  :)

Link to comment
Share on other sites

Open baffle for computer with small box at the bottom for electronics and maybe some little RIPOL (I have no idea if RIPOL can be made such small).

But this is what I'm thinking about. Those Stax speakers are to wide for my bench ?

Link to comment
Share on other sites

Ah, you have one kit for one channel?  I see why you didn't do so much with it ...

And true, only simple baffle for one driver should be enough + some quick driver, did you consider Accuton? I have speakers with midbass and high from Accuton - for me the great drivers, and really quick for ESL.

Link to comment
Share on other sites

  • 1 month later...

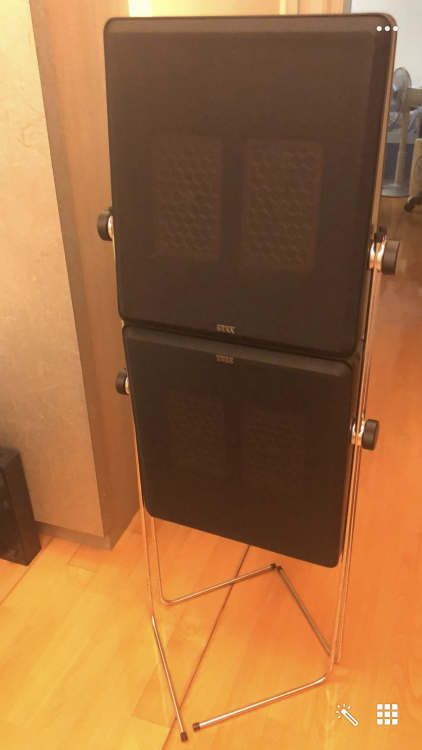

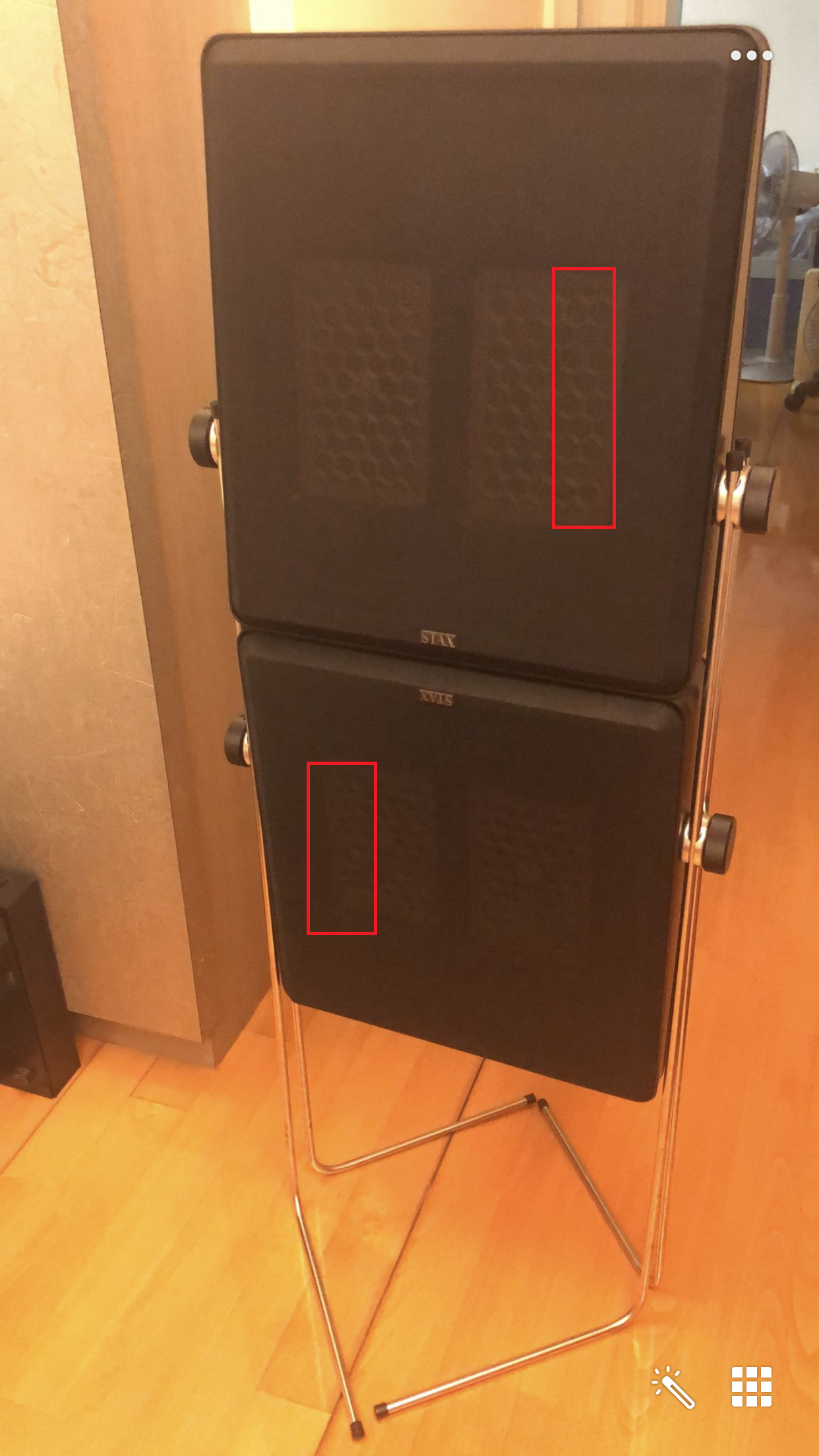

Wow I haven't seen anyone owning two pairs of them before.Wiring them two speaker per channel makes them comparable with floor standing electrostatic panels. There was an offical accessory called JS-2 , a speaker stand for esta-4u. Although I couldn't find one for sale but I diyed one.


  • Like 3
Link to comment
Share on other sites

  • 8 months later...

Really nice looking stands.

At this moment I have Quads ESL63 and I have no more space for another pair of speakers ?

But I maybe I will give a try them stacked :)



Do you know that section with highs are on the opposite side when you flip speakers upside-down?

For sure the holographic can be better if speakers are in mirror.

I have rewired them and the effect is amazing !!!


Link to comment
Share on other sites

  • 3 months later...
On 10/24/2019 at 6:00 AM, Pirx said:

Really nice looking stands.

At this moment I have Quads ESL63 and I have no more space for another pair of speakers ?

But I maybe I will give a try them stacked :)



Do you know that section with highs are on the opposite side when you flip speakers upside-down?

For sure the holographic can be better if speakers are in mirror.

I have rewired them and the effect is amazing !!!


Actually there are two switches at the back for high/low frequency selection so it is not an issue.
