AlexS Posted September 30, 2021 Report Share Posted September 30, 2021 Hello everyone, I had started to post my attempts to build a modified KSA-5 klone over in the "krell ksa5 klone" thread, when I realized that I should create an own topic because my build would not be an exact clone... so this here is then exactly that. I will copy the previous posts here and delete there! Cheers, Alex. Hey folks, here is a first view on my take of this amplifier. I want to be able to attach the power transistors on one side via an L-bracket to a single heat sink. The power distribution sequence layout was kept in place but of course I had to do a little re-arranging. The original input stage is more or less unchanged. Both the top and the bottom layers have copper fills for the ground plane. I omitted the relay circuits as I plan to do a separate pcb for this. The project was done in kicad. I redrew the schematic and created a fresh pcb. Just to be clear: I do not intend to make money off this and will post all source files free whenever the project has turned out to be a success. Kudos to everyone for the excellent work and efforts previously put into this project! I hope I can somehow contribute with my ideas. I would be very interested in your comments - many thanks in advance! Cheers, Alex. 2 Quote Link to comment Share on other sites More sharing options...
AlexS Posted September 30, 2021 Author Report Share Posted September 30, 2021 Reply Post from alexcp: The complexity of power traces looks excessive to me and suggests that an improvement could be made. If this was my board, I would try to shake it a bit, simplify, streamline, and make it more elegant. As an idea, you can try a different order of output transistors - instead of NPN-NPN-Thermal-PNP-PNP, something like NPN-PNP-NPN-PNP-Thermal, with power rails, the output trace and the ground running parallel to the edge of the board. This will bring in a different layout, which may (or may not) be helpful. Unless you plan to use some kind of off-board headphone protection, it would make sense to put the relay back. If you're not religious about the schematic, I'd suggest making the relay work for headphone protection, not just for turn-on delay. The amp seems to be reliable, but if you can avoid ruining some expensive headphones, why skip it? And of course - what would you expect - it would be great to make it possible to implement my mods (described above) on the PCB. It only takes two extra resistors and two small capacitors per channel, but the results are totally worthwhile. 1 Quote Link to comment Share on other sites More sharing options...
AlexS Posted September 30, 2021 Author Report Share Posted September 30, 2021 Indeed, the routing of the HT-rails is somewhat complicated, but my initial goal was to stick to the exact sequence of components as indicated by the original layout. I agree, that tidying up here and re-arranging to be more streamlined might be the way to go. The effects on the performance will probably be negligible. Regarding the arrangement of power output devices, the effect of mixing them up might not be worth the effort. If it saves some space I might consider this. Output protection circuitry is definitely a must! However a pure power on delay is too little. I was thinking of incorporating a protection circuit as outlined by AMB in his Epsilon12 muting delay & DC offset protection circuit. However, I will offer up a separate power supply for this with rather weak filter caps to ensure that the relays will drop off immediately after power off. Pulling current from the amps heavily buffered HT-rails is not a good idea in my opinion and fixing this issue by introducing a breaker contact parallel to the AC input power switch is not practical. Here in Germany we are required to break 230V power with both power leads (phase + neutral) and normal switches rated for mains voltage never come with more than two poles. Another option that I might include in the additional pcb for DC-protection is the addition of a DC blocking capacitor in the audio input path. Yes, I know there are many opinions on this topic out there. But after reading up on the topic in my favorite books "Small Signal Audio Design" and "Audio Power Amplifier Design" by Douglas Self, one sentence by Doug stayed in my memory: "In some respects, any DC-coupled power amplifier is an accident waiting to happen." He has also done respectable research on the effects of all kinds of electronic components and comes to the conclusion that coupling or DC blocking capacitors have no effect on linearity as long as they are installed in the low voltage or input side of an amplifier. Anyway, I want to give DC blocking a try and if I personally cannot hear a difference to the DC coupled version, then I will rather be on the safe side ... I like my headphones very much! And as a final note, I will definitely give the mods by my name twin above a go and see if I can even hear a difference!! Cheerio, Alex. 1 Quote Link to comment Share on other sites More sharing options...

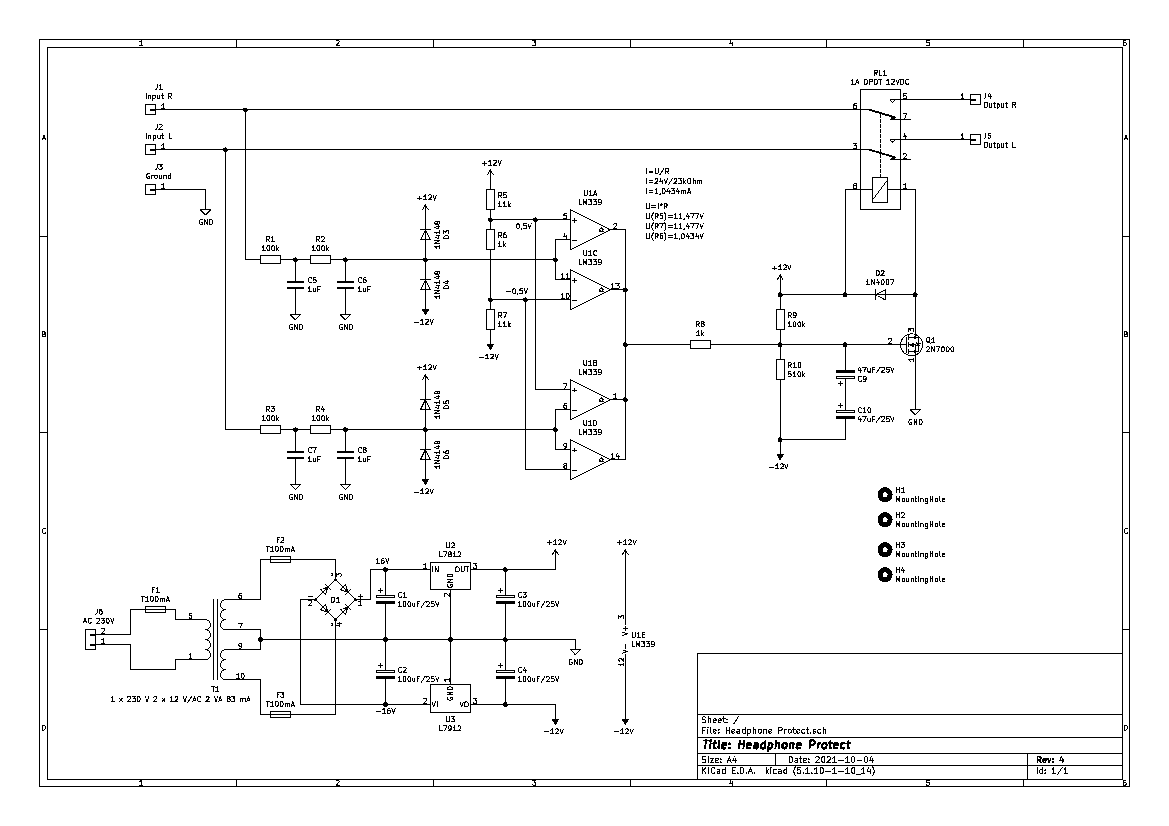

AlexS Posted September 30, 2021 Author Report Share Posted September 30, 2021 A bit of progress this evening: here is the first schematic of the headphone protection circuit. As mentioned, based on the design of AMBs ε12 muting / protect circuit, https://www.amb.org/audio/epsilon12/ I removed his power supply and added an own simple +/- 12V version based on 7812 and 7912. It is deliberately weak on caps so that the supply will break down virtually immediately after power is removed via the mains input switch. Ah.. this circuit has its own tiny mains transformer! Quote Link to comment Share on other sites More sharing options...
AlexS Posted October 3, 2021 Author Report Share Posted October 3, 2021 I continued to work on the protection circuit and came across the XEN SHPP Headphone Protection Circuit project: http://xen-audio.com/documents/SHPP/XEN%20SHPP%20V1.pdf Here, a potential flaw in the Epsilon 12 circuit is discussed that might result in the original design not to detect DC offset in certain situations. The outcome is that each channel gets its own DC detector and combines the outputs via diodes to the delay and relay circuitry. Also, in my opinion, the time delay cap C7 does not need to be an non-polarized electrolytic... am I missing something? The last mod is to drive the relay solely from the +12V DC to GND. As I have done away with the virtual ground concept, the rail-to-rail concept of AMBs design is no longer needed. If someone could please have a look at the schematic an comment if I have some bonehead mistake? Sorry about the bad resolution of the schematic - the forum only allows me to post images with a maximum size of 22.87 kB. Does anyone know, why that is? Thanks a lot - cheers, Alex. Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted October 3, 2021 Report Share Posted October 3, 2021 you probably want to find and use my protection circuit. less parts. and also does balanced if needed 1 Quote Link to comment Share on other sites More sharing options...
AlexS Posted October 3, 2021 Author Report Share Posted October 3, 2021 Interresting... This one, right? Unfortumately, I was not able to find any schematic. Do you have a working link? Thanks! Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted October 3, 2021 Report Share Posted October 3, 2021 https://drive.google.com/drive/folders/0B7egryukiT7_TFlEQlBRejdVdDQ?resourcekey=0-nGWwBYQ_Uivj-ciBLYMeaA&usp=sharing 1 Quote Link to comment Share on other sites More sharing options...
AlexS Posted October 4, 2021 Author Report Share Posted October 4, 2021 Thanks Kevin! From the information that I could pull from existing information in the original thread and the google-drive I have tried to compile attached schematic. There were no gerbers or other layout files or images available. The file "protector3.PDF" seems to be missing all the diodes... can you please advise? I had to delete the previous schematic images due to upload file size limitations... sorry for that! Cheers, Alex. Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted October 4, 2021 Report Share Posted October 4, 2021 https://drive.google.com/drive/folders/1r3g2TAtBUaBdiMorTWX7yYgeJ7maQbYW?usp=sharing 1 Quote Link to comment Share on other sites More sharing options...
AlexS Posted October 4, 2021 Author Report Share Posted October 4, 2021 Great! I think I got the missing diodes... odd, though probably irrelevant: the middle resistor in the reference voltage divider is 500 ohms in your schematic and 1k in the gerber silkscreen. 1 Quote Link to comment Share on other sites More sharing options...
AlexS Posted October 7, 2021 Author Report Share Posted October 7, 2021 This is what the protection board might look like. By the way, does the time delay cap really need to be a bipolar? I somehow cannot figure out why it should be... Any thoughts, anyone? Cheers, Alex. Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted October 7, 2021 Report Share Posted October 7, 2021 my board does not have the delay cap. really does not need it since its going to wait for all the voltages to be within range to connect the relay. Quote Link to comment Share on other sites More sharing options...
AlexS Posted October 14, 2021 Author Report Share Posted October 14, 2021 Good evening everyone - I did a bit of optimization to the amplifier board. Size is now down to 170x100mm ( or 6.7in x 3.9in) Also added DC blocking. I'm experimenting with web-space... try this link: http://51two.com/KSA5/ Cheers, Alex. 1 Quote Link to comment Share on other sites More sharing options...
AlexS Posted October 21, 2021 Author Report Share Posted October 21, 2021 So today I finally ordered a batch of five amplifier pcbs at jlcbcb. Total cost of slightly under 60 Euros for 2oz copper and gold plating - that's incredible! Files are here: https://51two.com/KSA5/Amplifier/ Here is the schematic: 1 Quote Link to comment Share on other sites More sharing options...
AlexS Posted October 24, 2021 Author Report Share Posted October 24, 2021 Components for two amplifier boards ordered at mouser. Roughly 220 Euros... *outch* But: I got four lsk389A for free as samples from the german distributor!! 😃 1 Quote Link to comment Share on other sites More sharing options...
audiostar Posted November 4, 2021 Report Share Posted November 4, 2021 Looks really great, appreciated your great work! You have a mouser BOM that you can share a link to as well? Quote Link to comment Share on other sites More sharing options...
AlexS Posted November 4, 2021 Author Report Share Posted November 4, 2021 Good morning, @audiostar can I share a BOM? Absolutely!! However I do want to actually build and test one of the boards to see if all is good before I post further documentation. I would hate to see someone putting in a lot of effort and money for nothing just because I messed up. After successful testing I will upload the whole lot, including gerbers. I do have all the components already here, but the pcbs got held up in customs for over a week - ah well, I have to be patient! Cheerio, Alex. 1 Quote Link to comment Share on other sites More sharing options...
AlexS Posted November 17, 2021 Author Report Share Posted November 17, 2021 Bit of progress here - managed to assemble the first board... Power transistors missing at the moment, I have to manufacture the aluminum angle for the heatsink first. Note to self: next time, use a more suitable footprint for the TO-92 transistors for soldering. The current style is really awful to solder. I needed extremely fine tip and magnification. 1 Quote Link to comment Share on other sites More sharing options...
kozard Posted November 18, 2021 Report Share Posted November 18, 2021 Perhaps try the KiCad TO-92 "Hand Soldering" footprint? Are you using MPSA06/MPSA56? Quote Link to comment Share on other sites More sharing options...
Pars Posted November 18, 2021 Report Share Posted November 18, 2021 (edited) I always preferred oval pads on TO-92s to the standard miniature round pads that most board layout software seems to use, including what Kevin uses. Define your own footprint in KiCad? EDIT: and I'll need to preface this with the fact that I've never listened to a real Krell KSA-5 before, but I don't seem to understand the attraction to this amp versus Kevin's designs, particularly the CFP2/3, but even the SS Dynalo or Dynahi? Edited November 18, 2021 by Pars Quote Link to comment Share on other sites More sharing options...
audiostar Posted November 18, 2021 Report Share Posted November 18, 2021 Just put more flux and all is good 🙂 Alex, nice components selection! Quote Link to comment Share on other sites More sharing options...
AlexS Posted November 18, 2021 Author Report Share Posted November 18, 2021 Yes, I have chosen MPSA06/56. And I should have used the bigger footprints - this one would have been just fine (2.54mm pad spacing): Maybe in a future board revision... And then I fabricated the L-bracket and mounted the five power transistors this evening. The heatsink is for testing purposes only and will be replaced by heatsink sidewalls of the final enclosure. Good that the MJF15030/031 are completely insulated - makes mounting easy, just a dab of heat transfer compound. 1 Quote Link to comment Share on other sites More sharing options...
kozard Posted November 19, 2021 Report Share Posted November 19, 2021 I was wondering about the four paralleled MPSA06 and four paralleled MPSA56. Why would that be done instead of using something like one BD139 and one BD140? (Or perhaps 2SC5171 & 2SA1930?) I ask since I am thinking of trying my hand at making a KiCad layout and so I would like to understand the reason for this design choice. Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted November 19, 2021 Report Share Posted November 19, 2021 because 4 x small transistors in parallel are faster than 1 bigger transistor. paralleling lots of transistors is still a thing on all current krell amps. if you change out the opamp to opa541 then you can boost the rails to 30v. 1 Quote Link to comment Share on other sites More sharing options...
