Everything posted by bbest

  1. I am in process of collecting parts for T2. All available except those one: KSC5026MOS IXCP10M90S And time of delivery always move right. For example for IXCP10M90S it was around 04/2022 but now in both shops mouser, digikey phrases like this: It took some time 😪
  2. I am using modified HE-6 with balanced beta22. Sounds also great.
  3. Good approach 👍 I also trying to buy a litte more, but not too much. From my practise all projects completely unique. So parts are not shareable. I built several general amplifiers, balanced beta22, some DACs and so on. As for repairing: mine projects are very cool and I am trying to build them very reliable, so don't need to repair them. If realy something will broke, I will better build new more modern and more performance gardget. This is from my practise of 8 years in DIY. So in conclusion: if extra parts doesn't costs too much - then buy them, otherwise exact count or +1. But anyway: it is usefull to buy 10m90s and fill excel with extra inventory - good idea.
  4. Yes, you are right. But without IXCP10M90S all work is useless. May be it make sence to buy maximim parts now and then the rest of another. Because when IXCP10M90S will be available, could be absent another items. The question that it could be loose some money on extra shippings.
  5. Tried to estimate possibility to collect BOMs for T2 on mouser. First struggle was with MOQ=100 of resitors 273 Xicon MF-RC. Second step is long lead time. Some examples: 595-LF353P 512-KSA1156YS 747-IXCP10M90S 512-FQPF8N80C 512-2N3904BU 655-RT424012 512-BC547BTA 512-KSC5026MOS 512-FQPF8N80C 512-2N3904BU 863-1N4007RLG Baddest times for DIY arrived 😅
  6. PM me if needed gerbers or boards itself.
  7. +1 agree with you. I like his boards. I redesigned L-Adapter and UltraBib 1.3, made them more compact. Both has great specs.

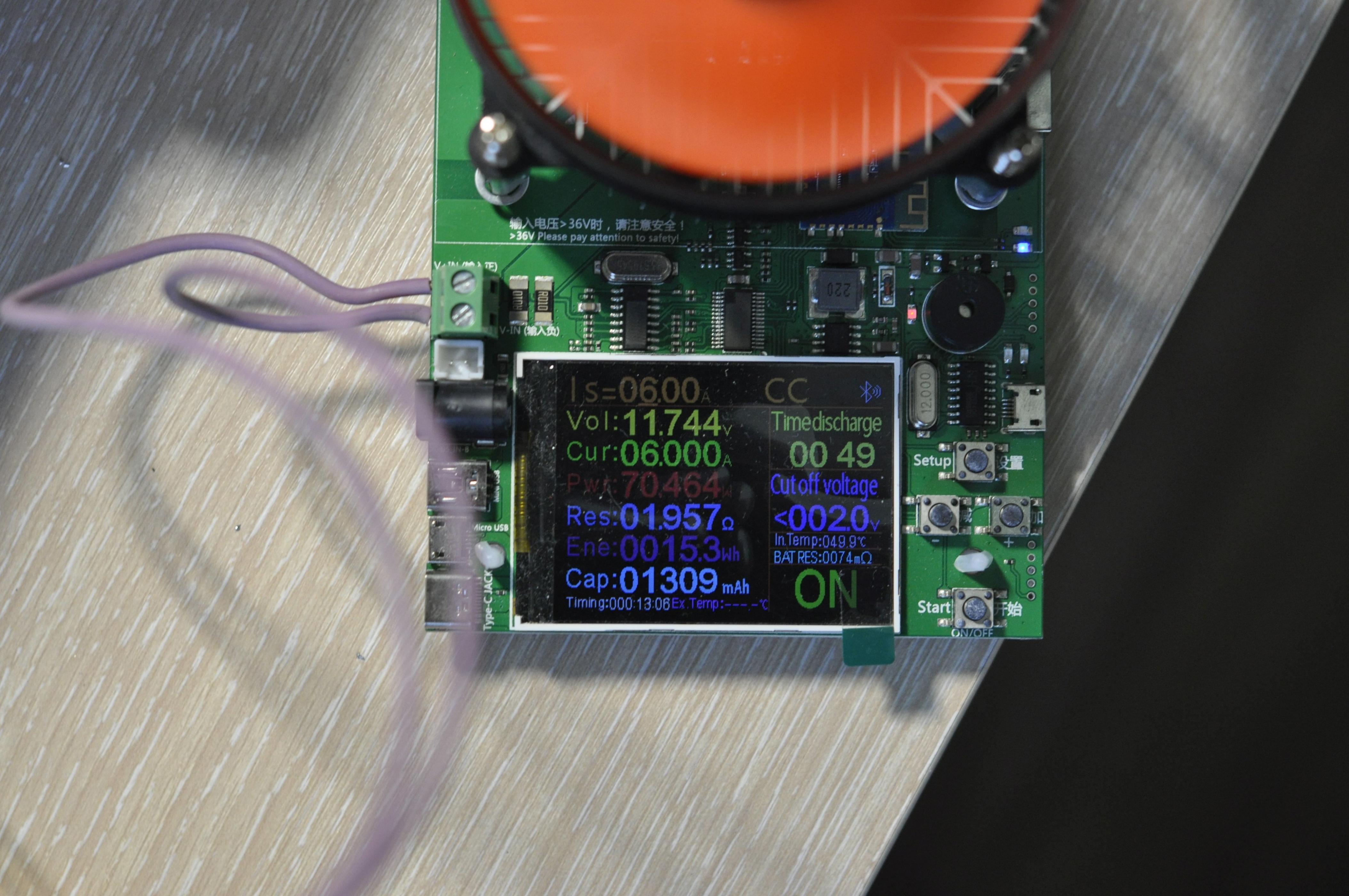

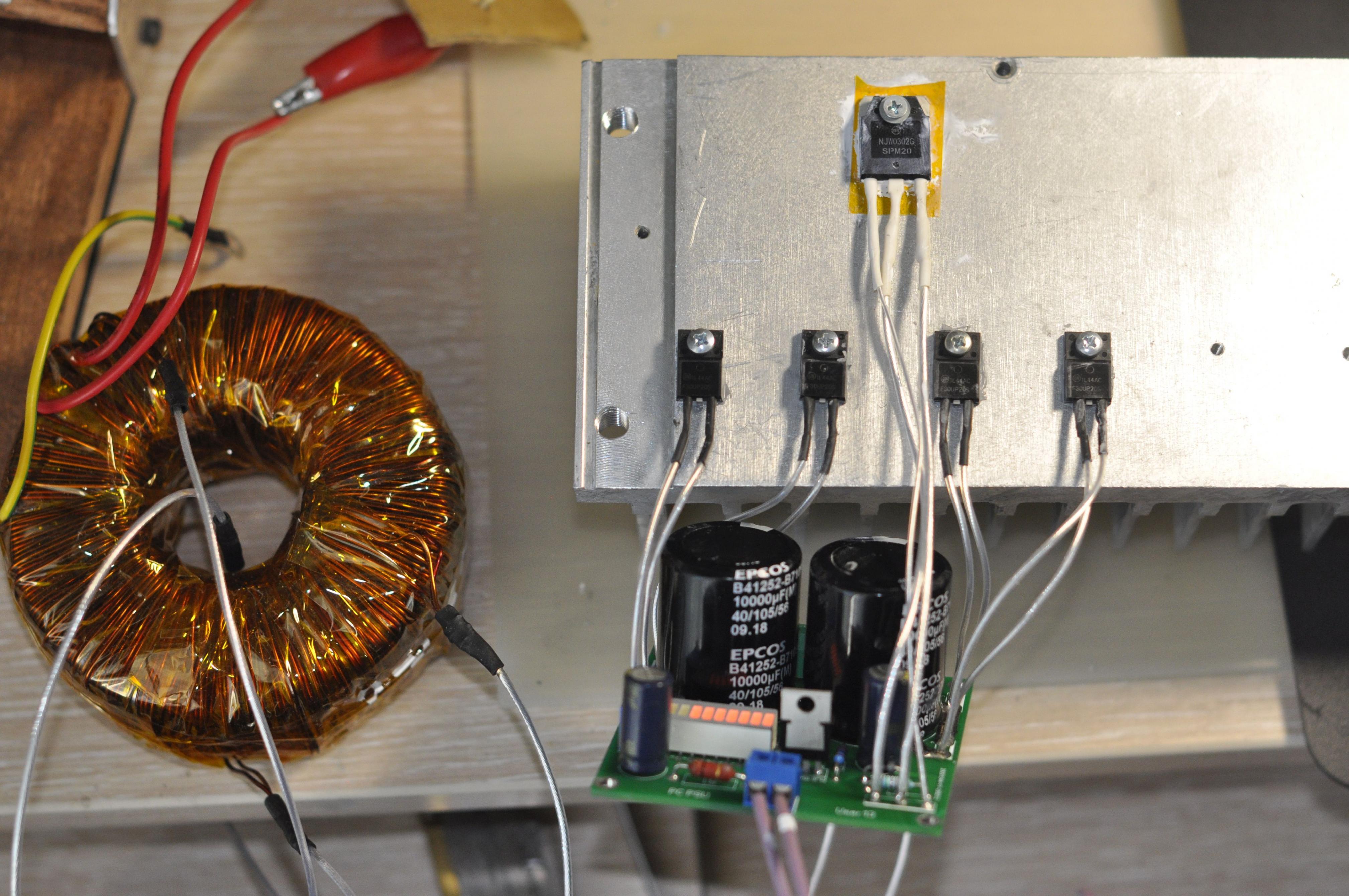

  8. I used this one: https://www.diyaudio.com/forums/power-supplies/336685-adapter.html My project:

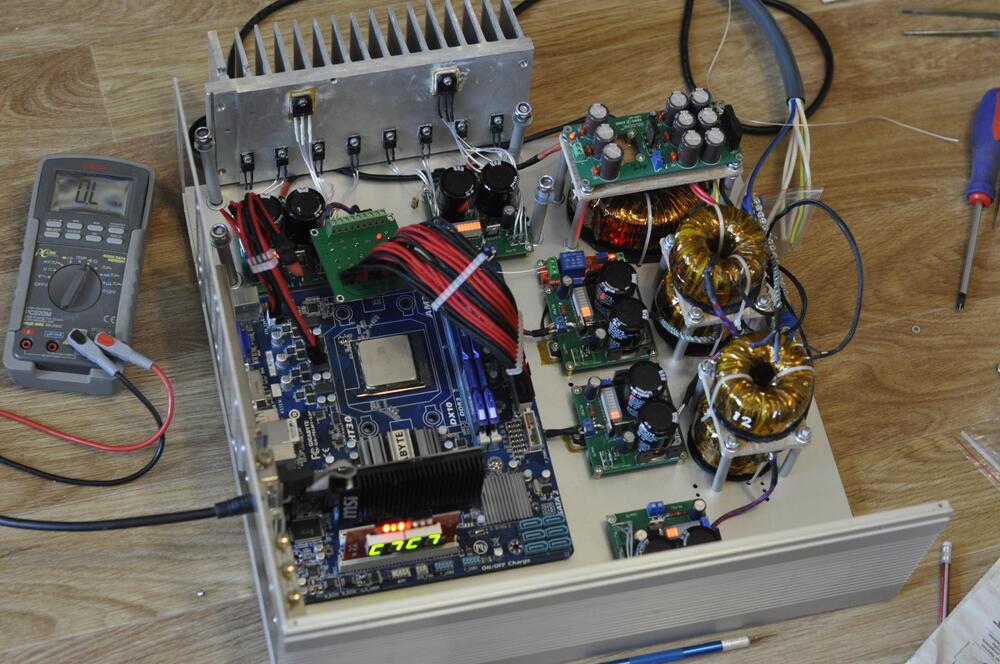

  9. Not so far ago built HTPC. 5 independent lines on Salas L-Adapter https://www.diyaudio.com/forums/power-supplies/336685-adapter.html MB: +3.3v MB: +5v MB: + 12v SSD: +5v CPU: +12v JCat Femto PCI-E USB card, deeply customized Linux for low latency (without RT kernel).
  10. As I heard Soekris good DAC but not perfect.

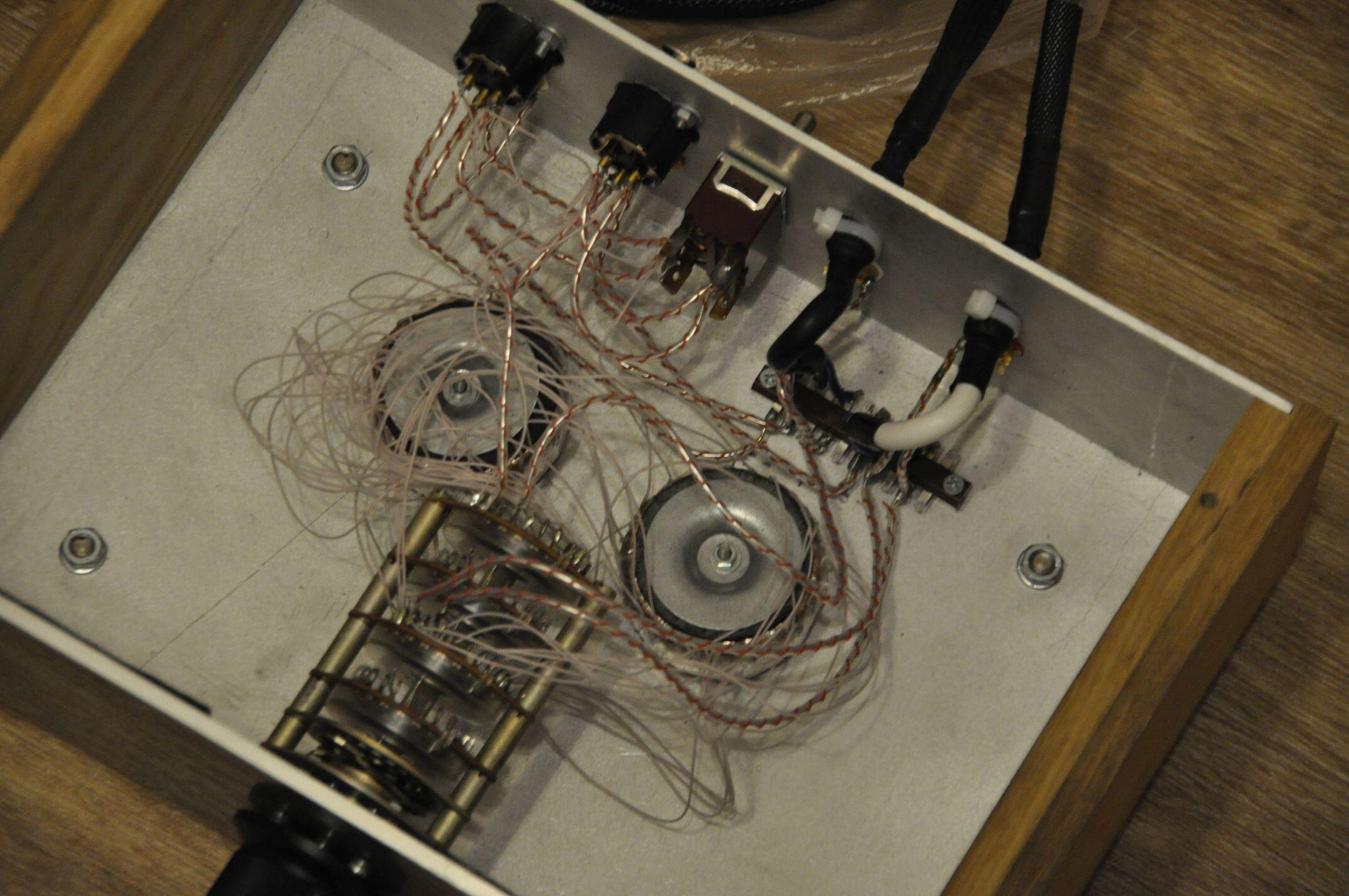

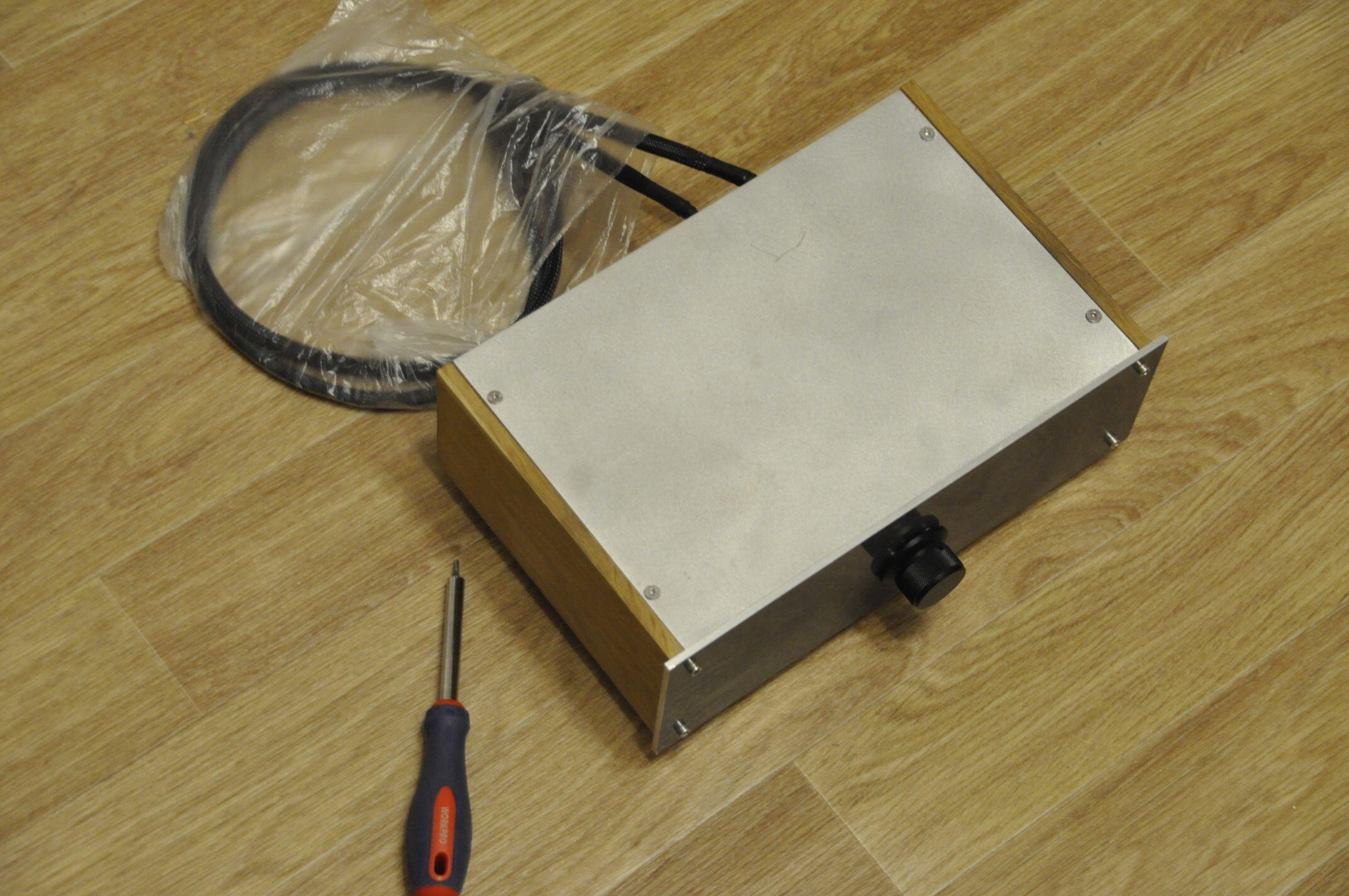

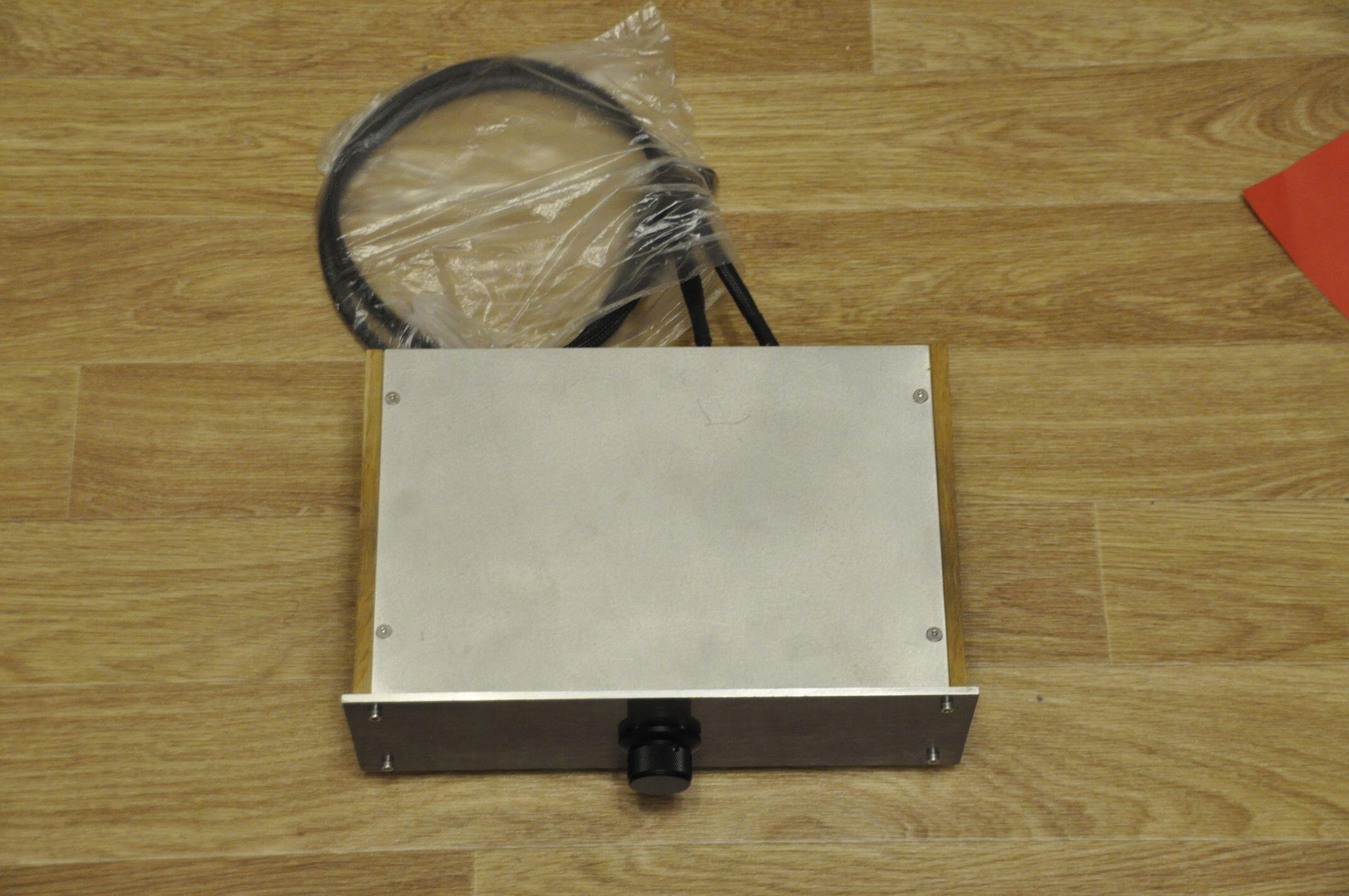

  11. I am wandering when people here assambled T2 and use it with Alps RK50 potentiometer from past age. Some years ago I inverstigated question about volume controls. Looked even on Bridged-T attenuator: https://www.electronics-tutorials.ws/attenuators/bridged-t-attenuator.html And as a conclusion: best attenuators are transformer TVCs. Until some music level resistors (even z-foil) is the best. But for Ultra HiEnd is TVC. In attachments is mine. FR @1kHz=0db almost flat up to 1MGHz. It is better then Stevens and Billington TX-102 TVC, Music First Audio - Passive Magnetic Preamplifier and so on. Even this not the toppest one, but it is very very pleasent for hears.
  12. It is possible to buy C2M1000170D on aliexpress, but for testing fake parts could be usefull "p-n junction breakdown voltage meter ". I wanted to build one of Russian variant: https://radiokot.ru/konkursCatDay2017/48/
  13. May be in power it is ok, but I'am looking for Carbon. As kevin gilmore said - only original parts:
  14. as I understand C2M1000170D differs from all of them: Yes, C2M1000170D is not so powerfull but those features may be more important.
  15. Even C2M1000170D ? This item: https://www.digikey.com/en/products/detail/microchip-technology/MSC750SMA170B/12367785 does not suitable? Wait on mouser too long, up to 5/27/2022
  16. Left chanel say hello to grave: half sands went to trash 😅 . Now looking for DN2540N5-G and C2M1000170D, but they are out of stock. Could someone suggest by which analogs it could be replaced?
  17. Next generation of replacement C2M1000170D is https://www.wolfspeed.com/1700v-silicon-carbide-mosfets?gclid=CjwKCAjwhaaKBhBcEiwA8acsHIXAWPUxDjNOkcr759hHaI2oBqpaPVCLSMR1UxDcq8RTelBzV8daMhoC110QAvD_BwE Power Dissipation 520W
  18. Hello all! After succesfull build GG moved to Carbon (board version 0.6). Soldered all components. Tested Right channel - all good. But with Left chanel some problem: with [balance] test all ok, [Current Adjust] seems also good. But problem with [offset]. It has voltage 405V (with +P left channel, same as -P). When trimmed [offset] it has diviasion +-10V. But it is not enougth for set 0V. All resistors with their nominals, seems no short circute, LEDs glows. Where could be problem?
  19. Hello again! I'm wanted to set transformers output in my DAC. Could someone say what value of "Input sensitivity (Vrms)" for this amplifier and for the Carbon?

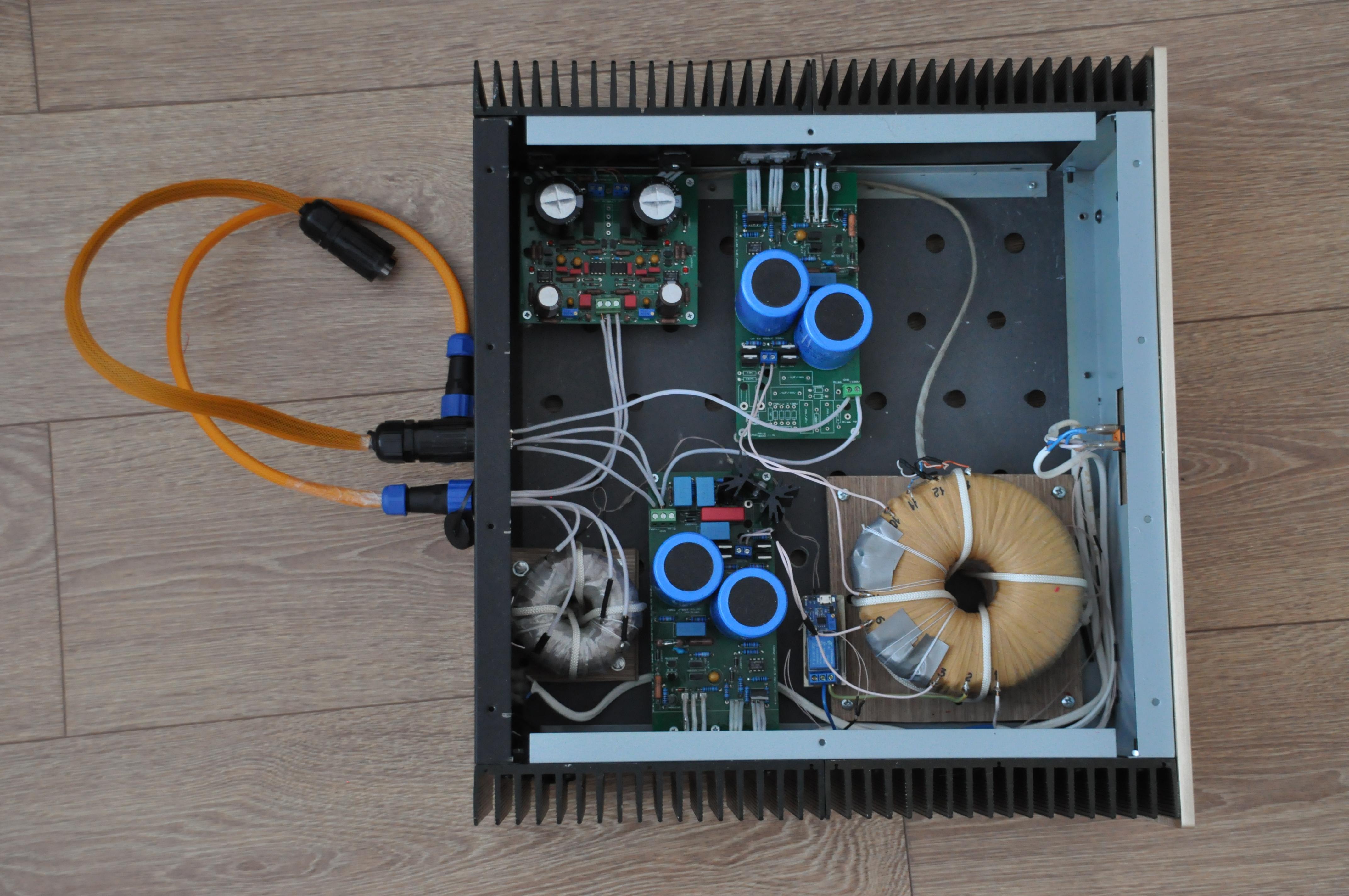

  20. Thanks! Right now boards holds by transistors only. factory plus cosmetic DIY.

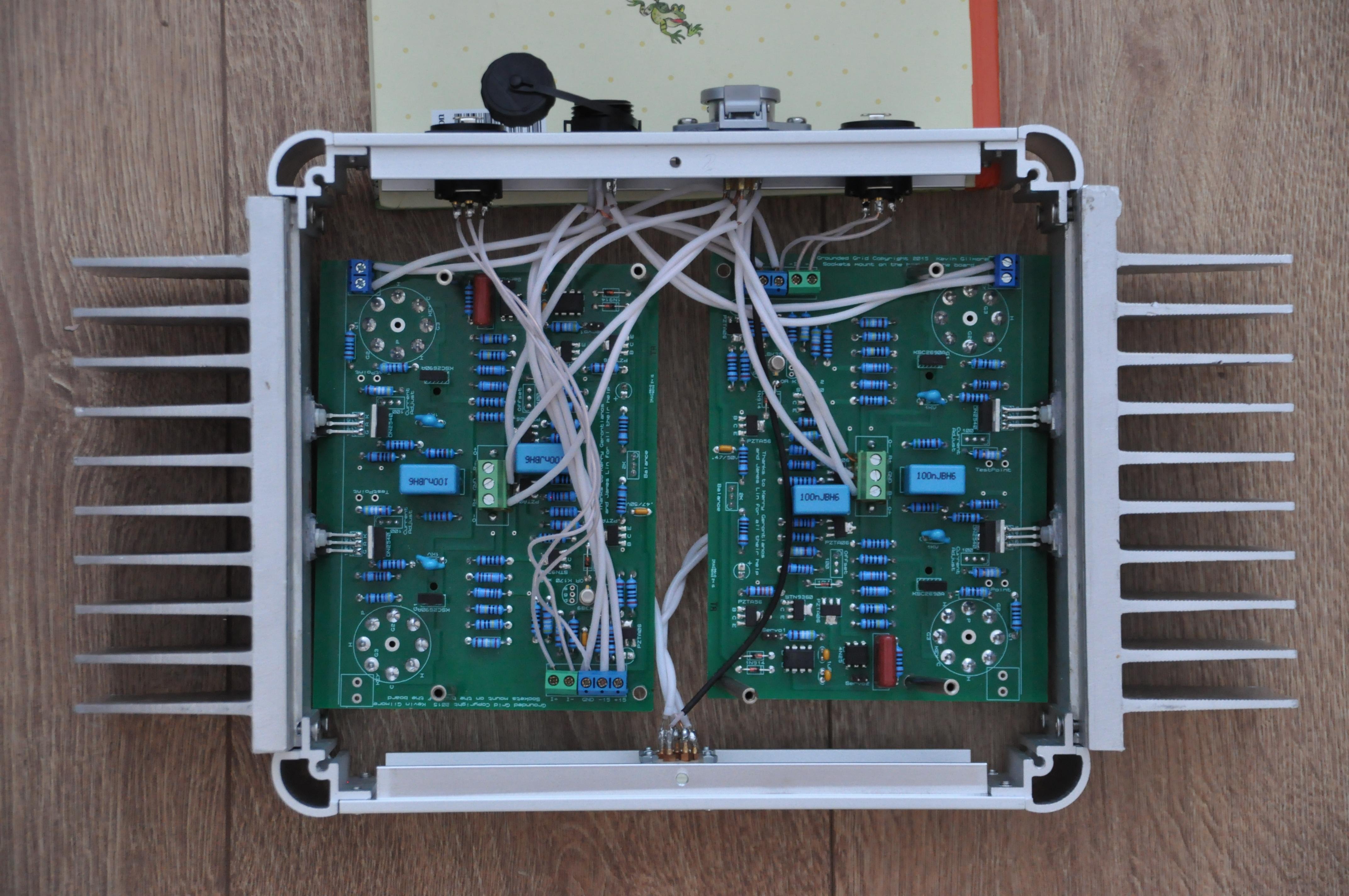

  21. Some quartet tubes wanted to say "Hello! We are here." Neotech UP-OCC wires in teflon tubes, power delay board. Simply plugged power and tested both boards that they are working. Not heard sound yet.
  22. Hello all! How many mA in transformer prefer to use for GG? Voltage 360 (=> 450V output) and 350 mA is it will be enough? On another forum recommended 500VA transformer for tubes amps.
  23. sorenb, good news, so I just add resistors for required voltage. Blueman2, wait some time and C2M1000170D will be sell soon. I also wait a couple week when assemble my BOM.
  24. Hello all! Successfully run one board of GRHV (boards 1.7 version). Wanted to turn it on 450V. Could I use three resistors instead of two R8, R9 ? Is not it criminal? For example 390K + 390K + 100K = 880 = 2x 442 .
×
×
