  1. This is outrageous! I just got a 0,002V shock from my 4xx, an outburst that enhanced dynamics subtly but perceptably. 5th layer stereo depth, black background etc.
  2. Anyone got a TKD 2CP 601 stereo pot to spare?
  3. Squeezed this amp into a small Modushop case. Tight fit for the caps, but it works. Doesn't get particularly warm. An interesting alternative for planars.
  4. Finding and matching them. If anyone got spares, pm me.

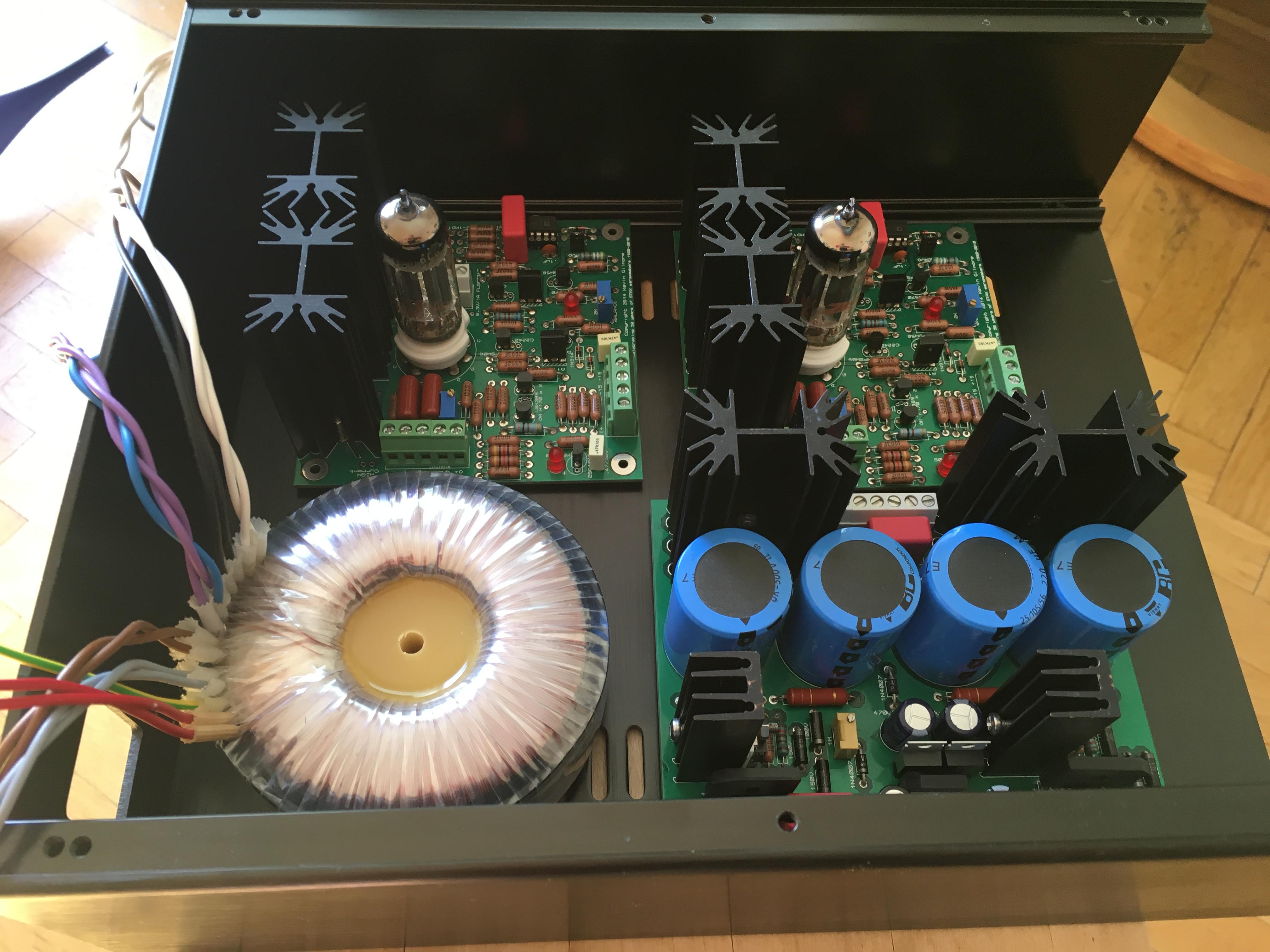

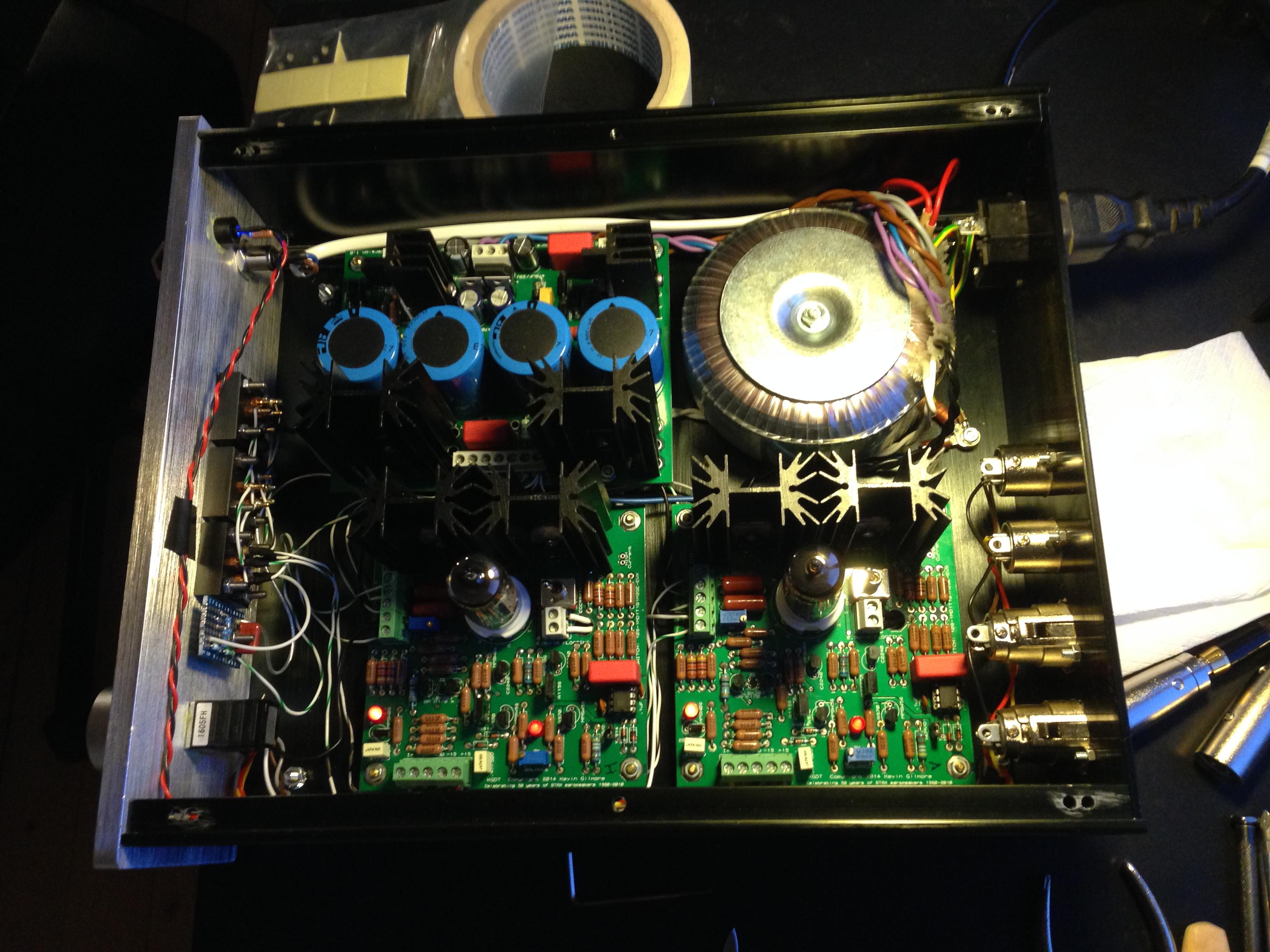

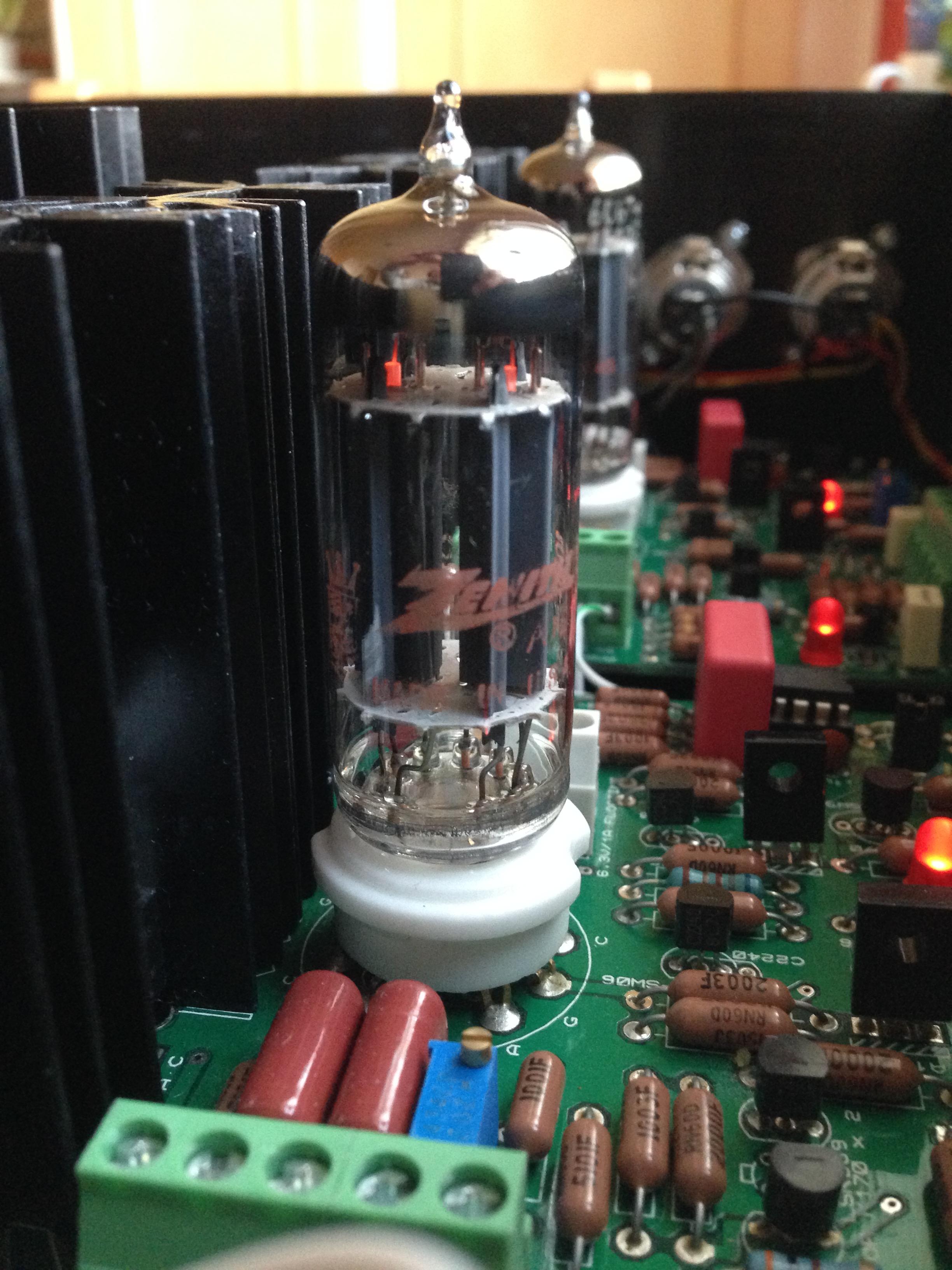

  5. As there is one more KGDT being built I thought I'd post some pics. I went with Jose's suggestion regarding the placing of the amp boards, seems to be the best compromise. I had concerns with the AC heater leads but no hum. A modest +/-300V but very nice with normal bias Stax. And 6/12V tube rolling possible.
  6. No, but have been tempted. Has its pros and cons.
  7. My normal smd Dynalo got purrty hot with 400 ohm bias resistors. Lid on the Economica got almost too hot to touch in a cramped shelf but it worked a couple of years until one of the boards smoked. Replaced components (mostly resistors, some smd:s) and changed to 255 ohm resistors but again smoke - the board had burned through someplace. Thanks to the ever resourceful MLA I got a new board that I populated with the assistance of Spritzer (supplying PZTA06:s). Boy, now it sings. Initially it didn't feel right to play with the volume at 5 but now I prefer it - it's here all amps should operate.
  8. Just warmed this up, sounds terrific. Think I'll populate the other two boards for a balanced Squarewave.

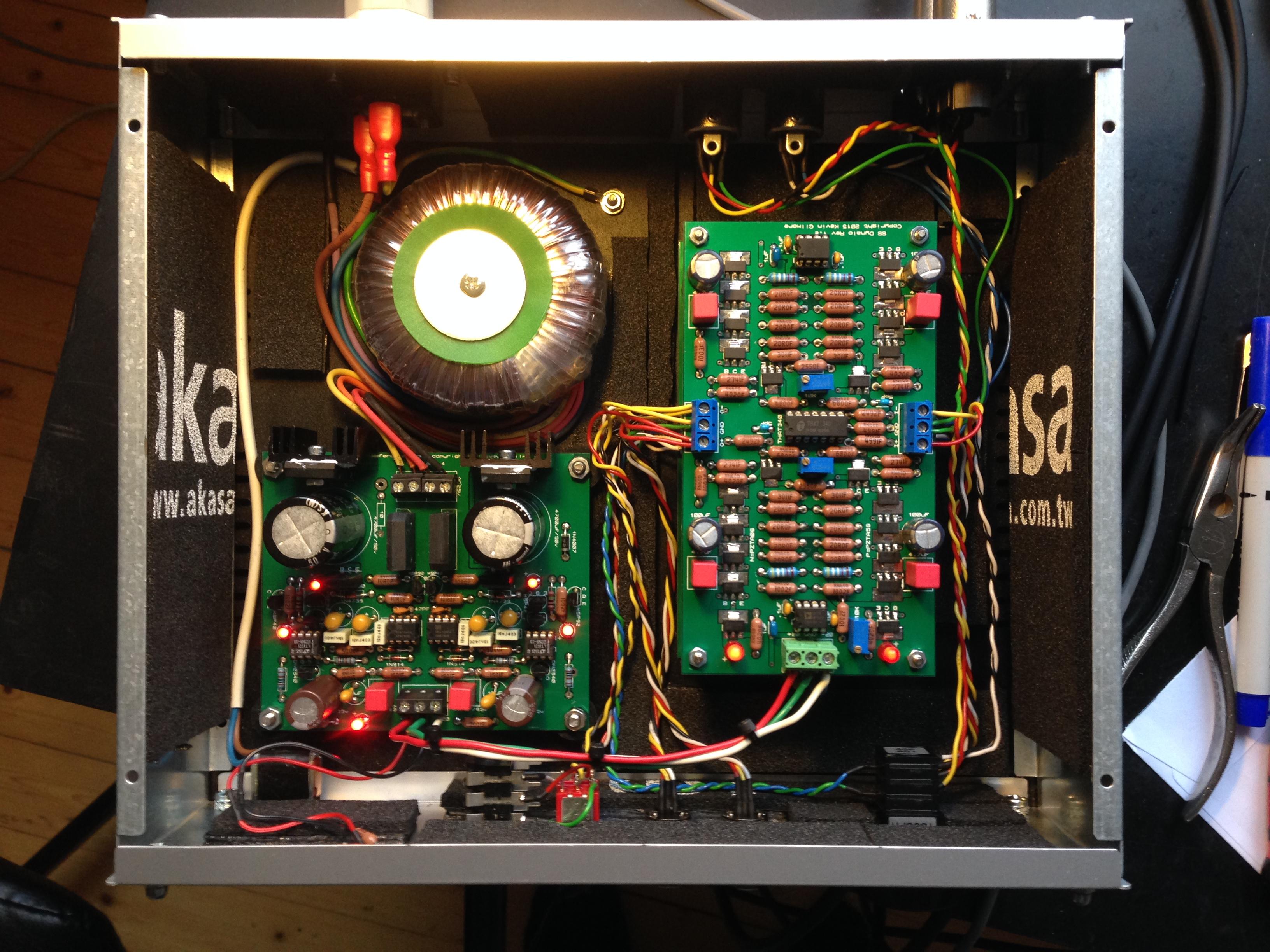

  9. Finally got down to assemble this thing, followed Spritzer's suggestion of the M3. Nice making use of the old Noble pot (once doing service in a modified PAS3 in the eighties) and the psu mistakenly bought - 15 bucks - for the Dynalo. Doesn't sound bad at all.
  10. Were there measurements of width and length, more pairs available? Could maybe fit U70.
  11. Thanks all. Gonna be fun finding one of n:th solutions.

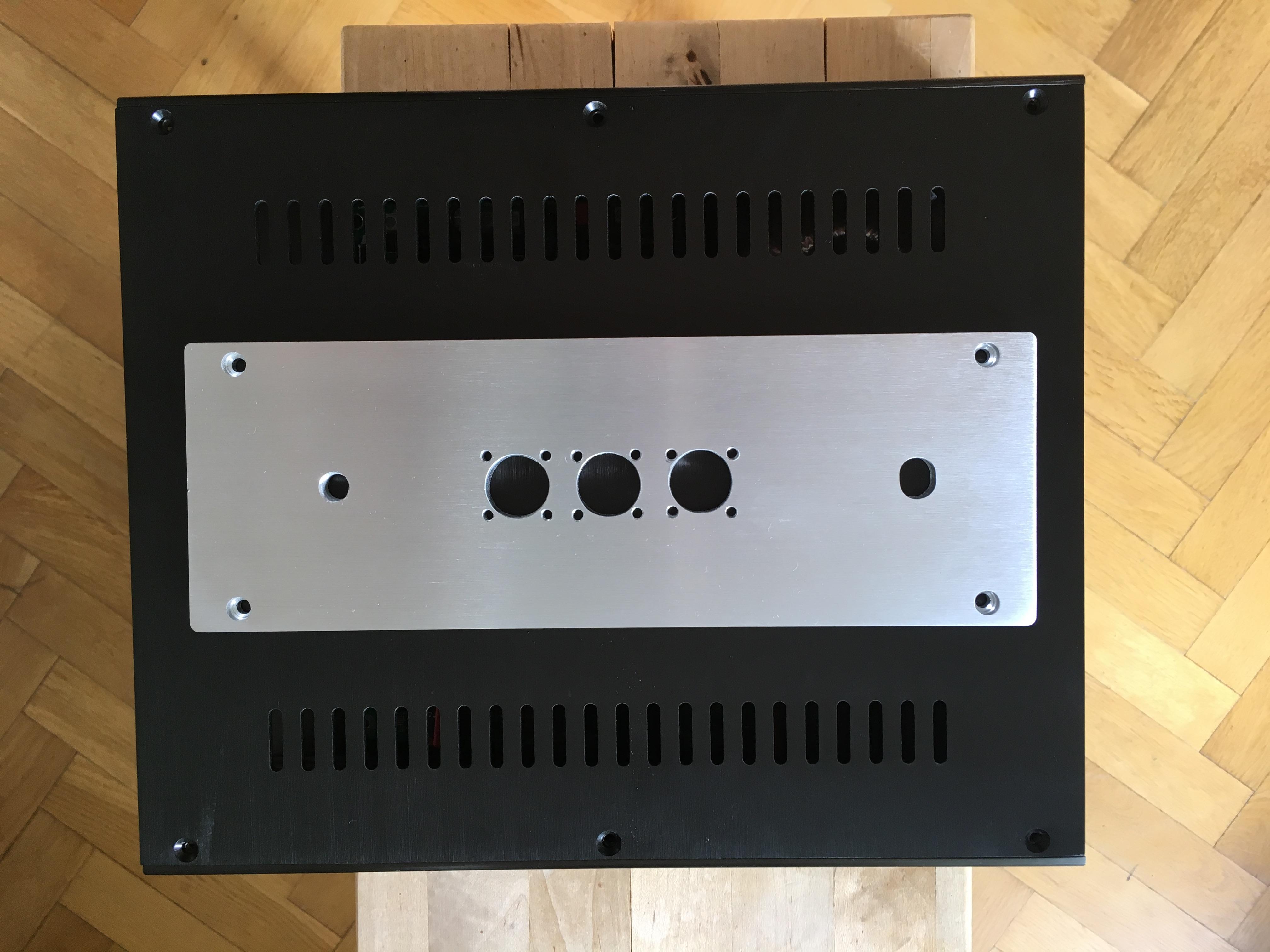

  12. Any suggestions on how to best place the power supply and amp boards before I start drilling? Transformer's place is given, and maybe the power supply should be placed at the back too with the amp boards facing the front (right). Thinking of hum and heat issues. Tubes will fit inside the box but I suspect holes on top lid above the tubes would be beneficial - top lid only has those small ventilations on the sides. Depends how hot the KGDT runs.
  13. Thanks. Let's see if I get them running with an adapter.
  14. Amphenol plugs above. Would it work having a common bias for L/R connecting Beyer ET1000 to a Stax amp? And does anyone know the pinout for the Beyer?
  15. A loss that Tyll retired. Wonder when that site closes down, haven’t read anything worthwile since his departure. Any news from his roadtrip?
  16. Anyone got a surplus 6-pin Amphenol plug or similar?
  17. Humbuckers, wire'm outa phase, he-he.
  18. I got the NAD20, are those the same drivers? Doesn't sound too bad but not good enough to spend too much time on. Not Stax pinout. What about the diaphragm specs?
  19. Nothing stopping starting a new, often helpful in builds.
  20. Thanks for info - seems the voltage was just at the limit of the regulator's range. Changed back to original 1,5K resistors (from 1,8K) so now DC out is 19,5V (before 21,5V) from a AC18V transformer. All leds are on. Problem here is the mains moving from 210 to 230V and those swings seem to affect the whole GRLV system.
  21. Leds close to big caps light up, then dies. Same thing when powering up once again. Other leds unaffected. Amp boards OK (Dynalo). Any ideas what it could be?
  22. Is the amp sensitive to pulling the headphone plug while playing?
  23. Hi,

    Built a Dynalo, a KGDT coming up and also a SS Dynahi.

    It's great that you publish your fine designs to us diy folks out here.

    The SS Dynahi: you wrote in one of your posts that you'd try to cram it into one box, that's what I'm hoping for. Did you find a suitable case? I've got two psu:s and transformers.



    Cheers

    Stefan

×
×
