11 hours ago, FallenAngel said:

Inputs are not shorted, nothing connected.

No load on putout while testing

+9V good, -17V bad pin6 to ground on opamp

Not yet measured voltage base/emitter

I don't know what the .5v refers to

I know it's marked and easy to populate which is why I'm surprised I messed up somewhere. :(


Update: I replaced the 4 SMC transistors, no change.


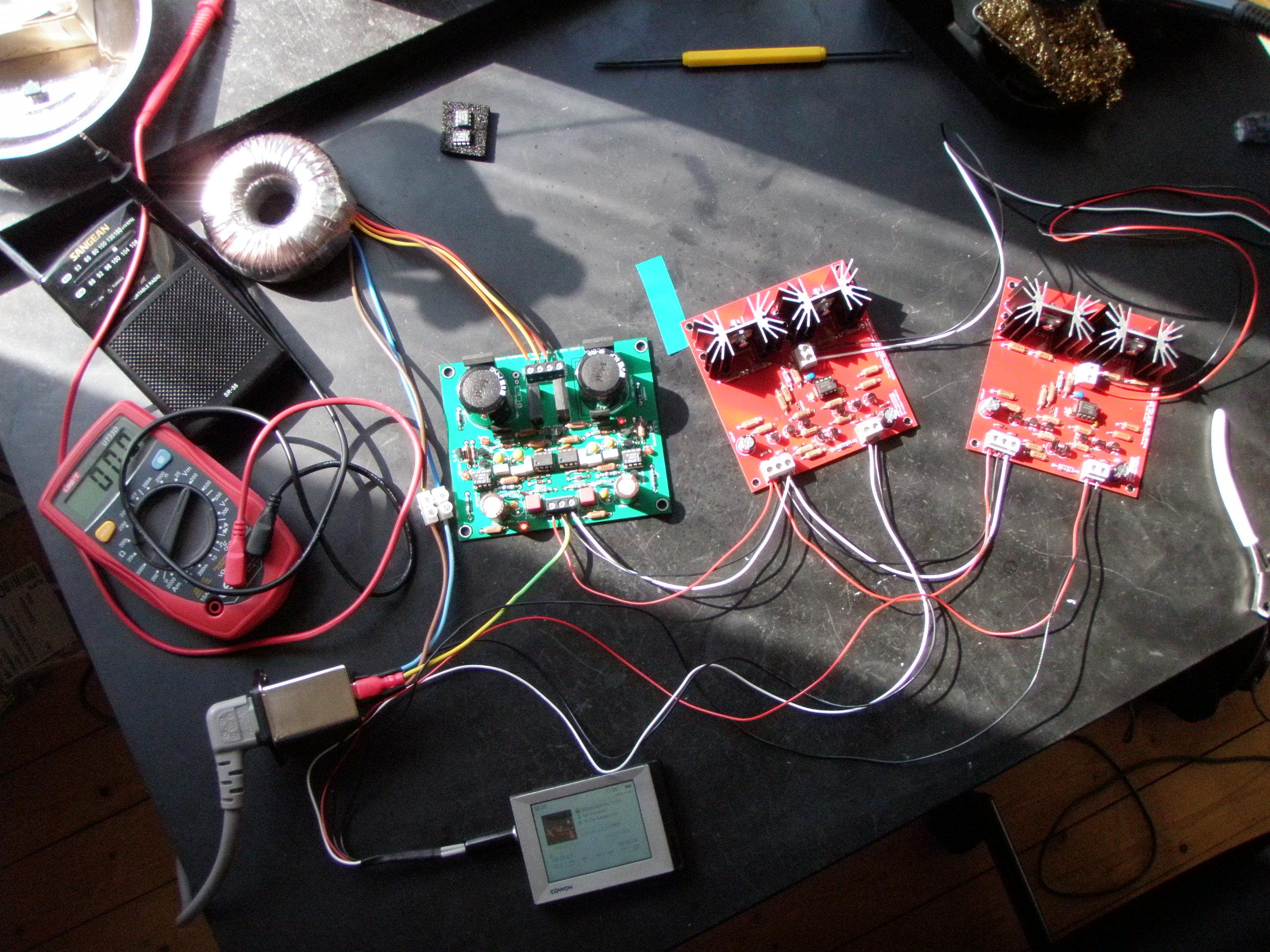

As far as I know inputs should be shorted when setting bias, offset. or connected to something that has no DC on it-  not floating.

I connect a 10kR across the in + & -    then can hang scope probes and signal on them


true current source amps need a load, so when you test, add the jumper for higher current gain and use 50 ohm load.

to check a BJT ... one way is to measure voltage--- base to emitter---VBE

Edited by congo5
Link to comment
Share on other sites

1 hour ago, congo5 said:

I know it's marked and easy to populate

It only takes one thing to send it into a bad place

one part or connection can cause voltages to go crazy all over the place

Do not use this for preamp duty!

don't ask me how i know

I do wonder if it could be used for the CAST Inputs>>>>

  • Like 1
Link to comment
Share on other sites

On 26/10/2016 at 3:01 PM, mwl168 said:

To second congo5's point, the input should be shorted when you test and adjust DC offset. This is something I often forget to do too.

I've read that part a couple of times and it confuses me completely. What do you mean "adjust DC offset"? There are no trimpots on this amp. Where does adjustment come in?

Link to comment
Share on other sites

  • 1 month later...


first post, long time reader, please don't be harsh with me, I read the forum rules a couple of times.

I have Stax SR-2170 system for two years, very happy with it.

However, I received an Audeze LCD-2 as christmas present (god bless christmas!), but...I don't have a proper amp for them.

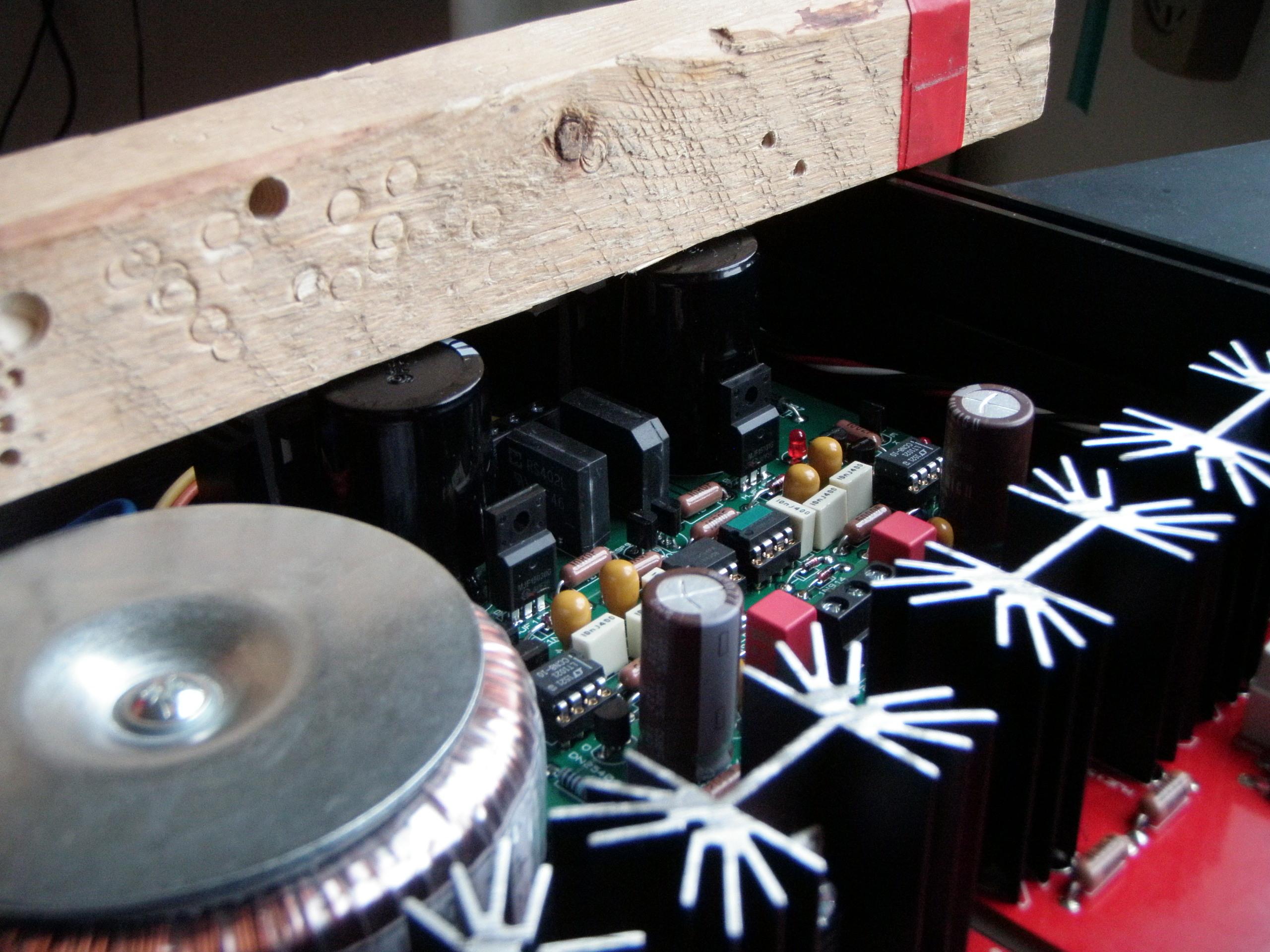

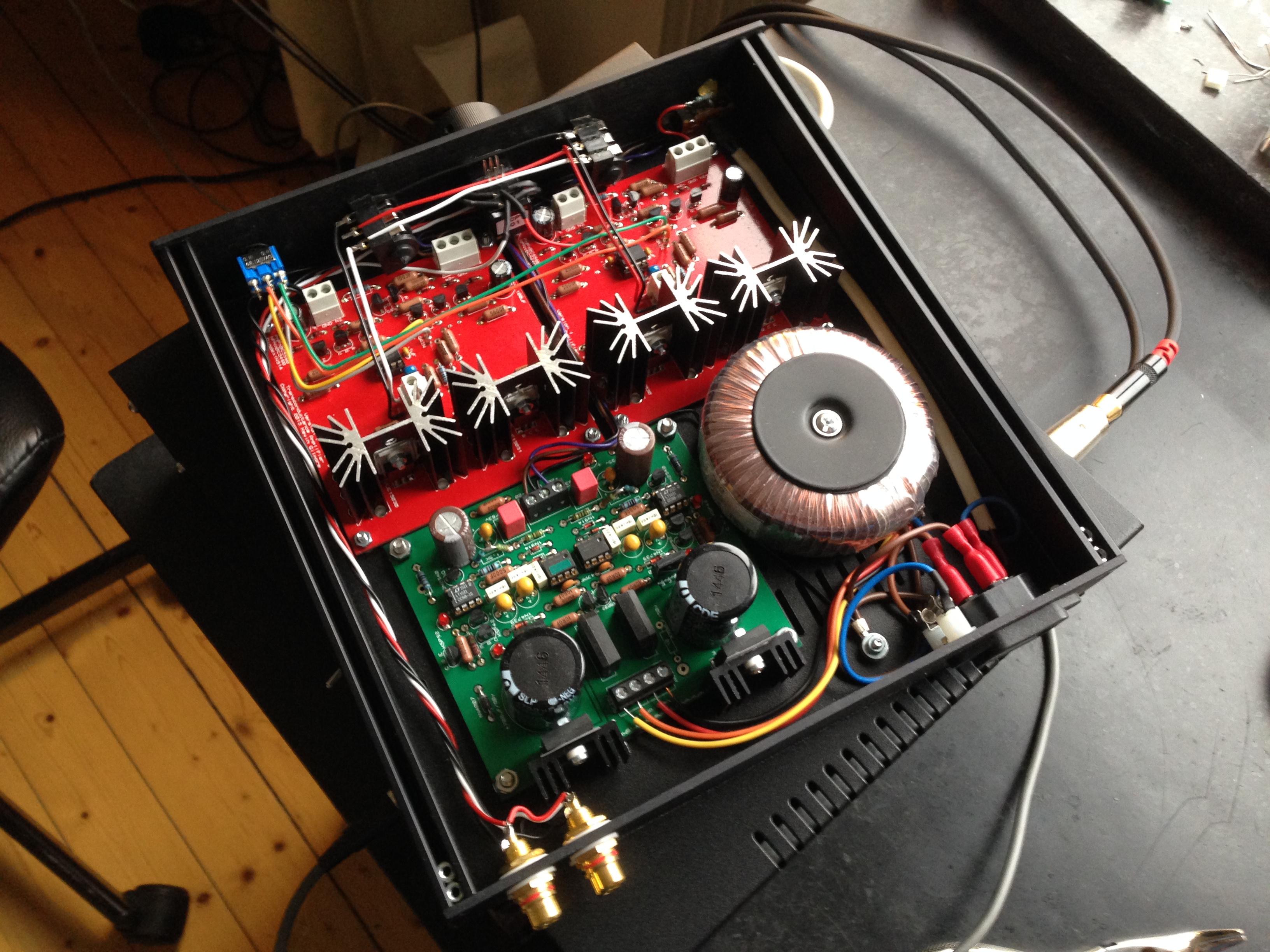

I thought this is a great opportunity to start my first DIY project (this transconductance amplifier).

But, I have a few (probably dumb) doubts about the design.

Kevin said there's no way to make a balanced/bridged transconductance amp, but looking at some commercially available products, I've found this:

Bakoon AMP-51R speaker amp: ("Maximum power output: 100 watts in stereo, 250 watts in mono")


Audio GD NFB-1 headphone amp (fully balanced, class A, with 4 pin xlr headphone output)


I mean, is something wrong with those transconductance amplifiers or a design of this headphone amp with a 4 pin XLR output for the headphones can be done?


Thanks for your attention, and please forgive my ignorance.

Link to comment
Share on other sites

5 hours ago, kevin gilmore said:

for sure the audio-gd is NOT a transconductance amp. I have one. diamond buffer output.

and If the bakoon is bridgeable for double the power then it cannot be a transconductance amp.

Thanks Kevin!!!

Mentioned the Audio GD stuff because I read this some days ago:


Kingwa mentions he uses the Current Conveyor Technology on his designs, like Krell and also Bakoon ("SATRI" circuit mentioned), my doubts were generated because of that.



Link to comment
Share on other sites

3 minutes ago, kevin gilmore said:

current mirrors used as voltage gain stages is very different from high power versions used as output stage.

as far as I know bakoon is one of the very few that make transconductance headphone amps.  It really works well only with very flat impedance headphones like ortho's.

(Read with Narco's character voice):

Gracias Patrón!

  • Like 1
Link to comment
Share on other sites
