luvdunhill Posted July 8, 2009 Author Report Share Posted July 8, 2009 The design goal is 75 ma per fet well, okay, but I for one interpreted your comment in post #19 as designing towards 150mA: HeadWize: DIY Workshop > My newest in the dyna series "If you run the default of 150 ma per fet, the 2 ohm resistors are fine." In hindsight, I see how that comment could have been misconstrued in a number of different ways. All that said, I think more than 75mA is better. I know there are quotes from Borbely who uses these FETs in one of his design that many of his customers preferred them at > 100mA, and I tend to agree. Here's a quote from his old website: "More is Better (sometimes)! Although the fact is well known that MOSFETS require a lot of current to sound super, I believed that the suggested 40mA or so in the output stage was optimal. Until one of our customers suggested to try more. Mind you the tiny heatsink we are supplying with the Kit can Quote Link to comment Share on other sites More sharing options...
guzziguy Posted July 8, 2009 Report Share Posted July 8, 2009 How did that happen? I had to have a minor in grad school and chose Comp Sci. The use of computers to gather and process lab data was just starting and I thought it was a good minor. We also had a foreign language requirement, and knowledge of a computer language fulfilled it. After a couple of years as a physiology grad student, I was tired of killing things and didn't really like the future path ahead of me. So I made my minor my major. It was one of the smartest moves I've made, probably only second to deciding to go to work for Stratacom rather than ACC (Advanced Computer Communications) in 1996. Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted July 8, 2009 Report Share Posted July 8, 2009 But that was when there were only a total of 4 fets. and its still the same 300ma and 18 watts... So i doubled the number of fets and halved the current per fet. Quote Link to comment Share on other sites More sharing options...
jinp6301 Posted July 8, 2009 Report Share Posted July 8, 2009 I had to have a minor in grad school and chose Comp Sci. The use of computers to gather and process lab data was just starting and I thought it was a good minor. We also had a foreign language requirement, and knowledge of a computer language fulfilled it. After a couple of years as a physiology grad student, I was tired of killing things and didn't really like the future path ahead of me. So I made my minor my major. It was one of the smartest moves I've made, probably only second to deciding to go to work for Stratacom rather than ACC (Advanced Computer Communications) in 1996. ahh thats pretty cool. And its pretty funny that knowledge of a comp language fulfilled a foreign language requirement Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted July 8, 2009 Author Report Share Posted July 8, 2009 ahh thats pretty cool. And its pretty funny that knowledge of a comp language fulfilled a foreign language requirement COBOL absolutely should fulfill a foreign language requirement Quote Link to comment Share on other sites More sharing options...
guzziguy Posted July 8, 2009 Report Share Posted July 8, 2009 It actually made sense. The foreign language requirement was from the old days when many research papers were published in a language other than English (usually German, French or Russian). By the time I entered grad school in 1976 you could find pretty much everything in English. So knowing a computer language was actually more useful for research than knowing a foreign language. In almost 30 years of being a s/w engineer, I've studiously avoided learning Cobol. Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted July 9, 2009 Author Report Share Posted July 9, 2009 For a total power supply of 300ma at 60 volts which is 18 watts. Ok, I see. I thought you recommending 75mA for the 4 FET version. In which case, nothing changes it's just as hot as we thought. So balanced would be 72W. My recommendation of heat sink still stands. Quote Link to comment Share on other sites More sharing options...
digger945 Posted July 9, 2009 Report Share Posted July 9, 2009 Finally blew a 2A fuse on the IEC. I'll wait until Kevin finishes his board and see how it goes. Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted July 9, 2009 Author Report Share Posted July 9, 2009 Finally blew a 2A fuse on the IEC. I'll wait until Kevin finishes his board and see how it goes. Would it help if I sent you a 160VA 2x30 toroid? Probably could drop it in the cheapest flat rate USPS box. Quote Link to comment Share on other sites More sharing options...

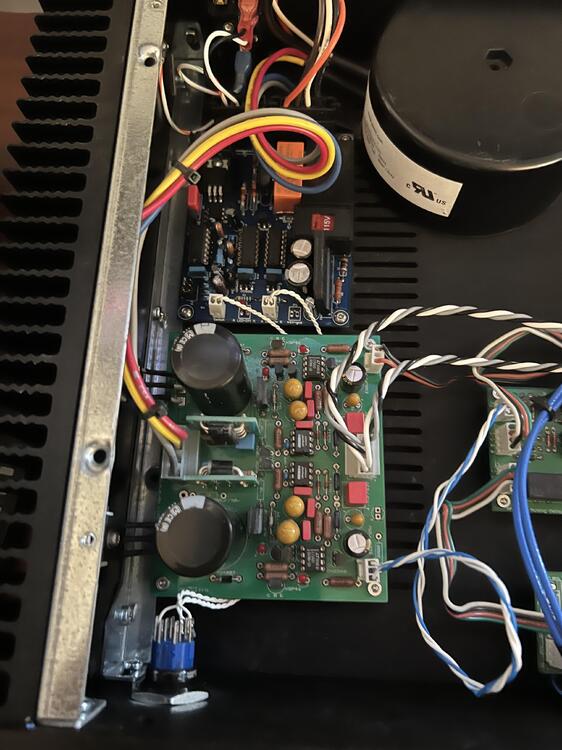

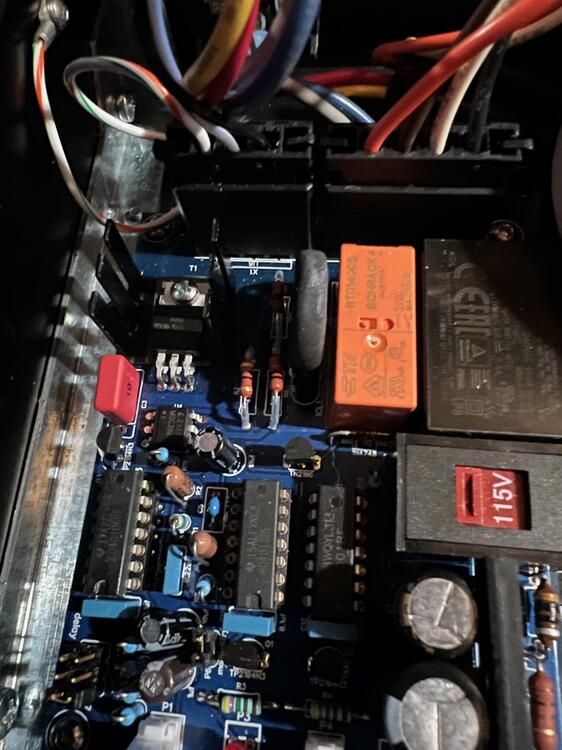

digger945 Posted July 9, 2009 Report Share Posted July 9, 2009 I have a new Plitron 162VA here on the bench. I should put it with one of the kits I got from you to make a dedicated supply. I guess I thought that if one sigma I have now could power 2 Dynahi boards at 16 x 100mA then this would be no problem. Quote Link to comment Share on other sites More sharing options...
DigiPete Posted July 9, 2009 Report Share Posted July 9, 2009 So, I am now interested in 75-100ma per FET biasing, and not the 150ma that was previously discussed. Hopefully the parts selection will accomodate that. Also, at 4 fets per board recommended, did we end up getting charged for double the needed FETs, and is a refund for the difference in order? Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted July 9, 2009 Author Report Share Posted July 9, 2009 So, I am now interested in 75-100ma per FET biasing, and not the 150ma that was previously discussed. Hopefully the parts selection will accomodate that. Also, at 4 fets per board recommended, did we end up getting charged for double the needed FETs, and is a refund for the difference in order? See Kevin's post above. Nothing has changed. Four FETs @ 150mA or 8 FETs @ 75mA. Same heat. I ran them harder just as a proof of concept, but this has always been the recommended current. Quote Link to comment Share on other sites More sharing options...
DigiPete Posted July 9, 2009 Report Share Posted July 9, 2009 but the design is for 75ma per FET, irregardless of 4 or 8 FETs per board, is it not? Heat is an issue, but what do you loose by only using 4 FETs per board (the original design) compared to 8 per board? Quote Link to comment Share on other sites More sharing options...

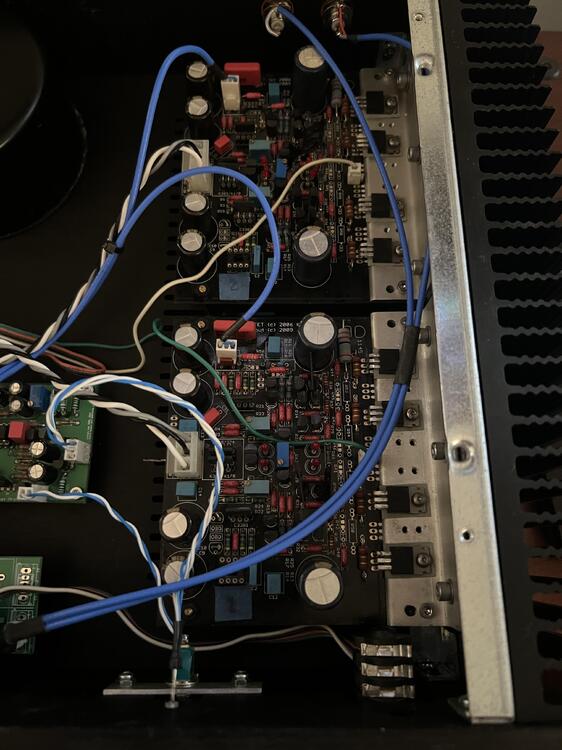

luvdunhill Posted July 9, 2009 Author Report Share Posted July 9, 2009 but the design is for 75ma per FET, irregardless of 4 or 8 FETs per board, is it not? Heat is an issue, but what do you loose by only using 4 FETs per board (the original design) compared to 8 per board? no. The original design was 150mA per FET with 4 devices. See the posts above. Once you doubled to eight, it requires double the heat sink. Instead, Kevin halved the bias so he didn't have to go out and by a larger heat sink, or go from 2 boards per heat sink to one, or run the die temperature way up. Quote Link to comment Share on other sites More sharing options...
Icarium Posted July 9, 2009 Report Share Posted July 9, 2009 So its not 4 fets at 75mA for a total of 300mA? I thought that's what "For a total power supply of 300ma at 60 volts which is 18 watts." means. Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted July 9, 2009 Author Report Share Posted July 9, 2009 (edited) So its not 4 fets at 75mA for a total of 300mA? I thought that's what "For a total power supply of 300ma at 60 volts which is 18 watts." means. no, four pairs at 75mA through each pair. Remember, current is calculated (edit: maybe "defined" is a better word, I dunno) from rail to rail. So, if one n-ch flows 75mA then the other complimentary p-ch device flows 75mA. Edited July 9, 2009 by luvdunhill Quote Link to comment Share on other sites More sharing options...
DigiPete Posted July 9, 2009 Report Share Posted July 9, 2009 no. The original design was 150mA per FET with 4 devices. See the posts above. Once you doubled to eight, it requires double the heat sink. Instead, Kevin halved the bias so he didn't have to go out and by a larger heat sink, or go from 2 boards per heat sink to one, or run the die temperature way up. Ok, I stand corrected. So it still seems 4 per board is the optimal for regular headphones, especially if the FETs sound better at 100-150ma bias. How many FETs did we end up buying into? Quote Link to comment Share on other sites More sharing options...
Icarium Posted July 9, 2009 Report Share Posted July 9, 2009 no, four pairs at 75mA through each pair. Remember, current is calculated (edit: maybe "defined" is a better word, I dunno) from rail to rail. So, if one n-ch flows 75mA then the other complimentary p-ch device flows 75mA. Ah natch. Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted July 9, 2009 Author Report Share Posted July 9, 2009 (edited) no, four pairs at 75mA through each pair. Remember, current is calculated (edit: maybe "defined" is a better word, I dunno) from rail to rail. So, if one n-ch flows 75mA then the other complimentary p-ch device flows 75mA. I dunno how to explain it. Maybe someone else can better. But, this calculation is fail: 18W / 60V = 300mA / 8 FETs = 37.5mA per FET this calculation is win: 18W / 60V = 300mA / 4 FET pairs = 75mA per FET Then power per device is 75mA * 30V. And with 75mA * 30V * 8 devices = 18W we're back to where we started. Edited July 9, 2009 by luvdunhill Quote Link to comment Share on other sites More sharing options...
DigiPete Posted July 9, 2009 Report Share Posted July 9, 2009 hey, I'm not really bothered if we bought double the ouput devices, I figure we'll get better matches if we go with four FETs per board, and we can have spare FETs for the next 4th of July Quote Link to comment Share on other sites More sharing options...
Smeggy Posted July 9, 2009 Report Share Posted July 9, 2009 all this is way above my head, but as someone who will, at most, run a stax box from it, what is the lowest these can be biased for purely headphone use? Gobs of power and massive quantities of heat are not required in my case. Is there a way of running this at a lower power spec which won't affect the sound? Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted July 9, 2009 Report Share Posted July 9, 2009 I don't know where the production boards are at in the production stage, but if possible it would be nice to move the two different feedback methods to the top side of the board with a 3 pin user configurable jumper... requested by icarium... Quote Link to comment Share on other sites More sharing options...
DigiPete Posted July 12, 2009 Report Share Posted July 12, 2009 So where are we at this point? How about a summary of the goings on and where we are headed? Quote Link to comment Share on other sites More sharing options...

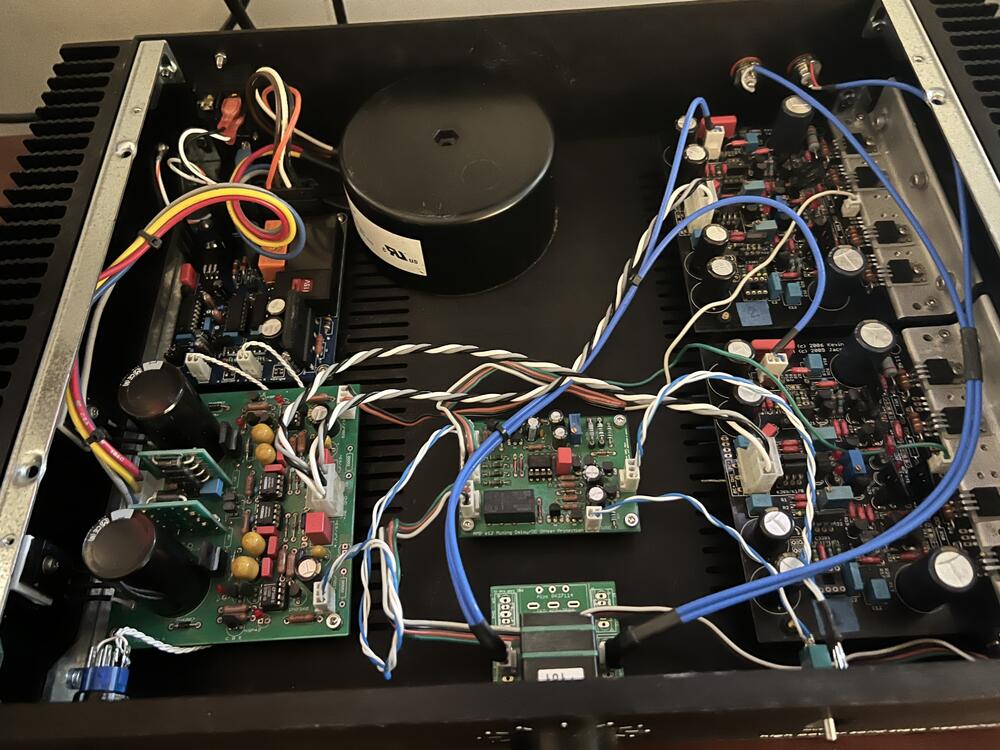

luvdunhill Posted July 12, 2009 Author Report Share Posted July 12, 2009 So where are we at this point? How about a summary of the goings on and where we are headed? We need to finalize the production boards and place the order. When we do this is really dependent on how much feedback we as a team want from Kevin and digger945. It probably makes sense to get as much feedback as possible from the both of them. I've made my suggestions in this thread and have sorta moved on to other things that are on my plate. Whether or not all the suggestions are implemented is really up to j4cbo I guess, and how willing he is to comb back through the thread and meticulously pick up all the comments and suggestions ... as he's the one that will implement the changes and feature requests. Once I receive the boards, I'll send out the boards with the matched devices. This includes the JFETs, the BJTs and the MOSFETs. There is still a little bit more matching to do, probably 40 hours or so. I don't even want to think how much time I've already spent... That's about it I think. Quote Link to comment Share on other sites More sharing options...
digger945 Posted July 12, 2009 Report Share Posted July 12, 2009 I'm still tinkering around with the Vbe multiplier and some higher values for the output resistors. So far so good, I just finished rebuilding the multiplier on my own proto board and have some much better results now using 2.2k resistors and 10k trimmer. I have some parts on order that will be in the middle of next week to finish up here. I would like some input as to changing the input bias trimmers(10k's) and the 20k trimmer in the middle of the Vbe, to something smaller and not as touchy, in series with a position for a resistor. This will allow much more flexibility in tuning and allow more precise control over the trimmers. For example instead of 10k maybe a 1k trimmer in series with a 9k resistor. Also I'm waiting to see how it goes with Kevin, it is his design. It's coming along. Slow, but progress each day. Quote Link to comment Share on other sites More sharing options...
