Kerry

^ Yes please

Very cool protection system. Trying to figure out how it actually works.

Happy birthday!

Happy birthday! Have a great day

Happy birthday! Enjoy

Happy Birthday! Enjoy

Funny, I was just listening to 99 Luftballons over the last week Good memories...

Beautiful!

I don't have a scaled down T2 PSU. The one I use is based on the original T2 PSU schematic. I am working on a golden reference version, but that project is not completed. Once upon a time, I did a golden reference version, but it was too fragile. In my new project, I will add current limiters in front of the regulators, like Kevin did in the T2 PSU.

There was a group buy for this already. You should be able to find what you need there

The JAN Phillips are a nice choice to get started with though I prefer the Amperex. https://www.audiotubes.com Tube depot has a matching service as well. PS. Not sure about where to buy in Austria

The maximum potential voltage there is only about 810v, so the 900v rating is perfectly fine.

You really want the highest Hfe for the batteries. I shoot for around 60

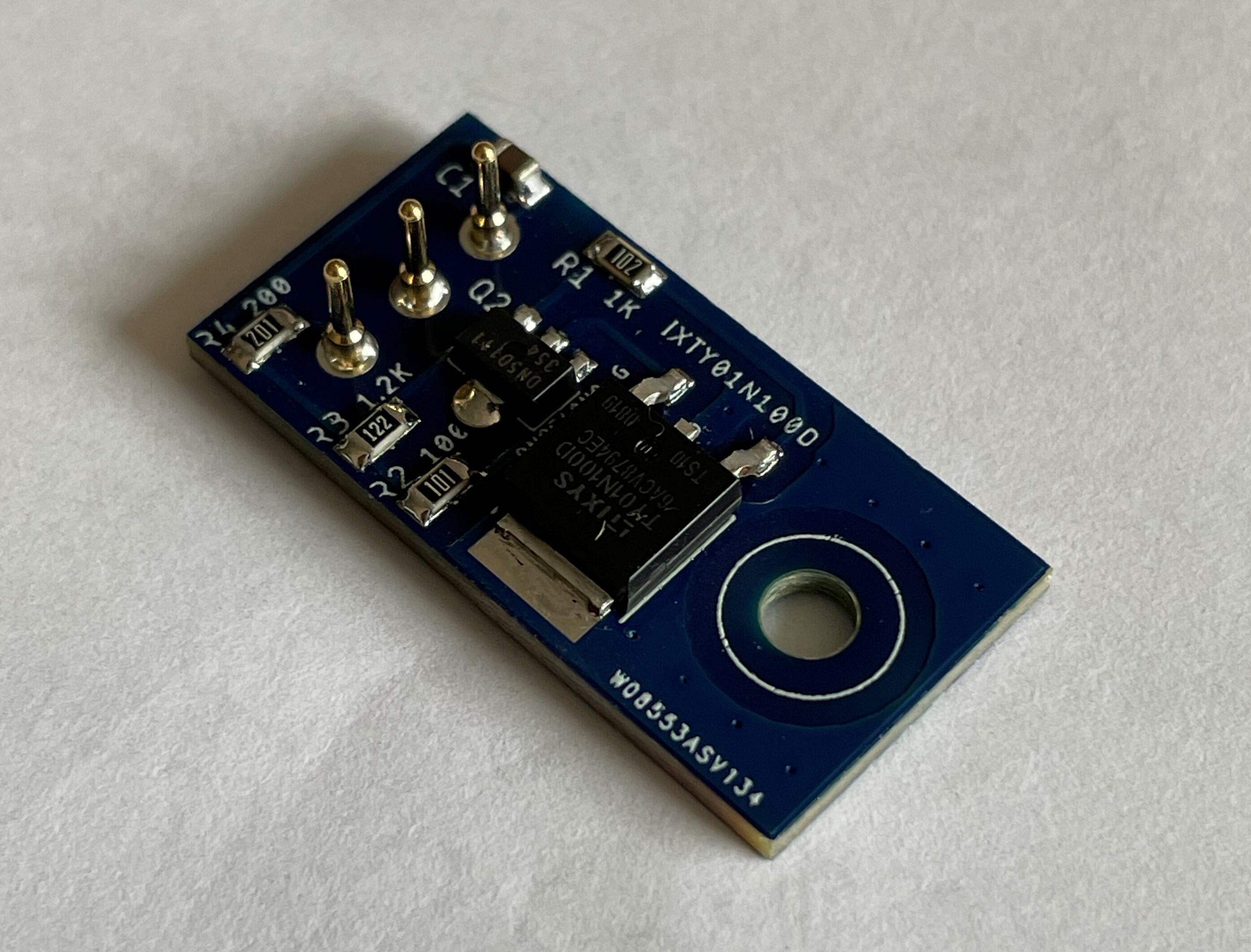

Yes. It's the CCS for the LEDs that feed the the output CCS. It's a simple cascaded DMOS with a cap on board.

I've redesigned my own boards and using the RK50 typically. I'm currently using C3675 (4x for the active batteries), KSA1156, C4685A (output CCS), FJPF2145, STN9360, J79, K216.

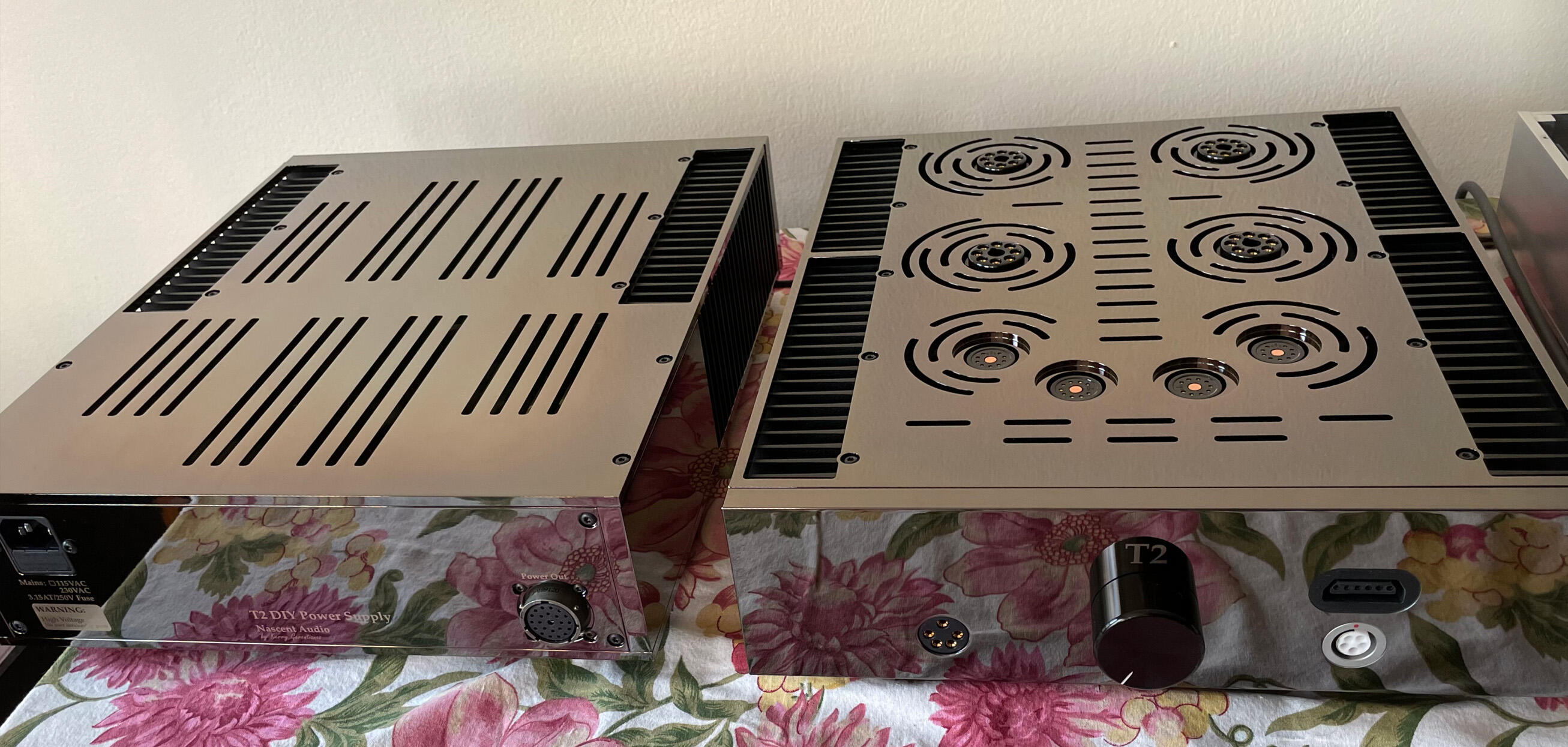

Here's a new twist on my T2 build. I've added both the HE-90 jack as well as a custom built Teflon HE-60 jack with appropriate voltages/resistances. This one is in black chrome That's the back of the power supply...

Happy Birthday Jose!

Happy Birthday!

You can use the RK50 50K A taper pot. Model number is RK50114A0001.

Happy Birthday Justin!

I don’t ground the PS to the chassis because there is a switch on the amp board that ties ground to the chassis or can leave it floating.

That’s great news. Congrats. I just use resistive loads mounted on heat sinks. Make sure they can handle the power and voltage.

That will do. Take it from one of the positive rails. while you’re at it, double check the value of R72 and confirm continuity of the ground pin for the reference.

^ Agreed

Don’t worry about Q16 and Q17 since you are getting about 425v out of the regulator. If you are getting 30v across D12 then it says that Q18 is most likely working. If you report back on that it will be easy to figure out next steps.
