headinclouds Posted September 18, 2014 Report Share Posted September 18, 2014 Well done insanity. Bodes well for the listening test to come. Hope you like the musical quality And thank you Kevin and Birgir I like the KGST very much. Quote Link to comment Share on other sites More sharing options...
spritzer Posted September 18, 2014 Report Share Posted September 18, 2014 It is a cracking amplifier. Next time around I'll test one with the current production pentodes. Quote Link to comment Share on other sites More sharing options...
insanity Posted September 18, 2014 Report Share Posted September 18, 2014 Could you elaborate what you mean by cracking? Quote Link to comment Share on other sites More sharing options...
nikongod Posted September 18, 2014 Report Share Posted September 18, 2014 Could you elaborate what you mean by cracking? It's slang. Usually means something very good. Or to make the word good even more so. http://www.urbandictionary.com/define.php?term=cracking Quote Link to comment Share on other sites More sharing options...
insanity Posted September 19, 2014 Report Share Posted September 19, 2014 (edited) Today I tried to listen to some music for the first time. One channel is perfectly fine. The other one only transmits low frequencies with distortion and no high frequencies. Without a signal it is dead silent. I changed the tubes, no effect. Where would you start to look for the problem? I guess it must be some device in the 1st or 2nd stage maybe? Edited September 19, 2014 by insanity Quote Link to comment Share on other sites More sharing options...
spritzer Posted September 19, 2014 Report Share Posted September 19, 2014 Can you adjust the balance and offset on the offending channel? Quote Link to comment Share on other sites More sharing options...
insanity Posted September 19, 2014 Report Share Posted September 19, 2014 Yes everything adjusts fine. Quote Link to comment Share on other sites More sharing options...
Inu Posted September 19, 2014 Report Share Posted September 19, 2014 How is a bias voltage? Too high or low...? Bias voltage is from a same circuit but if diaphragms have a different tolerance. Quote Link to comment Share on other sites More sharing options...
insanity Posted September 19, 2014 Report Share Posted September 19, 2014 Bias is set to 580V, Quote Link to comment Share on other sites More sharing options...
chiguy Posted September 19, 2014 Report Share Posted September 19, 2014 (edited) Do you have another pair of headphones to try? If you rewire the channels so that the old right is the new left (and vice versa), does the problem swap to the other channel? I'm just thinking about ruling out the possibility of a bad pair of headphones. Do the headphones work fine in another amp? Edited September 19, 2014 by chiguy Quote Link to comment Share on other sites More sharing options...
insanity Posted September 19, 2014 Report Share Posted September 19, 2014 (edited) The headphones work fine on my kgsshv. I also switched the source channels to rule out a problem with the source. Tomorrow I will double check every connection and do a comparative measurement of both channels hoping to find a difference. Edited September 19, 2014 by insanity Quote Link to comment Share on other sites More sharing options...
JoaMat Posted September 19, 2014 Report Share Posted September 19, 2014 Maybe the diode testing method will help you locate where the problem is. See Kerry's post at The ultimate DIY? A Stax SRM-T2! This have helped me a couple of times. Quote Link to comment Share on other sites More sharing options...
insanity Posted September 20, 2014 Report Share Posted September 20, 2014 Ok guys something weird is going on. I replaced the input stage of the "faulty" channel - no effect. Then I switched the O+ and O- wires running to the stax jack from one board to the other and vice versa. I expected the problem to switch sides. But the problem stays on the same side! WTF? As I said the headphones work perfectly with the KGSSHV. If I interpret this correctly, this leaves me with either a bias problem or a faulty cable to the stax jack. Just to be sure how to correctly set the bias voltage. Measure between GND and Bias Testpoint and turn the 1M pot until = 580V. Measurement after the 4.7M resistor gives me around 400V. Quote Link to comment Share on other sites More sharing options...
johnwmclean Posted September 20, 2014 Report Share Posted September 20, 2014 If I interpret this correctly, this leaves me with either a bias problem or a faulty cable to the stax jack. Or maybe a connection at the Stax Jack itself? Measure the offset/balance with headphones connected and then without, there could be some flexing of a cold join somewhere? Quote Link to comment Share on other sites More sharing options...
insanity Posted September 20, 2014 Report Share Posted September 20, 2014 Ok guys, I am an idiot. I messed up the wiring of the stax jack. I switched the bias and one of the output lines... I don't really know how it was possible to get good sound on one side like this. Everything is fixed now, works as it should. I feel so ashamed. Sound seems pretty good so far, but I cannot really comment much on difference to the KGSSHV yet. I will try to do this, once it is cased up and connected to my regular source. This will take some time, since I have not yet decided on a case to get. Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted September 20, 2014 Author Report Share Posted September 20, 2014 use the little stax jack circuit boards. makes it easy. Quote Link to comment Share on other sites More sharing options...
insanity Posted September 20, 2014 Report Share Posted September 20, 2014 I have those... But I didn't want to put the pcb on the jack yet. With the PCB mounted it seems impossible to insert screws. How do you guys do it. Screw the jack into the case and then mount the pcb? Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted September 20, 2014 Report Share Posted September 20, 2014 I use a circular PCB. Quote Link to comment Share on other sites More sharing options...
spritzer Posted September 20, 2014 Report Share Posted September 20, 2014 I mount the sockets to the chassis and there they will stay. Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted September 20, 2014 Author Report Share Posted September 20, 2014 the square ones work fine with my stax jacks. the round ones work regardless. best to mount Justin's jacks to the front panel first, or drill all the way thru the front panel and use screws and nuts and then you can take it off. Quote Link to comment Share on other sites More sharing options...
insanity Posted September 21, 2014 Report Share Posted September 21, 2014 Thanks for sharing your experiences. Since I have the PCBs from Birgir, I have to wait to mount them until the chassis is ready. When I was looking at the KGST and most recent KGSSHV boards, I asked myself the following question: Since these boards incorporate the 2 100ohm input resistors which are directely in the signal path before amplification, would there be any profit in choosing higher quality resistors than the usual rn55 oder xicons? Of course the signal passes many other resistors on the board as well. But this was just a thought. Quote Link to comment Share on other sites More sharing options...
chiguy Posted September 21, 2014 Report Share Posted September 21, 2014 I was tossing around the idea of mounting Stax jacks using threaded rods and nuts using blind holes on the back of the panel. My other thought was cap screws also with blind holes. Quote Link to comment Share on other sites More sharing options...
spritzer Posted September 21, 2014 Report Share Posted September 21, 2014 When I was looking at the KGST and most recent KGSSHV boards, I asked myself the following question: Since these boards incorporate the 2 100ohm input resistors which are directely in the signal path before amplification, would there be any profit in choosing higher quality resistors than the usual rn55 oder xicons? Of course the signal passes many other resistors on the board as well. But this was just a thought. The signal passes through a lot of the other resistors too... Stick with RN60D and it will be fine. For the record, I added those resistors to help prevent attenuator issues. They can be bypassed but I'd recommend keeping them as they won't do any harm and can prevent some minor headaches. Quote Link to comment Share on other sites More sharing options...

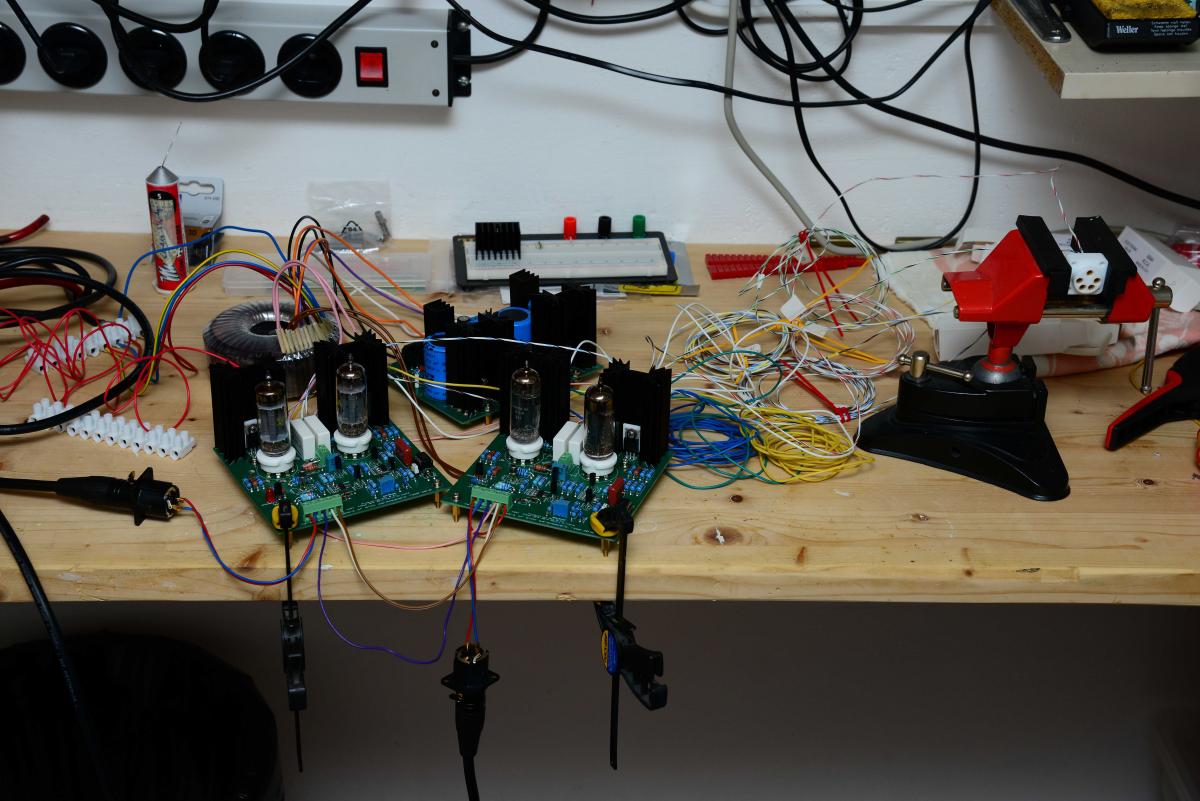

insanity Posted September 21, 2014 Report Share Posted September 21, 2014 I know what they are for. I still have to add them in the KGSSHV though. A question to running KGST owners: Are you amps completely silent like the KGSSHV or is there a minimal amout of background noise? After some more listing to mine today, which is still uncased and a provisional setup, I noticed that its not dead silent after all. Its not a grounding issue - its not a classical 50hz hum. It's more of a higher pitched sound. Is it normal that there are some unpleasant sounds when turning off the amp with the headphones plugged in? Here is a pic of my test setup: Quote Link to comment Share on other sites More sharing options...
spritzer Posted September 21, 2014 Report Share Posted September 21, 2014 It should be dead silent. Did you clean the flux off the boards? That could be creating a short somewhere. Quote Link to comment Share on other sites More sharing options...
