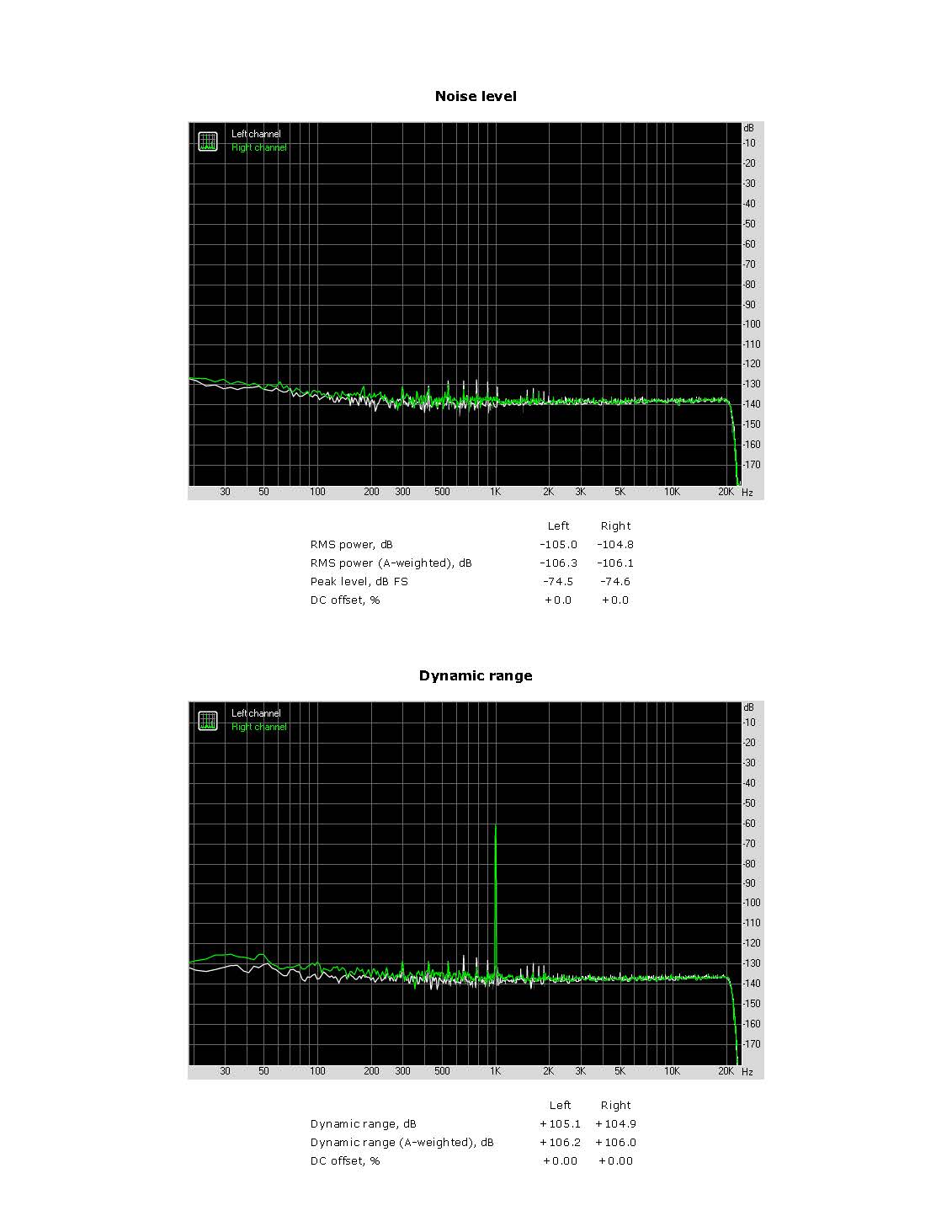

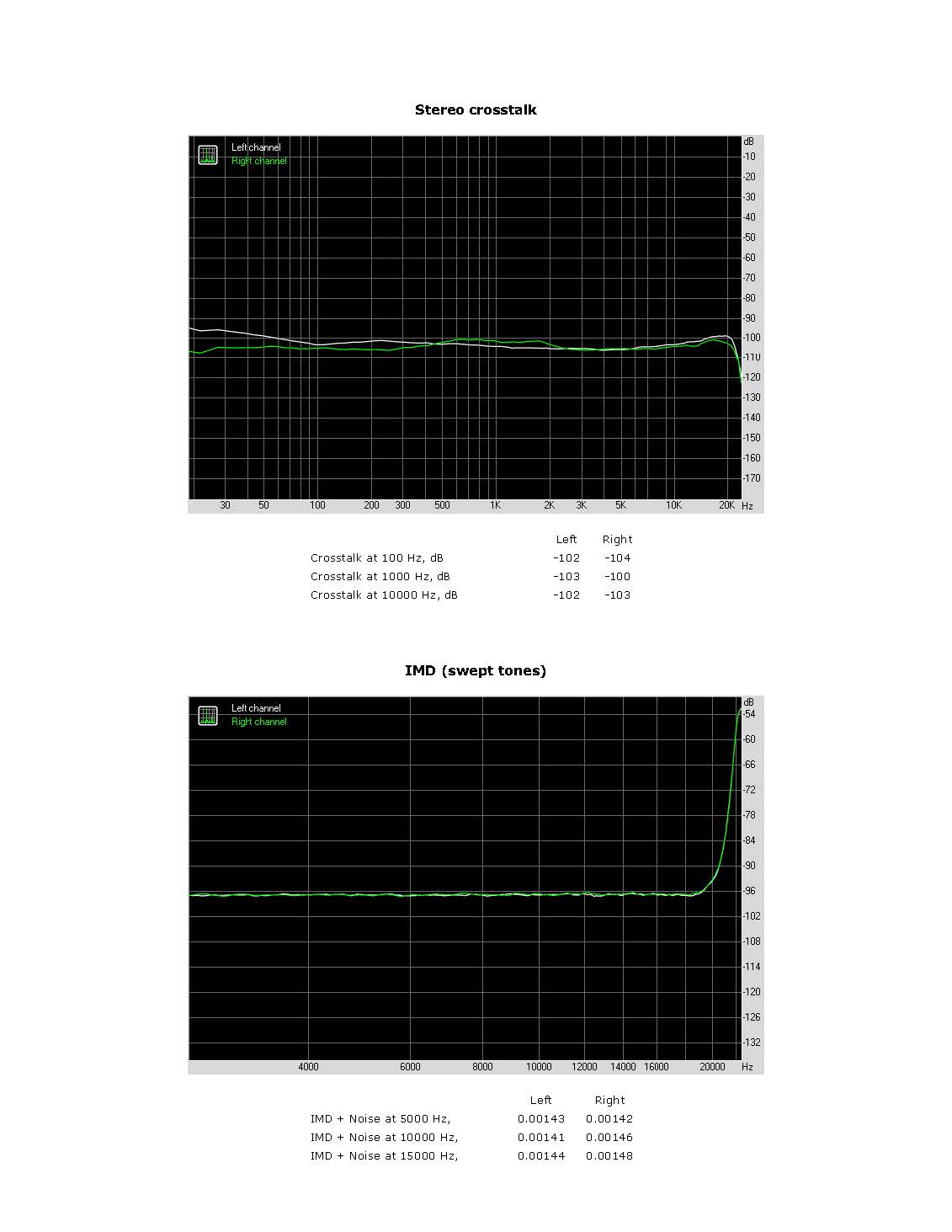

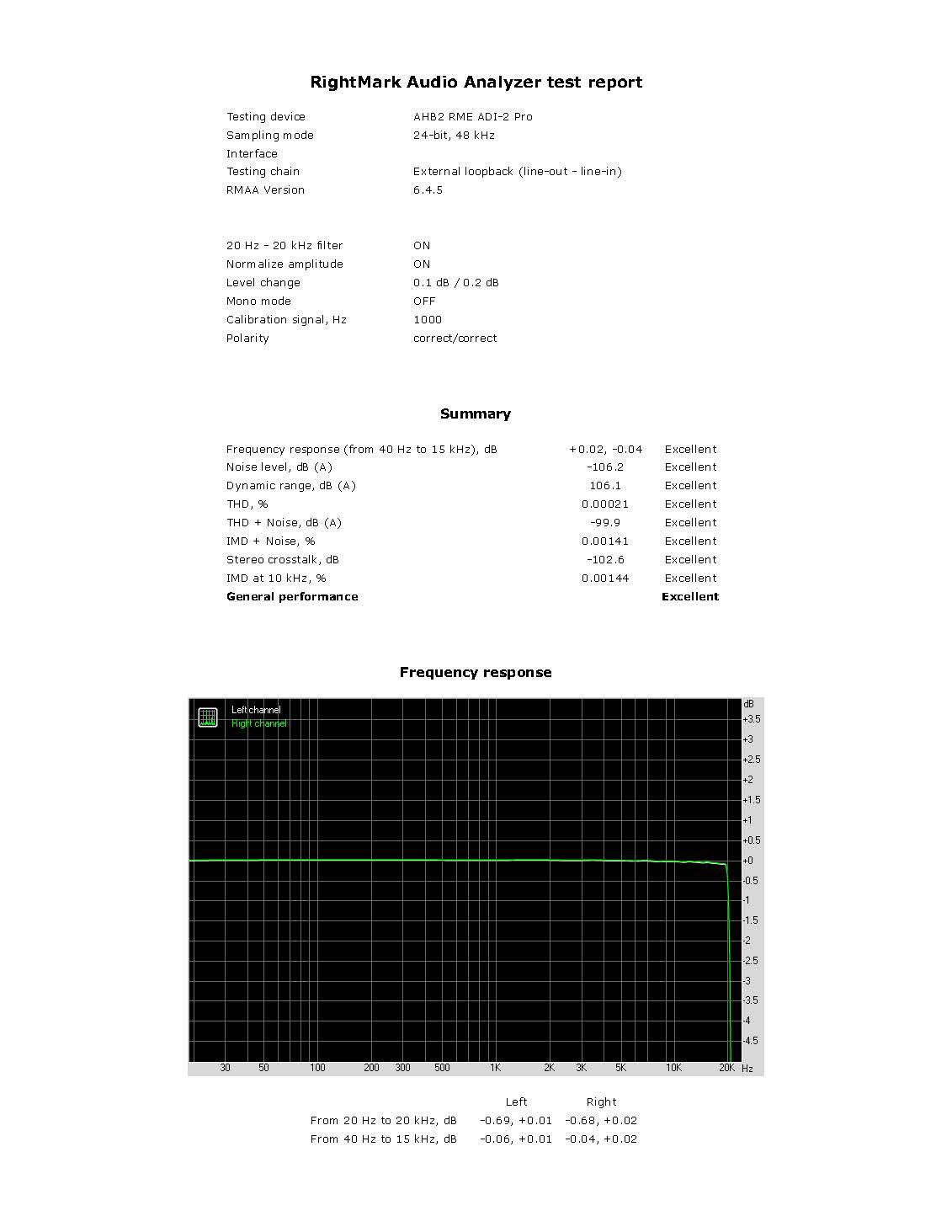

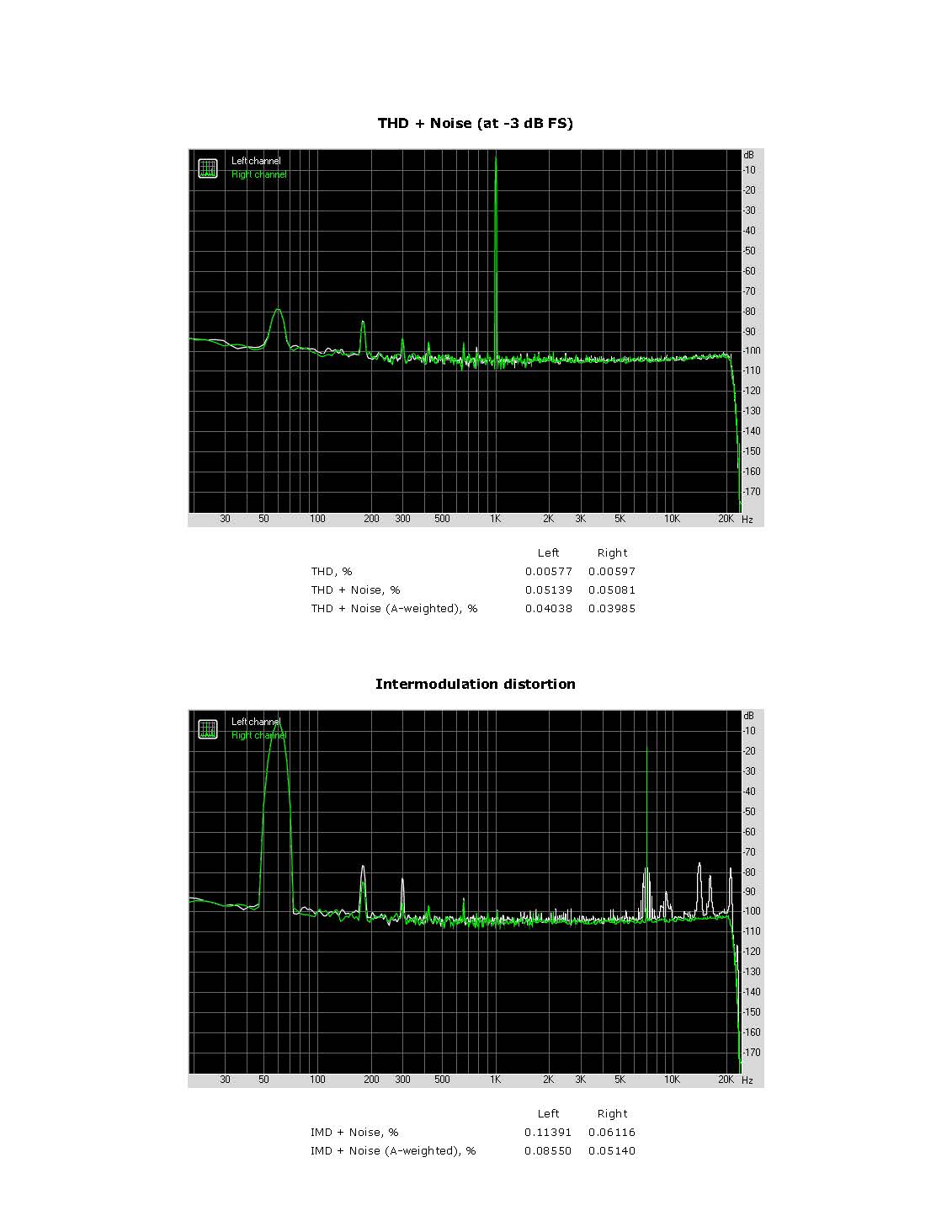

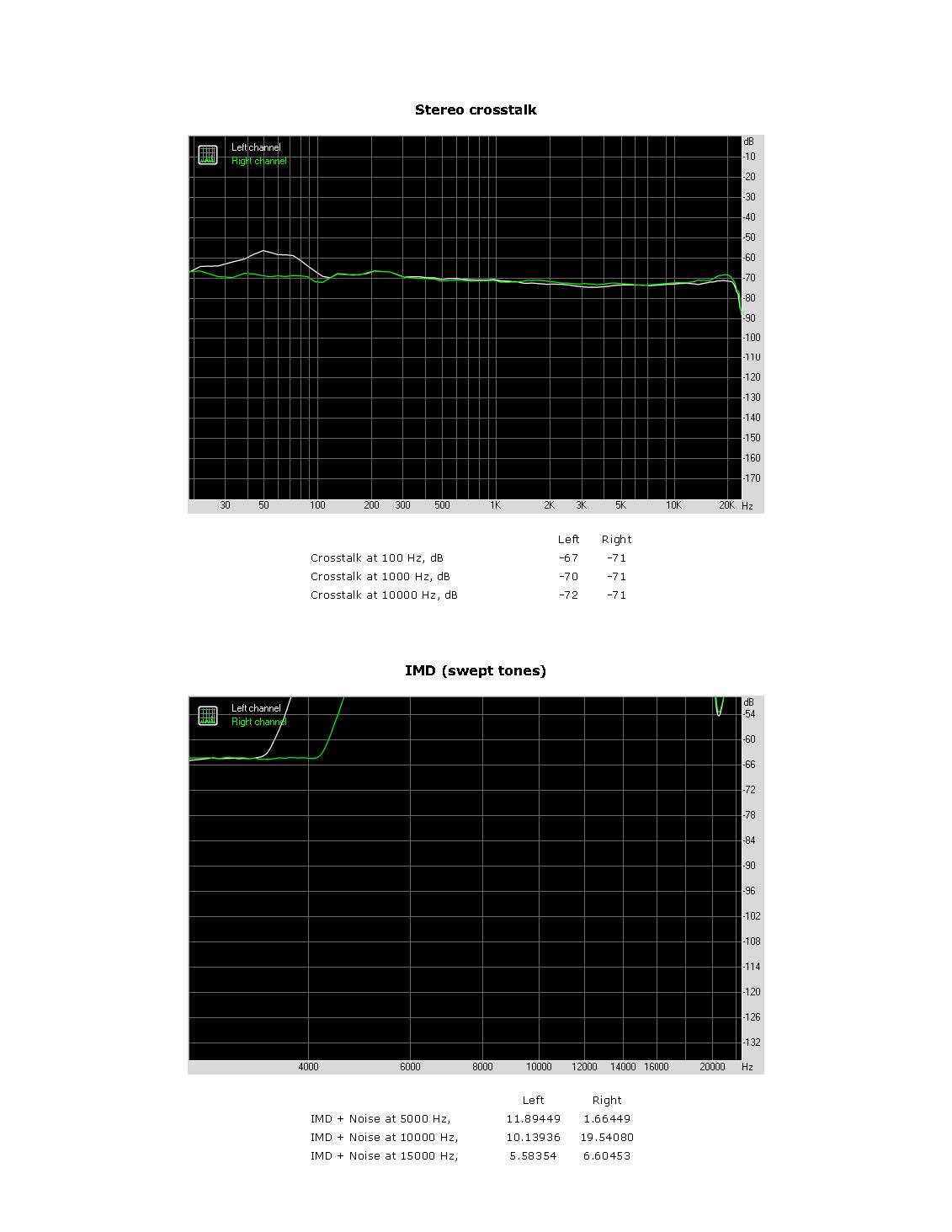

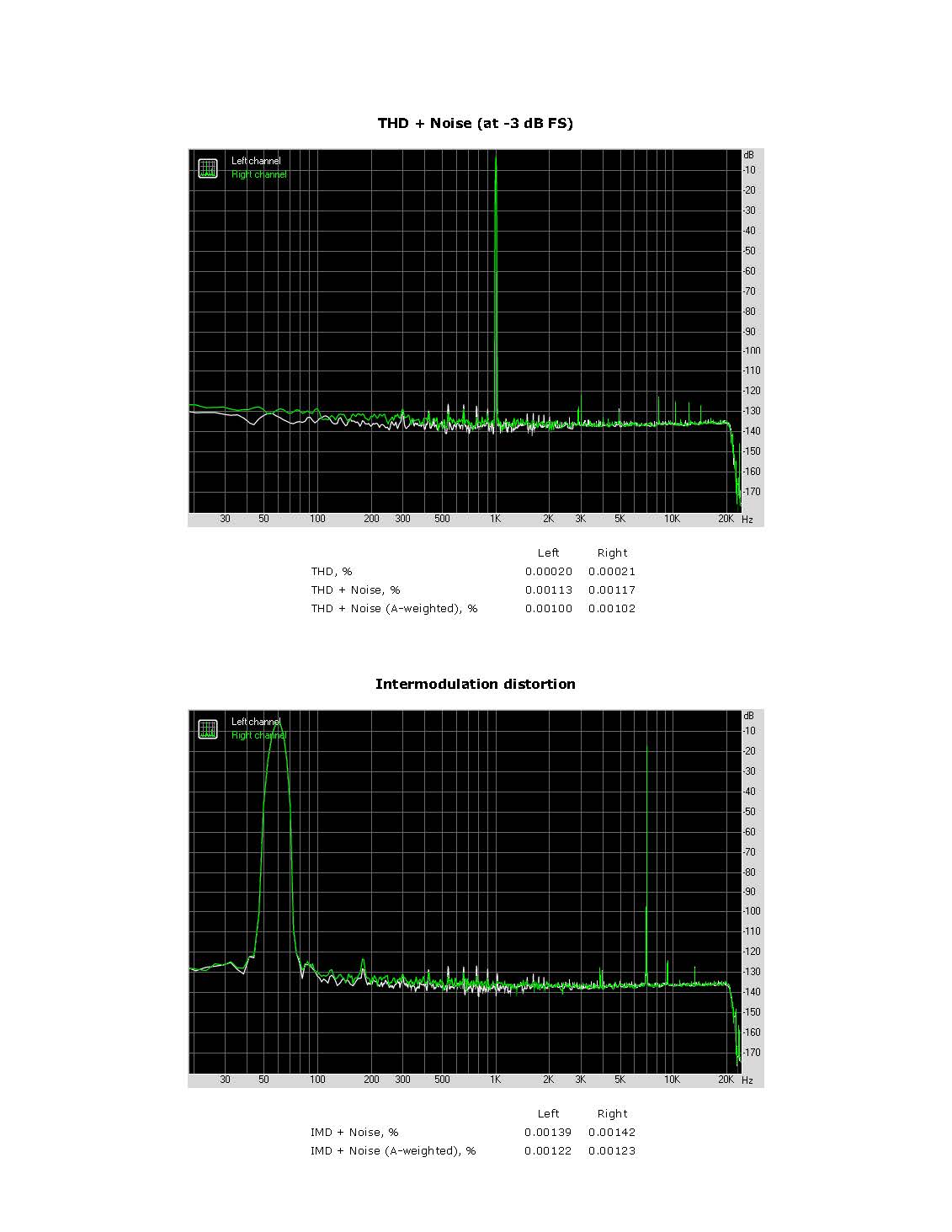

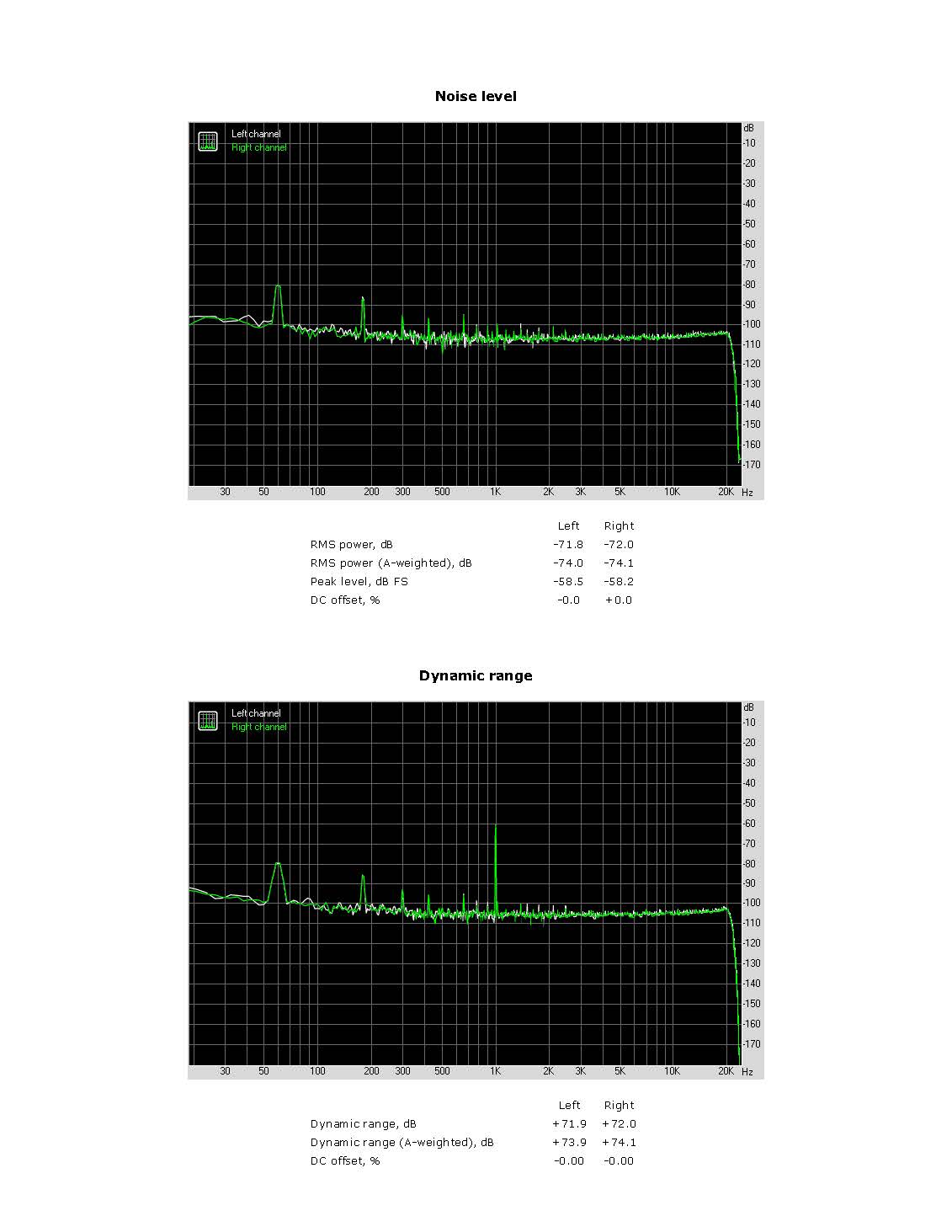

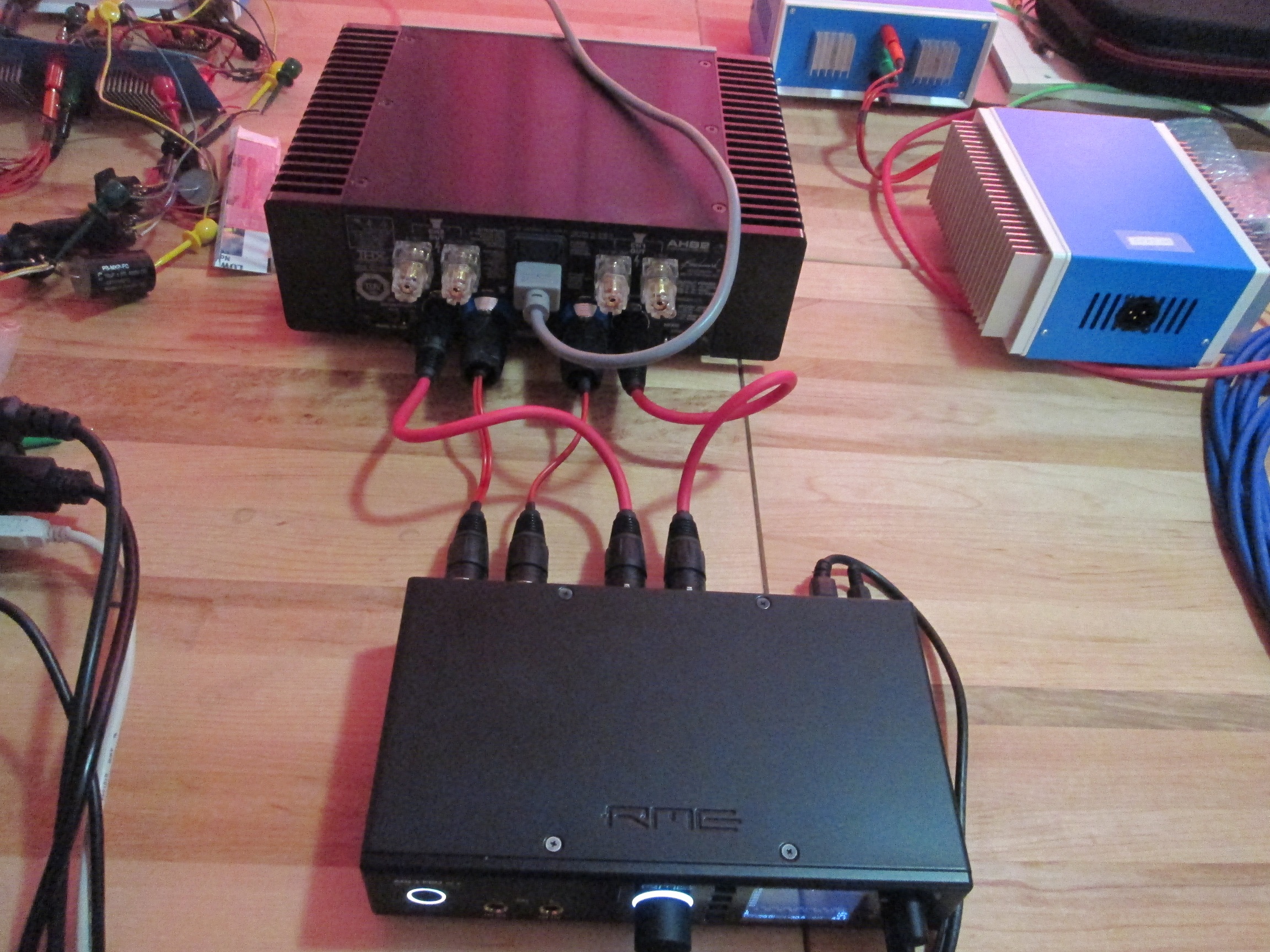

dip16amp Posted January 19 Report Share Posted January 19 6 hours ago, migo said: Can you measure AHB2 too please? Here is the Benchmark AHB2 RMAA on the RME. RightMark Audio Analyzer test _ AHB2 RME ADI-2 Pro.pdf 2 Quote Link to comment Share on other sites More sharing options...

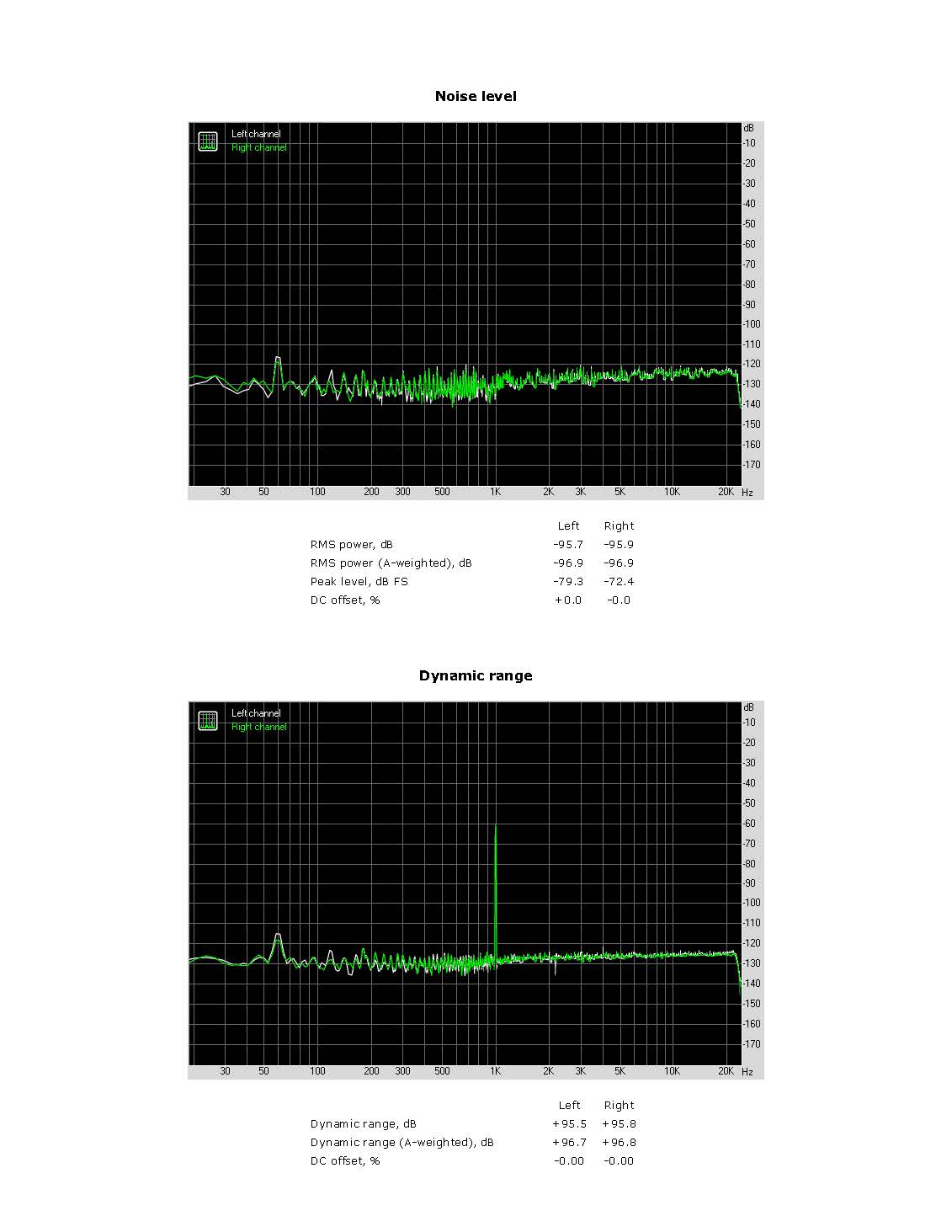

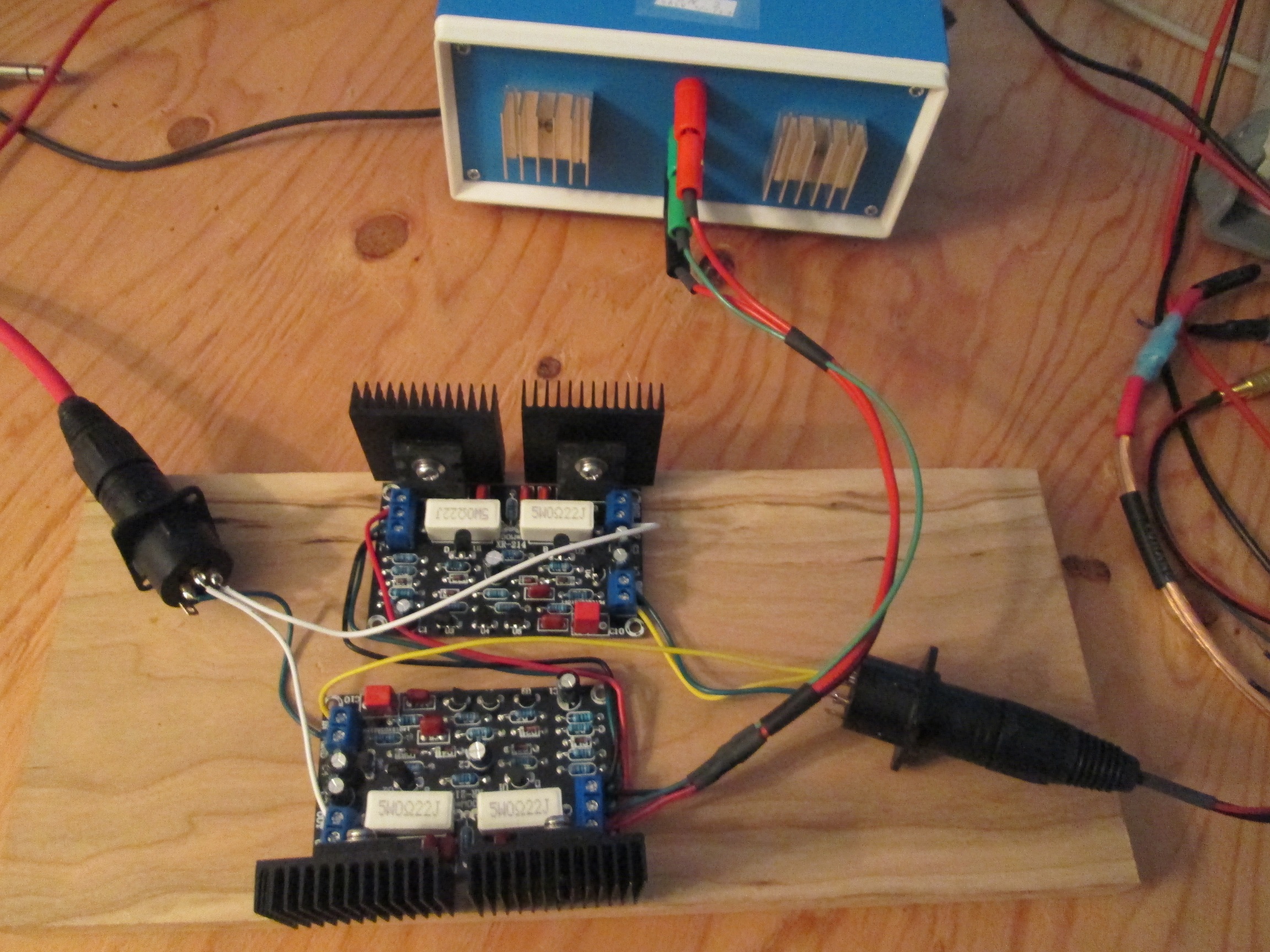

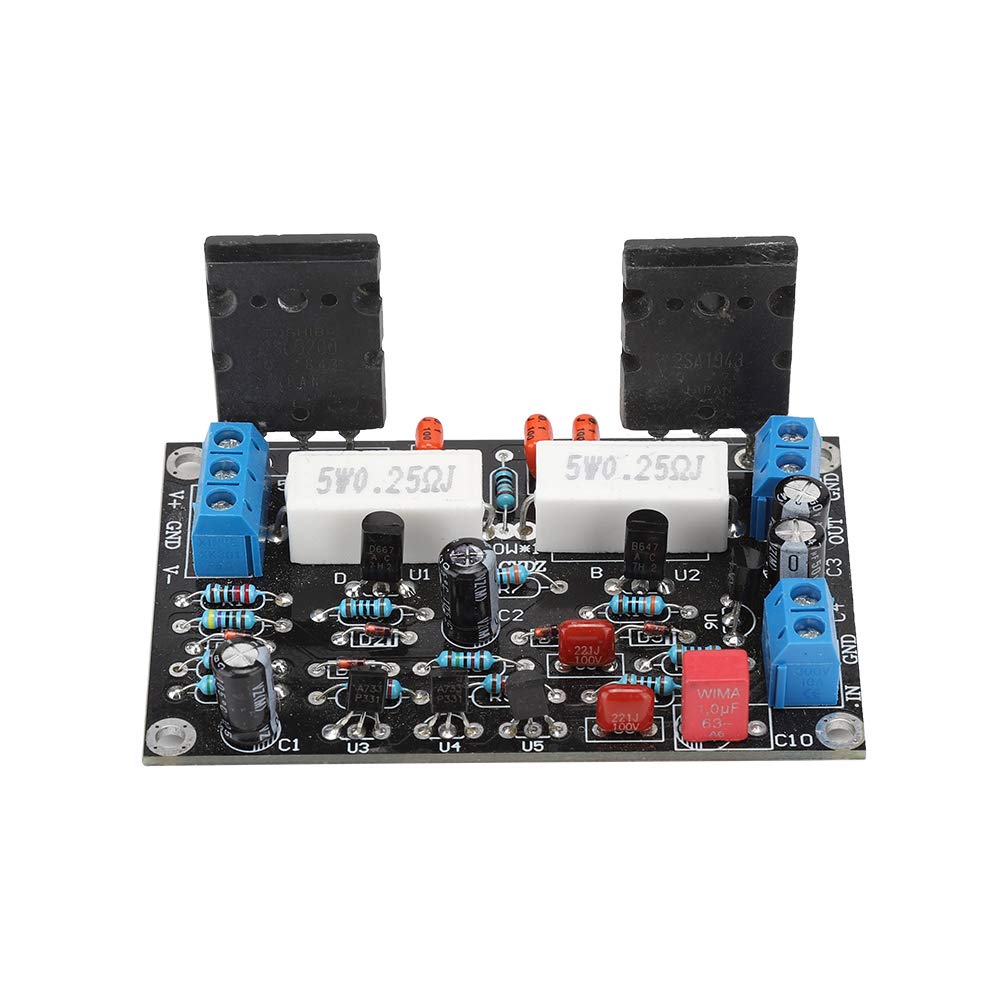

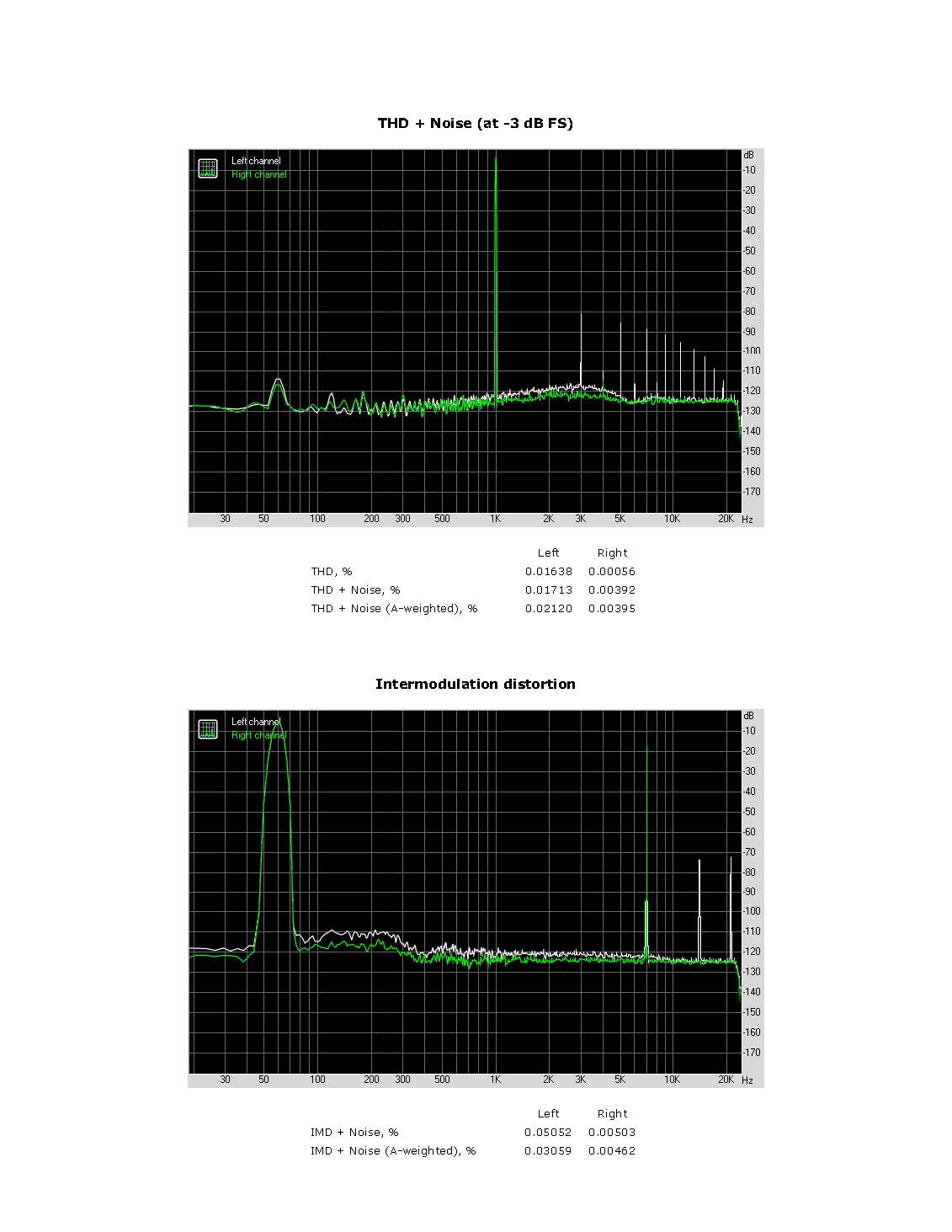

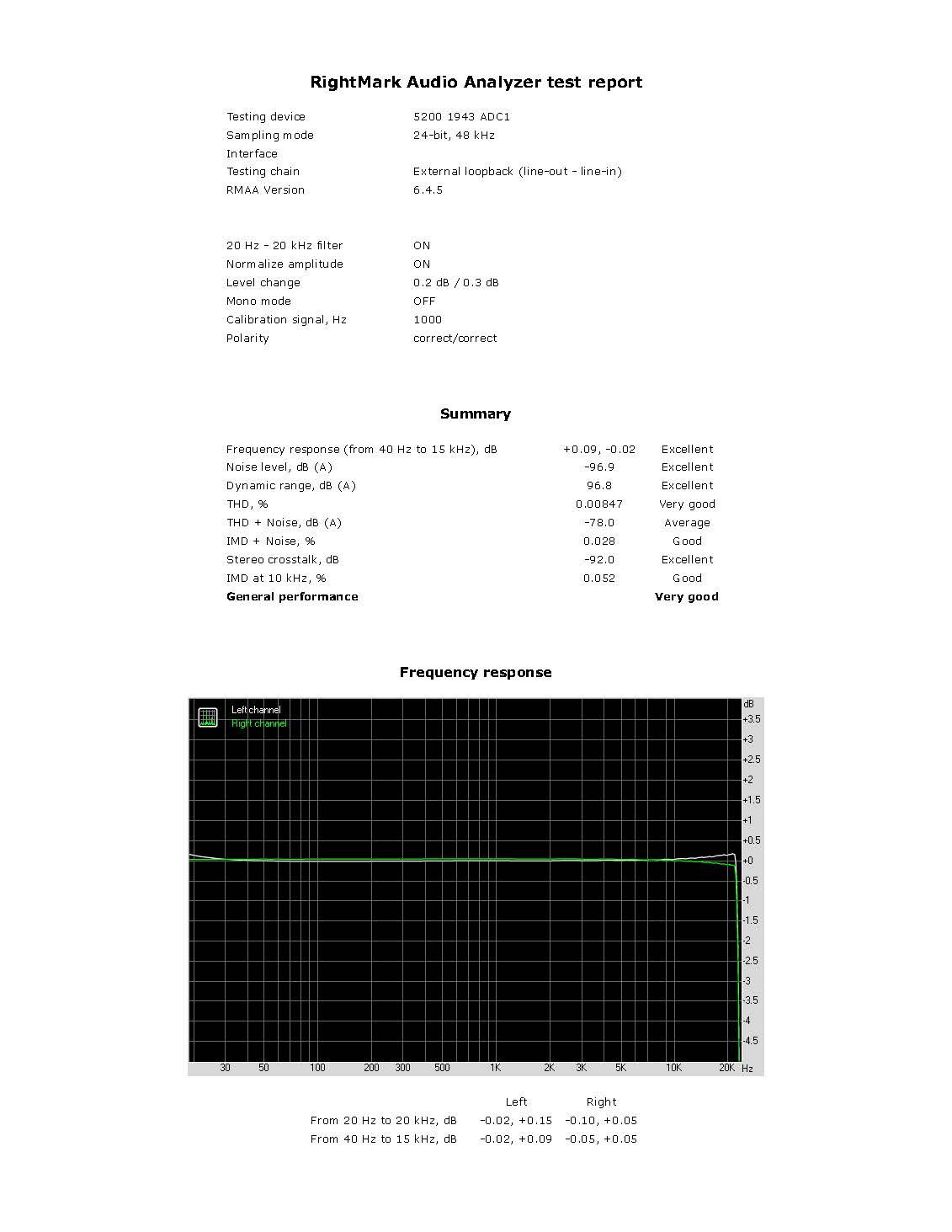

dip16amp Posted January 19 Report Share Posted January 19 Also found this 5200/1943 board on Amazon for $16. Vbestlife 2SC5200+2SA1943 Power Amplifier Board 100W Set it up as balanced mono on the left channel and compared it to a XLR cable on the right channel. It has about 23 dB gain. RightMark Audio Analyzer test _ 5200 1943 ADC1.pdf 1 Quote Link to comment Share on other sites More sharing options...

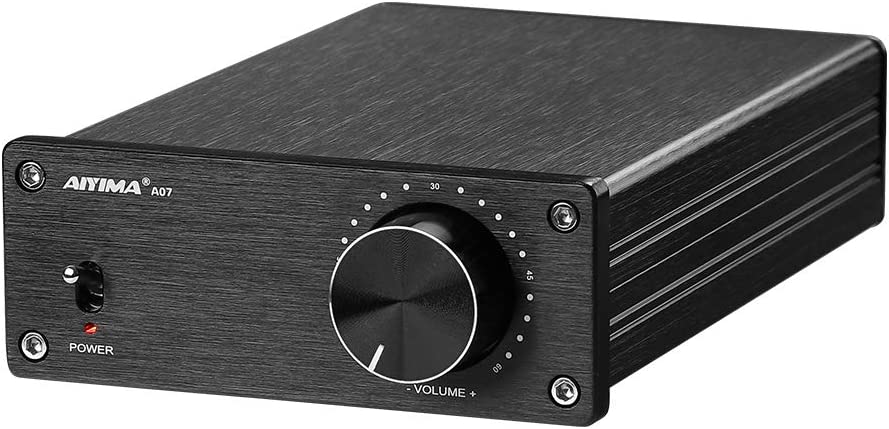

dip16amp Posted January 20 Report Share Posted January 20 Found this TPA3255 on Amazon for $65 AIYIMA A07 TPA3255 Power Amplifier 300Wx2 RightMark Audio Analyzer test _ TPA3255 RME ADI-2 Pro.pdf Quote Link to comment Share on other sites More sharing options...
MLA Posted January 23 Report Share Posted January 23 On 1/11/2023 at 3:20 PM, kevin gilmore said: here you go cfp3largeT.ZIP 42.53 kB · 55 downloads So, the split cfp3 pre-board goes in front, right? Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted January 23 Author Report Share Posted January 23 yep Quote Link to comment Share on other sites More sharing options...
MLA Posted January 23 Report Share Posted January 23 Great! Having some boards made; have some current drive friendly speakers as well a 3 way active system that both will be great matches I think. Thanks!!! Quote Link to comment Share on other sites More sharing options...

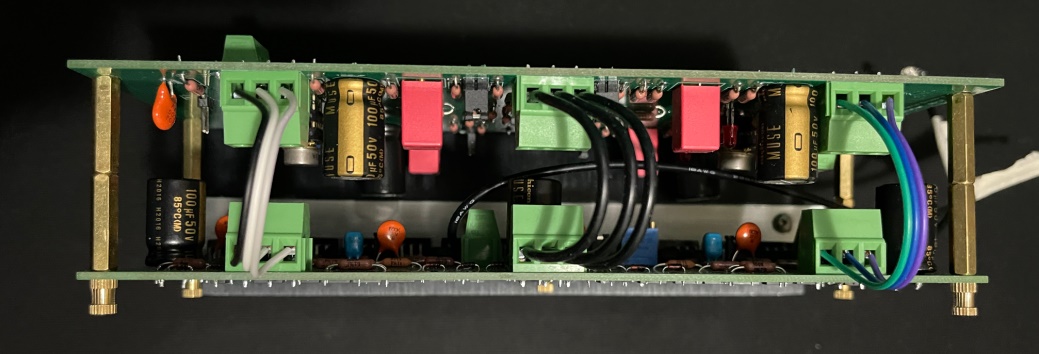

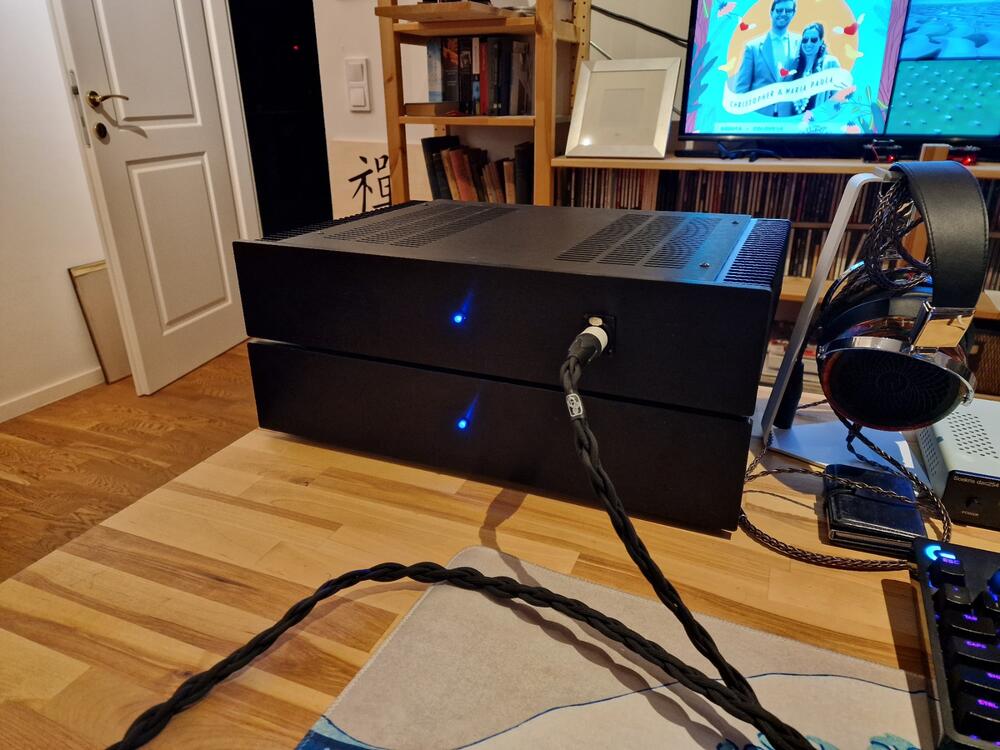

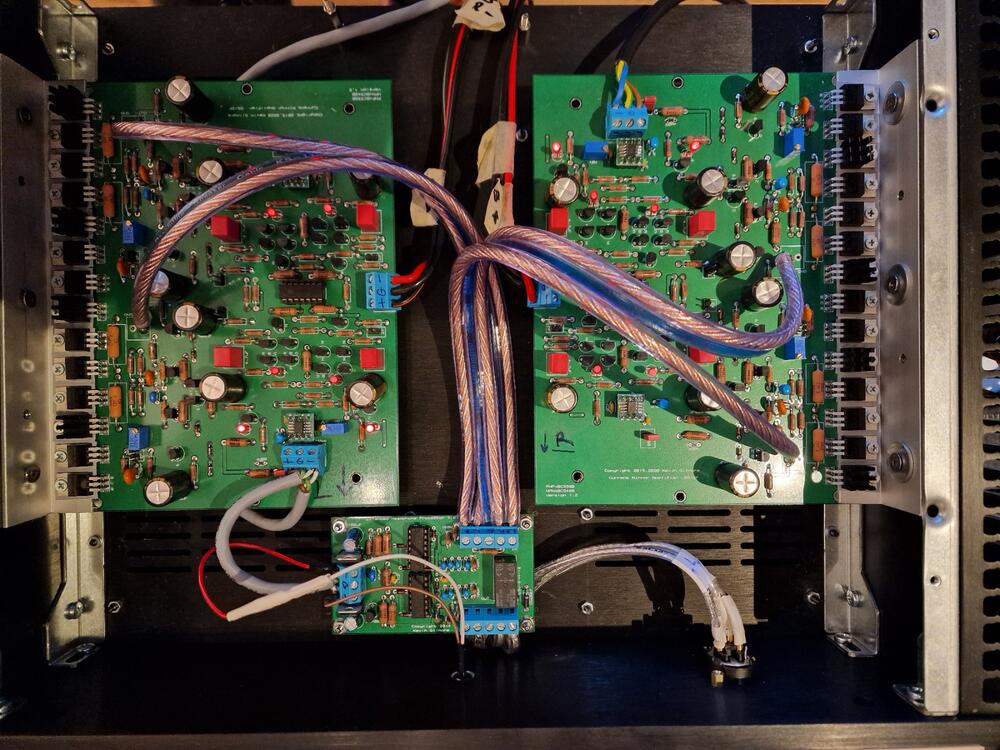

MLA Posted January 25 Report Share Posted January 25 (edited) A question on the CFA3; I just built one using 50k feedback resistors for SS and 4.2k ZF resistors, also excluding the C9/C10 caps as per mirkos final edit earlier in this thread. Builder error: was using the wrong LEDs (too much forward current I believe). Swapped those and now it's all well balanced with 10k at R1. Edited February 18 by MLA Quote Link to comment Share on other sites More sharing options...

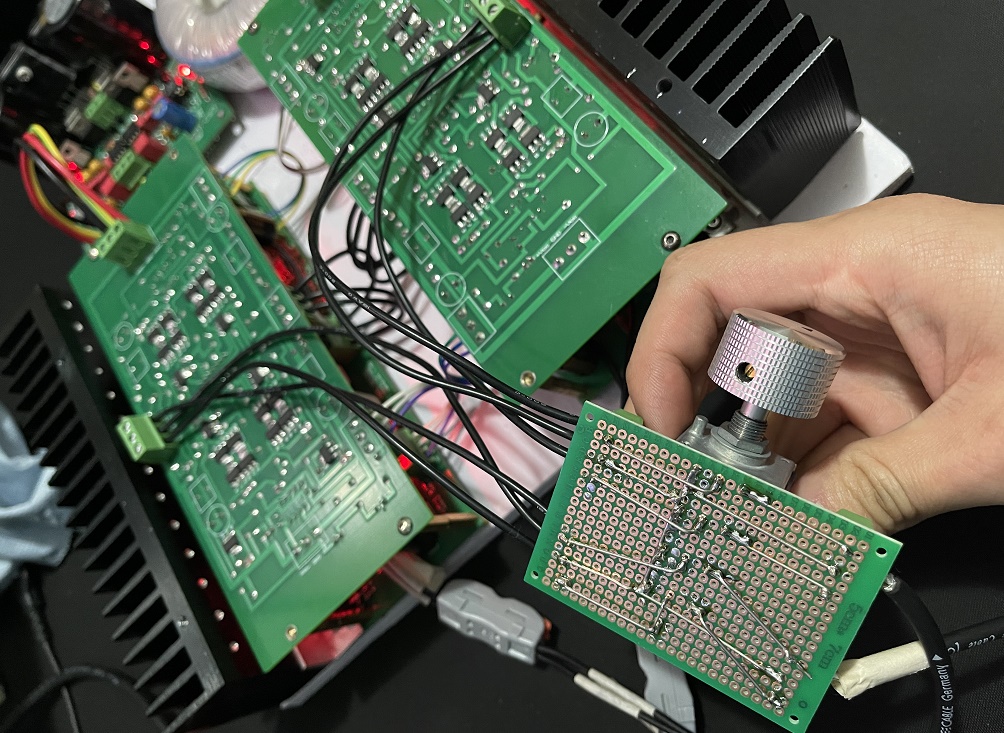

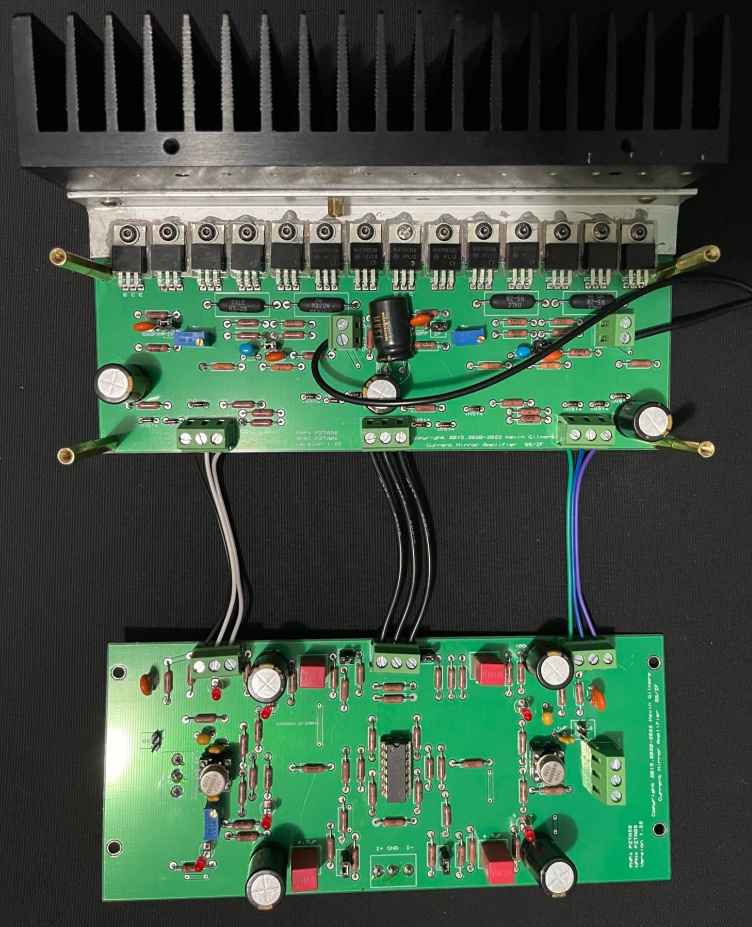

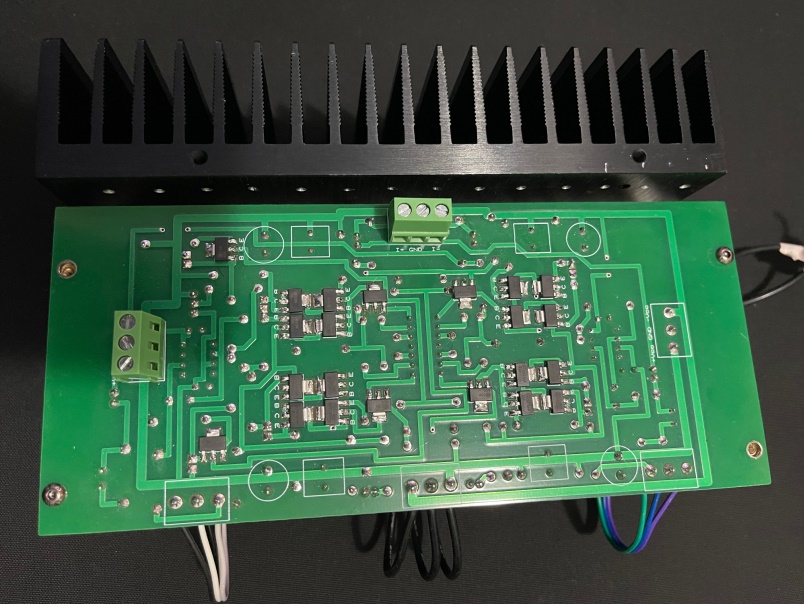

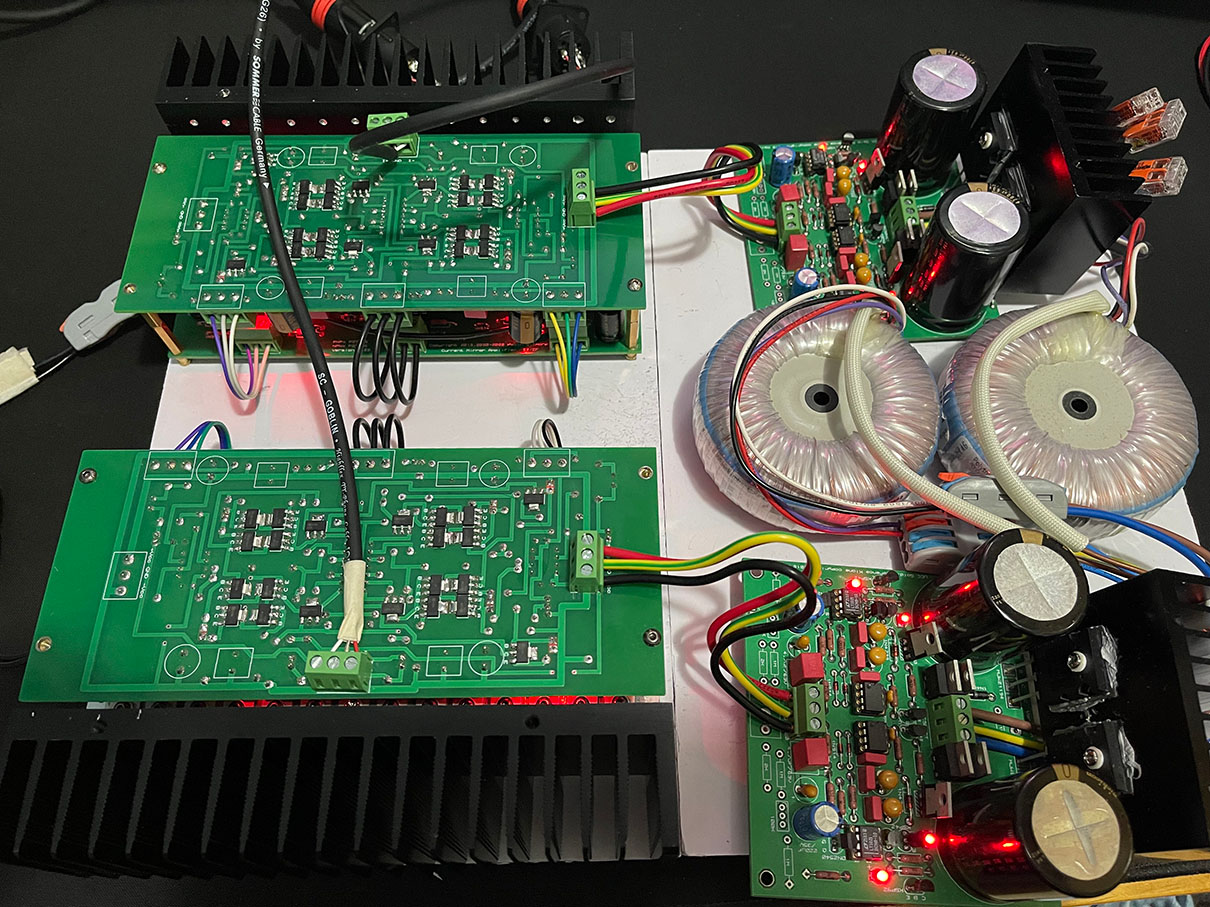

EL_Ken Posted March 3 Report Share Posted March 3 (edited) Just finish soldering my split boards. There are some problems happened dual to my bad SMDs solder technique. IF non-wetting happens / flux not clean-up between pins, no bias from 1R resistors and all output transistors not heating up; and very high DC offset can be measured from output to GND (~10-27VDC). I resoldered all the SMDs to fix this. After that I powerup my spirtboards, an 1R resistor heats up quickly and smoke comes out. One of the output transistors(Q17) shorted, replace it and no smoke again. Finally I test the split boards with a pair of speakers and HD600, both speakers and headphone sounds very well. But when I test the boards with my DAC and preamp which have ~100ohms and ~1ohms output impedance respectively, a 10k pot can only adjust volume a bit , only a little volume change from 10kohms to 0ohm; sound still comes out at 10kohms. A 50k pot could fit but some previous works in this post use 10k pot. Did I got some mistake with my work? Edit: A 10k pot can adjust volume from no to full with proper wiring. Edited March 4 by EL_Ken Quote Link to comment Share on other sites More sharing options...
MLA Posted March 3 Report Share Posted March 3 Haven't tested these particular boards but my CFA3 runs fine and fully adjustable from no to full volume with a 10K pot, so I would say something's off... Quote Link to comment Share on other sites More sharing options...
Pars Posted March 3 Report Share Posted March 3 If you are using THAT340s for the input devices (BJT), impedance issues may be causing a problem. The Pass SuperSymmetry results in a low input impedance, which can cause problems for certain devices. One way around this is to use JFETs on the input instead, as these greatly raise the input impedance. Something like the Toshiba 2SK170/2SJ79 or the equivalent Linear Technologies singles or duals. I'm not sure what device package these boards are set up for. If it is surface mount, that would make this more difficult. Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted March 3 Author Report Share Posted March 3 (edited) you may be the first person to test these boards. but if you have music, highly likely that everything works right. if the dac has a significant dc offset, that may cause trouble. maybe wiring of the pot is wrong? edit: 10k pot highly recommended with the that340 chips. 50k is not going to perform well. Edited March 3 by kevin gilmore Quote Link to comment Share on other sites More sharing options...
audiostar Posted March 4 Report Share Posted March 4 I have my amp with split boards finished but undecided between a 4CP-2511 and the digital attenuator, so it still sits on a shelf without a pot. While bench testing the boards prior casing it up, I didn't notice anything weird though. I am using the Toshiba 2SK389-BL & 2SJ109-BL JFETs on DIP adapters. I'll order a 4CP-2511 and give it a final bump. Quote Link to comment Share on other sites More sharing options...
EL_Ken Posted March 4 Report Share Posted March 4 Sorry for making every one confuses, After rewiring the pot, problems gone. It causes by incorrect grounding. A 10k pot can adjust volume from no to full with proper wiring. Now using that340, will try swapping input transistors later. Had music continuously with DAC-preamp-splitboards for 10+hours with no problems, Testing with DAC-10kpot-splitboards setup, works fine too. Thanks for the help. Quote Link to comment Share on other sites More sharing options...
audiostar Posted March 4 Report Share Posted March 4 How did you ground the pot and did you use twisted only cables or screened? Quote Link to comment Share on other sites More sharing options...
EL_Ken Posted March 4 Report Share Posted March 4 All GND pins and pin1 of XLR cables are shorted to each others. Screened cables - POT - silicone wire Some silicone wire from local store, no much interference issues. Only a bit white noise from headphones when pot turns over 3 o'clock. Quote Link to comment Share on other sites More sharing options...
audiostar Posted March 4 Report Share Posted March 4 I see. I tie pin1 to to the case immediately via the XLR connector (and not to ground) and use the metal case as shield. I use twisted wires for the signal inside the case. Circuit ground connects on a single place via a circuit breaker (at least 10ohm resistor) to the chassis. Gives me no hum whatsoever. Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted March 4 Author Report Share Posted March 4 there is (or at least should be) a board for the rk27 pot. 1 Quote Link to comment Share on other sites More sharing options...
spritzer Posted March 4 Report Share Posted March 4 There was at least the combo board with the TKD 601 as well Quote Link to comment Share on other sites More sharing options...
MLA Posted March 6 Report Share Posted March 6 So, if all goes well, I'm picking up a pair of Quad 2805s next weekend, which means I have to build an appropriate amp for them The Uberamp I have boards for and that's probably what I'll build, but I'm wondering if a cfp3Large (with the Sanken output boards) would be a good fit also? Or is that a less good match? Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted March 6 Author Report Share Posted March 6 100 watts maximum for those speakers! 1 Quote Link to comment Share on other sites More sharing options...
MLA Posted March 6 Report Share Posted March 6 True. Will keep supply voltage low and bias reasonable. Quote Link to comment Share on other sites More sharing options...

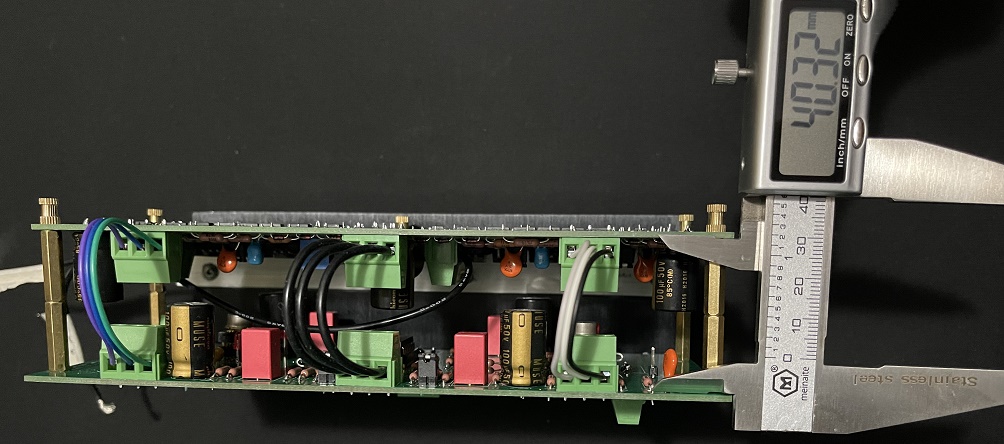

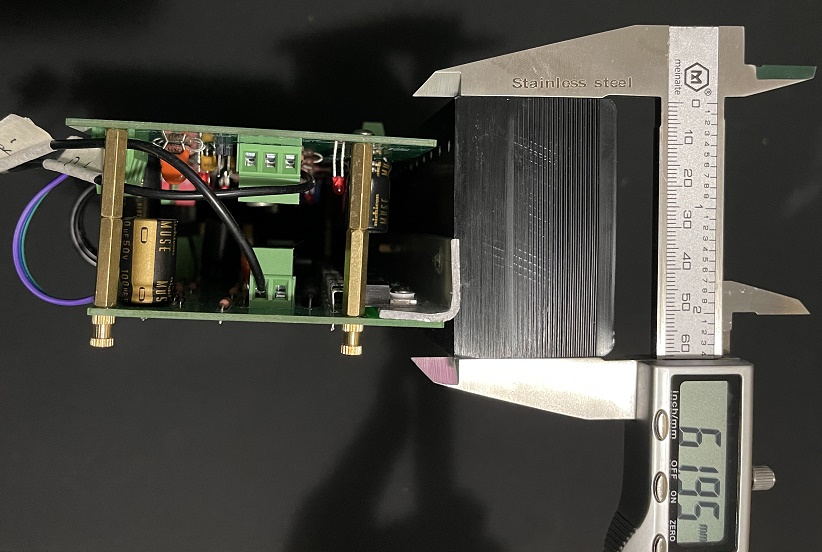

EL_Ken Posted March 8 Report Share Posted March 8 Output transistors are MJE15032G/15033G, extra insulation is needed. Size of the heatsink is 200x62x40mm, ~50°C with 120ma bias. It could handle more heat but I need larger heatsink for GRLV. The nichicon kz cap (Ø:12mm) is too big so one has to lying down. Edit: one more pic added 4 Quote Link to comment Share on other sites More sharing options...
