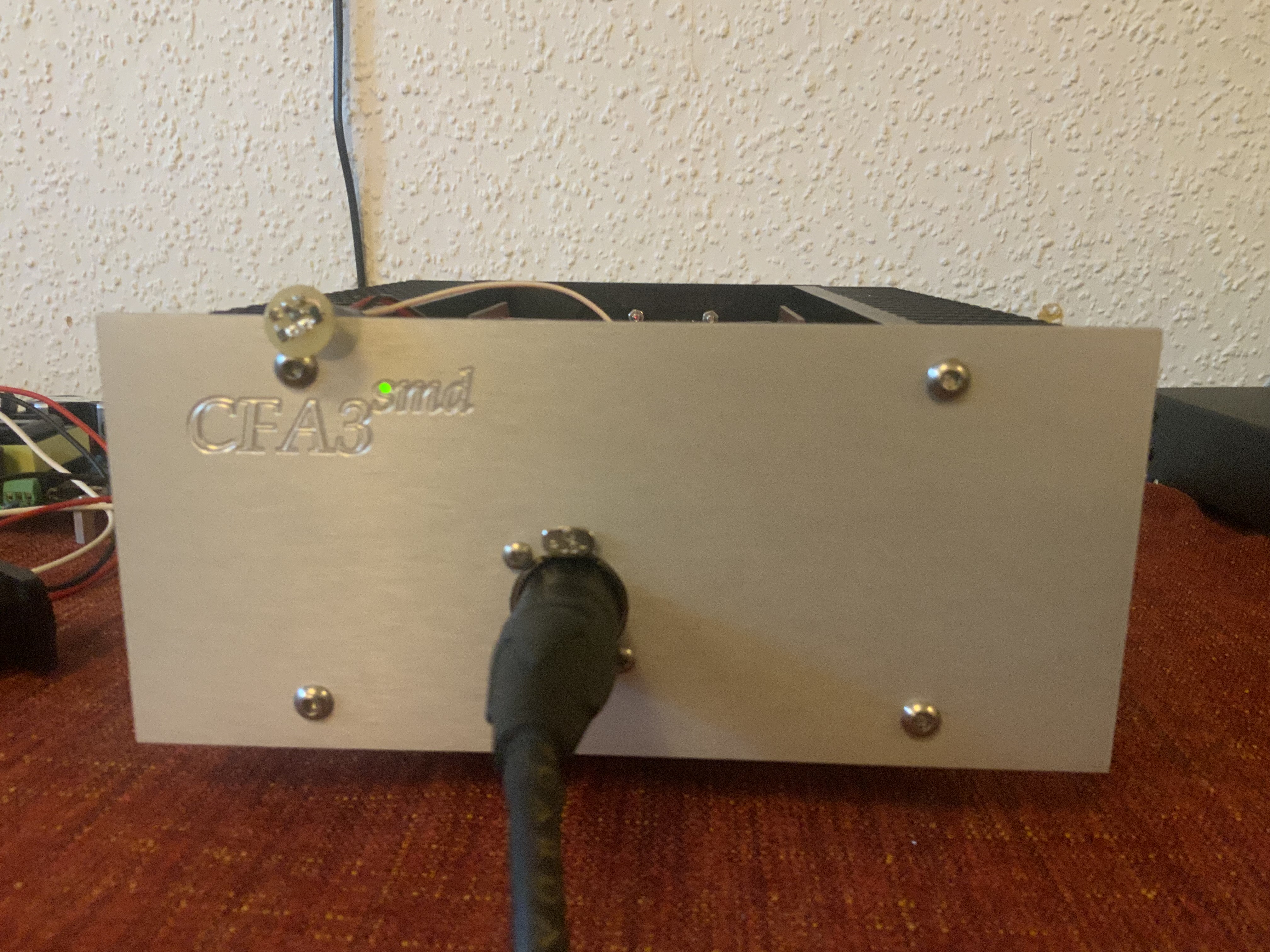

  • Last visited

  • Days Won

    16

Everything posted by JoaMat

  1. Happy Birthday, Birgir!
  2. I’m happy to hear you from you, @micon21 and I wish you and your country all the best in the fight with Mr. Putin. You will survive. In the end the good will defeat the evil.
  3. No, I haven’t noticed any issues over time. But they haven’t been used that much so I have no idea how they change at higher temperature over a longer period of time.
  4. I somehow managed to copy H and C from HeadCase logo and mill it on the plate. picture in B/W
  5. Have made a few test inscriptions on aluminum with CNC machine.
  6. Learned how to engrave with my milling machine today. It's an original Kevin Gilmore et. Al. DIY T2 amplifier with original parts.

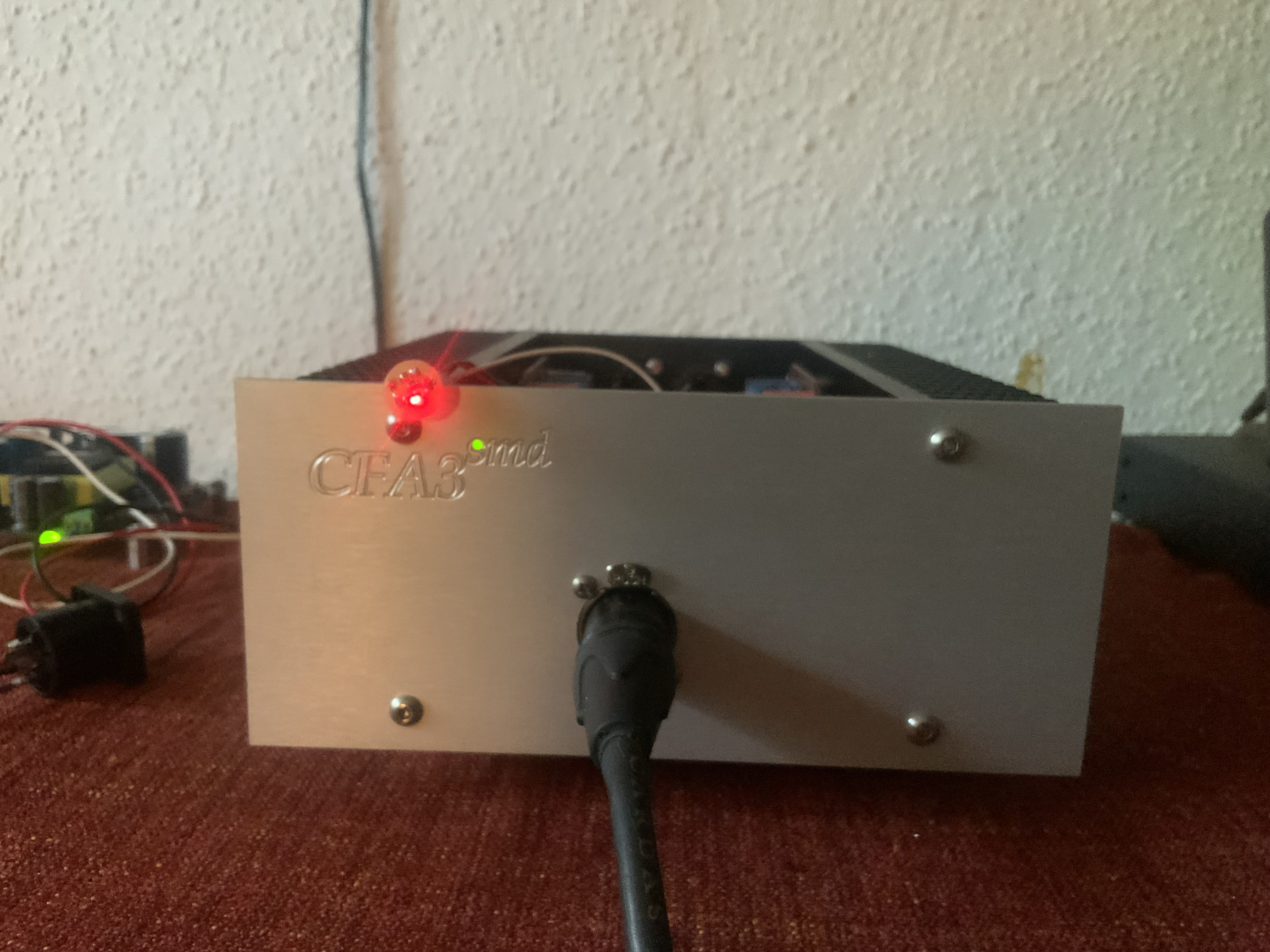

  7. Milled a front panel, with inscription, today. With black painted aluminum net as top cover you can see the light from eight red LEDs.
  8. vojne vojne, I’m old enough to have had two screaming teenagers in the house… phuuu

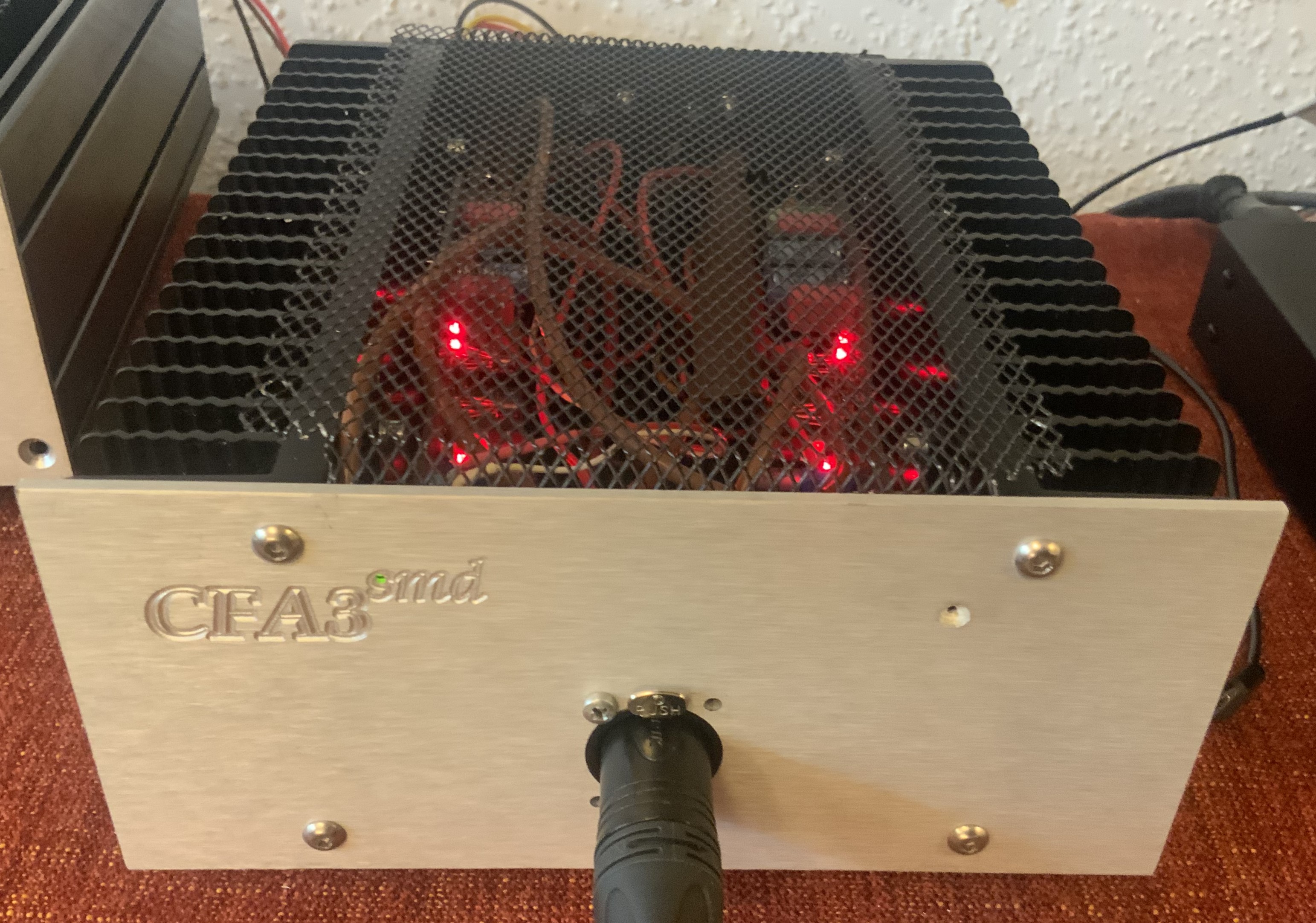

  9. ...and now a stereo version. Bias 75mA, 125 degrees F at heat sinks and AMB sigma PSU is working hard. Might need better chassis.
  10. mini T2 with Emission Labs Directly Heated Triodes. It didn’t blow up. Left channel offset servo didn’t work so I replaced its ksc2690 with a 1K trimmer. GLAD PÅSK! written on the copper clad is Swedish for Happy Easter!
  11. I came across IPC2221A years ago when I started to make my own uncoated home-made boards falling in category B2. Following the document would have had a huge impact on my layouts. But as a DIY:er I’m entitled to do whatever I like so I went with a clearance of 40th as standard with ground plane both sides. So far, I haven’t noticed any problem due to the clearance.
  12. On the split CFP3 power board it seems to be some pads between the 82R resistors on the bottom layer. What might the purpose of them be?
  13. Here is picture of the amplifier in work. Mono version. AMB sigma 22 PSU. It has four trimmers. Lower middle controls the offset. Middle upper controls the balance. The two outer controls respectively channels bias. Input stage current source/sink approximately 1.7 mA. Output bias 35 mA. Setup procedure I used: • Let heats sink get warmed up to working temperature • Trim offset to zero • Trim balance to zero • Set desired bias of both channels to desired bias Redo previous procedures if needed. I find the setup easily done.

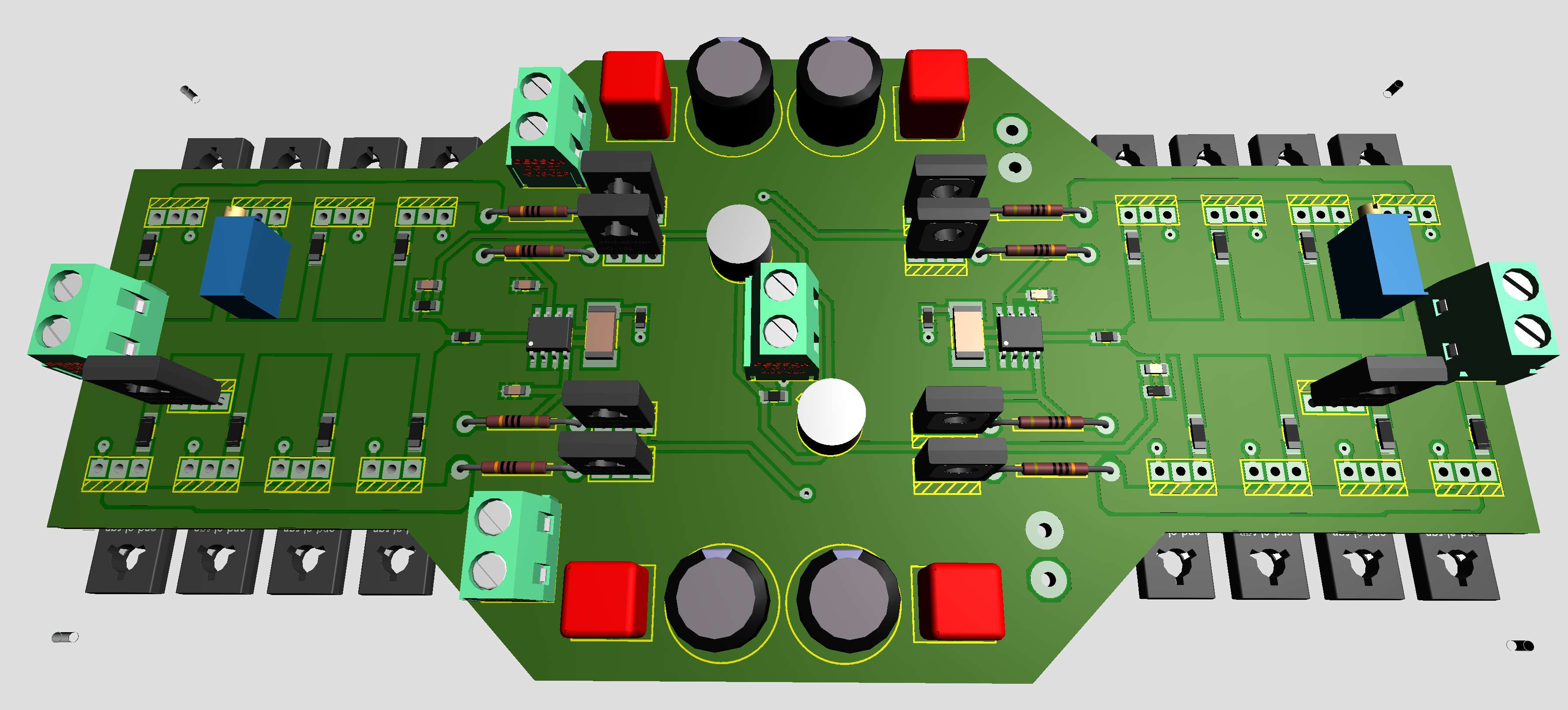

  14. Interesting ideas, wish list, for future Dynahi, Bespav. Here is a new amp board. Initial tests have been successful. The bias control seems to work. Heat sink is Modushop 80mm x 200mm.
×
×
