Everything posted by kevin gilmore
-
goldenreference low voltage power supply
kevin gilmore replied to kevin gilmore's topic in Do It Yourself
to do 10 amps you are going to need to boost the drive current. probably lowering the value of r1 to 120 ohms. same with r4. -
goldenreference low voltage power supply
kevin gilmore replied to kevin gilmore's topic in Do It Yourself
golden reference was designed for only 5 amps. -
goldenreference low voltage power supply
kevin gilmore replied to kevin gilmore's topic in Do It Yourself
measuring stuff like this correctly while avoiding ground loops and transformer radiation is very hard. -
and now for something completely different part 3
kevin gilmore replied to kevin gilmore's topic in Do It Yourself
yep -
and now for something completely different part 3
kevin gilmore replied to kevin gilmore's topic in Do It Yourself
here you go cfp3largeT.ZIP -
and now for something completely different part 3
kevin gilmore replied to kevin gilmore's topic in Do It Yourself
m2's owned by someone else. too big for my room. -
the 45k miles is a joke. i had 4 sets of the as3,3+ over the years and never got more than 30k. completely even wear. different car of course, but would expect the suv to be worse. those high mileage tires are not going to ride as nice.
- 2,049 replies
-
- 1
-
- Golf Mafia
- M Sport
-
(and 1 more)
Tagged with:
-
and now for something completely different part 3
kevin gilmore replied to kevin gilmore's topic in Do It Yourself
its still 2 boxes. but sure if you want to build it that way. -
and now for something completely different part 3
kevin gilmore replied to kevin gilmore's topic in Do It Yourself
nope, going to need two boxes. no easy way to stack the front end board onto the heatsinks. the 2 boards will take up much of the bottom. zero feedback generally ends up with a lower damping factor. so to boost the damping factor need more output transistors in parallel. and the sanken parts are actually 2 die in each package. and are to3p. i could go to 3 or 4 pairs of output transistors for even lower output impedance. the idea is to drive jbl m2's with the amplification they deserve. not a pair of crown industrial amps. and things like the susvara. -
and now for something completely different part 3
kevin gilmore replied to kevin gilmore's topic in Do It Yourself
its already a split board. the power resistors make it impossible to shrink. joamat may come up with a solution but i doubt it. but you can download some free layout software and try to come up with something smaller. -
and now for something completely different part 3
kevin gilmore replied to kevin gilmore's topic in Do It Yourself
won't fit in a 2u. if you do all the transistors on 1 edge its too long for the case. unless you want to do fully custom -
and now for something completely different part 3
kevin gilmore replied to kevin gilmore's topic in Do It Yourself
-
and now for something completely different part 3
kevin gilmore replied to kevin gilmore's topic in Do It Yourself
-
and now for something completely different part 3
kevin gilmore replied to kevin gilmore's topic in Do It Yourself
the board will be about 15 x 4. -
and now for something completely different part 3
kevin gilmore replied to kevin gilmore's topic in Do It Yourself
i have plenty of speed. 495hp + 640hp in the garage. -
and now for something completely different part 3
kevin gilmore replied to kevin gilmore's topic in Do It Yourself
-
and now for something completely different part 3
kevin gilmore replied to kevin gilmore's topic in Do It Yourself
oops, to3pf according to the datasheet spacing .75 inch instead of .5 inch. board is about to get bigger. or i find different transistors. -
and now for something completely different part 3
kevin gilmore replied to kevin gilmore's topic in Do It Yourself
yup. not available at mouser, lots in stock digikey. -
and now for something completely different part 3
kevin gilmore replied to kevin gilmore's topic in Do It Yourself
i'm trying hard not to get this to uberamp size there are wonderful t03p transistors that would be great but then the heatsink would be 8 inches high instead of 3.57 -
and now for something completely different part 3
kevin gilmore replied to kevin gilmore's topic in Do It Yourself
4 more transistors added so yep its longer. -
and now for something completely different part 3
kevin gilmore replied to kevin gilmore's topic in Do It Yourself
going to have to buy one, have not figured out which one yet, then test. i did a uberamp with a smps, it was fine. i have a couple of lambda smps that i use for testing, absolutely dead quiet. -
and now for something completely different part 3
kevin gilmore replied to kevin gilmore's topic in Do It Yourself
gerbers will be available after much more checking. lots and lots of editing was done. but if you really want to be first, i can arrange for gerbers to be delivered. you can do the checking before making boards. i got to hear a cfa3 driving vintage klipsch belle. stunning. also it was running stupid hot. so this will take care of all of that. should make all the raal owners real happy. (and deaf) (and fried diaphrams) connex switching power supplies recommended. a linear power supply would be very large and heavy. -
and now for something completely different part 3
kevin gilmore replied to kevin gilmore's topic in Do It Yourself
a pre turkey day new year teaser. sanken output transistors, in parallel. with appropriate switching power supplies, capable of about 25 amperes. can be built with 30v, 35v, 40v power supplies if you change out the pzta06/pzta56 with bf722/bf723 then you can go up to 60v supplies. with 40v supplies and big enough heatsinks, 100 watts rms into 8 ohms. lets see how much joamat can shrink this one. balanced output impedance, .5 ohm -
the to243 definitely work and are the same pinout. also probably out of stock. seems like the to92 versions like to blow up in some situations.
-
and now for something completely different part 3
kevin gilmore replied to kevin gilmore's topic in Do It Yourself

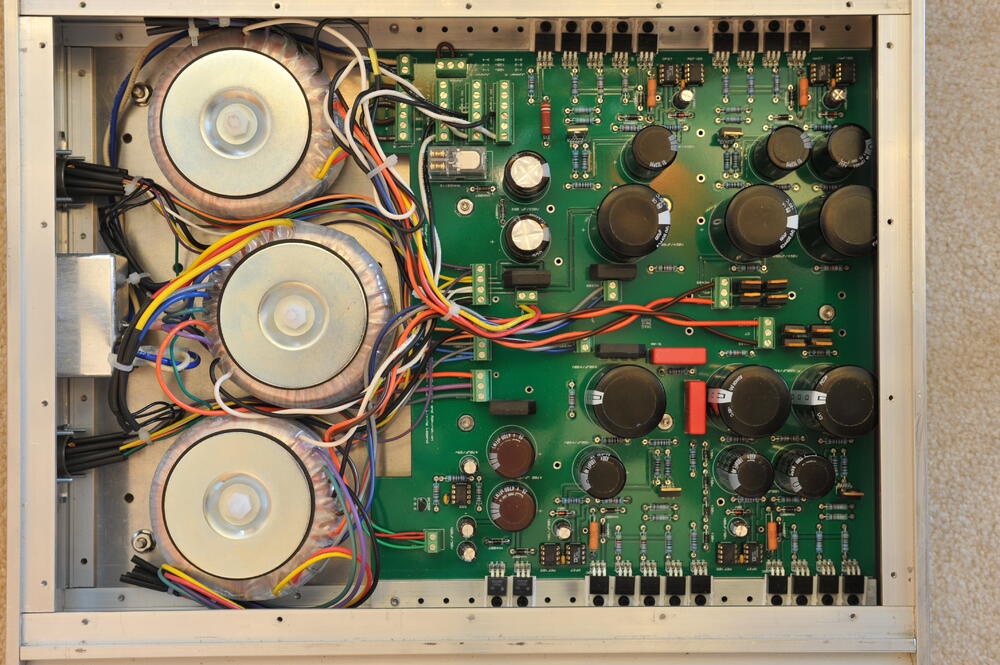

that board was designed for a specific chassis. which one, i no longer remember. i could make it fit a current chassis if that is what people want.
