That is evoking shades of Lampizator or Ric Shultz soldering build qualities...

Happy Birthday Doug! I hope you have a great one (and weekend)!

Yellowjackets season 2. Has not disappointed so far though somewhat slow moving...

For RK50, you can look at Octopart here: https://octopart.com/rk50114a0001-alps-7850315. Otherwise, the TKD 4CP2500s are well thought of, and the 4CP601s aren't too far behind. Much cheaper. As for board placement, I would guess those that place the board at the rear do so to keep them close to the input jacks (noise). This would normally require that the volume pot use a shaft extender and also be placed at the back. For raising the resistors, 2mm should be plenty.

I rechecked all resistors and everything was correct, though I noticed that the 1M resistors ohmed out at ~750K or so on the bad board vs. around 500K on the good board. I went ahead and changed out the C2Ms. After that, the 1M resistors now ohmed out at ~500K in board. Fired it up, and the tabs of the DN2540s were now around 3-ish volts. Vce on the PZTA42s is now ~13+ volts, so SUCCESS!

I'll recheck those, could have swapped them. I didn't do any mods other than changing the 174K resistors for 150K, and that was done on both boards. I just redid the bad board the other night. EDIT: you were correct, those measurements were flipped. Rechecked and verified.

Took some more measurements, but still need to verify resistors (again): Also measured the DN2540 tab to ground, and noticed a difference in these which could account for the Vce difference? Coincidence? All voltages to ground.

Yeah, dem der tings. I'm really doubting I need any now, but might hit you up for a couple if I determine that is the problem. You're taunting me, right?

I remeasured the drains of the C2Ms to ground and they looked OK between the boards. I did a diode test of all the SMD transistors and the C2Ms between boards and they all matched (that took about an hour). I replaced the DN2540s to no avail. The offset went up a bit (18mA), but readjusted that to 17.5mA. I guess I'll replace the C2Ms next, and maybe go over the resistors once again. I'll also take a closer look at the PZTA42 voltages. I don't have any more of these, but could get some. I also don't have any 10M90s, and can't get any that I am aware of for quite some time.

No, I did not measure the Vce prior to making the mod.

OK, didn't do much on this this weekend, but did take another look today. Pulled the board off the heatsink and examined it. Other than a bit of heatsink compound, didn't really find anything. I resoldered a bit on the PZTA42s and a couple of other SMD PZTAs. Hooked it back up and no change. The bases on the PZTA42s looked the same between boards (-393Vdc). The one thing I noticed is the drains of the C2M devices on the good board were more or less the same at -3.93 V or so (to gnd), but on the bad board they varied from device (-1.9V to -5.xV on the other one). I think since I have them, I will change out the DN2540s since I'm not finding anything else. I was starting to think it might be a front end issue, but since the bases of the PZTA42s seemed the same between boards, I can probably rule that out.

Happy Birthday Al! I hope you have a great one!

I'll try to make sense of your equation(s) later, but thanks! I went and ohmed out all resistors on board between the two and everything matches. I then violated my own rule of no HV when drinking, and measured the V drop across the 100R resistors in series with the PZTA42s emitters and they were all roughly the same (1.69-1.73V) between the good and bad board, which from ~17.5mA on the CCS seems to make sense. I guess my next step is to measure the GDS or BCE voltages to ground on the 10M90s, DN2540s, but more importantly, the C2Ms and the PZTA42s. I'm also going to replace the 2 150K resistors since I did this quickly and am not satisfied cosmetically with them. The 2 on the good board look fine. If a DN2540 was leaky, wouldn't it just affect that side and not both? I do have a spare pair of these, but no 10M90s. I do have more C2Ms though. If I hadn't checked the PZTA Vce, I would have never guessed that something might be wrong, since everything adjusted correctly. No indication whatsoever.

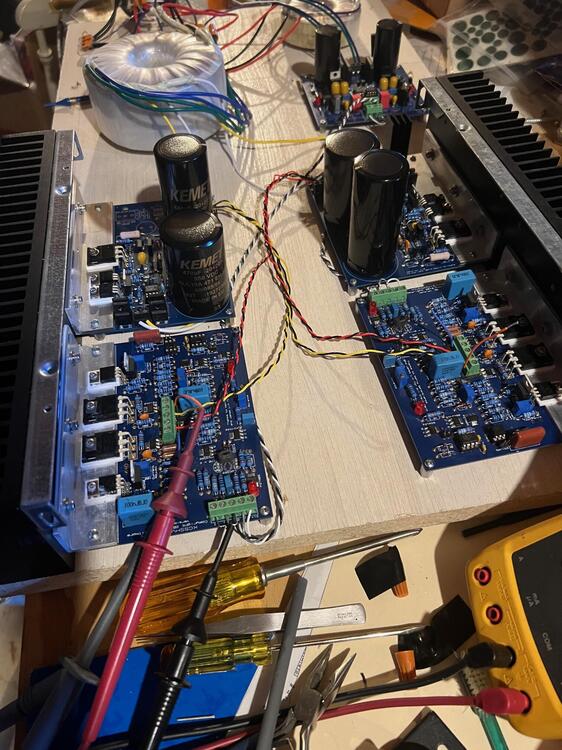

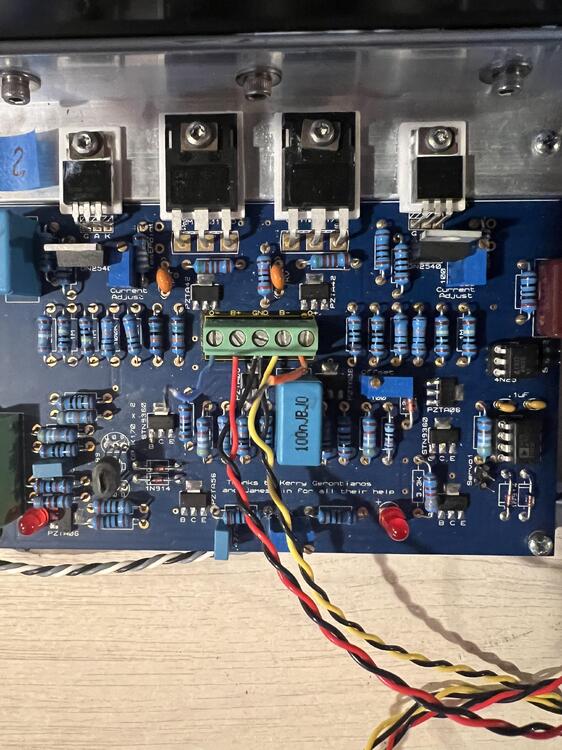

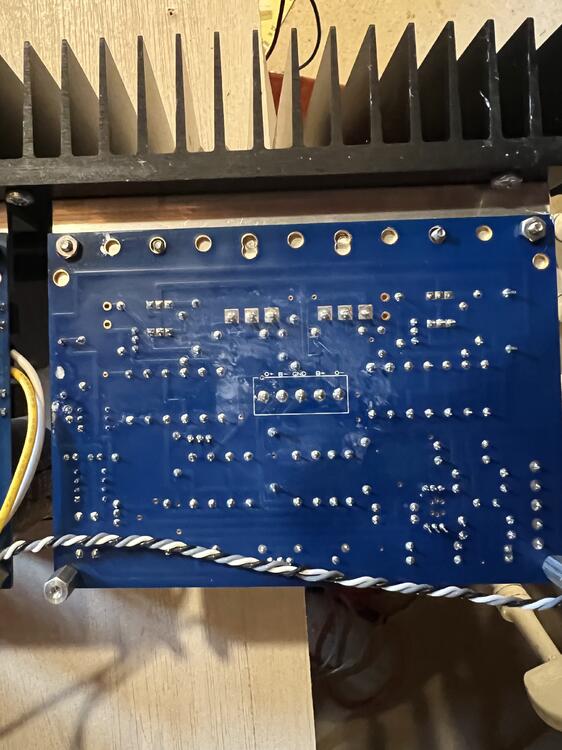

Checked the voltage across the zener diode (in parallel with the offset pot and tail resistor, which is 121R). Got ~6.8V on both boards. The CCS across the 50R was still at ~17.5mA (~0.875V). PZTA42 Vce on the good board was still at 13.2V or so, the bad board at 6.8V. I ohmed out the pair of 150K resistors. On both boards they behaved similarly, when ohming from the top of the string to ground both acted as a cap charging (which should have been 300K to ground). I'll keep looking, but any more suggestions welcome. I uploaded pics of top and bottom of the board.

OK, thanks. I'll check that for ~9V.

The long tail resistor is the pair of 175K I just replaced, I presume? I'll go and recheck the CCS currents as well.

Yes, both the drop across the 20K and the Vgs look OK. No, I didn't let the amp warm up, though it was on about 10 minutes. I did go recheck the PZTA since that board is flipped 180 degrees from the other to make sure it was C and E (and not C and B ) I was measuring. The reading was correct. I'm normally pretty careful when building stuff, and don't rush things, but I'm not getting any younger I guess I'll look the board over making sure no misplaced resistor(s), no solder bridges, questionable solder joints, etc.

I did the mods per simmconn/mwl168 prescribed for 400V supplies, using a pair of 150K resistors replacing the pair of 174K. Offset seems quite stable (no servo), better than many dynamic amps I've built in terms of not bouncing around. I didn't recheck the bias. Channel 1: PZTA42 Vce: 13.5/13.6 Drop across 20K: 24.7 C2M Vgs: 3.37/3.25 Channel 2: PZTA42 Vce: 7.4/7.5 Drop across 20K: 24.7 C2M Vgs: 3.36/3.03 Amp was not warmed up, offset at ~10V per side and dropping. The channel 2 PZTA42 Vce was a little concerning. Let me know what you guys think.

I know Amb recommended that for the SE out, the - goes back to the PSU ground, not the amp board grounds. That is the way I always do it, and never had problems. They are of course at the same potential as the amp board ground is, but gets any noise further away from the amp boards, at least that was his rationale for doing it that way.

OK. After 2 sets of board runs (pretty much into the trash; fortunately another larger board I need paid for the shipping), I discovered that the Neutrik jacks (as alluded to in willsw's helpful posts) sit too damn high from the board. Even if I had done slots to allow me to push the XLR all the way down, they are still too high, at least for the 4DPDT switch. So, I've decided to do daughter boards. For the mechanically switched board, the switch and Vampire (or ELECAUDIO ER-107) are on the daughter board. For the relay switched version, only the Vampire jacks are on the daughter board, and the main board allows for std. RCA jacks to be wired in. The daughter boards are wired in using standard 2.54mm headers, so distance is adjustable. If I put the Vampire footprint on that board, I'm still not sure that the jacks would reach even with the pins tack soldered on. It would be close, but since I have the boards designed, no point in fucking around. Switch board, and relay board sets.

Happy Birthday Fitz!

Is the Dynahi setup with 14 pin DIP sockets for the input devices (ie, THAT340)? If so, you can just plug the JFETs into the DIP sockets (assuming you use good machine pin DIP sockets). No adapter required.

Those all would appear to be hideously priced, and I for one am not digging the vibe. It seems that companies are just charging whatever the fuck they think they can. Good luck to them. I'll stick with my Von Schweikerts. Might have a look at the new Schitt power amps however...

Nice job Michael. I didn't do any of these changes as I know of to the Carbon I am building for another member. It will be off to another member to do the casework and finish it up. I hadn't posted pics of the whole thing as it exists, so here is one:

If you are using THAT340s for the input devices (BJT), impedance issues may be causing a problem. The Pass SuperSymmetry results in a low input impedance, which can cause problems for certain devices. One way around this is to use JFETs on the input instead, as these greatly raise the input impedance. Something like the Toshiba 2SK170/2SJ79 or the equivalent Linear Technologies singles or duals. I'm not sure what device package these boards are set up for. If it is surface mount, that would make this more difficult.
