We use a custom made transformer with 300 and 32 ohm taps on the secondary. Without accounting for copper losses, etc, this gives an overall gain of just under 2 into 32 ohms, and just under 6 into 300 ohm loads. In reality, this probably turns into 1.5x and 4x, or something like that. But, I've been using an old TDA1545 DAC with very low output, and there is plenty of gain for that, but with a dac with normal output, there is still enough play in the pot.

Sounds perfect. Desperately straining my eyes to see if I can make out the tube markings in the photos...... :D

Oh, and I assume the front selector switch is to select the transformer tap?

Link to comment
Share on other sites

I guess On / Off switch since the power supply is included on the PCB.

It's the impedance selector. The on-off switch is built in to the IEC, as is the fuse. This is for safety reasons so that the fuse can't be easily defeated, and when the switch is turned off, there is nothing past the IEC that is live. Also, the yellow caps block the high voltages, so the the front 4" of the amp is entirely low voltage.


Link to comment
Share on other sites

No chance that you're forgetting the fact that the Hammond end panels already essentially have a shim built into the plastic bezel?

<IMG]http://www.hammondmfg.com/1455v1B.jpg[/img>

I think Doug means that the PCB sticks out by 0.5mm. If I'm not mistaken, the shim in the bezel is going to cover the slots, meaning it will stick out, too. Still, trivial in the scheme of things and Hammond just supplied us a couple of one-offs straight from the production line. We'll get them custom-machined and have them in good shape, eventually, I hope.:)
Link to comment
Share on other sites

I think Doug means that the PCB sticks out by 0.5mm. If I'm not mistaken, the shim in the bezel is going to cover the slots, meaning it will stick out, too. Still, trivial in the scheme of things and Hammond just supplied us a couple of one-offs straight from the production line. We'll get them custom-machined and have them in good shape, eventually, I hope.:)

It doesn't take much to cut the plastic bezel to allow the board to protrude into the cavit it creates behind the back panel. Not that I've had to do anything like that before...

Link to comment
Share on other sites

It's actually not Hammond's doing, as much as I'd like to blame them. The board fits in the case just fine, but the person who did the layout had the pot extend a tiny bit too far. Now, the intention was that the board would be just shorter than the case to allow for some wiggle, in which case things would be fine, but since the board and case are matched, a couple of washers will be needed. As Tom says, this will be fixed in the final.

Link to comment
Share on other sites

That's the idea -- the parts cost is remarkably low -- $1 tube, which is still a secret for now :) , $9 OPT. The most expensive things there are the IEC and the Alps pot (unless you use Auricaps, I suppose).

well, not to mention the case :) so, surely you have a ballpark full kit number you could throw out in strictest confidences of the hallows of Head Case :)

Link to comment
Share on other sites

Had a chance to check it out last night, as Doug stopped by with the amp, as well as his balanced solid state. I was really impressed, we spun disks all night and everything sounded killer. Considering what the parts count and what the total kit may cost, this is one sick of a deal for the sound that I was hearing.

Link to comment
Share on other sites

  • 2 weeks later...
  • 2 weeks later...
  • 3 years later...
  • 2 weeks later...

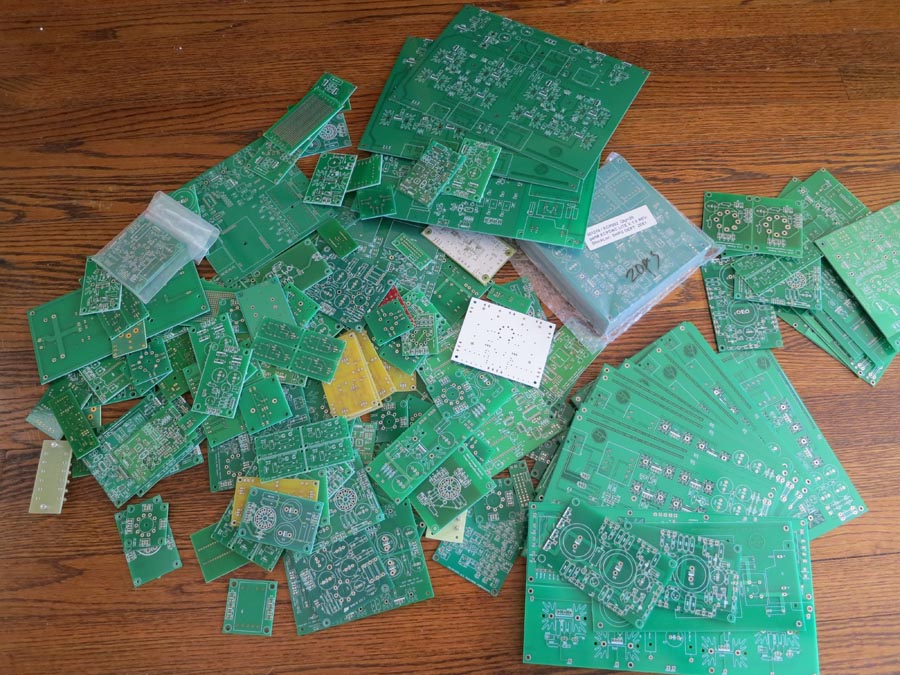

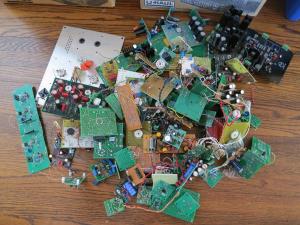

The availability of inexpensive circuit boards has been a blessing, and a curse. This is just the crap I don't know what to do with. Note the original Millett Hybrid on the far left :)







Damn!  I bet more than half that stuff is still better than the DIY designs available today.



Yes, I recognize the original Millett Hybrid PCB - just as it looked in the Audio Xpress magazine.
