Pars for the golden ref HV on both my blue hawaii builds and my current mini T2 build I used the  gerbers from the file kgsshvpssicfetdual2new This board does not have the cpc117n for the delayed start - but you can implement it via external relays. I made my own bom for it. Note you will need to change a couple of resistors if you dont want +-400V also if you are going golden reference dual LV you dont need the parts for the simple +-15V, the voltage regs,  this are marked on the bom as for low voltage section. Hope this helps. On the silkscreen the caps are 0.047uF 1KV not 0.47uF, So you might be looking at a different board from the golden ref HV I used.

Select
Mouser No: 941-C2M1000170D qvBtn.png



Mfr. No: C2M1000170D
Manufacturer: Cree, Inc.
Desc.: MOSFET SIC MOSFET 1700V RDS ON 1 Ohm
RoHS RoHS Compliant




Availability
Dispatches Now
£4.07 £8.14
Select
Mouser No: 747-IXCP10M90S qvBtn.png



Mfr. No: IXCP10M90S
Manufacturer: IXYS
Desc.: Current & Power Monitors & Regulators 900V 1-100mA
RoHS RoHS Compliant




Availability
Dispatches Now
£2.60 £13.00
Select
Mouser No: 511-STN9360 qvBtn.png



Mfr. No: STN9360
Manufacturer: STMicroelectronics
Desc.: Bipolar Transistors - BJT Hi Vltg fast-switch PNP pwr transistor
RoHS RoHS Compliant




Availability
Dispatches Now
£0.697 £1.39
Select
Mouser No: 512-2N3904TA qvBtn.png



Mfr. No: 2N3904TA
Manufacturer: ON Semiconductor
Desc.: Bipolar Transistors - BJT NPN Transistor General Purpose
RoHS RoHS Compliant




Availability
Dispatches Now
£0.163 £0.33
Select
Mouser No: 512-BC557BTA qvBtn.png



Mfr. No: BC557BTA
Manufacturer: ON Semiconductor
Desc.: Bipolar Transistors - BJT TO-92 PNP GP AMP
RoHS RoHS Compliant

 - - Add new 4


Availability
Dispatches Now
£0.178 £0.71
Select
Mouser No: 512-KSC5026MOS qvBtn.png



Mfr. No: KSC5026MOS
Manufacturer: ON Semiconductor
Desc.: Bipolar Transistors - BJT NPN Si Transistor
RoHS RoHS Compliant




Availability
Dispatches Now
£0.557 £2.23
Select
Mouser No: 689-DN2540N5-G qvBtn.png



Mfr. No: DN2540N5-G
Manufacturer: Microchip
Desc.: MOSFET 400V 25Ohm
RoHS RoHS Compliant




Availability
Dispatches Now
£1.01 £2.02
Select
Mouser No: 584-LT1021DCN8-10PBF qvBtn.png



Mfr. No: LT1021DCN8-10#PBF
Manufacturer: Analog Devices Inc.
Desc.: Voltage References Prec 10V Ref 20ppm/-uC
RoHS RoHS Compliant




Availability
Dispatches Now
£4.97 £9.94
Select
Mouser No: 513-NJM7815FA qvBtn.png



Mfr. No: NJM7815FA
Manufacturer: NJR
Desc.: Linear Voltage Regulators 15V 1.5A 3 Terminal
RoHS RoHS Compliant

 - - Add new for low voltage secti


Availability
Dispatches Now
£0.458 £0.46
Select
Mouser No: 513-NJM7915FA qvBtn.png



Mfr. No: NJM7915FA
Manufacturer: NJR
Desc.: Linear Voltage Regulators -15V 1.5A 3 Terminal
RoHS RoHS Compliant

Lifecycle: icon-lc-endoflife.pngEnd of Life: Scheduled for obsolescence and will be discontinued by the manufacturer.
 - - Add new for low voltage secti


Availability
Dispatches Now
£0.963 £0.96
Select
Mouser No: 660-MF1/2CC1000F qvBtn.png



Mfr. No: MF1/2CC1000F
Manufacturer: KOA Speer
Desc.: Metal Film Resistors - Through Hole 100ohms 1% 50PPM
RoHS RoHS Compliant




Availability
Dispatches Now
£0.147 £0.29
Select
Mouser No: 660-MF1/2CC1001F qvBtn.png



Mfr. No: MF1/2CC1001F
Manufacturer: KOA Speer
Desc.: Metal Film Resistors - Through Hole 1K 1% 50PPM
RoHS RoHS Compliant




Availability
Dispatches Now
£0.164 £0.98
Select
Mouser No: 660-MF1/2CC1003F qvBtn.png



Mfr. No: MF1/2CC1003F
Manufacturer: KOA Speer
Desc.: Metal Film Resistors - Through Hole 100K 1% 50PPM
RoHS RoHS Compliant

 - - Add new for headphones bias


Availability
Dispatches Now
£0.26 £0.52
Select
Mouser No: 660-MF1/2CC1502F qvBtn.png



Mfr. No: MF1/2CC1502F
Manufacturer: KOA Speer
Desc.: Metal Film Resistors - Through Hole 15K 1% 50PPM
RoHS RoHS Compliant

 - - Add new for headphones bias


Availability
Dispatches Now
£0.164 £0.16
Select
Mouser No: 660-MF1/2CC2001F qvBtn.png



Mfr. No: MF1/2CC2001F
Manufacturer: KOA Speer
Desc.: Metal Film Resistors - Through Hole 2K 1% 50PPM
RoHS RoHS Compliant




Availability
Dispatches Now
£0.147 £0.29
Select
Mouser No: 660-MF1/2CC2002F qvBtn.png



Mfr. No: MF1/2CC2002F
Manufacturer: KOA Speer
Desc.: Metal Film Resistors - Through Hole 20Kohms 1% 50PPM
RoHS RoHS Compliant




Availability
Dispatches Now
£0.164 £0.33
Select
Mouser No: 71-RN60D-F-390K qvBtn.png



Mfr. No: RN60D3903FB14
Manufacturer: Vishay
Desc.: Metal Film Resistors - Through Hole 1/4watt 390Kohms 1% 100ppm
RoHS No




Availability
Dispatches Now
Backordered
£0.364 £1.46
Select
Mouser No: 660-MF1/2CC2493F qvBtn.png



Mfr. No: MF1/2CC2493F
Manufacturer: KOA Speer
Desc.: Metal Film Resistors - Through Hole 249Kohms 1% 50PPM
RoHS RoHS Compliant




Availability
Dispatches Now
£0.164 £1.31
Select
Mouser No: 660-MF1/2CC4701F qvBtn.png



Mfr. No: MF1/2CC4701F
Manufacturer: KOA Speer
Desc.: Metal Film Resistors - Through Hole 4.7K 1% 50PPM
RoHS RoHS Compliant




Availability
Dispatches Now
£0.164 £0.33
Select
Mouser No: 660-MF1/2CC4992F qvBtn.png



Mfr. No: MF1/2CC4992F
Manufacturer: KOA Speer
Desc.: Metal Film Resistors - Through Hole 49.9Kohms 1% 50PPM
RoHS RoHS Compliant




Availability
Dispatches Now
£0.164 £0.33
Select
Mouser No: 660-MF1/2CC49R9F qvBtn.png



Mfr. No: MF1/2CC49R9F
Manufacturer: KOA Speer
Desc.: Metal Film Resistors - Through Hole 49.9ohms 1% 50PPM
RoHS RoHS Compliant

 - - Add new 20


Availability
Dispatches Now
£0.303 £0.61
Select
Mouser No: 660-MOSX3CT521R5R1J qvBtn.png



Mfr. No: MOSX3CT521R5R1J
Manufacturer: KOA Speer
Desc.: Metal Oxide Resistors RSS3 5.1 5%TR
RoHS RoHS Compliant

 - - Add new 2


Availability
Dispatches Now
£0.181 £0.54
Select
Mouser No: 660-MS1/2DCT52R3011 qvBtn.png



Mfr. No: MFS1/2DCT52R3011F
Manufacturer: KOA Speer
Desc.: Metal Film Resistors - Through Hole 1/2W3.01K ohm 1%
RoHS RoHS Compliant

 - - Add new 1 for for headphones


Availability
Dispatches Now
£0.087 £0.26
Select
Mouser No: 71-RN60D-F-806K qvBtn.png



Mfr. No: RN60D8063FB14
Manufacturer: Vishay
Desc.: Metal Film Resistors - Through Hole 1/4watt 806Kohms 1% 100ppm
RoHS No

 - - Add new for headphones bias


Availability
Dispatches Now
£0.201 £0.20
Select
Mouser No: 594-VR37000004704FR5 qvBtn.png



Mfr. No: VR37000004704FR500
Manufacturer: Vishay
Desc.: Metal Film Resistors - Through Hole 1/2watt 4.7Mohms 1%
RoHS RoHS Compliant By Exemption

 - - Add new for headphones bias


Availability
Dispatches Now
£0.457 £0.46
Select
Mouser No: 505-M100.047/1000/5 qvBtn.png



Mfr. No: MKP10-.047/1000/5
Manufacturer: WIMA
Desc.: Film Capacitors 1000V .047uF 5% PCM15
RoHS RoHS Compliant

 - - Add new 2


Availability
Dispatches Now
£0.64 £1.28
Select
Mouser No: 505-MKS4.1/1000/10 qvBtn.png



Mfr. No: MKS4O131004J00KSSD
Manufacturer: WIMA
Desc.: Film Capacitors 1KV 0.1uF 10% PCM15
RoHS RoHS Compliant

 - - Add new for headphones bias


Availability
Dispatches Now
£0.718 £2.87
Select
Mouser No: 581-TAP476K035CCS qvBtn.png



Mfr. No: TAP476K035CCS
Manufacturer: AVX
Desc.: Tantalum Capacitors - Solid Leaded 35V 47uF 10% ESR=800 mOhm
RoHS RoHS Compliant




Availability
Dispatches Now
£3.77 £7.54
Select
Mouser No: 75-561R10TCCV50 qvBtn.png



Mfr. No: 561R10TCCV50
Manufacturer: Vishay
Desc.: Ceramic Disc Capacitors 1Kvolts 5pF 5% .25LS NPO
RoHS RoHS Compliant By Exemption




Availability
Dispatches Now
£0.596 £1.19
Select
Mouser No: 667-EEU-FR1E101 qvBtn.png



Mfr. No: EEU-FR1E101
Manufacturer: Panasonic
Desc.: Aluminium Electrolytic Capacitors - Radial Leaded 25VDC 100uF 6.3x11.2mm LS2.5mm
RoHS RoHS Compliant

 - - Add new for low voltage secti


Availability
Dispatches Now
£0.248 £0.50
Select
Mouser No: 661-EKYB350E472ML40S qvBtn.png



Mfr. No: EKYB350ELL472ML40S
Manufacturer: United Chemi-Con (UCC)
Desc.: Aluminium Electrolytic Capacitors - Radial Leaded 35V 4700uF 20% Tol.
RoHS RoHS Compliant

 - - Add new for low voltage secti 2


Availability
Dispatches Now
Backordered
£2.05 £4.10
Select



Availability
Dispatches Now
£19.00 £76.00
Select
Mouser No: 863-1N5927BRLG qvBtn.png



Mfr. No: 1N5927BRLG
Manufacturer: ON Semiconductor
Desc.: Zener Diodes 12V 3W
RoHS RoHS Compliant




Availability
Dispatches Now
Backordered
£0.341 £0.68
Select
Mouser No: 863-1N5934BG qvBtn.png



Mfr. No: 1N5934BG
Manufacturer: ON Semiconductor
Desc.: Zener Diodes 24V 3W
RoHS RoHS Compliant




Availability
Dispatches Now
£0.364 £0.73
Select
Mouser No: 863-1N5952BRLG qvBtn.png



Mfr. No: 1N5952BRLG
Manufacturer: ON Semiconductor
Desc.: Zener Diodes ZEN SUR30 REG 3W
RoHS RoHS Compliant

 - - Add new for headphones bias


Availability
Dispatches Now
£0.395 £0.40
Select
Mouser No: 625-Z4KE150A-E3/73 qvBtn.png



Mfr. No: Z4KE150A-E3/73
Manufacturer: Vishay
Desc.: Zener Diodes 150 Volt 1.5W 5%
RoHS RoHS Compliant By Exemption

 - - Add new for headphones bias


Availability
Dispatches Now
£0.402 £1.21
Select
Mouser No: 863-1N4007G qvBtn.png



Mfr. No: 1N4007G
Manufacturer: ON Semiconductor
Desc.: Rectifiers 1000V 1A Standard
RoHS RoHS Compliant

 - - Add new 2 for headphones bias 2 for for low voltage


Availability
Dispatches Now
£0.163 £1.30
Select
Mouser No: 511-STTH512FP qvBtn.png



Mfr. No: STTH512FP
Manufacturer: STMicroelectronics
Desc.: Rectifiers high voltage diode
RoHS RoHS Compliant




Availability
Dispatches Now
£1.27 £10.16
Select
Mouser No: 575-113308 qvBtn.png



Mfr. No: 110-13-308-41-001000
Manufacturer: Mill-Max
Desc.: IC & Component Sockets 8P GLD PIN GLD CONT
RoHS RoHS Compliant




Availability
Dispatches Now
£0.929 £1.86
Select
Mouser No: 651-5452257 qvBtn.png



Mfr. No: 5452257
Manufacturer: Phoenix Contact
Desc.: Fixed Terminal Blocks BC-508X10- 2 BK
RoHS RoHS Compliant




Availability
Dispatches Now
£0.805 £2.42
Select
Mouser No: 651-5452258 qvBtn.png



Mfr. No: 5452258
Manufacturer: Phoenix Contact
Desc.: Fixed Terminal Blocks BC-508X10- 3 BK
RoHS RoHS Compliant




Availability
Dispatches Now
£1.22 £3.66
Select
 - - Add new for headphones bias for low voltage secti


Availability
Dispatches Now
£1.37 £1.37
Select
Mouser No: 588-EA-T220-38E qvBtn.png



Mfr. No: EA-T220-38E
Manufacturer: Ohmite
Desc.: Heat Sinks HEATSINK FOR TO-220 BLK ANODIZED
RoHS RoHS Compliant

 - - Add new for low voltage secti


Availability
Dispatches Now
£1.75 £1.75
Select



Availability
Dispatches Now
£0.596 £1.19
Select



Availability
Dispatches Now
£0.31 £2.17
Select



Availability
Dispatches Now
£0.457 £2.29
Edited by jamesmking
Link to comment
Share on other sites

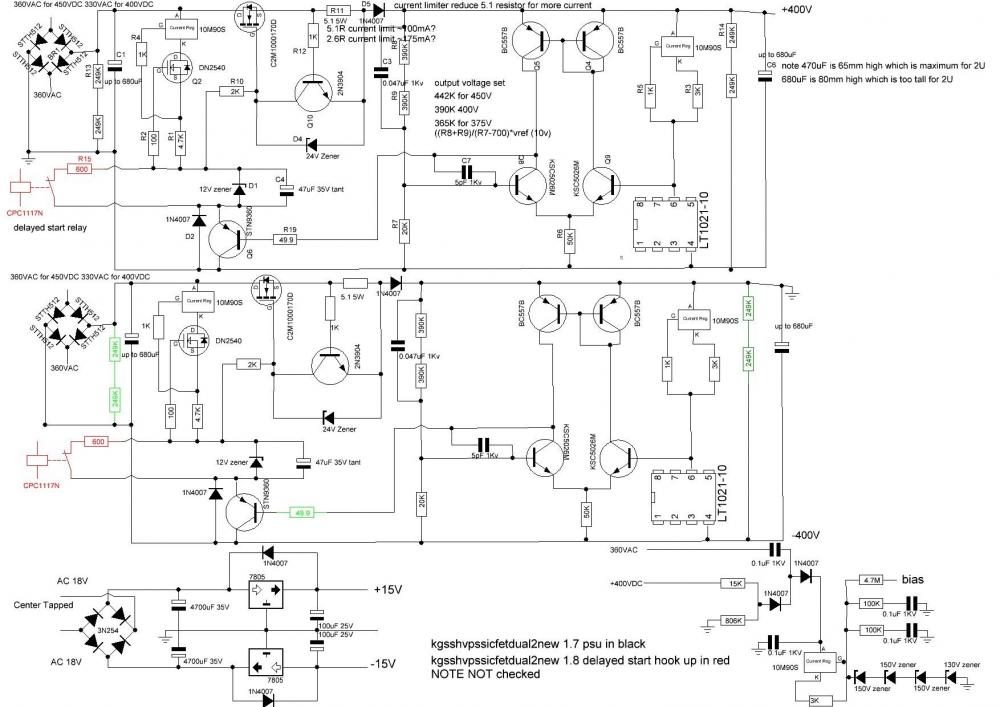

Pars, here is my reverse engineering of the kgsshvpssicfetdual2new I have added in red the extra parts for the delayed turn on but there are no pads present on the gerbers for them. As far as I can tell the dual hv boards stopped at version 1.7 just before the cpc117n was added. the individual "left" and ""right" boards went to version 1.8 - which included the cpc117n and the 600ohm resistor.



kg ss hv dual soft start clean.JPG

Edited by jamesmking
Link to comment
Share on other sites

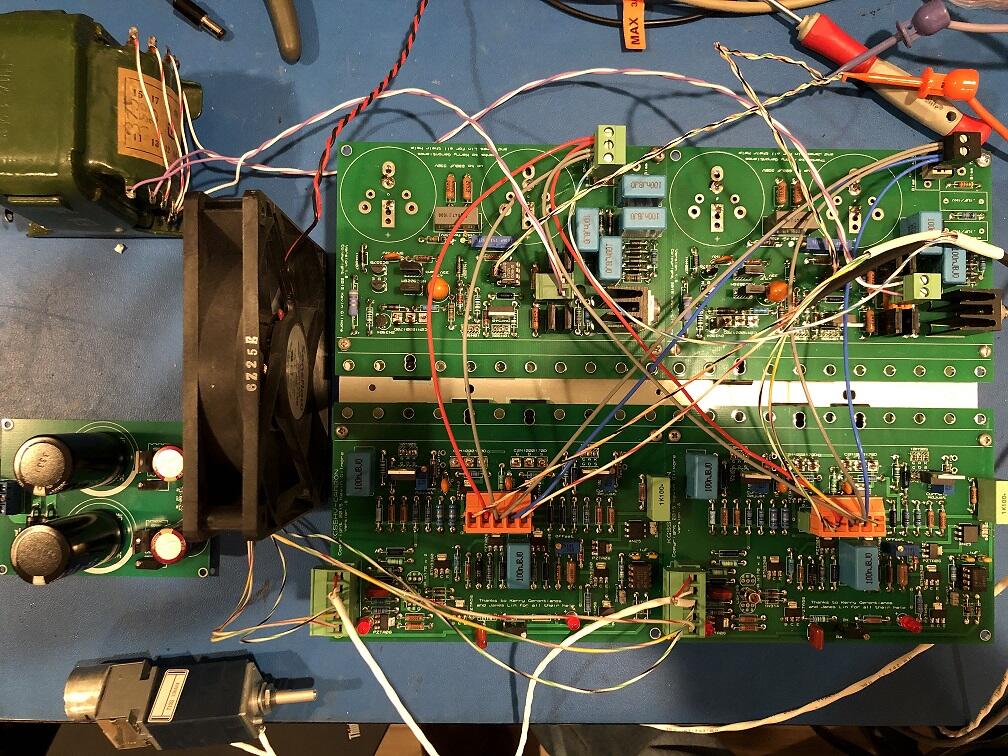

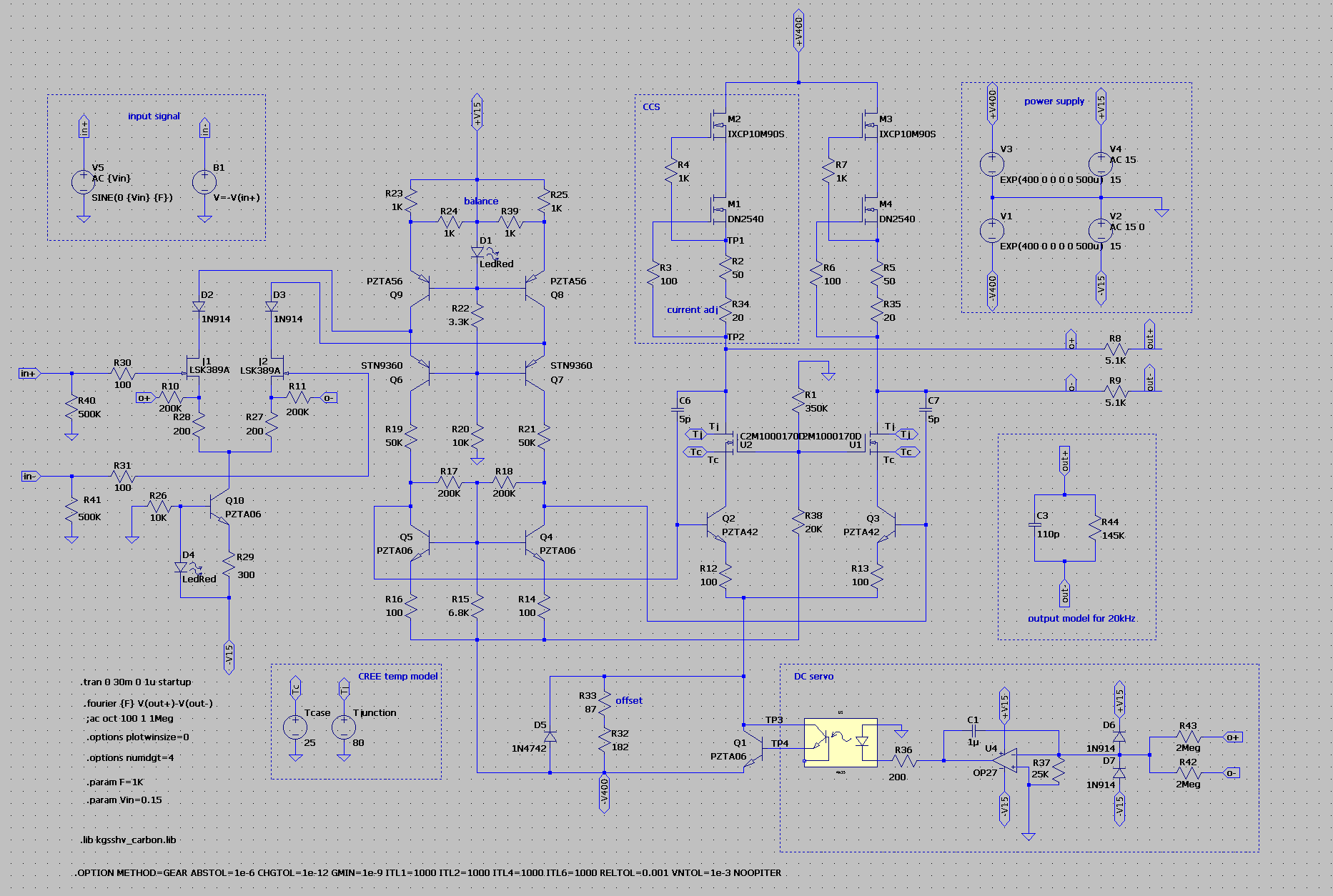

I just finished building the KGSSHV Carbon and Golden reference PSUs, well, using the PCBs from AliExpress. The performance is superb. It registers 0.0006x% THD+N up to 583Vrms and the distortion profile is very well behaved (2nd order slightly higher than 3rd order). The noise floor is at 1.1mVrms wide-band without power-line frequency harmonics. I found that my comfortable listening level is around 10Vrms and would probably never need that kind of dynamic headroom. Is there a lower gain option or mod that can bring the noise down?

Link to comment
Share on other sites

I built the amp on a heat sink taken from an old Denon home theater receiver, and decided to try it out before investing more time and $$ on a 'real' enclosure. It just so happens that the heat sink has the exact length for two boards mounted side-by-side, and width to mount the transistors on both the PSU and amp boards. The big electrolytic caps are mounted on the opposite side of the PSU board to double as temporary mechanical support. You can see the green Soviet military style HV transformer. I got it a number of years ago on ebay when the international shipping wasn't that crazy. It's better suited for circuit requiring 400V or 350V B+, though.


  • Like 1
Link to comment
Share on other sites

Oh I'll definitely put these in a proper enclosure with volume control and input selection, etc. This is just temporary.

By the way, do you have any suggestions to reduce the gain? Increasing the NFB would certainly do it. I'm more looking for a way to reduce the open loop gain I guess.

Link to comment
Share on other sites

  • 3 weeks later...

if you are referring to the large filtering caps, those extra holes were provisioned for builders to use various brand of caps in the position including the boutique Mundorf caps IIRC.

The extra holes to the side were there to help with mechanical security of the caps (if so equipped) as some builders choose to mount the boards vertically on the heatsinks.

Link to comment
Share on other sites

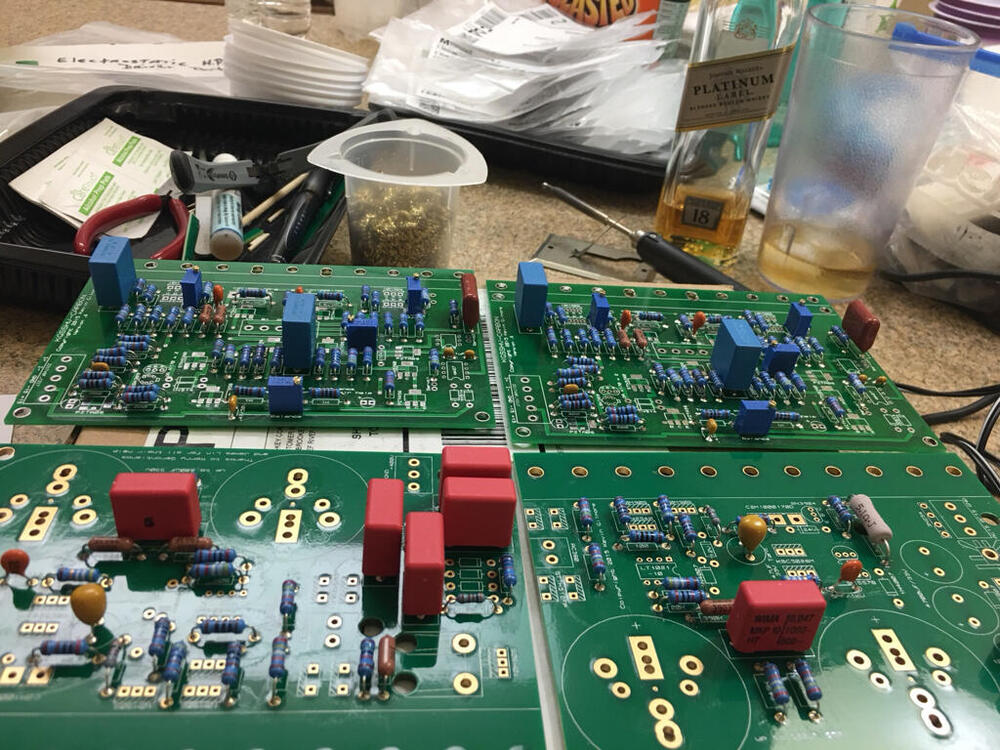

A pair of Carbon boards complete other than JFETs. I used Soren's pre-adjustment method on the CCS's. They all came up at 15mA initially; adjusted them to 17mA for a start. I still need to clean the boards more. These are the .6G boards and appear to have a ground plane (haven't looked at the gerbers), so all resistors, etc. are up off the board. If any of you Stax mafia dudes see anything amiss, please let me know. I was careful building these...



Also, I got some pluggable connectors, Hirose DF5A (DF5A-5P-5DSA(35), DF5A-5S-5C) which are 500Vdc rated, and would fit just fine. They have one small nub or pin on the bottom, but it looks like you could either cut it off, or drill a small hole in the PCB for it.


  • Like 7
Link to comment
Share on other sites

Just a caution for testing - this amp runs HOT! Unless you bias the output device way down, make sure you mount those angles on a proper heatsinks before you energize it.

17mA bias seems like a good starting point. I run mine around 20mA IIRC.

Link to comment
Share on other sites

Thanks Michael. Yes, I was going to get some heatsinks something like you used to bolt the angles to (as well as the PSU angles). And thanks for the tip awhile back about putting standoffs upside down for mounting the resistors, etc. to get them spaced off the board. Worked pretty well! They aren't perfect, but pretty good I think.

Link to comment
Share on other sites

On 3/3/2020 at 10:13 AM, Pars said:

Those were what was on the BOM. I’ll get some 1/2W, though I think people have built from this BOM before? Is a 350V rated part sufficient?

Thanks!





Chris: You need 1/2W for this position. There is significant voltage drop across these 2 175K resistors. You may have used an older version of the BOM. Check the first post on this thread where I had updated the BOM to use Vishay RN60 parts to replace the Xicon’s.



Edited by mwl168
Link to comment
Share on other sites

  • 1 month later...

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.

 Share

×
×
  • Create New...
