5 hours ago, sbelyo said:

I measured the pin spacing on the boards as well as the BH Ultramini PSU.  They're all 5.08mm  The MKDSN series are all 7.62mm

It doesn't look like they'll fit and I don't see anything in that size higher than 300V

Thats weird. Are you sure?

I'm consulting the Phoenix dates on Mouser website and I see this:

Paso:

5.08 mm
Método de conexión:
Screw
Valor de corriente:
13.5 A
Voltaje máximo:
400 V
Serie:

Link to post
Share on other sites
  • Replies 247
  • Created
  • Last Reply

Top Posters In This Topic

Top Posters In This Topic

Popular Posts

Another electrostat CFA lives. This one born on the 4th of July? The PCB is congo5's layout. The amps is powered by my GRHV PSU with ~405VDC rails.  Many thanks to Kevin for another wonderfu

Finally cased my ES CFA amp.  Returned the bias resistors to 1M with the larger heatsinks. Running 20mA bias for the output sections.

build it, put it in a super fancy box, and sell it for $37k betcha it sounds better than the high priced spread, at least no stupidly expensive and useless input transformers. its a push pul

Posted Images

I've used a bunch of MKDSN 5.08 spaced from Mouser, they exist (for example 651-1729131).

Also, note that the 400V is its CAT III rating (see data sheet).

The CAT II rating, which is more relevant for an amplifier for home use, (think broadly home appliances connected to a wall outlet) is 630V.

Link to post
Share on other sites

Trafo depends somewhat on the psu also: if you’re using GRHV you only have 20-30V or so in dropout voltage (or even less if I remember correctly).

360V secondaries puts you at about 510V DC unregulated, so that leaves quite a bit to be turned into heat by the psu pass transistors if you’re aiming for 400V output.

Edited by MLA
Link to post
Share on other sites



1 hour ago, MLA said:

Trafo depends somewhat on the psu also: if you’re using GRHV you only have 20-30V or so in dropout voltage (or even less if I remember correctly).

360V secondaries puts you at about 510V DC unregulated, so that leaves quite a bit to be turned into heat by the psu pass transistors if you’re aiming for 400V output.

Sorry. You are right but a clarification:  I am using my universal PSU (GRHV) and I put the transformer data.

For this amplifier I´m thinking about use a specific PSU. Maybe I ´ll use a Mini BH and a trafo with [email protected] X2

  • Like 1
Link to post
Share on other sites

Yea, good enough for me

on USA ~122vac with an Antek  AS=1T300

   and my "as built" BH supply

pick a transformer, measure its output.

build your power supply and test what it needs to regulate

then adjust accordingly, might not have exact output you want, doesn't matter if within 10% or so

if I send my transformer and PS to Jose it might not work good enough on his line voltage

you have to test and set it up or run a bit more regulation and heat to have some headroom



Link to post
Share on other sites
28 minutes ago, sbelyo said:

I'll try, I was just posting as they came to mind

Congo5 used a 300V @ 340mA and wound up with 399Vdc using a BH Ultamini psu

Do not worry, don´t take it the wrong way. I told you to have all information in a single post and we can consult it quickly.

Link to post
Share on other sites

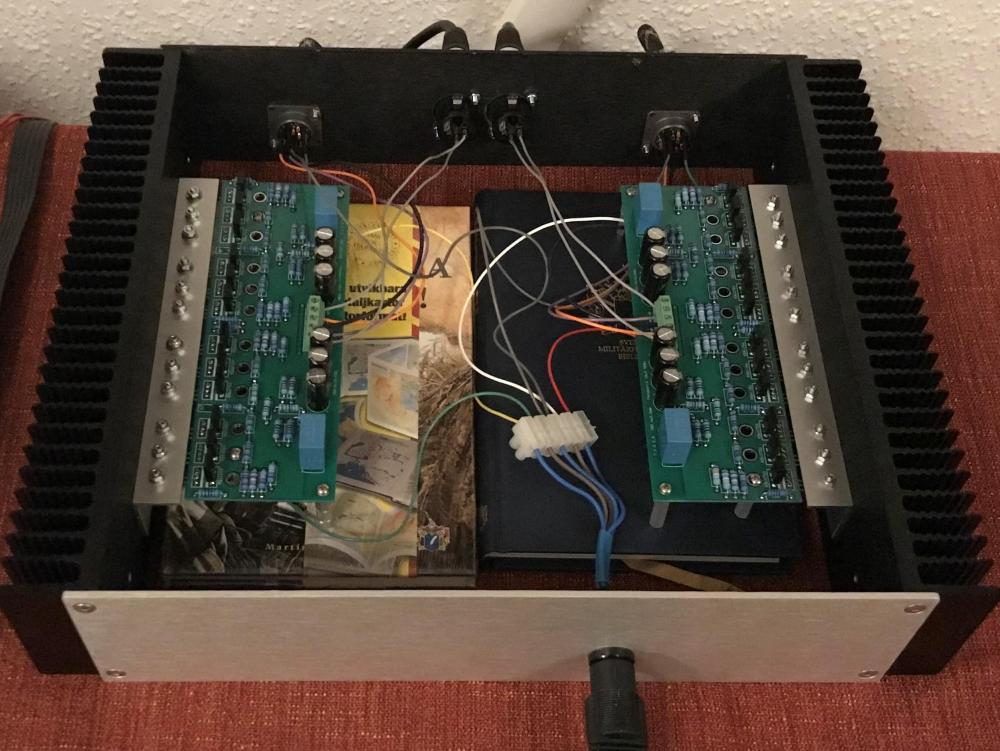

Modushop heat sink 300 mm X 80 mm and Modushop Galaxy Maggiorato front and back panels. I buy them as spare parts. Brackets and aluminium plates for top and bottom I get from a local shop.

I've drilled and tapped M4 holes at both ends of heat sinks to fasten the panels.

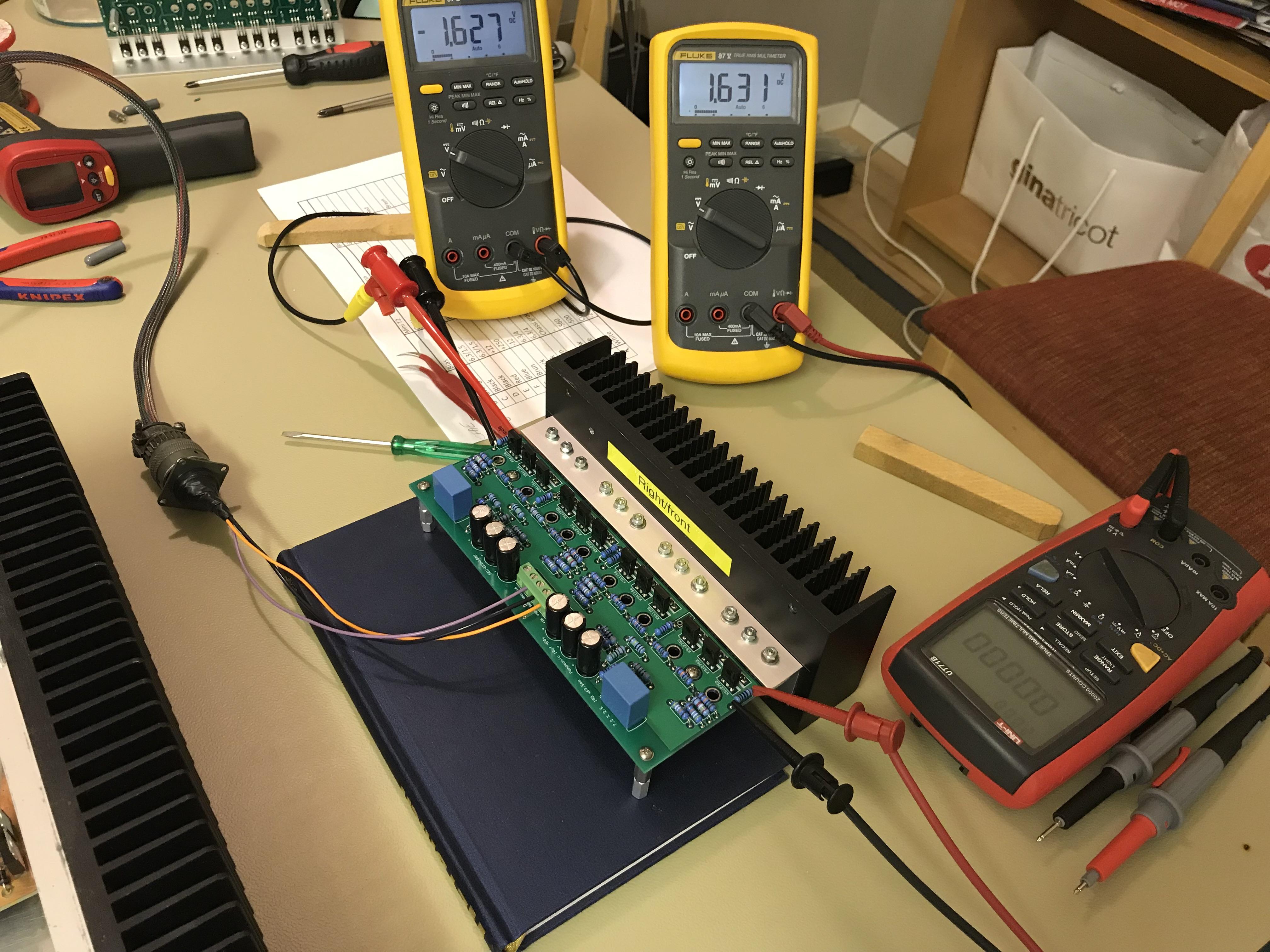

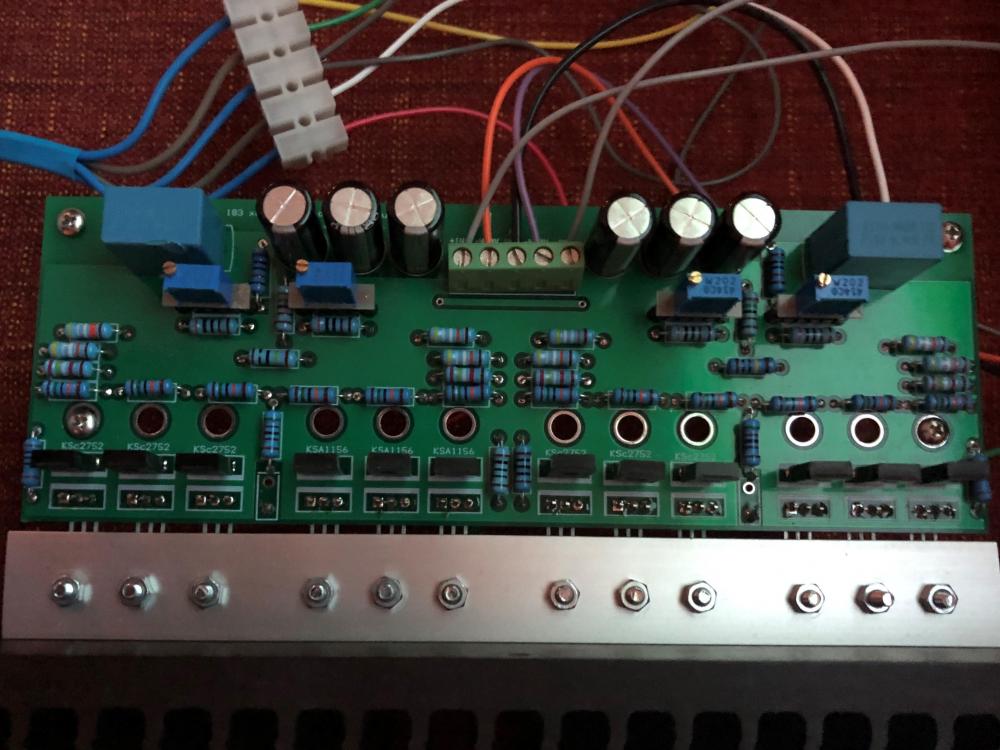

Below is a board attached to 200 mm X 80 mm heat sink - temperature stabilazed at about 50 degrees Celsius. With 300 mm heat sink temperature stabilized at 42 degees. Current stabilized at 20 mA with resistors as silk screen.


Edited by JoaMat
  • Like 6
Link to post
Share on other sites

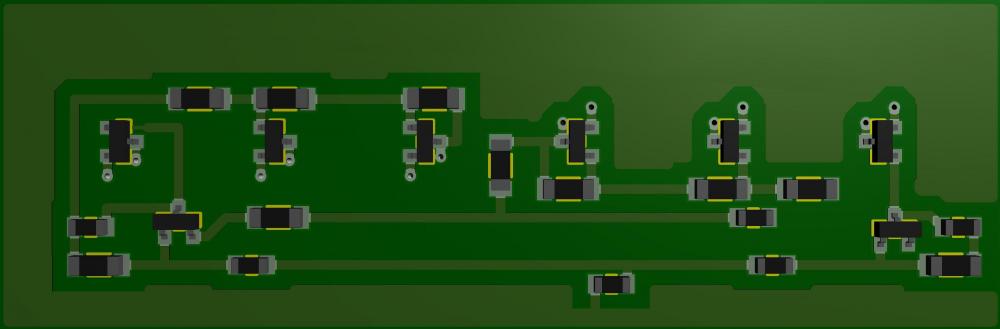

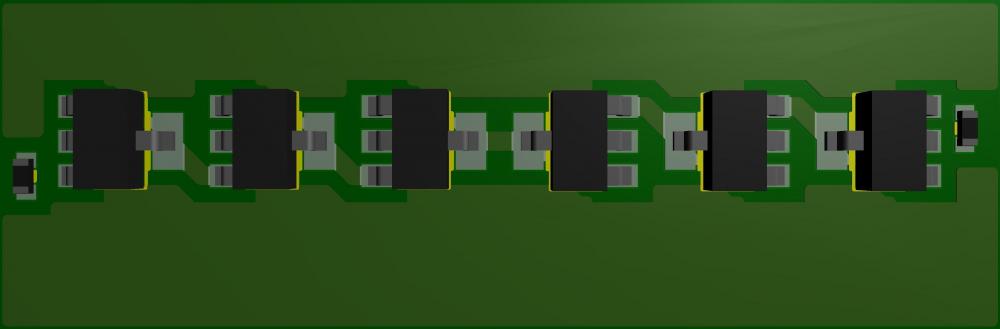

OK, now I’ve reached further. Replaced all eight 2K resistors with 2K trimmers. Makes it easier to change the current. Set at 1.6K current start at 2.5 mA and climbs to 4.5 mA. IMO it’s still an interesting amplifier and I believe it’s possible to build an all SMD version.


  • Like 3
Link to post
Share on other sites

Increasing trimmers resistance always increase corresponding side’s current and vice versa. If upper trimmer (ksa1156) increases corresponding side’s output voltage increases and the other decreases. If lower trimmer (ksc2752) increases corresponding side’s output voltage decreases and other side increases. So far I’ve preadjusted all eight trimmers to the same resistance. Resulting in roughly the same current of all for channels and in an output voltage of some positive volts - all good and not needing any further action. To me it has been a bit tricky to turn all trimmers to achieve better balance and offset than when the preadjusted.

  • Like 1
Link to post
Share on other sites

With congo5's blessing, Jose and I had PCB fabricated for our use.

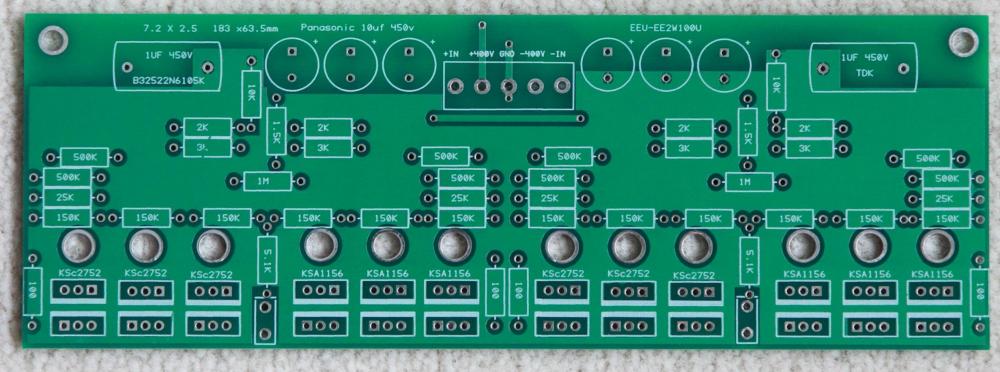

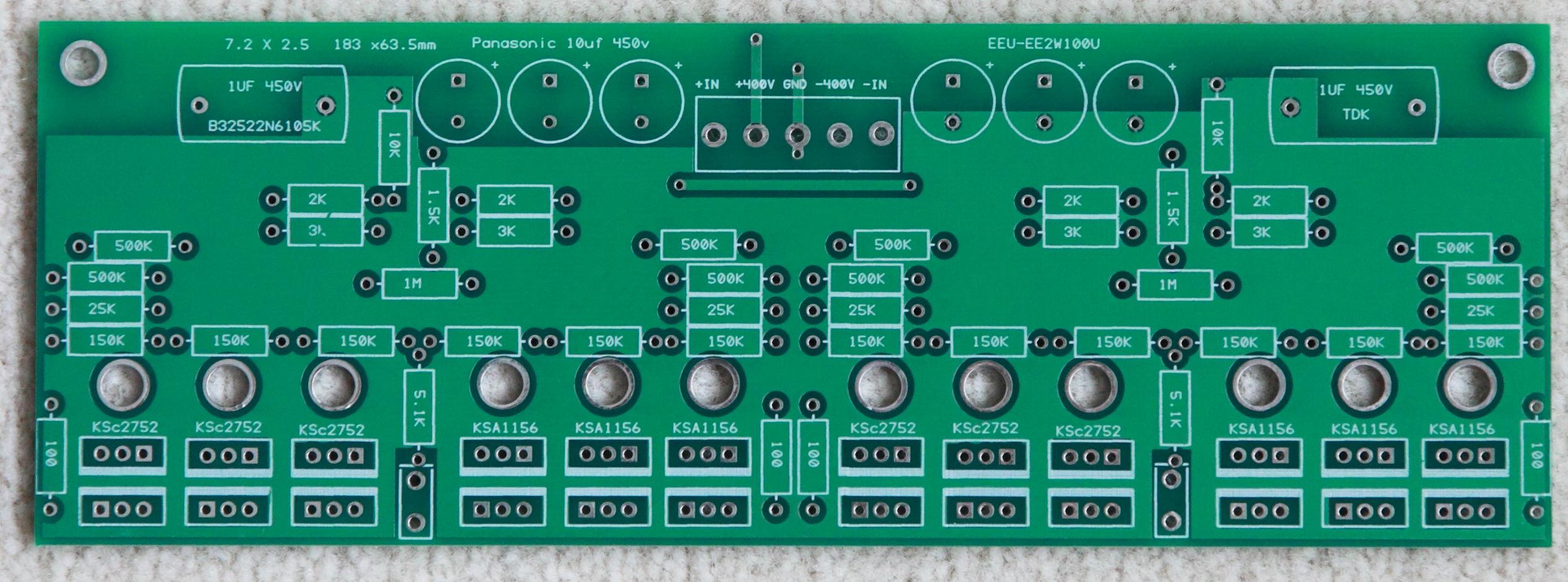

These are proven boards - a few working amps have been built. The boards are 2mm thick, 2oz copper (see pic.).

There are a few remaining sets available, PM me if interested.



ES CFA PCB.JPG

Edited by mwl168
