samsie Posted June 24, 2015 Report Share Posted June 24, 2015 Oh! I was waiting for the on-board carbon version too. If it is not going to happen, which of the current version is more stable? I can build one but trouble shooting is a bit out of my league. Sam Quote Link to comment Share on other sites More sharing options...
DefQon Posted June 24, 2015 Report Share Posted June 24, 2015 What? Troubleshooting is the fun part. Quote Link to comment Share on other sites More sharing options...
insanity Posted June 24, 2015 Report Share Posted June 24, 2015 Probably doesn't make too much sense going to onboard heatsinks the size of the 727... Any idea when the boards will reach a stage suitable for a board run? Btw: What version are you using for your carbon builds birgir? Which amp board? Which servo? which Psu? Quote Link to comment Share on other sites More sharing options...
spritzer Posted June 24, 2015 Report Share Posted June 24, 2015 (edited) All my boards are custom and for my own use only. Edited June 24, 2015 by spritzer Quote Link to comment Share on other sites More sharing options...
mwl168 Posted June 24, 2015 Report Share Posted June 24, 2015 (edited) +/-400V. I'd rather run with higher current than go to 450V. No boards will be sold until the design is finalized. That could be a while though. Hi Kevin and Birgir: Is there an off-board KGSSHV Carbon version that is tested, finalized and available to the public? If so and if there is enough interest, I can help run a GB. Thanks! Edited June 24, 2015 by mwl168 Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted June 24, 2015 Author Report Share Posted June 24, 2015 the tested board is kgsshvcarbonv1.zip this is the original board with the original limited servo and the adjustment pot. joamat has tested the left and right versions of the boards. the Kerry servo an the joamat servo boards have not been tested. birgir thinks the extra servo is not necessary because the amp is extremely stable without all the extra parts. Quote Link to comment Share on other sites More sharing options...
sorenb Posted June 24, 2015 Report Share Posted June 24, 2015 @mwl168: I'm in for two sets Quote Link to comment Share on other sites More sharing options...
insanity Posted June 24, 2015 Report Share Posted June 24, 2015 I would be in for 1 set for sure! Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted June 24, 2015 Author Report Share Posted June 24, 2015 http://gilmore.chem.northwestern.edu/boards/kgsshvcarbonv2.zip this is the version 1 board above with the cascode current sources and 4 of the transistors replaced with pzta series parts. not tested, but I would have to be an idiot to mess this one up. (someone should check) Quote Link to comment Share on other sites More sharing options...
JimL Posted June 24, 2015 Report Share Posted June 24, 2015 Has anyone had a chance to compare the SiC KGSSHV with either a Blue Hawaii or DIY T2? If it is comparable but significantly easier to build and using less energy (less heat) that would be something! Quote Link to comment Share on other sites More sharing options...
JoaMat Posted June 24, 2015 Report Share Posted June 24, 2015 (edited) / Edited November 12, 2015 by JoaMat 1 Quote Link to comment Share on other sites More sharing options...
samsie Posted June 25, 2015 Report Share Posted June 25, 2015 @mwl168: count me in for one set, if it is going to happen Quote Link to comment Share on other sites More sharing options...
wokstarr26 Posted June 25, 2015 Report Share Posted June 25, 2015 @mwl168: Count me too for one set Quote Link to comment Share on other sites More sharing options...
gepardcv Posted June 25, 2015 Report Share Posted June 25, 2015 @mwl168: Two sets for me. Are you thinking of doing the SiC PSU? Quote Link to comment Share on other sites More sharing options...
mwl168 Posted June 25, 2015 Report Share Posted June 25, 2015 (edited) I do intend to include PSU in the GB. Not sure if to go with the KGSSHV PS Sic version or the GoldenReference HV version. In any case, maybe I should start a thread for the GB and move these discussions over so we don't clog this thread. Just got back from a business trip. Give me a couple of days and I'll get a GB thread started. Edited June 25, 2015 by mwl168 Quote Link to comment Share on other sites More sharing options...

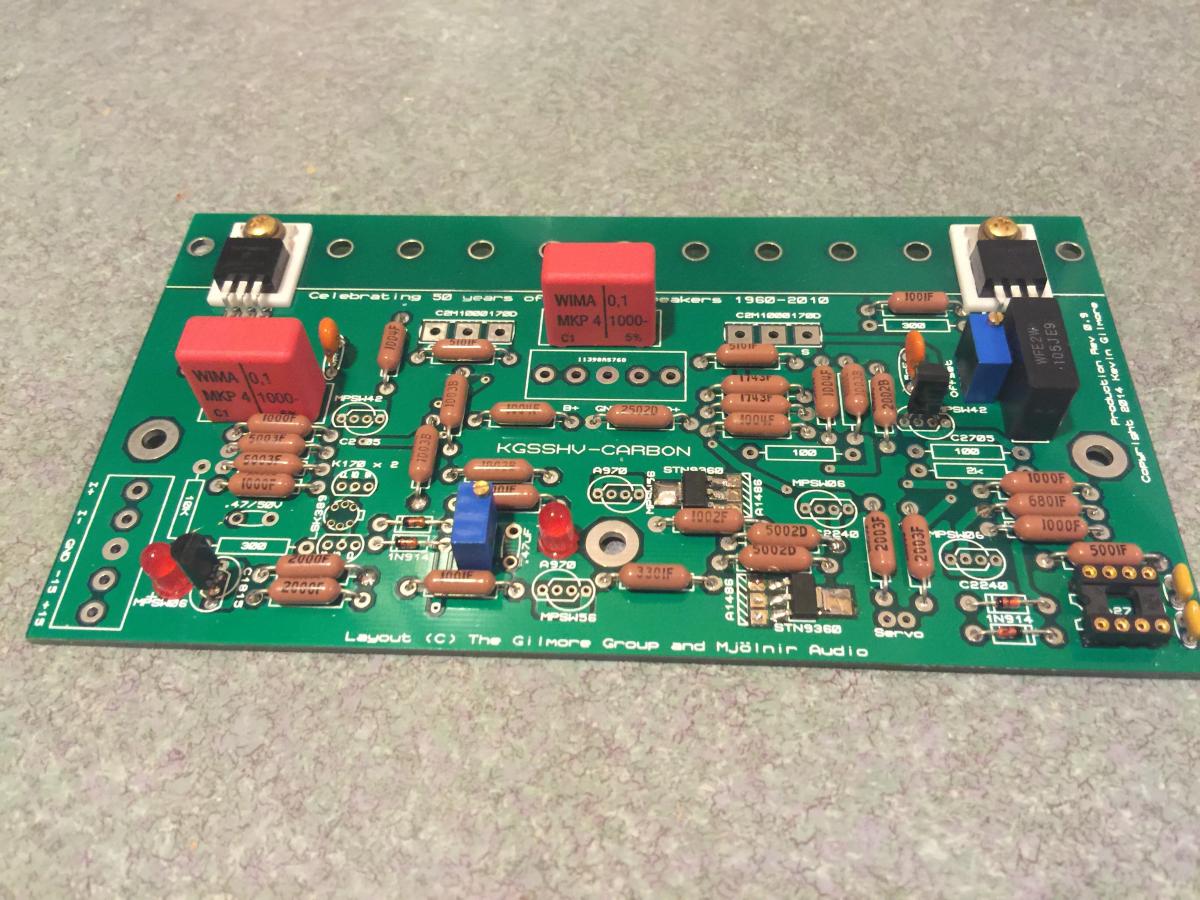

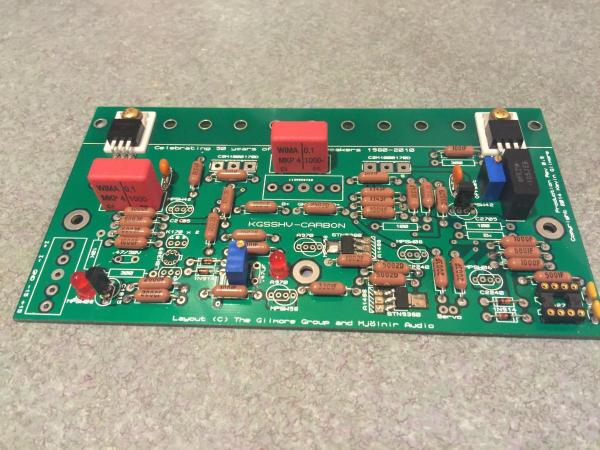

Laowei Posted June 25, 2015 Report Share Posted June 25, 2015 (edited) Please include me in the GB for 1 set including PS. I'd like to hear Kevin's or Birger's opinion on which PS has the higher potential for powering a TOTL Carbon. I have one of two Carbon 0.9 version boards about done, and my latest parts from Mouser arrived today. I leave tomorrow on a business trip, so powering up my pre-production Carbon with my KGST PS is still weeks away. Edited June 25, 2015 by Laowei Quote Link to comment Share on other sites More sharing options...
JoaMat Posted June 25, 2015 Report Share Posted June 25, 2015 (edited) / Edited November 11, 2015 by JoaMat 2 Quote Link to comment Share on other sites More sharing options...
spritzer Posted June 25, 2015 Report Share Posted June 25, 2015 (edited) I'd have to agree with you there. The Carbon just does everything right... Edit: I should look into sleeping at some point... Edited June 26, 2015 by spritzer Quote Link to comment Share on other sites More sharing options...
iwik Posted June 25, 2015 Report Share Posted June 25, 2015 Where can I get some 440k resistors?. I have had to make up my divider with a series of resistors and it don't look pretty. Thanks Les Quote Link to comment Share on other sites More sharing options...
insanity Posted June 25, 2015 Report Share Posted June 25, 2015 I'd have to agree with you there. The Megatron just does everything right... Not the Carbon? Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted June 25, 2015 Author Report Share Posted June 25, 2015 (edited) birgir's brain is on free-run after building 6 x carbons... pick the closest thing you can get to 440k and then recalculate the other resistor or pick numbers for 2 resistors that add to 880k it does not have to be super exact, the voltage will be slightly off, no big deal Edited June 25, 2015 by kevin gilmore Quote Link to comment Share on other sites More sharing options...
iwik Posted June 26, 2015 Report Share Posted June 26, 2015 (edited) Thanks Kevin, Yes that's what I did when ordering my bits. And being a PIA I wanted very close to 450v but with tolerances I ended up with 469v. Guess I will just make do with what I have and correct it some time later . My build of amps and PSU went well all going and no hitches or smoke. Thanks again for your efforts and that makes 5 out of 5. Now back to the T2. Edited June 26, 2015 by iwik Quote Link to comment Share on other sites More sharing options...
JoaMat Posted June 26, 2015 Report Share Posted June 26, 2015 One question regarding Golden Reference power supply. Using FQFP8N80C instead of C2M1000170D - will that affect performance, else than heat capability? Quote Link to comment Share on other sites More sharing options...
Kerry Posted June 26, 2015 Report Share Posted June 26, 2015 The FQFP8N80C part should work fine, though the SiC part is desirable. I'm interested in the results. Let us know. Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted June 26, 2015 Author Report Share Posted June 26, 2015 the 469 volts is a bit high, time to trim one resistor a bit Quote Link to comment Share on other sites More sharing options...
