Attached ZIP-file with gerbers, shematics and some 3D views. CFA3smd.zip I’ve used both gerbers when I milled the boards (kitchen made) and that is about three years ago. Board size 160mm x 74mm to fit on Modushop 200mm x 80mm heat sinks. Take a look at the files and see if/how the boards could be a part of your project. I think one should make a few changes to attached gerbers before considering sending them to a fab house.

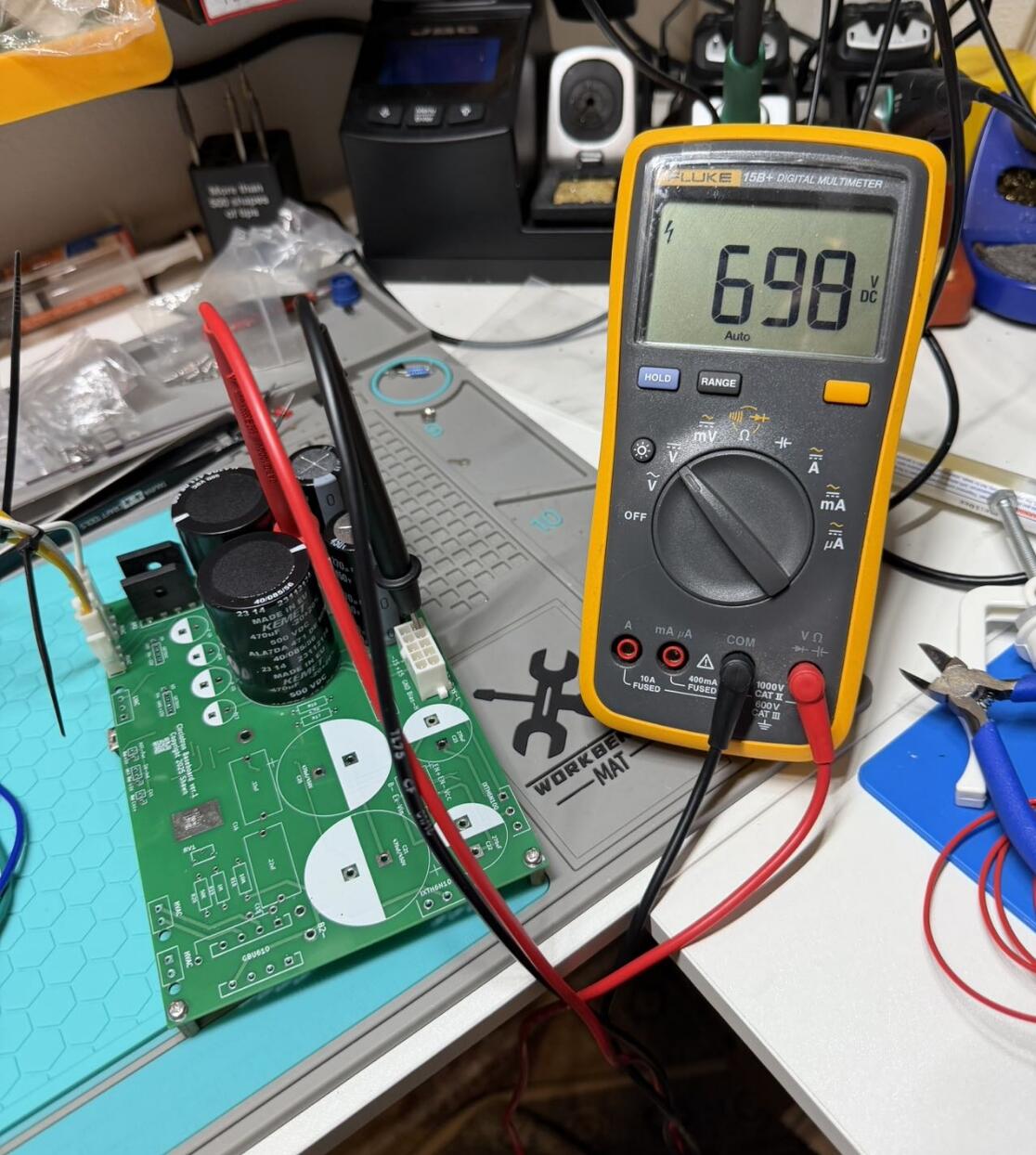

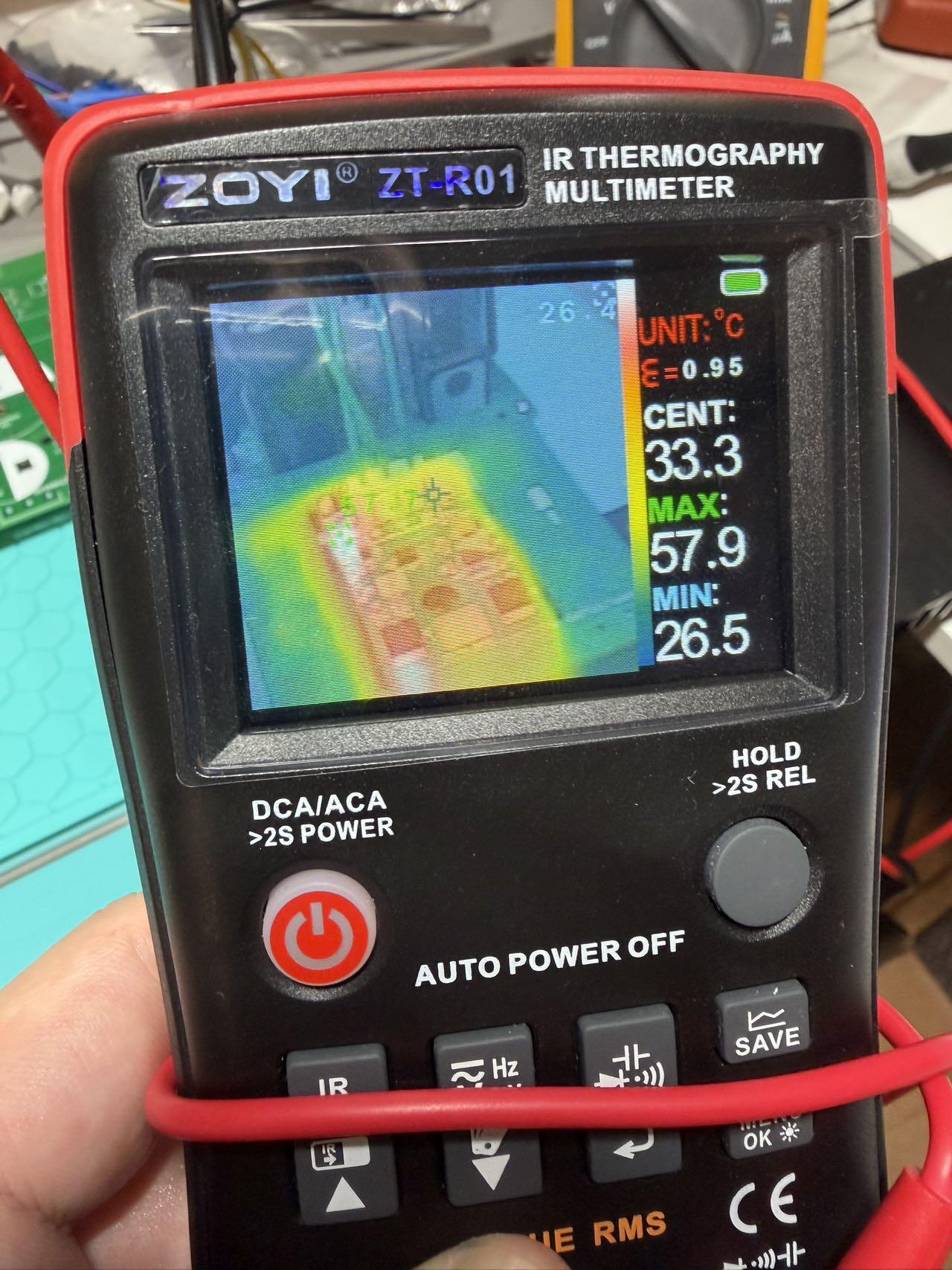

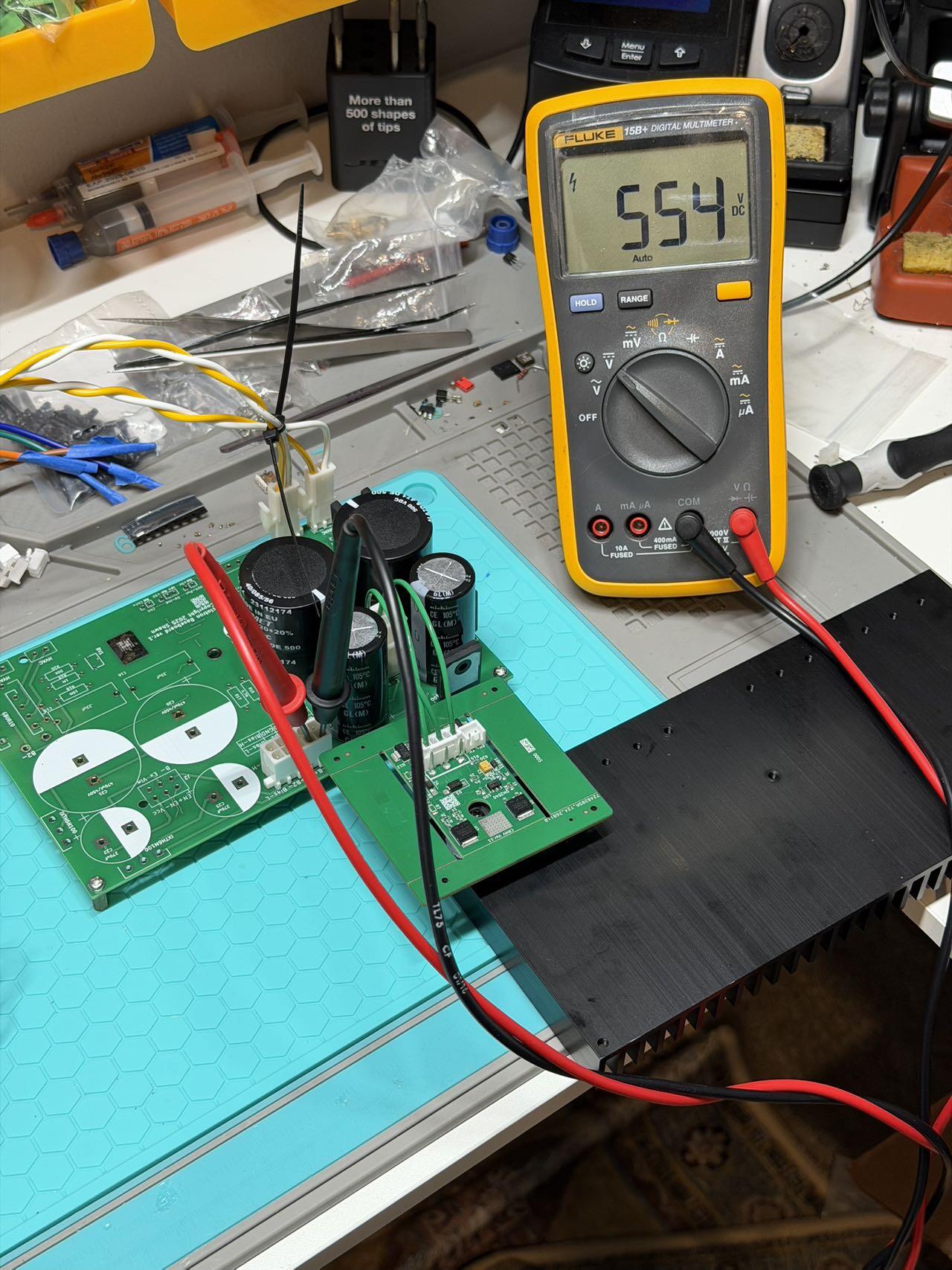

OK. Did a first power-up test for CRHV today. With 360k set for 550 V, I’m measuring about 554 V in practice. I only let it run for ~10 minutes. A quick IR check shows the CRHV peak temperature at ~58 °C. I suspect running it from dual 250 VAC inputs targeting ~600 V output may result in slightly better thermal behavior. At the moment, only the high-voltage section is populated. The delay soft-start and ±15 V sections are not installed yet, but they should function as expected once added.

Given the number of windings there, it has to be at least a couple of transformers. That is also clearly a Toroidy transformer, based on the color of the wires, and they never do tall transformers, they always just get larger and larger in diameter. That means it could just be transformers in there.

True, I would do independent filament PS for each 300B, probably with LDO. Ad the rest of circuit invisible from bottom - I guess the main HV PS is hidden under cover from top side. There is too much space there only for transformer.

blankets.mp4

Yeah I agree but one possible major, major issue... one filament supply per channel for a balanced amp. These are no indirectly heated tubes... the filament supply is the bloody cathode.

For me it is DC heating, look at wires at left bottom 300B, wires come from PCB with capacitors and some silicon under it.

Reviving this thread a bit. DIY itch is getting stronger. I would love to try and make a smd cfa3 with digital attenuator and protection circuit on 3 board layout. One board per heatink with the amplification circuit, and a central board with GRLV, input and output attenuator and protection circuit. Sort of what Justin did with his cfa3. Do you have a layout for your smd cfa3, and would you be willing to share it? I have played a bit with schematics editing and board layout, my idea would be to add the individual building blocks to the main board and try to make it fit a nice case such as the mini dissipante from modushop.
