March 5, 20215 yr comment_852036 16 hours ago, Pars said: Adapter boards that I layed out and were in one of the GBs. I think you could just plug them into a 14 pin socket with no lead bending, but if I recall correctly, one of the JFETs would be backwards. No big deal on the Toshibas, at least according to John Curl. I presume the Linear Systems would be OK as well. Cheers, Pars - will go swim through the Dynalobal gerbers until I find it Report
March 5, 20215 yr comment_852038 6 hours ago, Bespav said: Ok. This one? https://www.ebay.com/itm/8-X-NEC-2SK163-2SK163L-2SJ44-2SJ44L-AUDIO-FET-/383673522014?_trksid=p2349624.m46890.l49292 Politicizing and nationalizing are sad. Mostly the same if i try to buy lateral FETs from British's Profusion. All those jfets and mosfets are the last of Mohicans and it's even more sad. First the link. Chinese - what do you reckon the chance of obsolete sand from China being genuine? And second - What exactly are you saying? Please very carefully clarify. Report
March 5, 20215 yr comment_852040 can i replace jfets with that340 in old dynalo SE circuit without any mods? some resistor are different Report
March 5, 20215 yr comment_852062 11 hours ago, GGW said: Cheers, Pars - will go swim through the Dynalobal gerbers until I find it I probably have extras. Let me check. The gerbers for the ones I did aren't on Kevin's site. I've attached them here. THAT340-TO71.zip Report
March 6, 20215 yr comment_852104 12 hours ago, Pars said: I probably have extras. Let me check. The gerbers for the ones I did aren't on Kevin's site. I've attached them here. THAT340-TO71.zip 39.46 kB · 1 download @Pars you are a champion. Thanks a ton! Report
March 8, 20215 yr comment_852215 Can anyone advise on removing the little PCB at the bottom of the kgdynalobal_v9 Gerber file? jlcpcb.com asked me to remove it to avoid errors and I haven't a clue... Is there a version without the little PCB at the bottom? Report
March 8, 20215 yr comment_852227 3 hours ago, kevin gilmore said: this is what you want i think. kgdynalobal9 - CADCAM.ZIP 77.82 kB · 0 downloads Thank you, Kevin! Indeed that's exactly what I'm after Report
May 5, 20215 yr comment_854901 hi! i would like to share my work with you. i am working on a small susy dynalo but with grlv psu and much better cooling capacity. also i will change the pzta tranzistors with toshiba 2sc2881 and 2sa1201 because they do not heat as much as pzta for some reason, and they are smaller (sot 89). it is a work in progress. for now i only developed an amp (one channel) and psu section without anything else. in following pictures you can see one amp channel and psu with meanwell switchers feeding the grlv (maybe i will put a transformer). bottom side of the pcb has exposed copper (large white spots) which will make contact with case to have more thermal mass. as you can see, there are lots of vias and they connect top and bottom part of pcb around output transistors to increase thermal surface. size of one channel section is 42x87 mm, and psu section is 98x61 mm. so i plan to fit finished project in 150x150mm case. i am a student so it will take time to build this thing, and of course a lot of hard earned money . i hope you like it! pictures: https://drive.google.com/drive/folders/1x2SQcV86kyMJL18twtRnseKntS9kgVBa?usp=sharing Report
May 7, 20215 yr comment_854968 Exciting! Where can we get more information about your progress? I'm new here so please excuse if I am asking an obvious question. but very interested in DYI... -EDQ Edited May 7, 20215 yr by EddiemusMaximus correcting grammar Report
May 7, 20215 yr comment_854978 thank you very much. i will post everything here, but it will take some time because i am a student with very limited buget Report

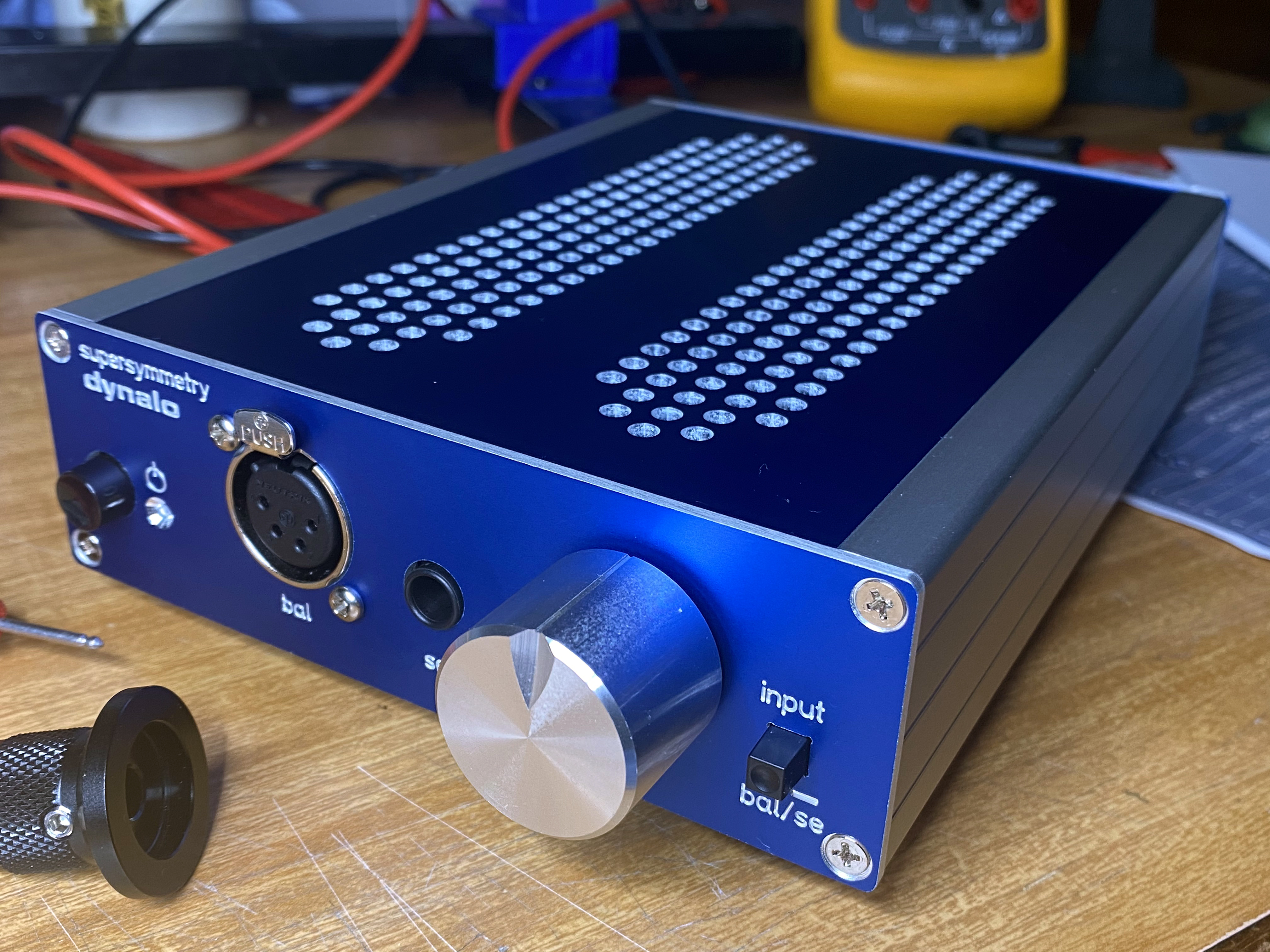

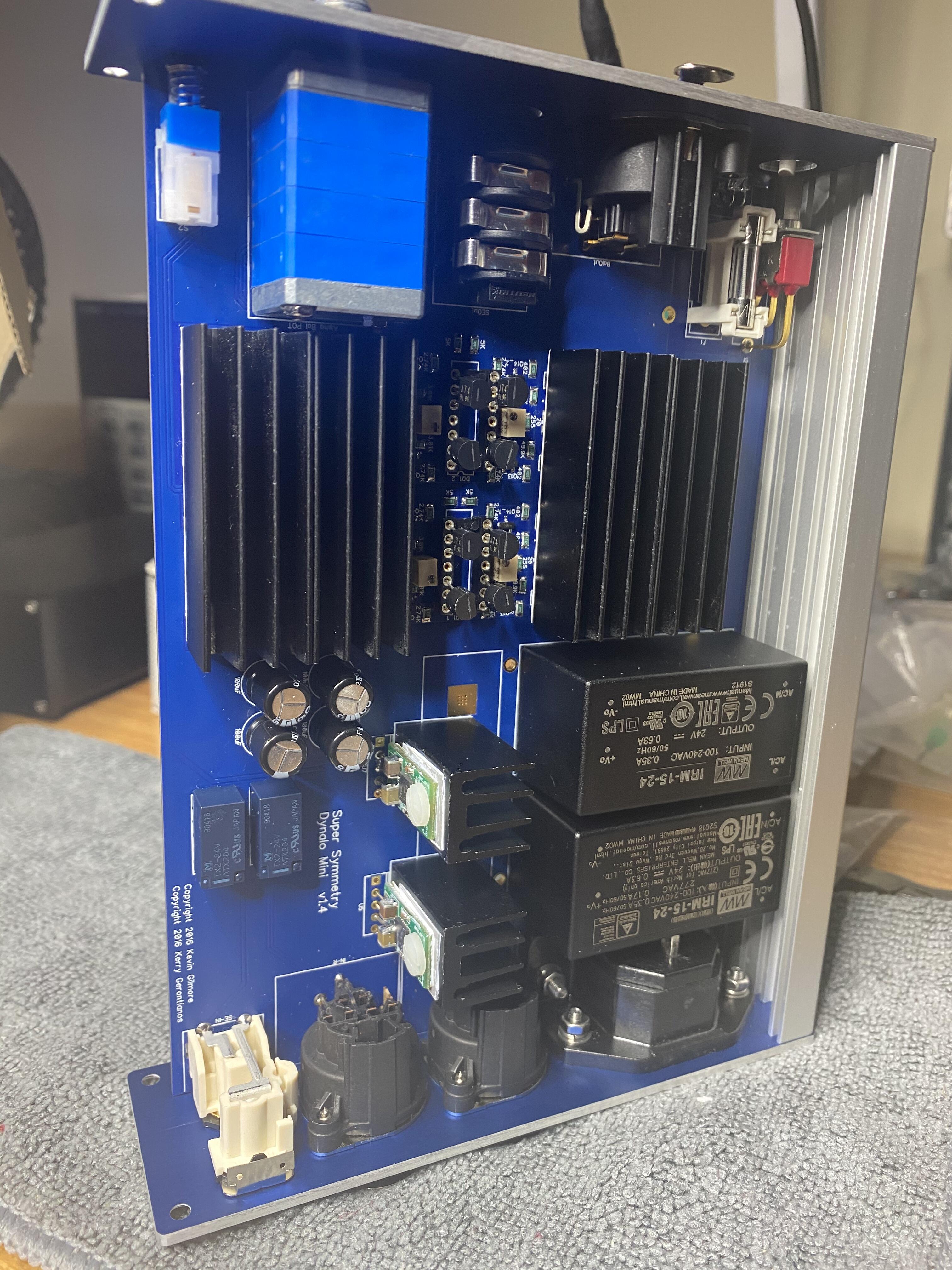

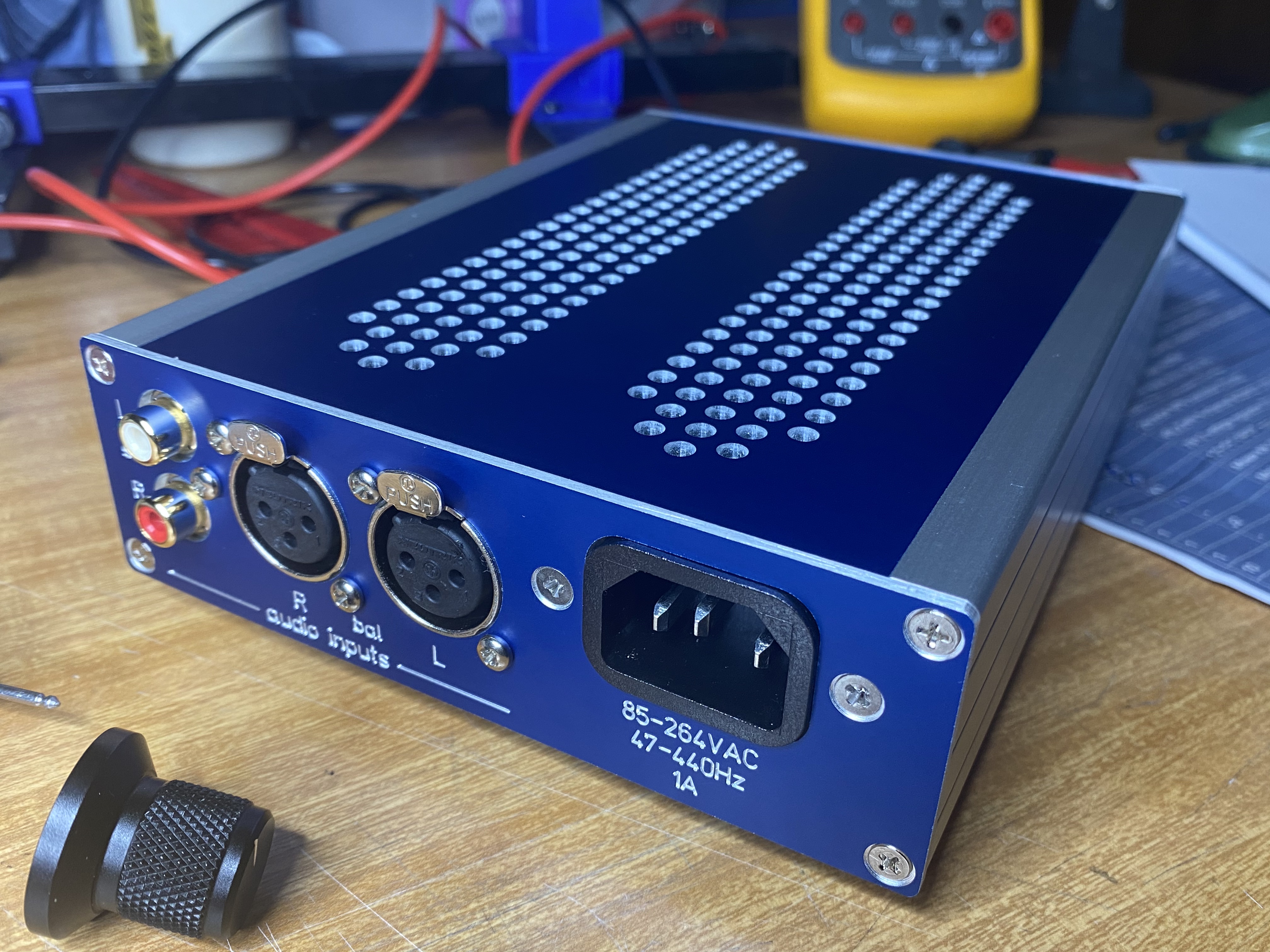

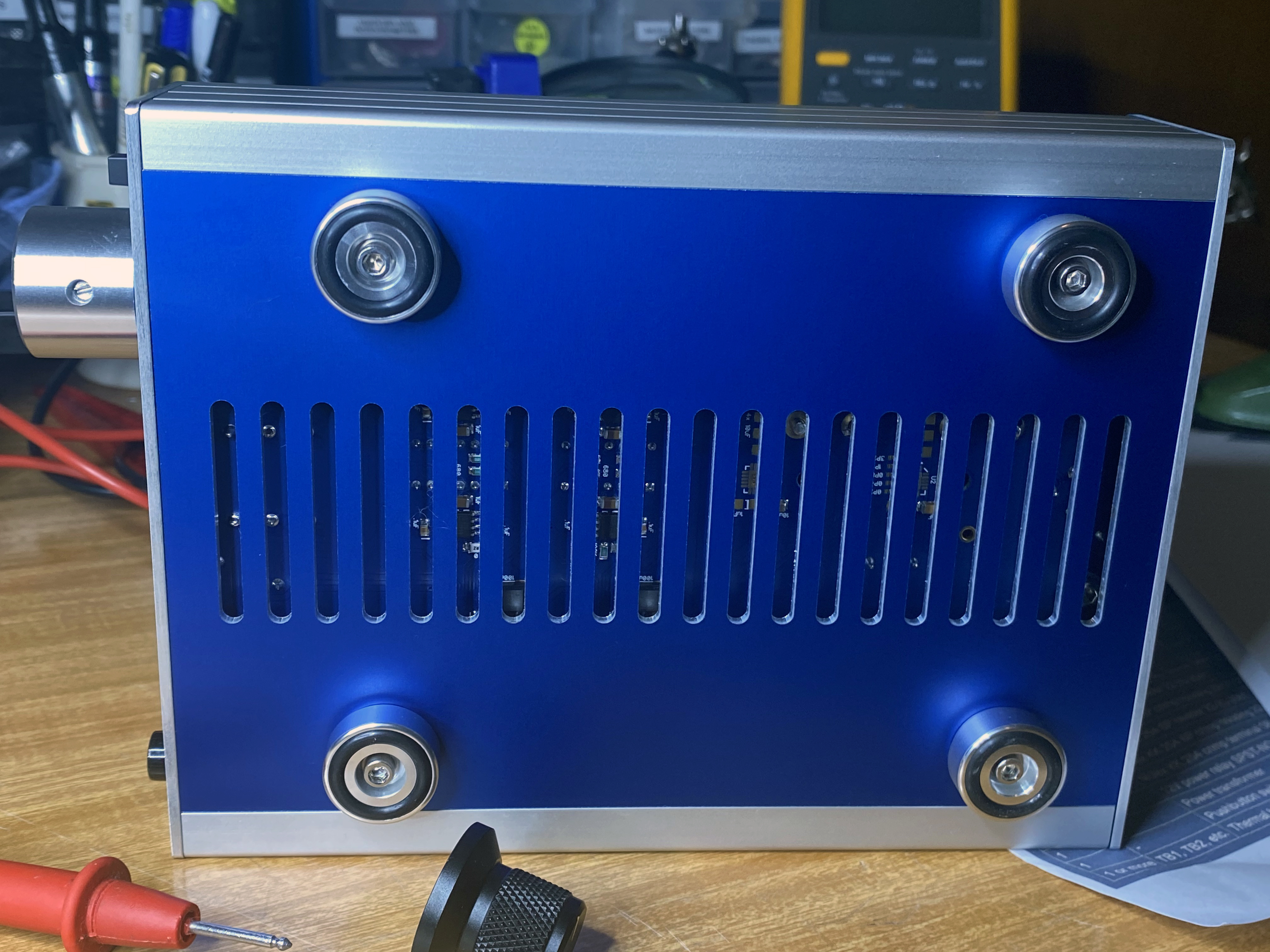

June 16, 20215 yr comment_857492 On 5/12/2021 at 12:38 PM, johnwmclean said: Another one in blue this time, Congrats, John, looks very nice and clean! Can you do a quick compare to your newly finished CFA3, which one do you like more and which J-FETs ended you up using? Edited June 16, 20215 yr by starcat Report
June 16, 20215 yr comment_857510 jfets in the dynalo are 2sk170/2sj74. I did make this comment... Report
June 29, 20215 yr comment_858521 Anyone tried the Dynalo Mk2 through-hole with Xicon 273 resistors? All the RN60Ds are 100ppm where the Xicon 273 are 50ppm, 1/2w... and cheaper as well. Edited June 29, 20215 yr by starcat Report
July 28, 20215 yr comment_860747 I can get genuine LSK489/LSJ689 in TO-71 6L or SOT-23 6L as well as LSK389/LSJ109 in TO-71 6L. Waiting for prices... the LSK389A TO-71 is about 12 Euro the piece. Report
August 6, 20215 yr comment_861497 I've bought from NAC for shipping to the UK. They have no minimum order charge, unlike my supplier in the UK (Micross) who without warning imposed a UKP200 minimum order charge (plus shipping plus VAT). Happy I was not, and let them know, vociferously. Buying Linear Systems parts from NAC was straightforward, with very reasonable shipping to the UK, and with very nice personal service. Five star. Report
August 23, 20215 yr comment_862917 hi! i have a balanced diy dac with output capacitors to block dc component. can i connect the dac to ss dynalo without capacitors? dac has a dc bias of 2.7V per output. i know for single ended this is not an option, but im not sure for balanced... Report
August 23, 20215 yr comment_862922 this is way to much dc input offset for the servo's to handle Report
September 11, 20215 yr comment_864221 Well, two years later, I'm thinking about finally finishing up a Mini Dynalo build. Last time I was working on it, I stuffed the boards but failed to solder the on-board regulators (even though I used a stencil with solder paste, I still suck at such fine hot air work). I picked up the AMB sigma78 and sigma79s, and noticed they mismatch the U5 and U7 areas on the PCB. U5 and U7 have holes for 5 pins, but the regulators have 3. It looks from photos others have posted that the outside pins are ignored. What's up with the extra holes on the board? Report
September 11, 20215 yr comment_864227 The two outside pins are an Enable pin and a Sense pin. Ignore and use the center 3. This epay listing has 5 pins and discusses these. Amb's don't use them. https://www.ebay.com/itm/253306361665?chn=ps&norover=1&mkevt=1&mkrid=711-117182-37290-0&mkcid=2&itemid=253306361665&targetid=1263104806246&device=c&mktype=pla&googleloc=9021654&poi=&campaignid=10459841961&mkgroupid=123050526620&rlsatarget=pla-1263104806246&abcId=2146002&merchantid=6296724&gclid=CjwKCAjwp_GJBhBmEiwALWBQk5ELjVxC7yJqYc4yYFUNldtxaPJKo5meQI6te--2Bv8zild8S4IahBoCzIYQAvD_BwE Edited September 11, 20215 yr by Pars Report
October 4, 20214 yr comment_865996 On 7/28/2021 at 11:36 PM, Pars said: In the US, NAC has the LSK389B in the TO71 for $7.12 ea. what's their website? On 7/28/2021 at 6:13 PM, starcat said: I can get genuine LSK489/LSJ689 in TO-71 6L or SOT-23 6L as well as LSK389/LSJ109 in TO-71 6L. Waiting for prices... the LSK389A TO-71 is about 12 Euro the piece. I'd be interested in LSJ109 in TO-71 6L I always wanted to hear the LSK389/LSJ109 but missed the boat on the LSJ Report
