NAD VISO HP50


shellylh

Recommended Posts

Ryan, does the headband extend out pretty far? I'm always worried about cans that don't fit my big head well.



I love the sound of my Fidelio but despite my headband bending attempts, I can't quite get it to be 100% comfortable. Too much pressure on the top of my head.



I've decided I pretty much need an adjustable headband for their to be any hope of a headphone being comfortable. The only "one size fits all" fitting mechanism that works for me is AT. I'm not super crazy about the sound of my W3000ANV but I've kept it around this long because its so damn comfortable.

Link to comment
Share on other sites

Postie, the headband stretches out left to right about as wide as I have ever seen in a can, it's essentially horizontal and square like with the actual enclosures. My guess is the larger your head the more normal it looks like. Pointy heads like me plus bald equals ridiculousness. Comfort wise it's great, excellent weight distribution across the whole headband so it feels really light all across.

Link to comment
Share on other sites

I have a pair of these now. I'm impressed. Timbers are very good, something that mid priced close backs don't usually do for me. Bass is yummy. Resolution is very good across the passband. There's a tiny hint of 10 kHz bump and then drop off, but the treble is really very nice. I'm allergic to brightness and I'm not hearing any. There is a solidity to the soundstage that I really like. I don't hear any ringing or noises at all. Maybe that's a big part of it - blacker background and all that.

All around, I'm happy. They are becoming my portable headphones of choice.

I wish the headband was arched more. The squared-off business is a mystery to me. Maybe they were going for a certain clamping geometry? Maybe Paul Barton has an outrageously square head? Maybe Tyll knows what's up. Not a deal killer in any case.

Link to comment
Share on other sites

Comfort for me is slightly different.  Part of the earpads rest on my ears, I can't get them over it 100% so it seems.  I also have a short height from ears to the top of my head, and it's not a perfect fit that way either.



But still comfy enough to wear for several hours of listening during the day.



As for isolation, especially when playing: several folks have said it takes "more" to get my attention when they stop by my cube.  However, there is concrete flooring outside my cube, and I still heard hard heels on it as people walk by.  Certainly muted, but still audible even with music playing at reasonable volume.



But I agree with much if not all Ryan says about sound, it's really quite good, especially some decent soundstage for a closed phone.

Edited by skullguise
Link to comment
Share on other sites

  • 3 months later...

I want to make a cable for my HP-50s.



Does anybody know the pinout for the 4-pole mini connector? For headphone-only use, that is. Could it be as simple as you can use a 3-pole plug if you don't need the microphone?



Then there's the matter of the 6.5mm "collar" around the jack.

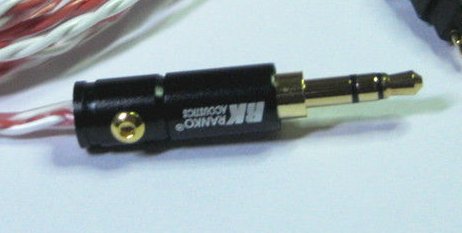

I see some plugs that are necked down, presumably so they'll clear the openings in phone cases. Like this one:






or this one:






(both of these happen to be 3-pole. There are plenty of 4-poles ones on fleabay.)



Does anybody know if these are standardized and will all fit the NAD's collared jack?  I have a cable with the second example and it does seem to seat OK, but I can only find the plug on a Thai site that doesn't look like it's set up for international business.





Link to comment
Share on other sites

Actually, the ID of that collar on the headphone is 6.9 mm, not 6.5.

And it's 2.66 mm deep.

Also, with a multimeter and my existing short NAD cable (which is three conductor at the amp end and four at the headphone end) I can see that counting from the tip back, the first three contacts match. So a three-pole plug would ground both the last ring and the shaft connections. It seems logical that NAD would use the shaft as ground, which would suggest that a three-pole should be OK, assuming it clears the collar.

But assumption is the mother of all fuck ups. So the question stands :-)

Update: I found a planform photo with some dimensions in the eBay description of one of the plugs. Using the fine old method of holding a ruler against the screen of my tablet and doing a little arithmetic, it looks like there's three or four tenths of millimeter to spare on the critical depth of the "collar". So, armed with that and the notion that I can just use a 4-pole plug and make a pin for pin copy of the NAD cable, my immediate problem is solved. Or close enough to solved to risk four bucks and a couple weeks to get a plug from China.

Still, it would be nice to know if there's a standard of some sort for 'phone case friendly' mini plugs and what the four-pole pinout for cables with microphones actually is...

Edited by CarlSeibert
