Pandemic Project #54: re-case the Ventus.  So, some quick history: I won the raffle Nate had back in the day for the TwistedPear Ventus.  It has worked fine and I have enjoyed it for years but I wanted it in a different chassis.  Over the years I bought parts here and there.  The case came from VT4C.  I had top and bottom panels made with venting and finally got it all reinstalled recently, only to set up a vicious game of chase the ground loop noise for myself.  The setup is, otherwise, the same as the original setup with all the same parts, just transplanted into a different case.  The only difference in parts was changing the power button setup (which had a nice relay) to a bog standard clicky switch.  The boards next to the amp boards just have a cap (with a bypass cap).  Nate added these to tame some of the output voltage drift, if I remember correctly.

So the noise through the headphones sounds like 120Hz ground noise, but more like a sawtooth wave than a sine wave.  The amount of noise varies as the volume is turned up - it starts off loud at 0%, then goes away until about 25% volume, where it gets loud again, then  fades until you hit full volume, where it is again loud.

Touching the chassis changes the noise slightly, and touching the output ground also changes the noise.  If I turn the volume up to the "silent mode" at about 50-60% I can touch the ground and bring the noise right back.

I posted a similar question on the TwistedPear forums, but received pretty much nothing but questions. When I answered those, the discussion went dark.  Thanks, TP audio.

I have attempted various fixes that did not work:

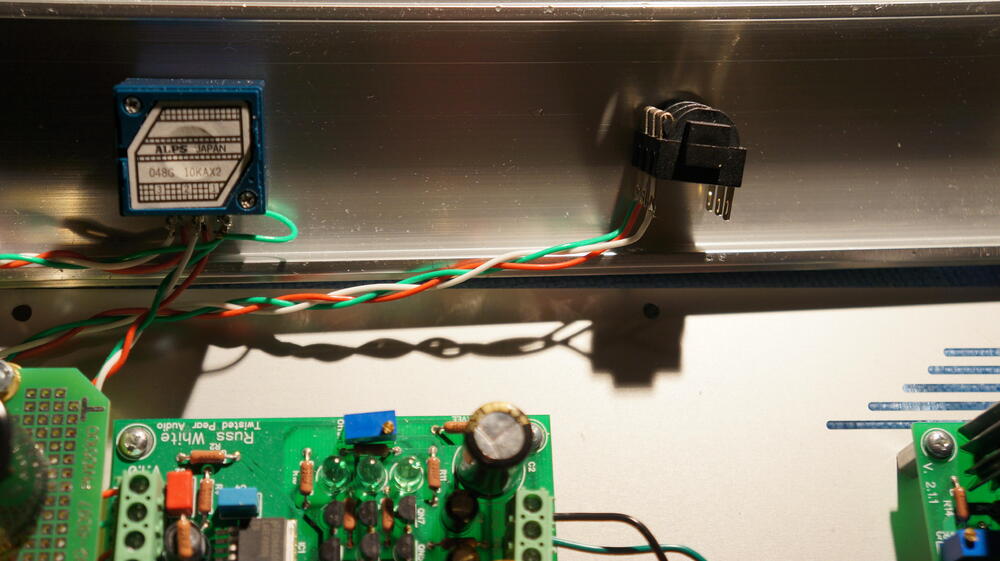

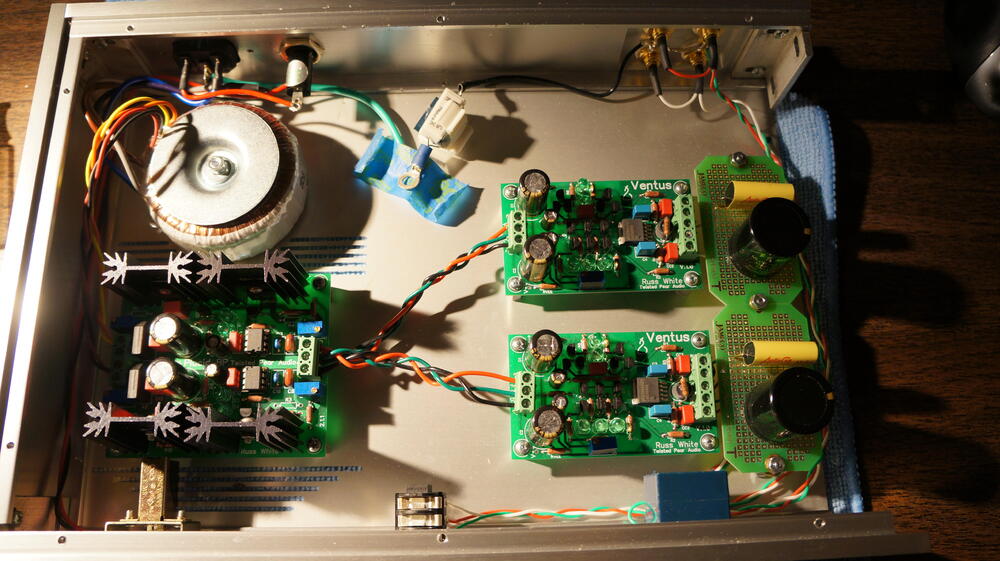

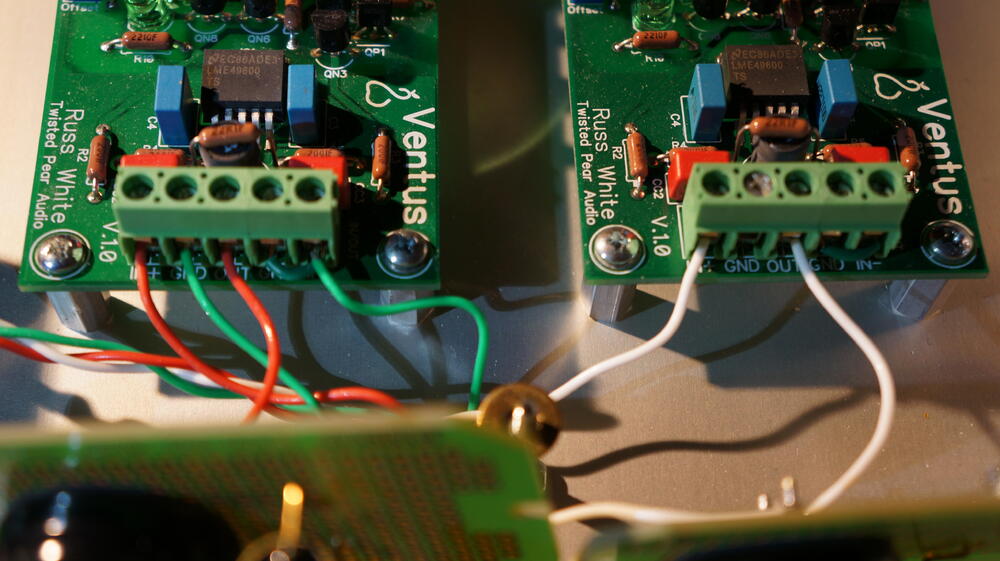

  • Disconnect the signal ground connection from the chassis ground (see pics below)
  • Disconnect the ground bridge between the L and R channels on the Alps volume pot
  • Change the ground connection from the left channel board to the right channel board
  • Connect the grounds together on the amp boards
  • Connect the ground from the Alps volume pot to the chassis
  • Remove the Alps from the chassis
  • Cursing and shouting at the noise

I don't have a 'scope to check the incoming voltage from the power supply, but do wonder if something is amiss there.

Any guesses for chasing the ground loop dragon?  I really hate to see this amp gathering dust.  Damn.  Thanks for any suggestions.

BH




  • Like 1
Link to post
Share on other sites
  • Replies 240
  • Created
  • Last Reply

Top Posters In This Topic

Top Posters In This Topic

Popular Posts

A few months ago a broke a #4-40 tap in a heat sink.  After a lot of cursing and futile attempts to get it out, I just left it for another day. I felt compelled a few days ago to go after it agai

Check this video by Haas: You may want a special tapping drill to make thread go deeper in the limited depth of blind hole.

Recieved my Shars Tap Holder this afternoon. Put it to use on a CF electrostatic amp I have been putting off working on because I dreaded tapping threaded holes by hand. It really works slick and the

Posted Images

Crazy, I thought about that amp recently and couldn't remember where it went. One thing, I have NO memory of adding those boards/caps and they certainly looking like output coupling capacitors. The Ventus had/has(?) a history of DC on the output IIRC.  I don't remember all that well, actually, but I've never see PMBs like that, that I can remember anyway.

One thing to check would be the influence of the transformer, since it's both unshielded and in the same box with the amplifier boards.  I'd try very carefully rotating it while you're listening to the noise and see if you can find a position when the noise gets better. I remember chasing something like this on the first M3 that built and in the end the only thing that fixed it was aggressively shielding the toroid.

Link to post
Share on other sites

I built a Ventus EZ (Ventus was out of stock) years ago for my father-in-law using very similar set up and it was hum and noise free. IIRC, there are pots on the amp boards to zero-out the output offset and I did not need to add coupling caps to the output.

Hard to tell what's going on from the pictures. Looks like you shorted the inverted input to the ground on both channels but why do you have two ground wires coming out of one board and none for the other?

May be check the wiring and ground scheme?

Link to post
Share on other sites

It's worth checking the transformer, but that seems like the less likely issue here. Transformer induced noise will generally either increase with volume (if it is being picked up on the input wires) or be constant with volume (if it being picked up past the pot). And you have pretty good distance here.

The grounding, however, does not look very good. It is difficult to see exactly what is going on, but what you need is a single ground point that everything connects to directly. I usually put two terminals somewhere, such as in the middle of the case, spaced about an inch apart. Run a thick-ish piece of wire between them, and call that your star. Connect everything - the PCBs, the jacks, the RCAs, the pot, the PS, directly to it.

For earth, connect the earth pin on the IEC to the case as close to the IEC as possible. If everything (jack, pot, RCA) is isolated from the case, then you can use a ground loop breaker to connect that point to your ground star, but if you are grounded correctly, it is probably not necessary, or useful. Instead, I'd just connect that point to your star ground, too.

Edited by dsavitsk
  • Like 4
Link to post
Share on other sites
2 hours ago, bhjazz said:

The case came from VT4C.

Is VT4C still around? Their website has been down for quite some time.

Is the pot itself grounded to the chassis (thru the nose)? Other than that, what Doug said makes good sense.

Link to post
Share on other sites

Wow, you guys are great.  I'm so glad I could come back here and get such straight answers.  Many, many thanks.



3 hours ago, n_maher said:

Crazy, I thought about that amp recently and couldn't remember where it went. One thing, I have NO memory of adding those boards/caps and they certainly looking like output coupling capacitors. The Ventus had/has(?) a history of DC on the output IIRC.  I don't remember all that well, actually, but I've never see PMBs like that, that I can remember anyway.

One thing to check would be the influence of the transformer, since it's both unshielded and in the same box with the amplifier boards.  I'd try very carefully rotating it while you're listening to the noise and see if you can find a position when the noise gets better. I remember chasing something like this on the first M3 that built and in the end the only thing that fixed it was aggressively shielding the toroid.

Nate: you did not have the boards there.  You simply had the caps hanging off of the amp boards.  I wanted to keep the output caps from being so fragile, so added the boards (from Jameco) and the bypass caps since they were staring at me.  I have wired the two boards together underneath.

I'll try the "transformer twist" first.  Thanks!



3 hours ago, mwl168 said:

I built a Ventus EZ (Ventus was out of stock) years ago for my father-in-law using very similar set up and it was hum and noise free. IIRC, there are pots on the amp boards to zero-out the output offset and I did not need to add coupling caps to the output.

Hard to tell what's going on from the pictures. Looks like you shorted the inverted input to the ground on both channels but why do you have two ground wires coming out of one board and none for the other?

May be check the wiring and ground scheme?

Ah, I did not check the offset.  Will search for the pots as well, just in case.  Thanks!

The ground scheme is what was in the original build: one input ground, one output ground.  Connecting these two to the corresponding spots on the other channel did not work for me.



3 hours ago, dsavitsk said:

It's worth checking the transformer, but that seems like the less likely issue here. Transformer induced noise will generally either increase with volume (if it is being picked up on the input wires) or be constant with volume (if it being picked up past the pot). And you have pretty good distance here.

The grounding, however, does not look very good. It is difficult to see exactly what is going on, but what you need is a single ground point that everything connects to directly. I usually put two terminals somewhere, such as in the middle of the case, spaced about an inch apart. Run a thick-ish piece of wire between them, and call that your star. Connect everything - the PCBs, the jacks, the RCAs, the pot, the PS, directly to it.

For earth, connect the earth pin on the IEC to the case as close to the IEC as possible. If everything (jack, pot, RCA) is isolated from the case, then you can use a ground loop breaker to connect that point to your ground star, but if you are grounded correctly, it is probably not necessary, or useful. Instead, I'd just connect that point to your star ground, too.

Very interesting.  I see two different schemes here: Connect (ground) everything or if everything is isolated then use some type of ground loop break.  I think mine is a case of the ground noise volume being constant with volume, for the most part.  Not sure why it comes and goes with volume change...  I do feel like this chassis has totally different metal conductivity, so that may have turned into a problem when I tried to duplicate the original wiring.

How would I connect the PCBs and the PS to this new ground?  Using the ground off of the board itself, or the ground it is "processing"?  That is, with the power supply for instance, if I check continuity between the screw that holds the board down and the chassis I get nothing.  (My wording may be convoluted here.  Blame the Syrah.)

I do find it odd that if I connect my DMM to the incoming ground connection (at the IEC) and any random point on the chassis bottom that I get no continuity.  However, if I do the same test and use the rear panel there is clearly some connection.  I'll post what I find with some better testing.  Thanks for leading me in that direction.



2 hours ago, Pars said:

Is VT4C still around? Their website has been down for quite some time.

Is the pot itself grounded to the chassis (thru the nose)? Other than that, what Doug said makes good sense.

No, VT4C is long gone.  I think they closed in 2010, so now you know how long ago I started buying parts!

Now that I have tested a little bit today, the pot is grounded to the front panel, but that may not be at equal ground potential to the rest of the build.   (?)



Again, many thanks to all of you.  I'll try these, test a bit more, and report back.



Edited by bhjazz
Link to post
Share on other sites

It isn't clear if the various bits of the new case are electrically connected. Many case manufacturers powder coat or anodize all the parts, and leads to odd problems with ground continuity.

  • Like 1
Link to post
Share on other sites

You're definitely on to a piece of the puzzle, Craig.  I actually can't get a connection to check resistance on the front/rear panel unless I have the probe inside a screw terminal.

Yesterday I tried the trafo twist and was able to knock the noise down just a tick.  Cool.

I also found that the weird volume pot noise (noise at about 50% volume) was more due to unshielded headphone cable location (the ESW9 that I had on) than anything else.  So now I'm just hearing it at 0 - 25% on the volume pot.  This is pretty close to what I hear with a pair of Grados.

I started measuring everything to give myself a better picture.  Here are some values.  BTW, my Fluke 112 shows 0.2 ohm even with the leads shorted together.

First, these are taken with the amp OFF.

across caps inline from earth to rca grounds: 10.2
earth to rca gnd 10.2
rear panel chassis to rca terminal ground: 10.2
rear panel chassis to output ground (on amp board) 10.2

earth to ps board screws (I'm guessing this is the ground plane?): 0.2
earth to amp board screws: 0.2
earth to bolt holding down trafo:  0.2
power switch case to power supply screw term:  0.2

Channel A (top board, left channel)
Channel B (bottom board, right channel)
input gnd to output gnd (channel A) 0.2
input gnd to output gnd (channel A) 0.2

earth to chassis (front faceplate)  0.2
alps pot chassis to output gnd  10.2
front panel to rear panel 0.2

earth to output ground 0.2
earth to input ground 0.2


But here is something I found really odd: with the amp ON:

Alps chassis to output ground on the board that *does not* have an output ground connection - 10.2 and immediate silence through headphones
Alps chassis to output ground, on the board that *does* have  an output ground connection - 10.2 and huge buzz through headphones

This is heard most clearly with a pair of ESW9a 'phones.


I'm going to start by bypassing the pair of caps that connect earth to the input RCA jack ground.  That would eliminate most of the 10.2 ohm readings above.

Next, I'll connect the ground screw from the pot to the current star ground, and connect input grounds together and output grounds together.  We'll see where it stands at that point, but the tests with the amp on make me wonder what else is going on.

Thanks!





Link to post
Share on other sites

What happened to the old chassis? It was one of the few that I modified on my benchtop milling machine when I had it?  I remember precision drilling all of those holes...

Link to post
Share on other sites

It's around here somewhere, I believe.  The dent in the lower portion of the face plate was kindof getting to me...  Probably happened during shipping here back in the day.

So I ended up doing just a few things and it all locked in.  I connected input grounds on the boards together, as well as the output grounds.  This was weird to do since the left and right grounds were already connected at the Alps.  Finally, I connected the ground from the output jack to the ground plane screw on the closest amp board.

DEAD QUIET.  Finally!
