mwl168

Kerry Design mini GRHV\GRLV and JoaMat mini T2 Group Buy

Recommended Posts

Table updated.

Received all but one payments. I have proceeded to contact PCBnet to place our order.

  • Like 3

Share this post


Link to post
Share on other sites

Table updated. This GB is now officially closed.

Submitted latest version Gerber files and corresponding final quantities to the fab house.  Will update with ETA of manufactured boards when I receive confirmation.

  • Like 3
  • Thanks 1

Share this post


Link to post
Share on other sites

Received confirmation from the fab house that our orders are in production (each distinct Gerber file is considered one order).

I've opted for boards to be shipped to me in batches when they are ready so we are not all held up by the partially assemble GRHV boards which will take longer than the rest of the PCBs.

Edited by mwl168
  • Like 5
  • Thanks 2

Share this post


Link to post
Share on other sites

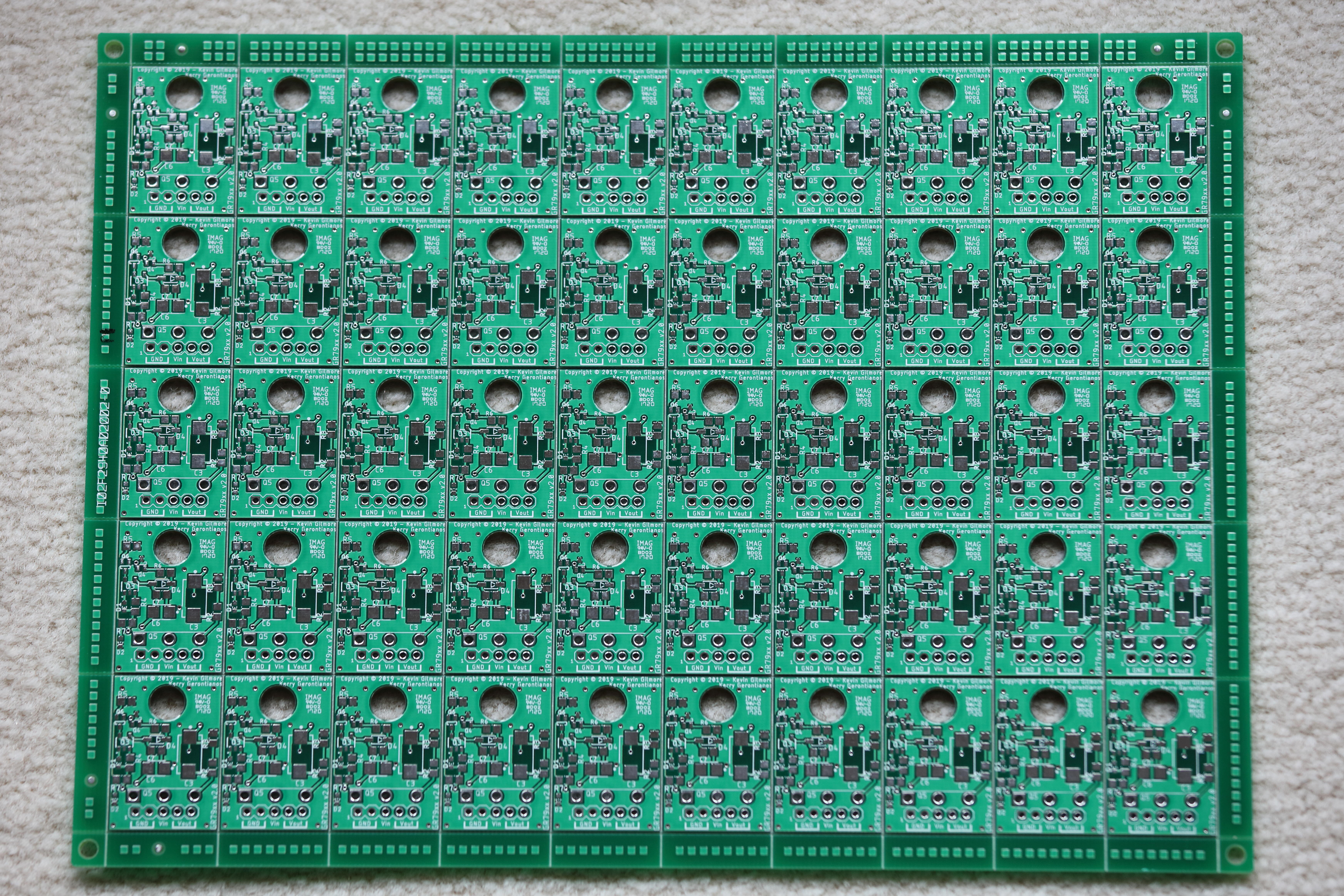

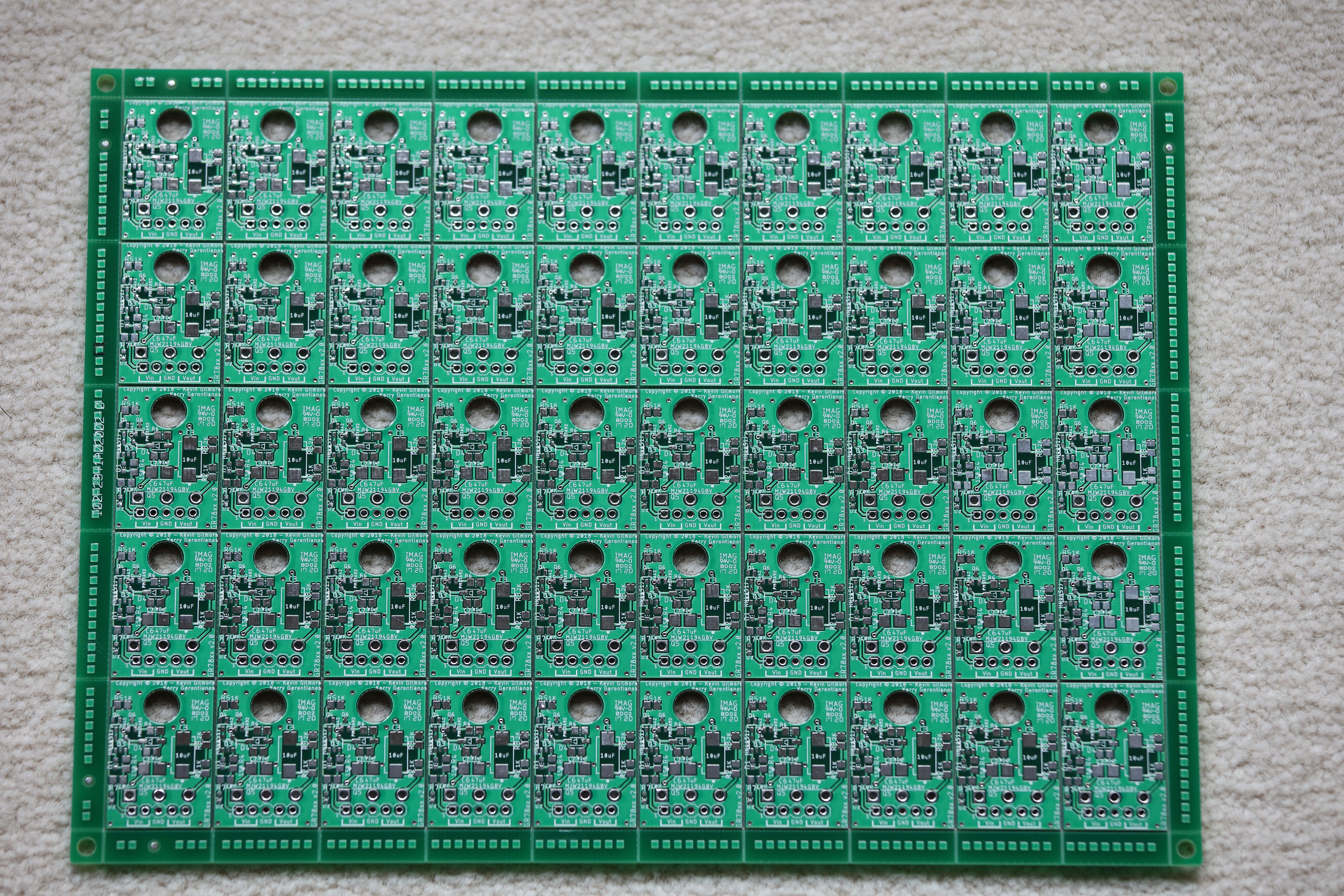

Look what I just found at my door step...





Edited by mwl168
  • Like 10
  • Thanks 1

Share this post


Link to post
Share on other sites

Updated GR78 and GR79 BOM in the first post to correct the C5 (47 pf) part number from 1206 to 0805.

The 1206 package may fit but more difficult to solder.

Edited by mwl168

Share this post


Link to post
Share on other sites

More goodies showed up last night but with some bad news.

The PSU main PCB came in 1.6mm/3oz copper instead of 2mm/3oz copper specification. There was a miscommunication that neither I or PCBnet caught until now - the order submitted specified 2mm thickness an 3oz copper but the quote was for 0.62' and 3oz copper and manufactured accordingly. I noticed this discrepancy when I took the PCBs from their wrapping to take some photos.

The mini T2 boards are 2mm/3oz copper as ordered.

All the PCBs look great with a nice heavy feel to them and are very good quality as can be expected from PCBnet.

I have contacted PCBnet to see what can be done to resolve the issue.

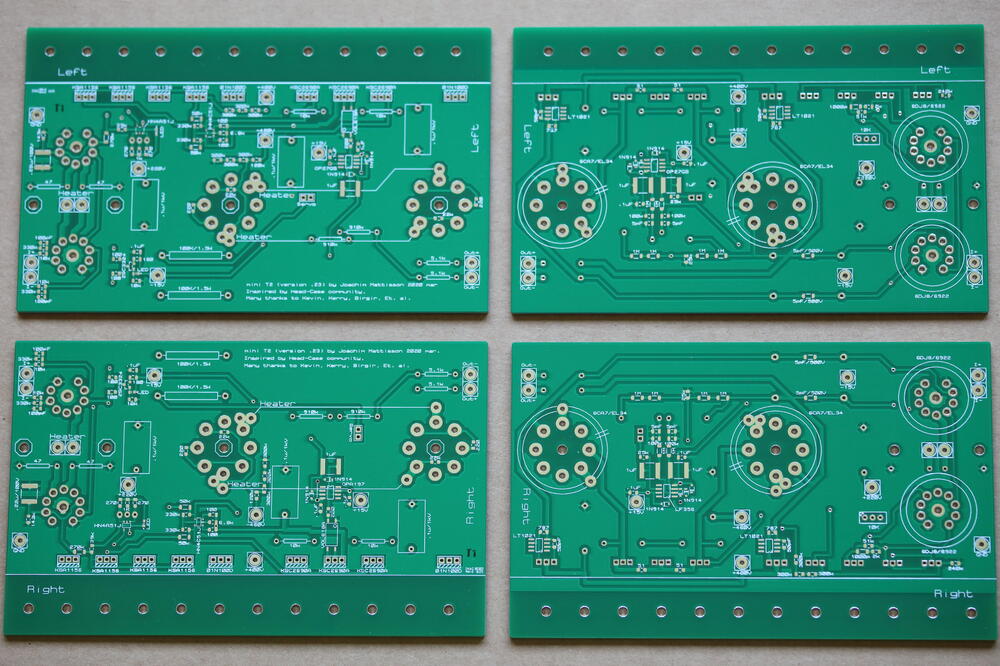

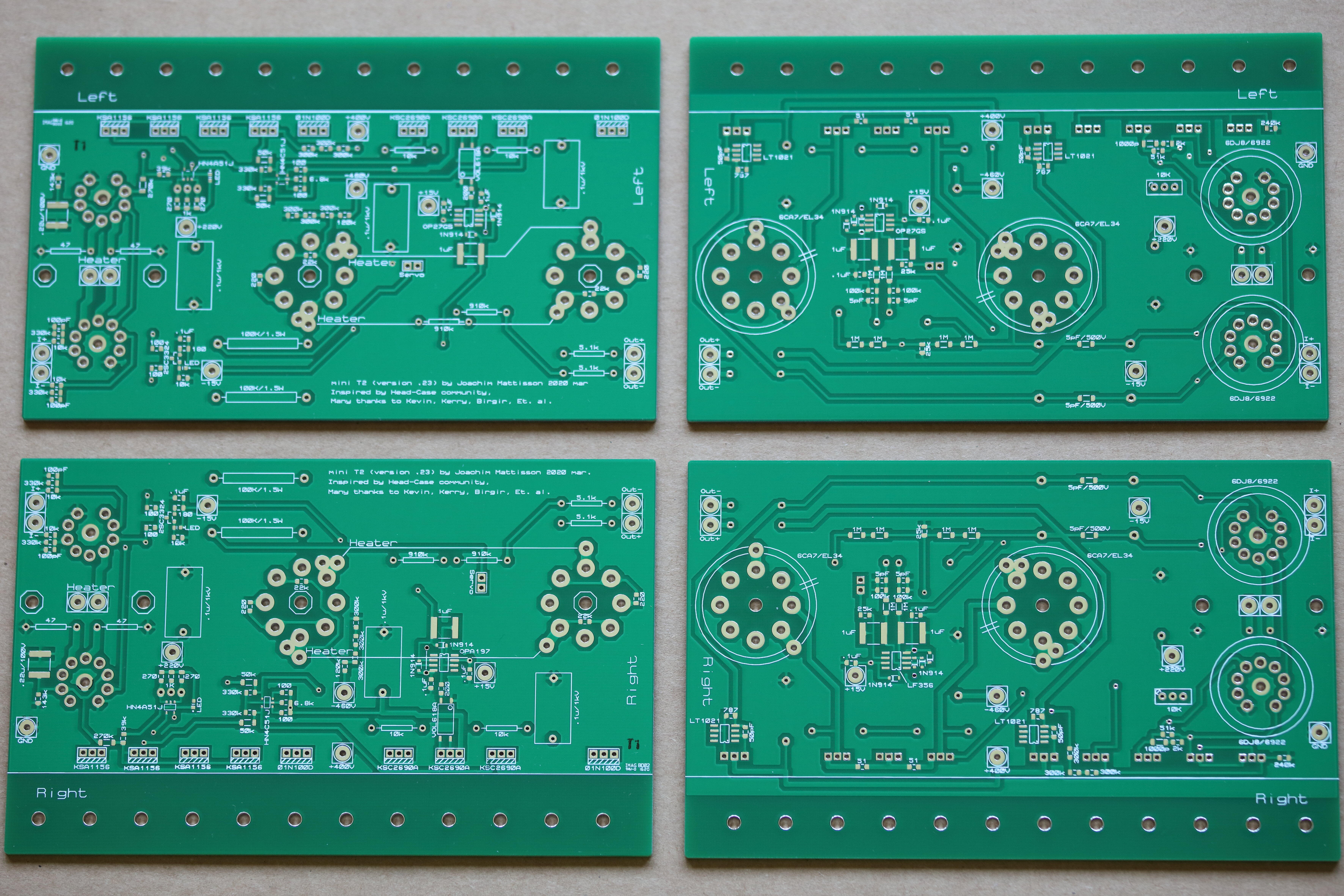

mini T2 PCB.JPG

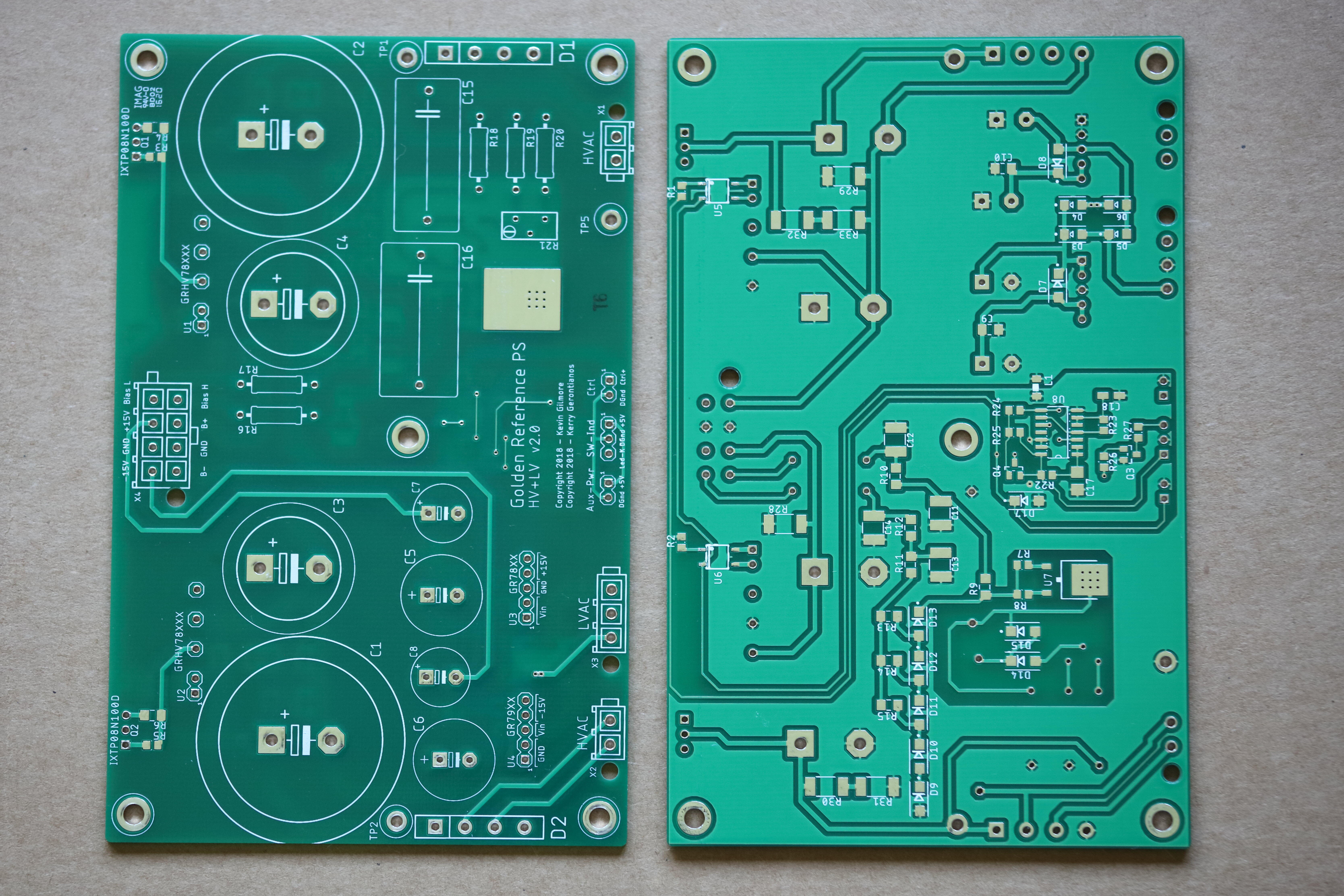

PSU Main PCB.JPG

  • Like 6

Share this post


Link to post
Share on other sites

@mwl168, I would not think that would be an issue for the PSU main boards.  It would definitely be an issue for the mini-T2s, but it sounds like those came in as 2mm.  So speaking for myself, I am fine with the 1.6mm PSU main boards.

  • Like 4

Share this post


Link to post
Share on other sites

I’ve been using 1.6mm/1oz boards for some years now and I believe they are sufficient in most cases. James (jamesmking) has built one mini T2 and I’ve built two with 1.6mm/1oz.

Share this post


Link to post
Share on other sites

With Blueman2 on this; not an issue for me.

Share this post


Link to post
Share on other sites
On 5/1/2020 at 10:43 AM, JoaMat said:

I’ve been using 1.6mm/1oz boards for some years now and I believe they are sufficient in most cases. James (jamesmking) has built one mini T2 and I’ve built two with 1.6mm/1oz.

I built two mini t2s, I always build in pairs or they get lonely... there is a bit or board flex when inserting or removing valves, (the ptfe sockets I have grip very tightly). No issues I can see with 1.6mm and 1oz, that's what I have used for all my builds, (4 dual output GRHV boards, 2 single output GRHV boards, 7 GRLV boards, 12 synchronous rectifiers, 4 diamond buffers, 4 blue hawaii amp boards, 4 alpha centauri amp boards and 2 alpha centauri psu boards)..

Edited by jamesmking

Share this post


Link to post
Share on other sites

Since the mini T2 boards seem to be correctly at 2mm, I don't think board flex will be a problem when changing tubes around. I'm fine with 1.6mm for the PSU.

Share this post


Link to post
Share on other sites

It's the thickness of the board not the thickness of the trace which is 3oz copper. There shouldn't be an issue with handling mechanical stress in this application as the  PS board.  I am not in the habit of bending my PC boards to see how they flex.  It's not an issue as far as I am concern.

Share this post


Link to post
Share on other sites

If you would not have posted about it, I'd have never known the PS board was supposed to be thicker.

So no problem for me either.  A little board like that will be plenty stiff at 062

Share this post


Link to post
Share on other sites

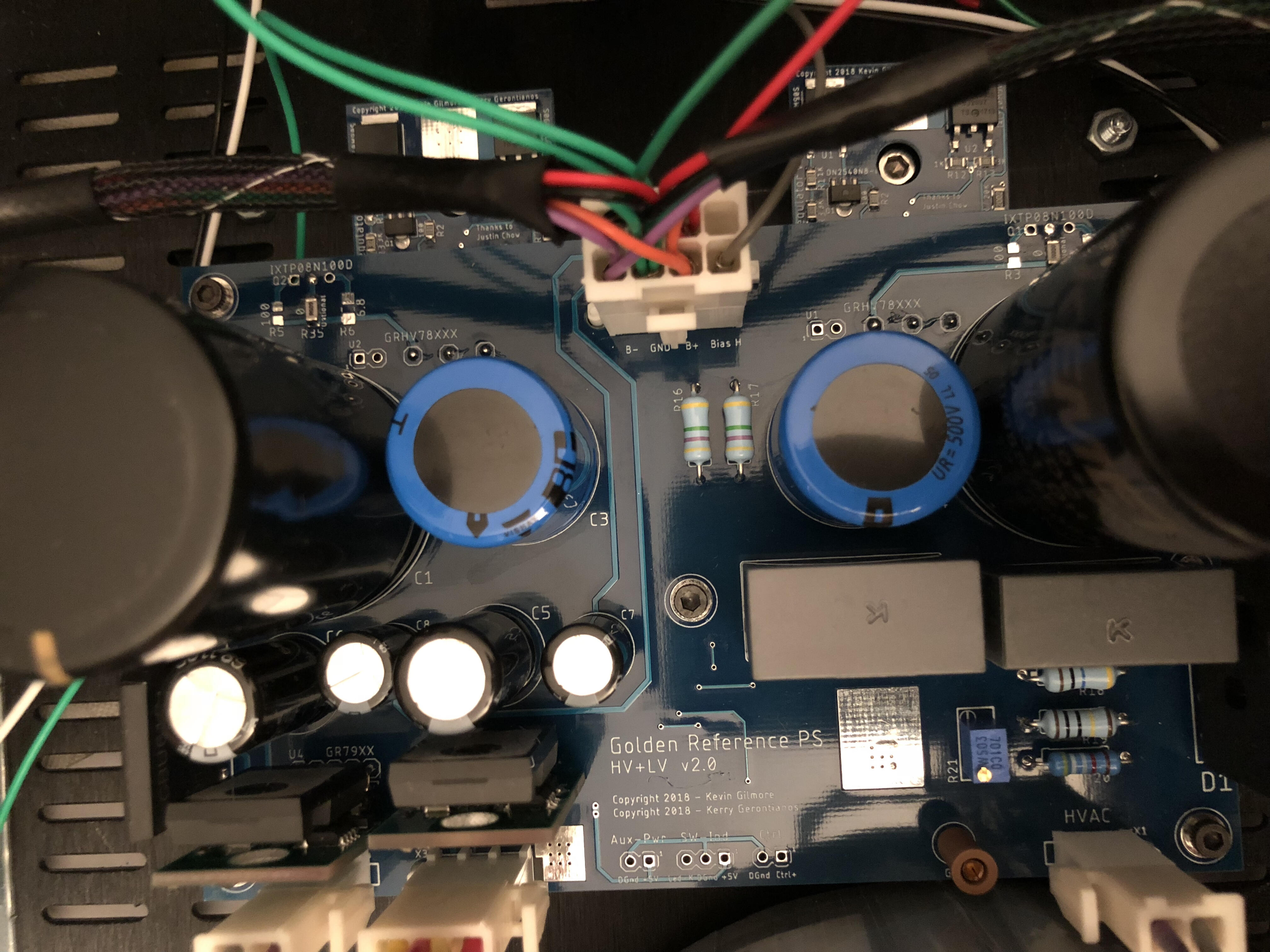

I found an old picture of the PSU main board configured for a Carbon build.  No external current regulators with jumpers installed in R34/R35...


Share this post


Link to post
Share on other sites

Got good news from PCBnet - they will remanufacture the PSU main boards to the spec'ed 2mm thickness. Expect to be shipped next week.

PCBnet has truly been a top notch company to do business with. Their product quality and customer service have both been excellent!





  • Like 6
  • Thanks 1

Share this post


Link to post
Share on other sites

Great news. Definitely love PCBnet.  Top notch organization.

Share this post


Link to post
Share on other sites

Thanks Mwl168.

Share this post


Link to post
Share on other sites

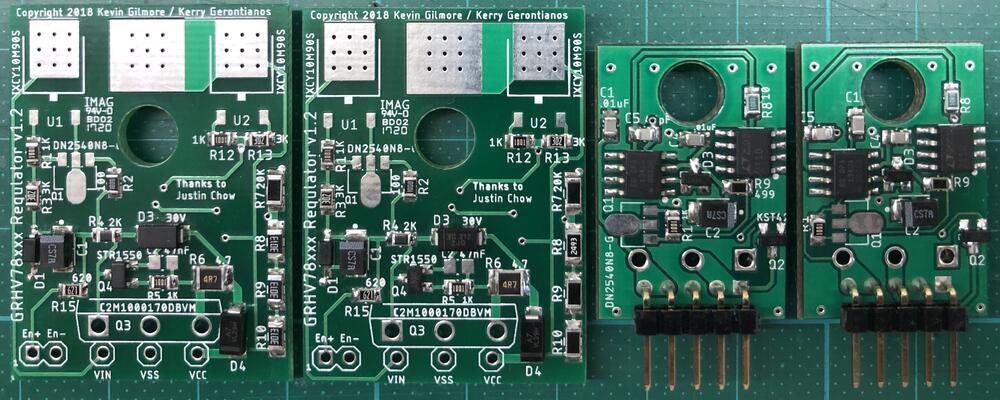

R4 and R6 are crooked... tsk tsk..

EDIT: j/k BTW, they look great!

Edited by Pars
  • Like 1
  • Haha 4

Share this post


Link to post
Share on other sites
