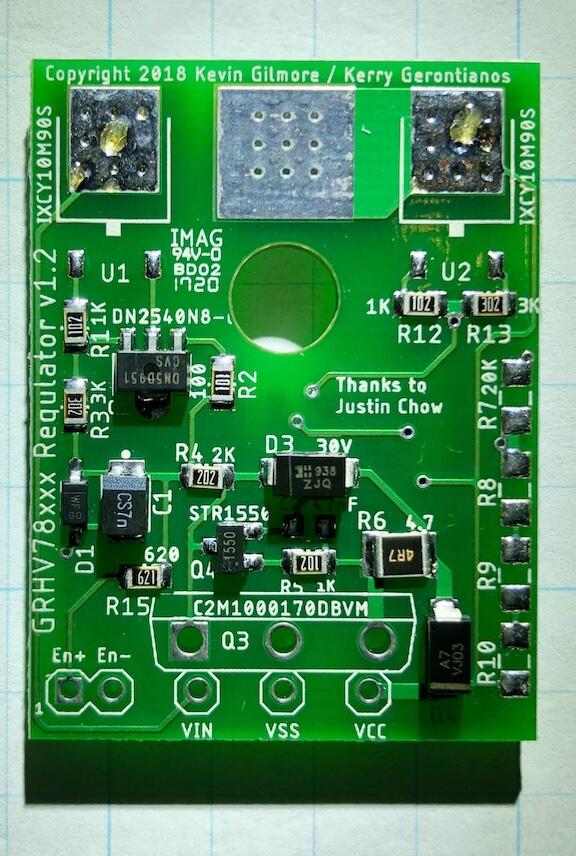

Just got a few boards in.  From left to right... GRHV78xxx, GRHV79xxx and to the right is a new experimental digital alternator.  It’s stackable for balanced

Look what I just found at my door step...

Quick update on the status of the GB - we are in the process of testing the boards before sending them to the fab house for estimates. Will provide another update as progress is made.

Posted Images

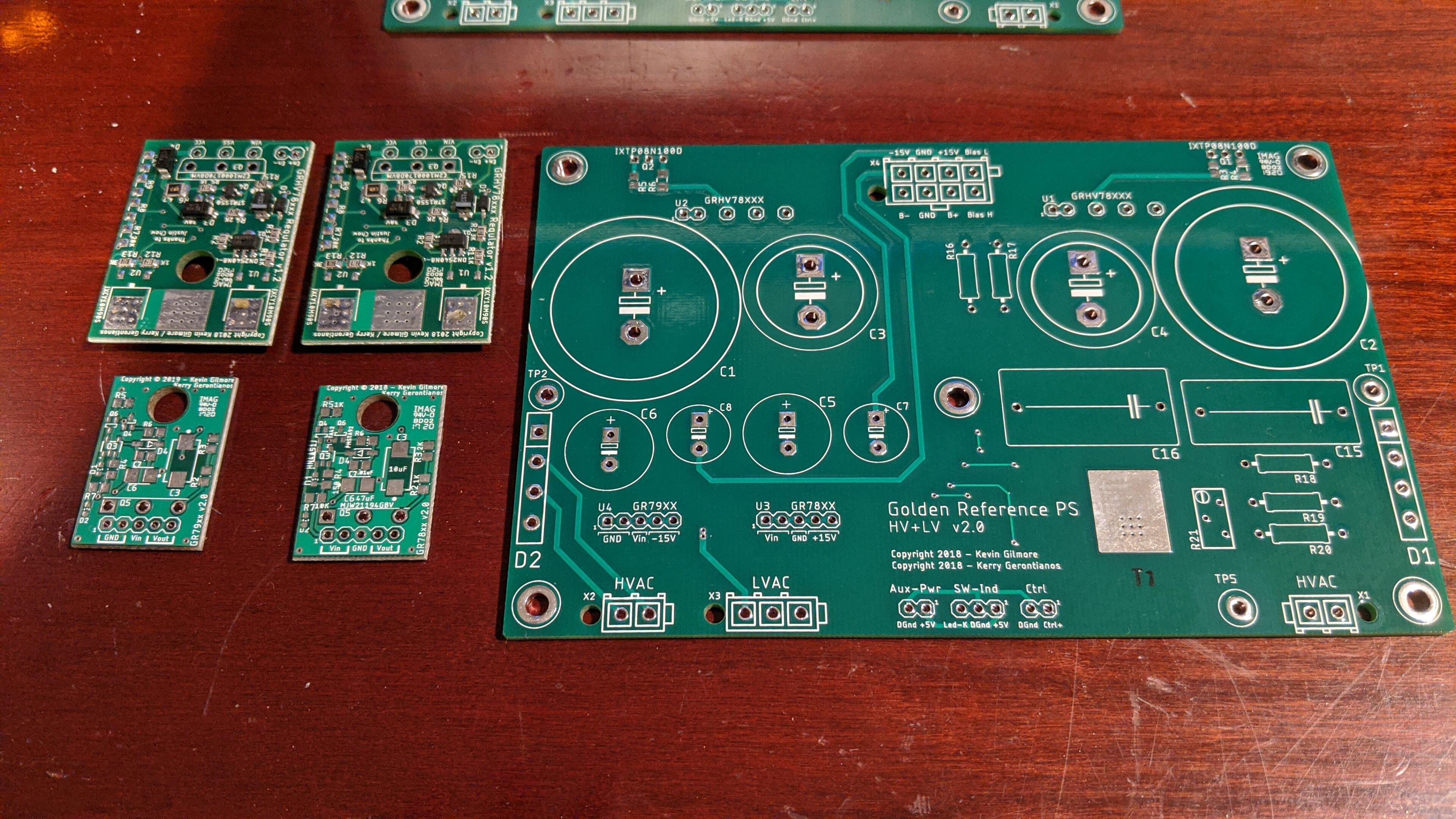

Just received my boards today with the extra 1.6mm PS. Glad I ordered the partially built GRHV78xxx, that's some fine work. Time to order parts and find a toroidal that works for this project. Appreciate your time and careful shipping Michael.







Link to post
Share on other sites

All GB packages have been shipped as of today except for two. One of the two is pending the participant's response to my shipping payment request.

Most of you have PayPal'ed me the shipping cost. Thanks!

For those who have not yet PayPal'ed me the shipping cost please check your PM or PM me.  I have been keeping track but there were 50 packages so may have missed a few. Shipping cost for US address is a flat rate of $8.4 US. For non-US address it depends on the location and weight and I added $1 US for the bubble envelop used.

This GB is now officially closed.

Happy building!

  • Like 1
  • Thanks 4
Link to post
Share on other sites
On 6/8/2020 at 4:37 PM, lkong said:

Got my board!

Thanks for the extra PS board.

I was not able to PM you so had to message you here. Please PayPal me $8.4 US for the shipping cost.



@Orso_Aquilano: please check PM for shipping of your package.

Link to post
Share on other sites
On 3/14/2019 at 2:04 PM, mwl168 said:

I am moving Kerry's mini GRHV\GRLV GB discussion to its dedicated thread here. I also included JoaMat's mini T2 here to see if we have enough interest for a GB.

 BOM:



GR78xx - V2 .xlsx 21.88 kB · 22 downloads GR79xx - V2.xlsx 25.74 kB · 18 downloads



I believe there is a small error in the BOM for the GR79xx. Q2 is stated as "PNP silicon kst42 or MMBTA92" but the kst42 is NPN I believe it should be a kst92, given in the golden reference through hole, the transistor at that position is a PNP AND the MMBTA92 is a PNP.



Edited by jamesmking
  • Like 1
Link to post
Share on other sites

has anyone built a gr78xx and tested it yet? my gr78xx refuses to regulate. 😞

I just finished building 2 gr78xx. tested both for shorts and not connected components. each in turn to a DC power supply, with current limiting set to 50mA, nothing connected to the gr78xx output except a multimeter.

Things started well, D2 just barely started to glow at 1.8V input to the gr78xx, as the input increased D2 glow increased... D1 suddenly started to glow at 16.3V input and the output voltage at this point was 15.088V. Current draw from the dc power supply was around 20mA, no bangs no surprises... but when I increased the input voltage more the ouput voltage just followed it. At 18.26 input the output was 17.073V....

I checked the voltage ref  10.005V between pins 4 and 6. No components feel overly hot. Both gr78xx have been ultrasonically cleaned. Both the gr78xx behave exactly the same way.  On a DC load the output voltage drops with increasing current draw at 250mA the output is 14.58V BUT D1 and D2 remain lit with no change in brightness compared to no load on the output.

 any ideas what could be the problem?







Edited by jamesmking
Link to post
Share on other sites

I did successfully build both GR78 and GR79 using the GB boards.

First of all, you need some capacitance on the output for the regulators to work. That's the first thing I would try.

I did have an issue with GR78 at first and finally figured out I used the wrong part (used HN4A51J instead of HN4C51J). But try adding some capacitance on the output ends first.

  • Like 1
  • Thanks 1
Link to post
Share on other sites
10 hours ago, mwl168 said:

I did successfully build both GR78 and GR79 using the GB boards.

First of all, you need some capacitance on the output for the regulators to work. That's the first thing I would try.

I did have an issue with GR78 at first and finally figured out I used the wrong part (used HN4A51J instead of HN4C51J). But try adding some capacitance on the output ends first.



Thank you for the quick reply

You are absolutely right about the output capacitance. I recreated the golden ref through hole output cap setup of a 220uF and 4.7uF in parallel and that did the trick. D1 now slowly comes on when the input goes above 17.5v and behaves much more like the golden reference through hole and the gr78xx is now happily regulating at 15.014V with no load. At 18.26v the output is now 15.015v. 50mA load the output is down from 15.015v to 15.003V, 100mA output is 14.991V, 200mA output is 14.967V all with 18.26v input and no heatsinking. Switching off the 200mA load the output is straight back to 15.015V.  Playing around a little more regulation works with just the 4.7uF film cap on one of the two boards but results in the other board increasing the output voltage with increasing load! putting back the 220uF caps makes the second board behave like the first with similar voltage drops with increasing current draw.

The silkscreen for the gr78xx says hn4a51j which is a pnp part which is consistent with the through hole golden ref which uses 2x ksp92ta which is also a pnp transistor...

now if i could get more voltage references I could build the gr79xx boards....
